LDS 400 Multiple Destilled Water Machine,Water Destilation Equipment/Water Treatment Equipment Pharma Grade
- Category: Other Pharmaceutical Machinery >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1090765434):
Product Overview
Description

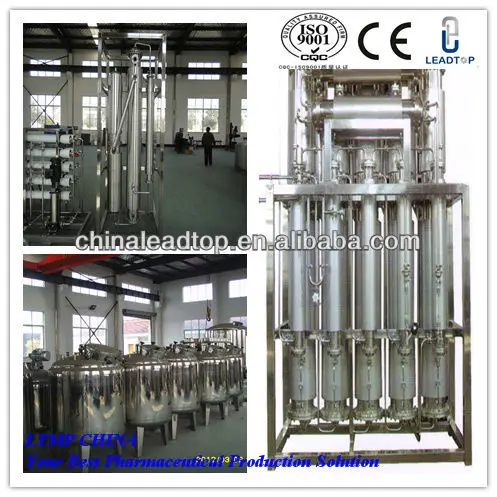

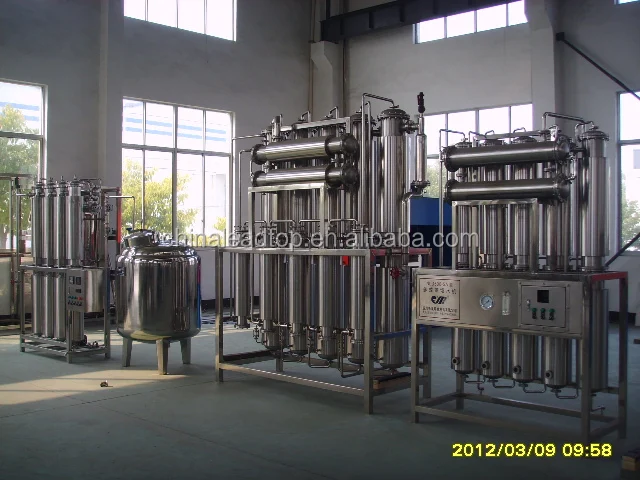

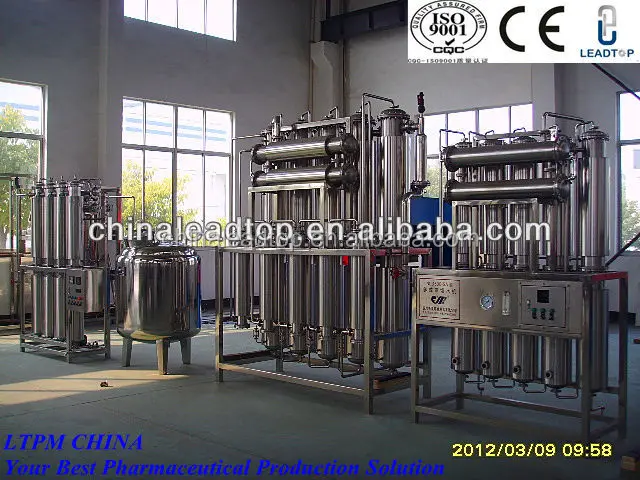

LDS-400 Multiple Destilled Water Machine,Water Destilation Equipment/Water Treatment Equipment Pharma Grade
Product Description
This machine is produced by the fetched in Italian STILMAS multi-effect distillatory original technique. This machine belongs to the international advanced level on the middle and later of 90s. The control methods can be divided to manual, PLC auto and full Auto. The capacity of the Series machines can be 300-5000L/Hour
Feature
1.This machine uses double tube board in case that several material pollute mutually.
2.Seal structure is reasonable. The most parts are connected with flange to prevent leak.
3.The five effect machine uses little cooling water. The six effect machine does not need to use cooling water.
4.It has big designing pressure (0.88Mpa), long use life expectancy and big water output. 5.If the steam pressure is relatively big.
6.The effect of saving energy and water is very notable. Because if uses new technique, its heat exchanging effect is very notable. Comparing with other types, it can save 20% of energy. Because it uses little or does not use cooling water, it can save about 15% water.
Technical Data
Model No. | LDS400-5A |
Boiler Steam pressure | 0.3Mpa |
Output of distilled water | >400L/H |
Consumption of the steam | ≤150Kg/L |
Raw Water consumption | ≤450L/H |
Consumption of the cooling water | ≤300L/H |
Overall Dimension | 1800*1000*3100mm |
Total Power Supply | 0.75Kw |

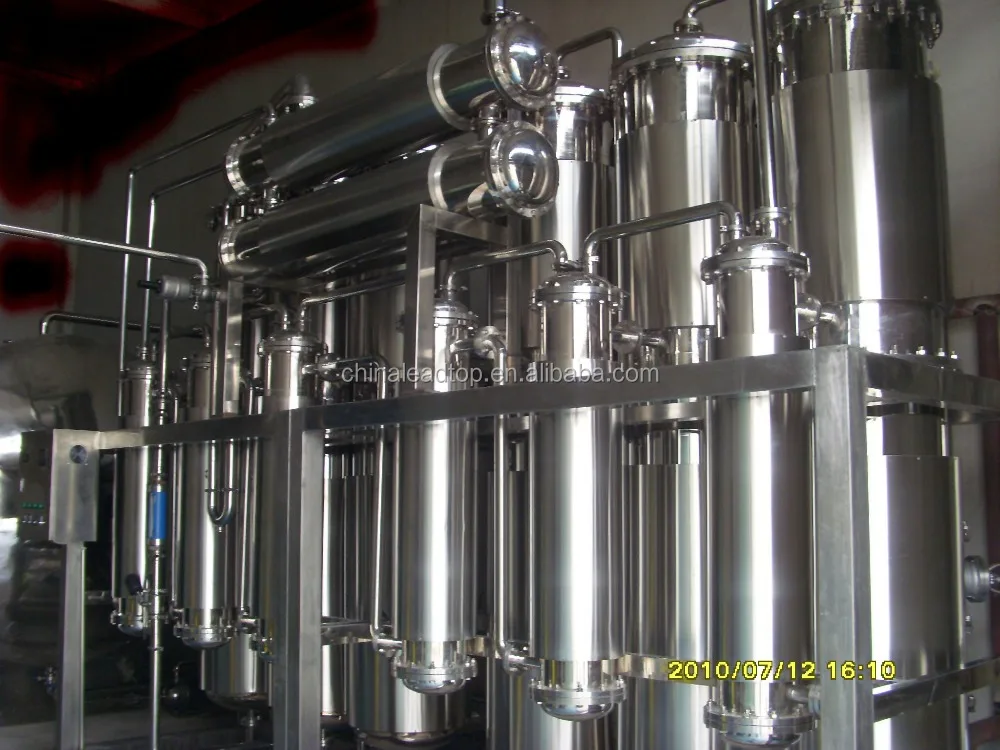

Machine Details
Our Services
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
