Product Overview

Description


Modular Clean Room Partition Wall and Ceiling System

Modular construction, Easy and fast to install; Full flush system, wall to wall, wall to floor, wall to ceiling radius corners. High quality and strong surface finish.



HM HPL series High Class HPL Paneling System( Melamine High Pressure Laminates)

nHigh density and hardness, High resistance to scratches and abrasion

nHigh resistance to impact, bump, No dents

nGood resistance to humidity, water and steam.

nResistance to fire and low smoke density,  Class B or A

nCleanable with all major cleaning agents and detergents.

nNo paints and Non corrosive, No peel off dust and rust.

nNo microorganism growth, anti-bacteria, antistatic properties

nA long life time, maintenance free



HPL Sandwich Panel Specification:

-Double sides HPL sheet Skin,    HPL skin thickness: 4mm, or 3mm

-Surface is smooth flush,  Fire resistance is class B or A.

- Standard Color: white/ivory.    Various colors for choose.

- Panel standard thickness : 50 mm,   Can custom-made 100 mm thickness.

-Panel standard width: 1200mm ,

 Panel standard length: 2400mm, 3000mm

-Insulation core material: TPS, EPS, PU, AH etc various material can be chosen.

-Supporting frame: 4 sides aluminum profile rimmed.





                 HM PCR series Modular PPGI Paneling System

Modular flush system:  flush with walls, windows, doors.

Steel skin in two sides:  Pre-Painted Galvanized Iron sheet.(PPGI)

   Standard Thickness: 0.5mm,   0.6mm as optional

Sandwich panel thickness: standard 50mm,  100m as optional choice.

Panel Width: 1180mm, 980mm, Panel Length: 2400mm, 3000mm.

Steel frame in four sides, a strong supporting.Joint by “ +” bar .









HM ECR series Eco type PPGI Paneling System

Sandwich panel thickness: 50mm.

Panel Width: 1180mm, 980mm, Panel Length: 2400mm-4000mm.

Steel skin thickness: 0.476, 0.426, or 0.376mm

No steel frame in four sides,   Joint by male & female type.

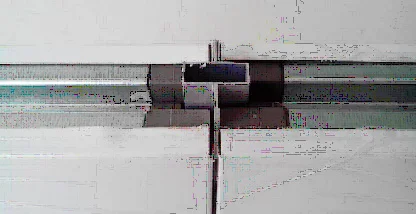

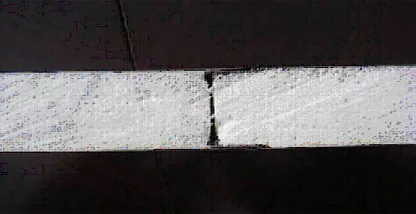

 -1.jpg        -2.jpg

  "+" bar joint                                                                          male/female joint

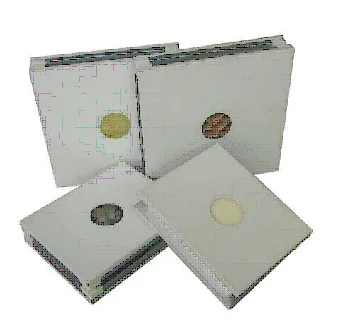

Insulation Core Materials:






Density

Fire resistance

Thermal conductivity

Thermal-setting Polystyrene(TPS)

30-40kg/m3

class: B, A

0.030-0.036 W/mK

Expanded Polystyrene(EPS),

12-15kg/m3

class: E, D

0.035-0.040 W/mK

Rock Wool/(RW)

100-120 kg/m3

class: A

0.037 -0.050W/mK

Polyurethane Foam(PU)

35-40 kg/m3

class: E, D

0.022-0.028 W/mK

Polyisocyanurate Foam(PIR),

40 kg/m3

class: B

0.018-0.026 W/mK

Aluminum Honeycomb(AH)

35 kg/m3

class: A

0.045-0.056 W/mK

Paper Honeycomb(PH)

12-18 kg/m3

class: B

0.040-0.050 W/mK



 False Ceiling Panel

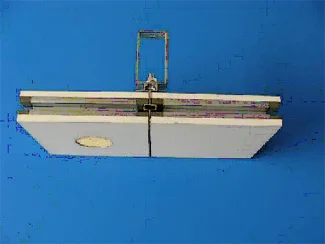

 -4.jpg                             -5.jpg







                                               Walkable  ceiling                                                                      Non walkable ceiling



Ceiling panel connection: Concealed “H” type hanger system  for walkable ceiling.  Or by unconcealed T grid hanger system for non-walkable ceiling.
