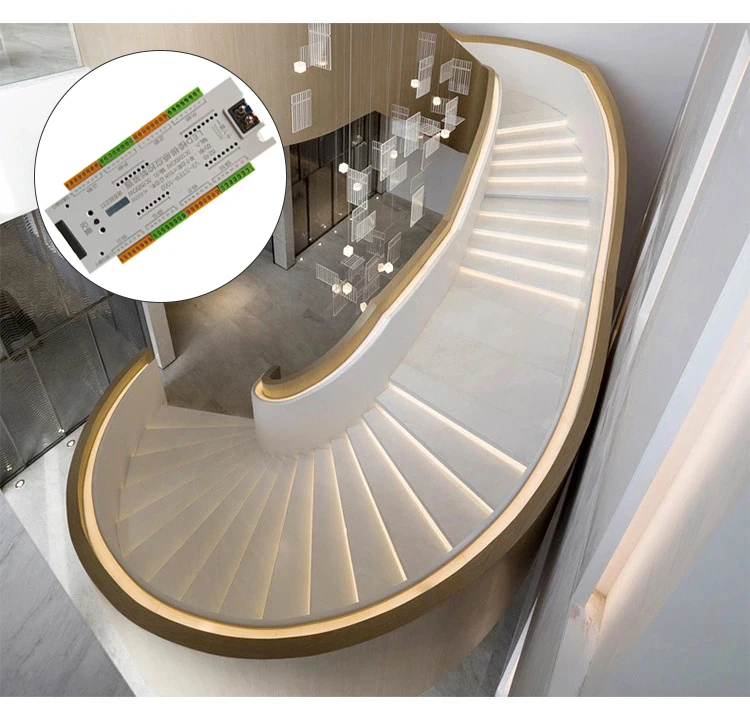

Smart Stairs led control system for stairway automatic step lights Human PIR sensor stair lighting controller with motion sensor
- Category: Dimmers >>>
- Supplier: Wuyishan Yhint Photoelectric Technology Co. Ltd.
Share on (11000000286853):
Product Overview
Description
Product Description

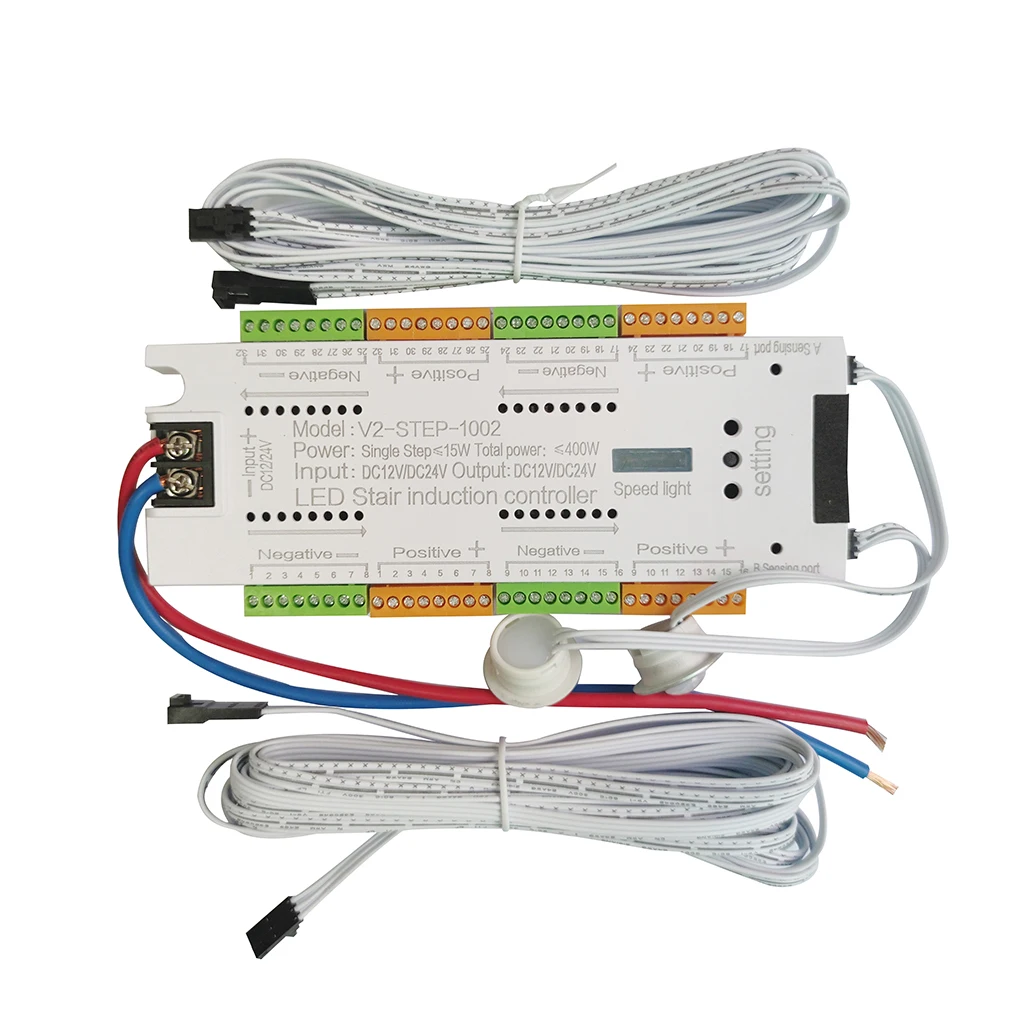

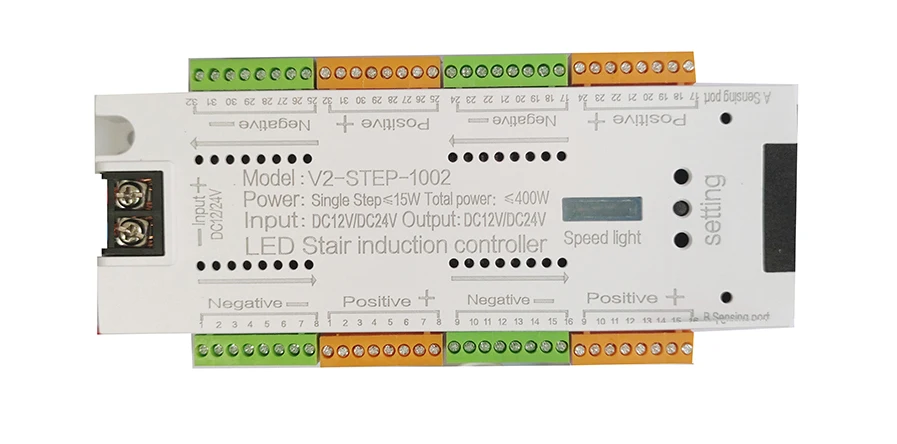

led stair lighting controller
Specifications
Name: Step LED light controller
Speed: 5 speed levels
Power: 400W max
Input：DC12V-DC24V
Output:DC12-DC24V
Steps control: 32 steps at most
Size: 185*80*20mm
Name: Step LED light controller
Speed: 5 speed levels
Power: 400W max
Input：DC12V-DC24V
Output:DC12-DC24V
Steps control: 32 steps at most
Size: 185*80*20mm

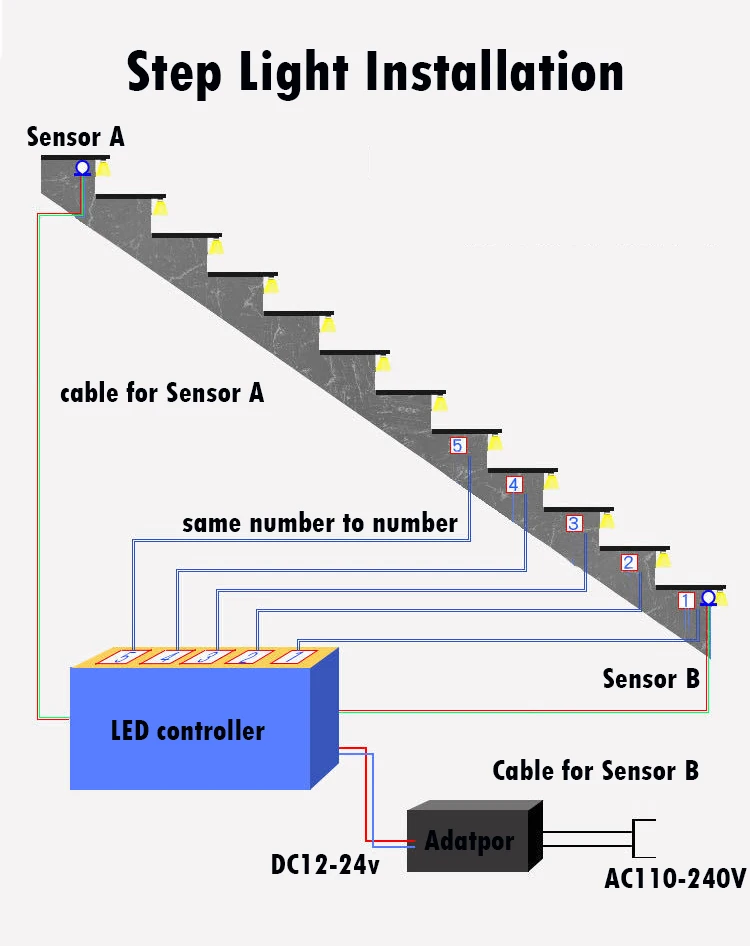

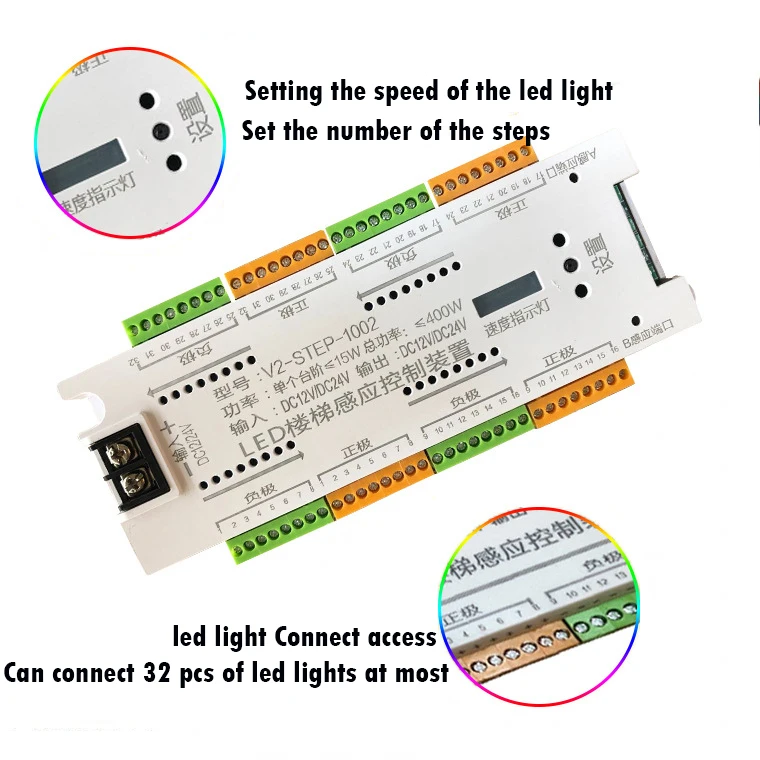

INSTALLATION

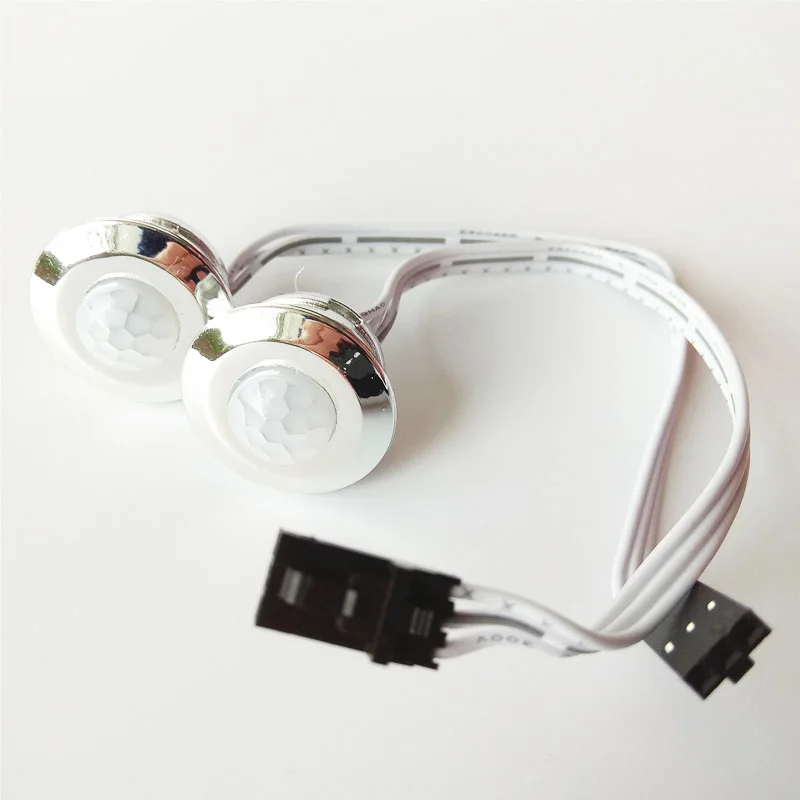

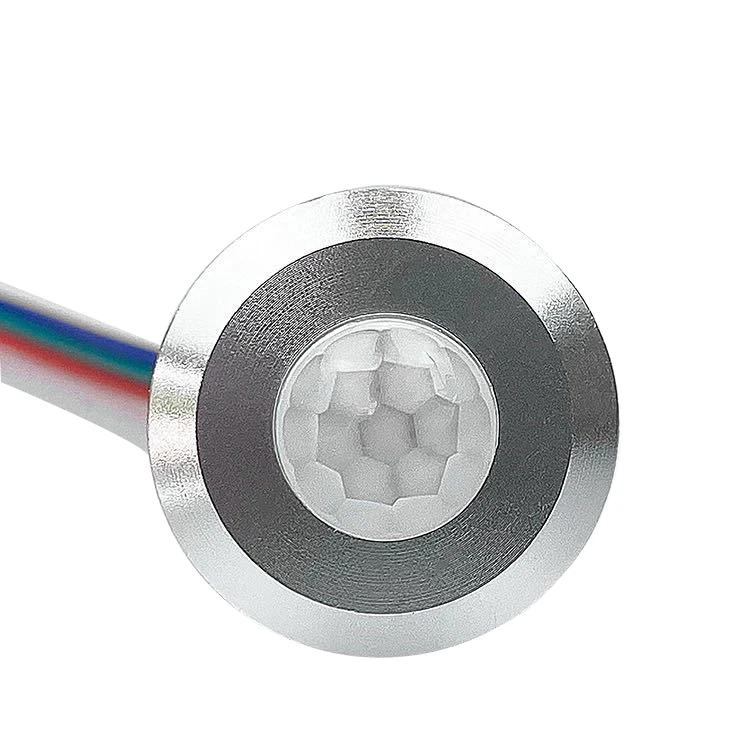

Adaptor supply power to the sensor, controller and then every led light. Install the led liht accordingly to the order of the steps. such as, first step light connect to Number "1", second step light connect to Number "2" and so on. At last, put the sensor to the place where the people can be sense easily. One sensor at the bottom of stair and another sensor at the top of the stairs.
Notes:
1>> When connect led light to controller, please install in correct order.
2>>The controller can be installed in the invisable place.But make sure better lighting effect, please put the sensors at the place where the sensor can sense people easily. Suggest the access of stair stars.
3>> Please make sure the led lights are connected in correct polar, Red cable is positive and blue cable is negetive.
4>> It can not work with High voltage directly.Please use adaptor of DC12-DC24v to help for the connection,
5>> Suggest install the cables inside before decoration, then only led light need to be added future.
6>> Please put one sensor in each end of the stair, one top, one bottom.
2>>The controller can be installed in the invisable place.But make sure better lighting effect, please put the sensors at the place where the sensor can sense people easily. Suggest the access of stair stars.
3>> Please make sure the led lights are connected in correct polar, Red cable is positive and blue cable is negetive.
4>> It can not work with High voltage directly.Please use adaptor of DC12-DC24v to help for the connection,
5>> Suggest install the cables inside before decoration, then only led light need to be added future.
6>> Please put one sensor in each end of the stair, one top, one bottom.
REAL PICTURES
Before
Install cables before house decoration

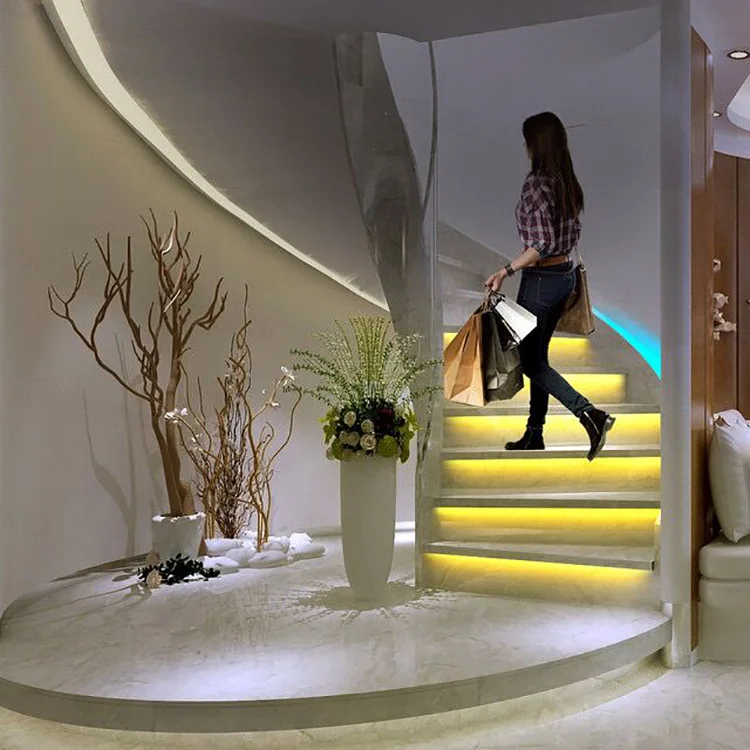

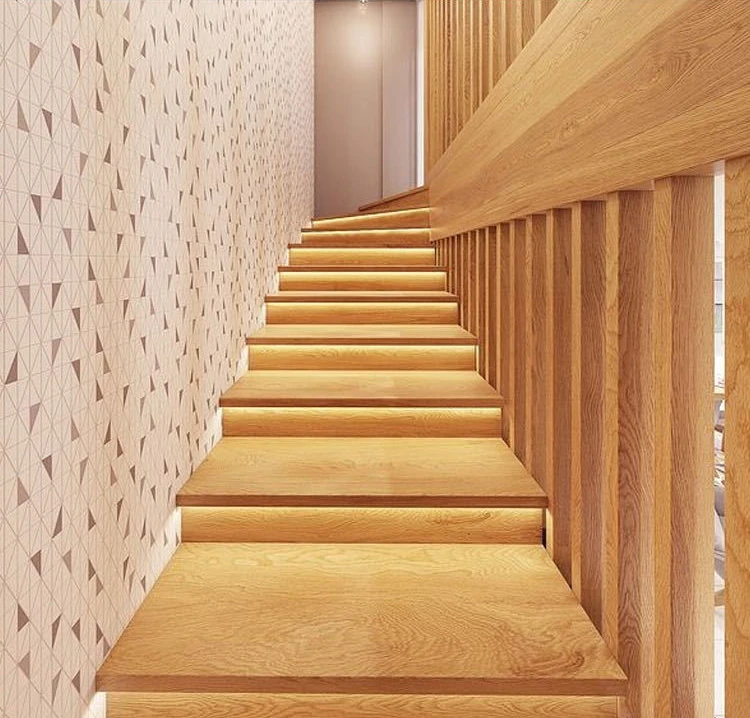

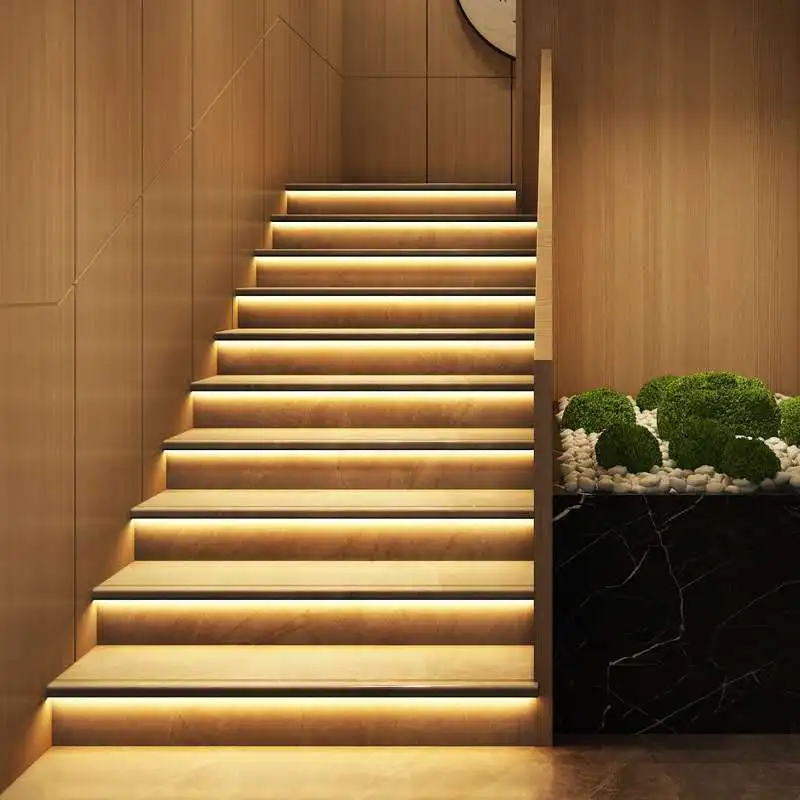

After
Install the led light to the stairs
There are 5 kind of controllers available now as details followed.

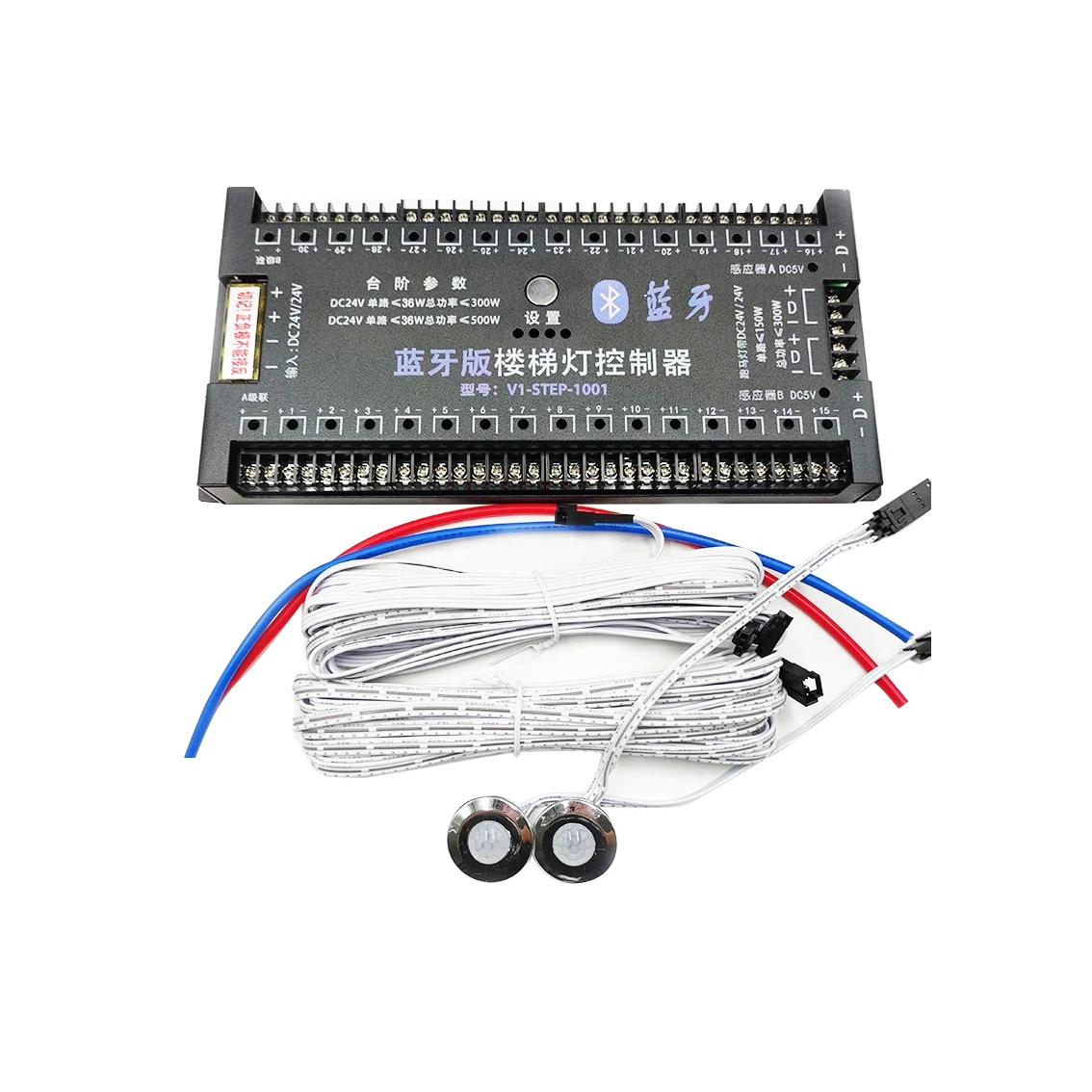

B. Phone setting controller, except all the functions of manuel setting, the light can be set via app in wechat, there are 6 lighting mode. Besides, it can accept 2 racing lights and the color of the racing led light can be changed.

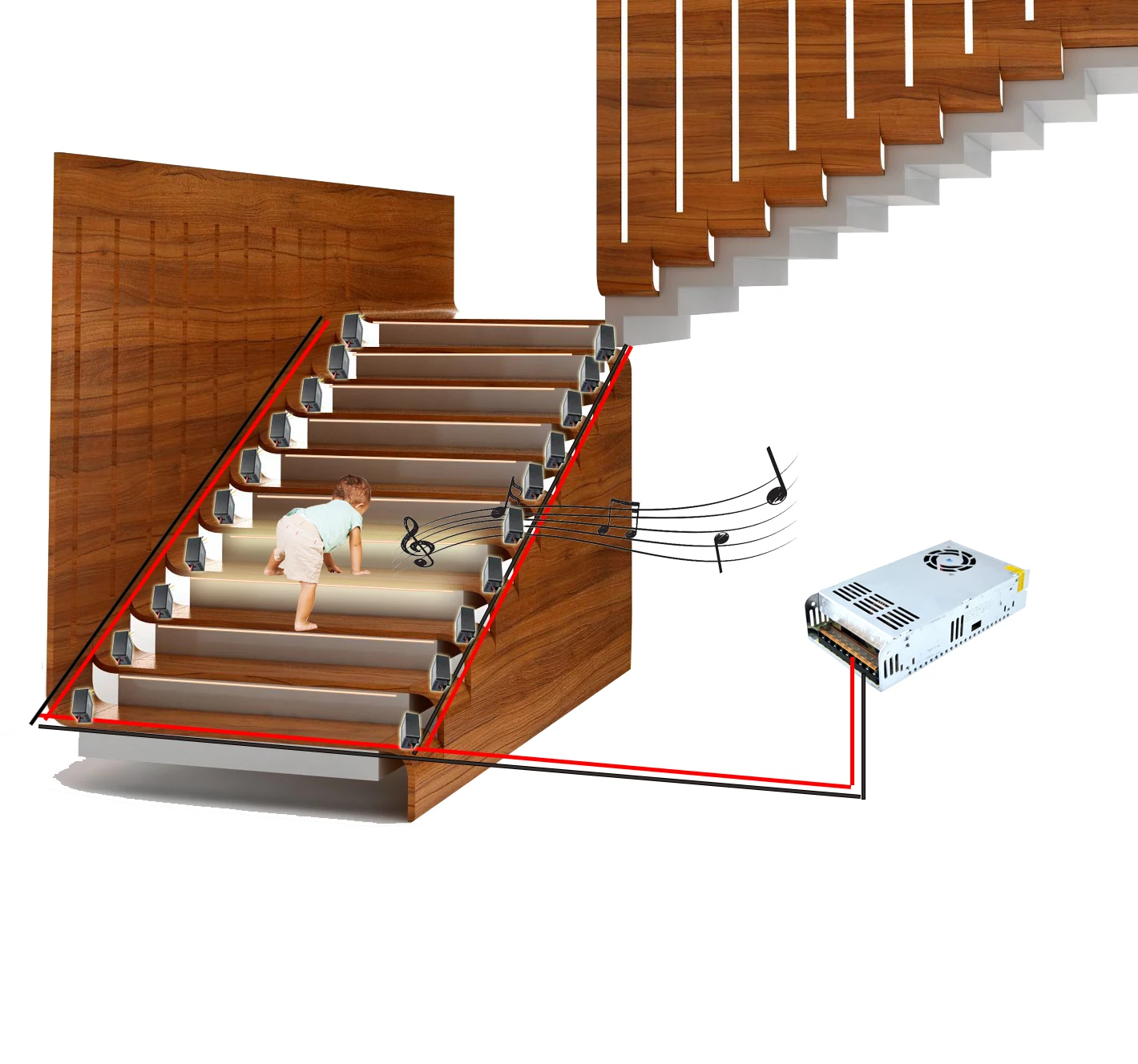

C. Single step controller, there are 10 steps, then need 10 controllers. The stair light will light up where people stand, if people don't move, then light no move. Besides, there is a speaker, when set with music, people walks on step seems like they are playing music.
D. Controller which can accept racing led light only. It can accept 2 racing led light.
A. Manuel setting controller with 32 step lights, single light mode. The light color and light change speed can be changed.
B. Phone setting controller, except all the functions of manuel setting, the light can be set via app in wechat, there are 6 lighting mode. Besides, it can accept 2 racing lights and the color of the racing led light can be changed.
C. Single step controller, there are 10 steps, then need 10 controllers. The stair light will light up where people stand, if people don't move, then light no move. Besides, there is a speaker, when set with music, people walks on step seems like they are playing music.
D. Controller which can accept racing led light only. It can accept 2 racing led light.
E. Manuel setting controller with 32 step lights+ 2 racing led light. it is single light mode. The light color and light change speed can be changed.
If need more information or have question, please contact us freely,
sales@yhintled.com, Wechat: 285528659, whatsapp: +86 15959923600.
