Product Overview

Description

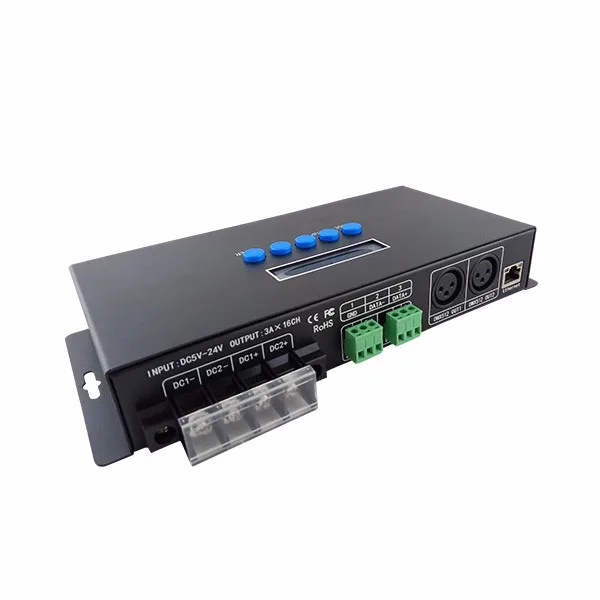

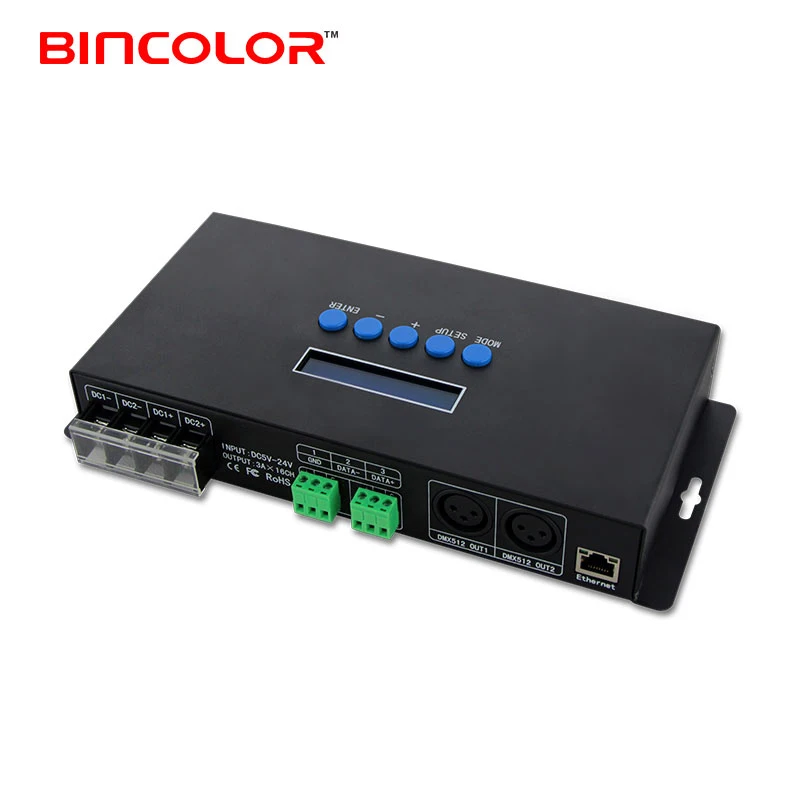

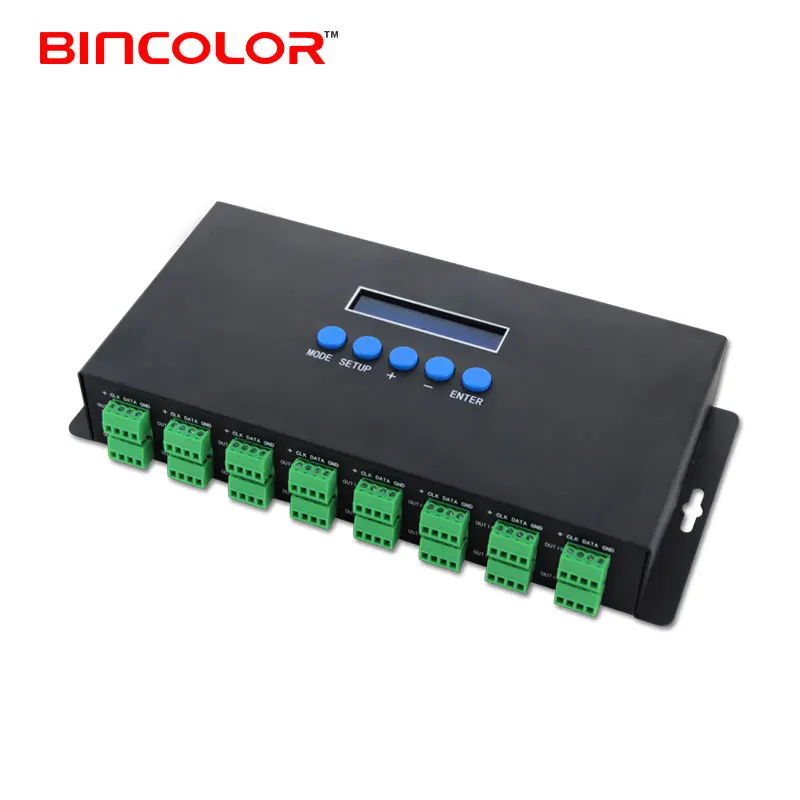

    This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.


    This software have 2 versions V1 and V2 , V1 version is with Artnet protocol , V2 version is with Artnet and sACN E.1.31 protocol. Notice: The factory software of V1 can't be upgraded to V2 software, but factory software of V2 can be upgraded to V1 software.





Basic Features:


1. With LCD display and built-in WEB SERVER setting interface, easy operation.


2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.


3. Multi SPI (TTL) signal output, up to 5440 pixels control.


4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.


5. Support various LED driving IC, flexible control.


6. Support online firmware upgrade.


7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.


8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.


Click here to send us your enquiry!!!






Product Description







Specifications














































Model



BC-216



Working Voltage



DC5-DC24V



Output Current



3A X 16CH(Built-in 5A fuse)



Input Ethernet control protocol



ArtNet



Output Control IC



2811/2801/6803/3001/8806/9813/APA102/TM1814/SK6812 Series



Control Pixels



RGB:340 Pixels X16CH   RGBW:256 Pixels X16CH



Output DMX512



Two port(2X512 Channels)



Working Temp



-20~55℃



Product Dimension



L258×W145×H41(mm)



Weight(G.W)



1100g






Changing patterns:







WIRING DIAGRAM
