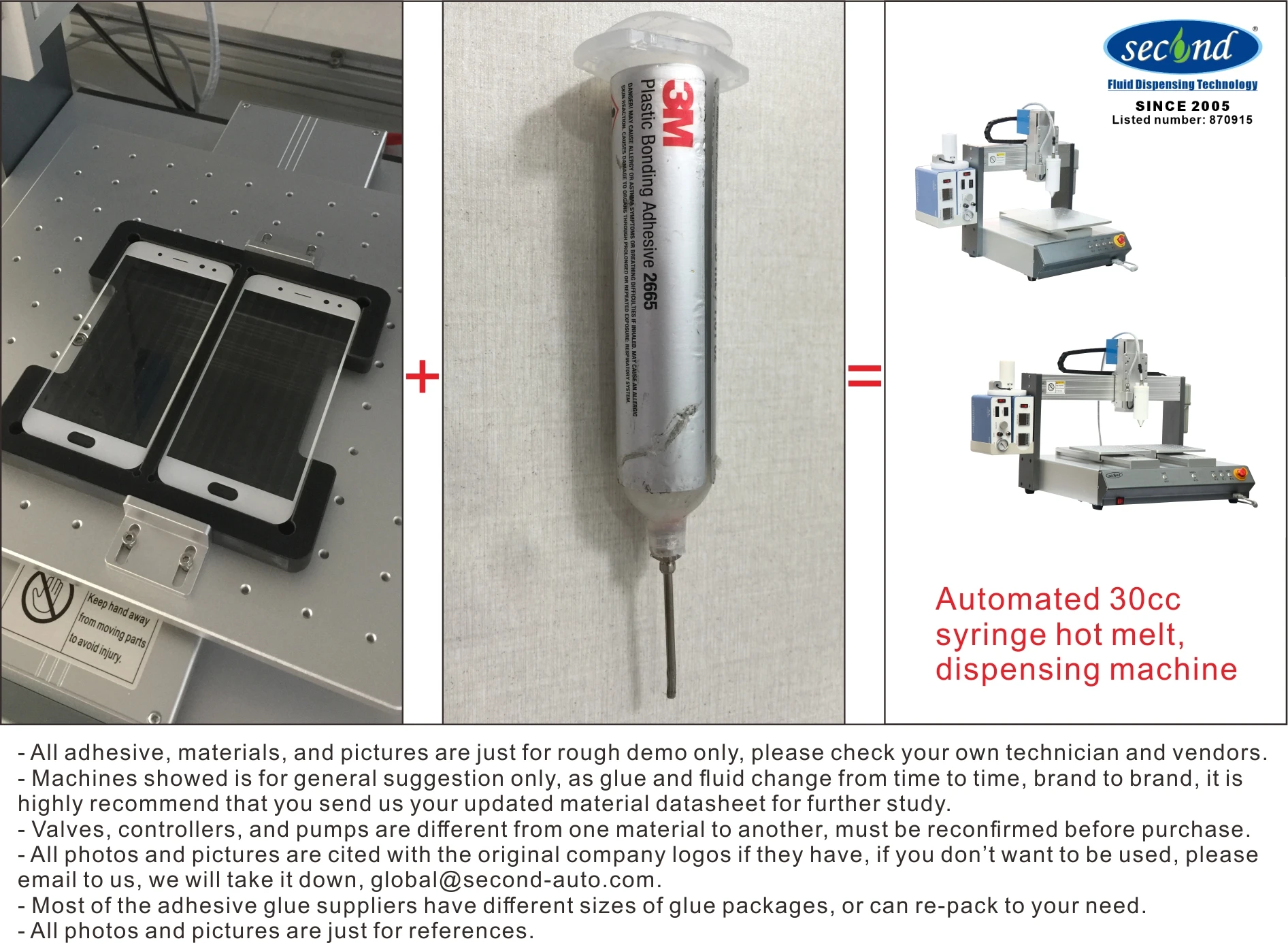

CE certified 3 axis desktop automatic hot melt glue dispensing machine
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (11000000301330):
Product Overview
Description
Model | SEC-200EDN | SEC-300EDN | SEC-400EDN | SEC-500EDN | |||
Work Area | 200(X)X200X(Y)100(Z) | 300(X)X300(Y)X100(Z)mm | 400(X)X400(Y)X100(Z)mm | 500(X)X500(Y)X100(Z)mm | |||
Size | 390(L)*424(W)*560(H)mm | 490(L)*528(W)*679(H)mm | 590(L)*628(W)*679(H)mm | 690(L)*728(W)*679(H)mm | |||
Y/Z(Max load) | 7kg/3kg | ||||||
Travel speed | 400mm/sec(XY)/200mm/sec(Z) | ||||||
Drive mode | Stepping motor + belt + precise linear guide rail | ||||||
XYZ Repeatability | ±0.025mm | ||||||
Resolution | 0.01mm | ||||||
Program capacity | 999 parameter files, 65535 points per file | ||||||
Operation system | LCD panel /Teach pendant | ||||||
Motor | micro stepping motor | ||||||
Movement pattern | 3 axis point to point, continuous line, arc | ||||||
I/O Signal ports | 4 inputs/4 outputs | ||||||
Power supply | AC220V 50/60Hz 0.5kw | ||||||
Work environment | Temperature 0-40℃;relative humidity 20-90% | ||||||
Weight | About 25kg | About 35kg | About 45KG | About 55KG | |||
Main configurations:
Title | Unit | QTY | Remark | |
Motor | kit | 3 | Micro stepping motor | |

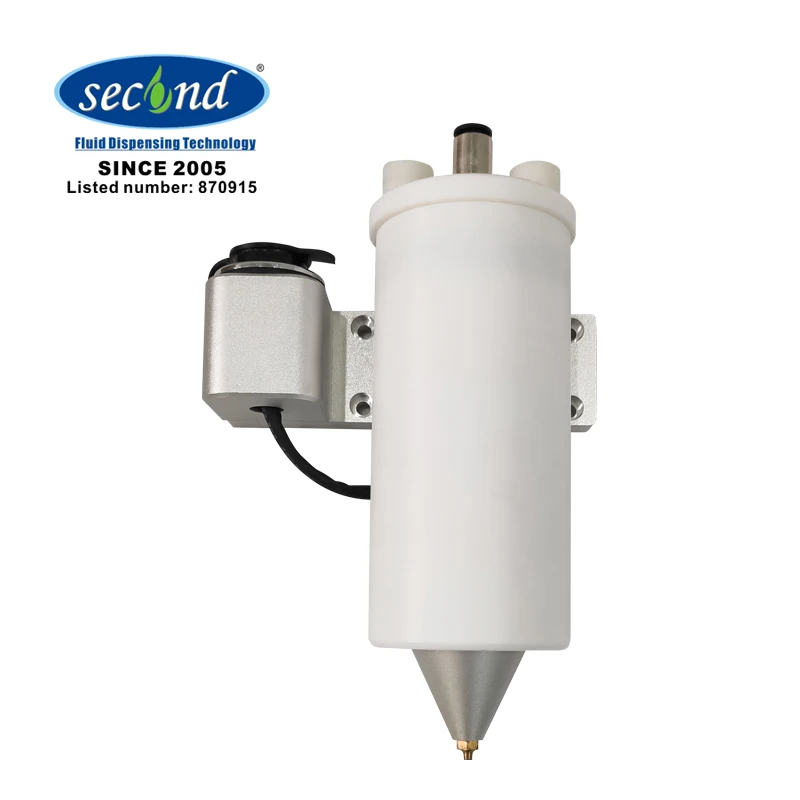

Hot melt adhesive heating device | set | 1 | 30ml | |
Hot melt adhesive preheating device | kit | 1 | 30ml | |
Movement controller | kit | 1 | Second | |
Automatic dispensing software | kit | 1 | Second independent R&D | |

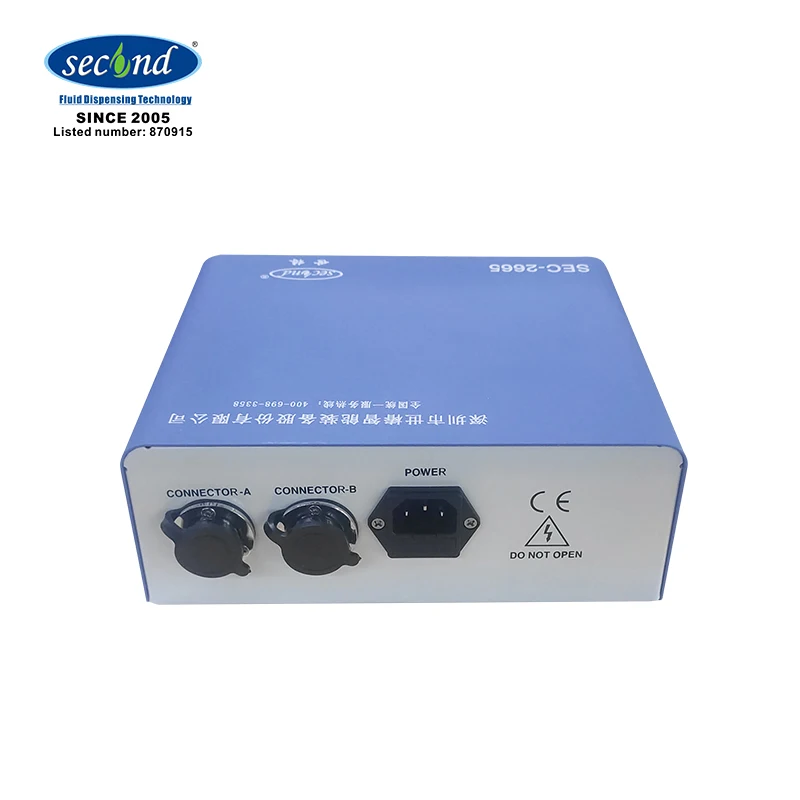

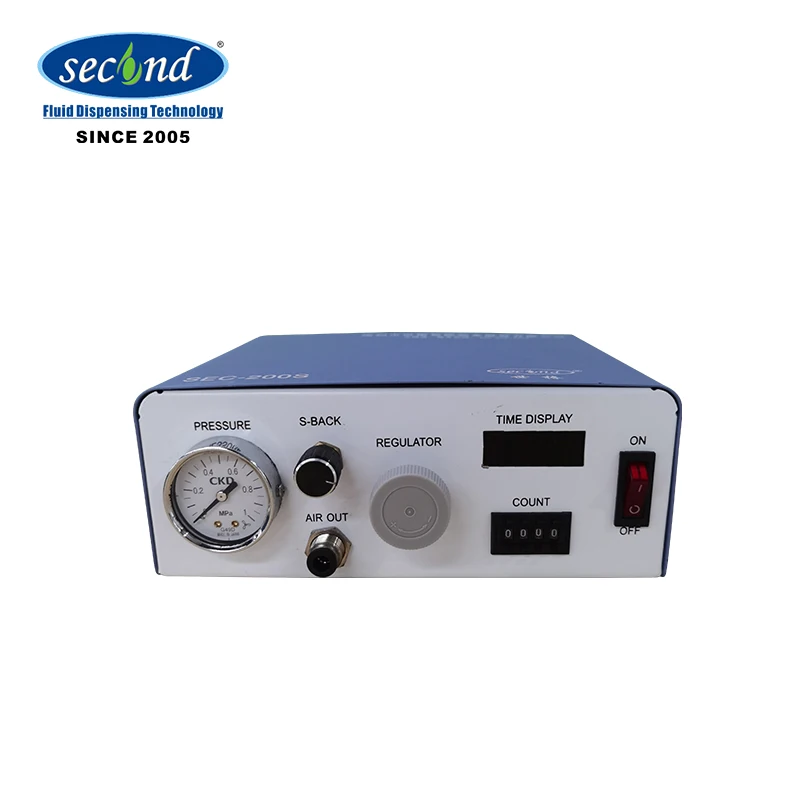

Precise dispensing controller | kit | 1 | SEC-100T or SEC-200S |
Second Intelligent Equipment was found in 2005. The factory is able to provide total solution for industrial adhesive glue dispensing, and potting automated machines, e.g. desktop, stand-alone, inline, and robot dispensers.
Second Intelligent is support by strong engineering teams (software, hardware) since the beginning of the company’s establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware, CNC, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the SECOND, because we believe customer is the FIRST.
* Two component machines’ production floor.
* EMS, SMT solution machines’ production floor. * Automated desktop machines’ production floor.
* PACKAGING
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.
If container is too tighter, we will use PE film for packing or pack it according to customers special request.
Q: Are you trading company or manufacturer ?
A: We are direct manufacturer.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of packing?
A: Generally, we pack our goods with proper wooden box. However, if client has special requirement, we can customize.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of payment?
A: Depends on terms and conditions, negotiable.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your terms of delivery?
A: EXW, FOB, CIF…
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: How about your delivery time?
A: Generally, 2-3 weeks after received deposit…
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Can you produce according to the samples testing?
A: Yes, we can produce according to the tested result. We can also produce base on your design.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: What is your sample policy?
A: When inquiry through Alibaba, we provide free sampling and test report. After tested, we can send back the sample for approval.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit ;
A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
