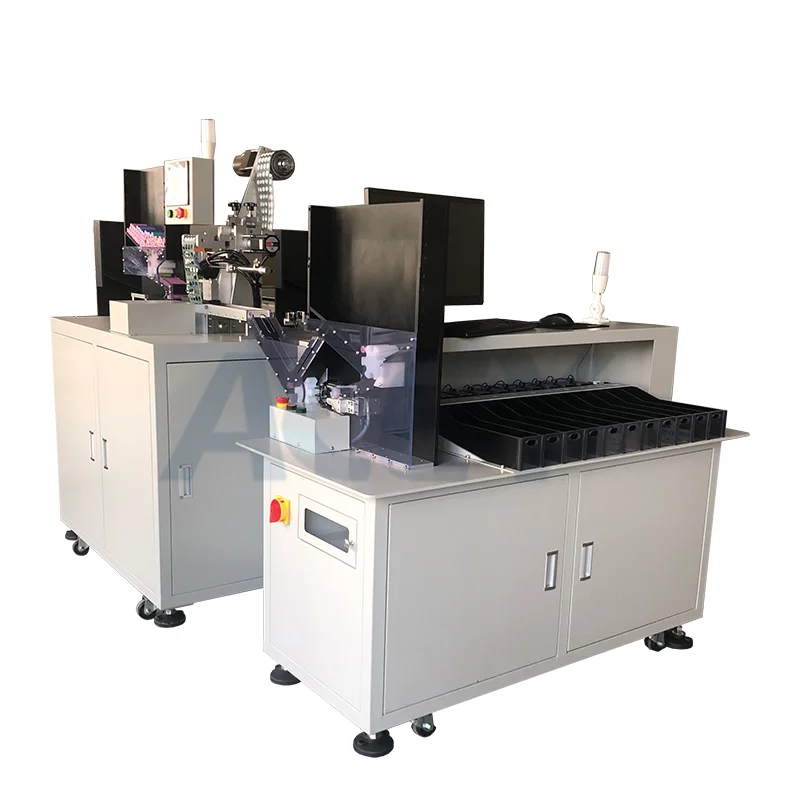

Automatic Stick And Sort Test Cell Equipment Auto Sorter Battery Machine For Battery Pack







ACEY-SS11 is an automatic device for 18650/32650/26650/21700 batteries to sorting and sticker. The machine is connected the sticker machine and sorting machine into a whole to realize fully automated production, improve efficiency and save labor.





*The equipment has a compact structure design, beautiful appearance


*Equipped with universal movable casters, which makes it easy to move and transport the equipment.


*The system performance is stable.



























































































































Product Name

Multifunction 2 in 1 insulation paper sticker and sorting machines

Model No.

ACEY-SS11

Sticker Machine

Voltage Supply

single-phase ~ 220V, 50Hz

Rated power

2KW

Surface pad material

highland barley paper or PVC material

Material specification requirements

the max diameter of barley paper roll material is 350MM,
the inner diameter of paper roll core is 72-75MM

batrery type

18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material

Feeding method

insert battery cell hopper: 400pcs each time, available for 2 separate inserting units

Pneumatic pressure

0.4-0.8Mpa barley paper machine

Cushioning power

electric or pneumatic

Control device

7.5 inch touch screen, PLC programmer and servo motor

Barley paper roll width

100mm

Speed

4000-4500PCS/hour, 4PCS per punch

Dimensions

L1000mm×710mm×1500mm

Machine weight

200Kg

Knife mold

slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water

Sorting Machine

Equipment power supply

single-phase ~220V±10%/50Hz±10%, power <300W

Battery Types

18650(other sizes available)

Receiving channel

10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.

Test parameters

AC internal resistance, DC voltage

Internal resistance test

Test range: 80m,

Accuracy: ±0.5%rdg

Display resolution: 0.01m

Voltage test

Test range: 8V

Accuracy :±0.015%rdg,

Display resolution: 0.01mV

Sorting speed

6000 pieces/hour

Unwinding channel

400 batteries can be stored

Display result

5.7 inch LCD screen + PC synchronous display + industrial computer

Weight

<300Kg
