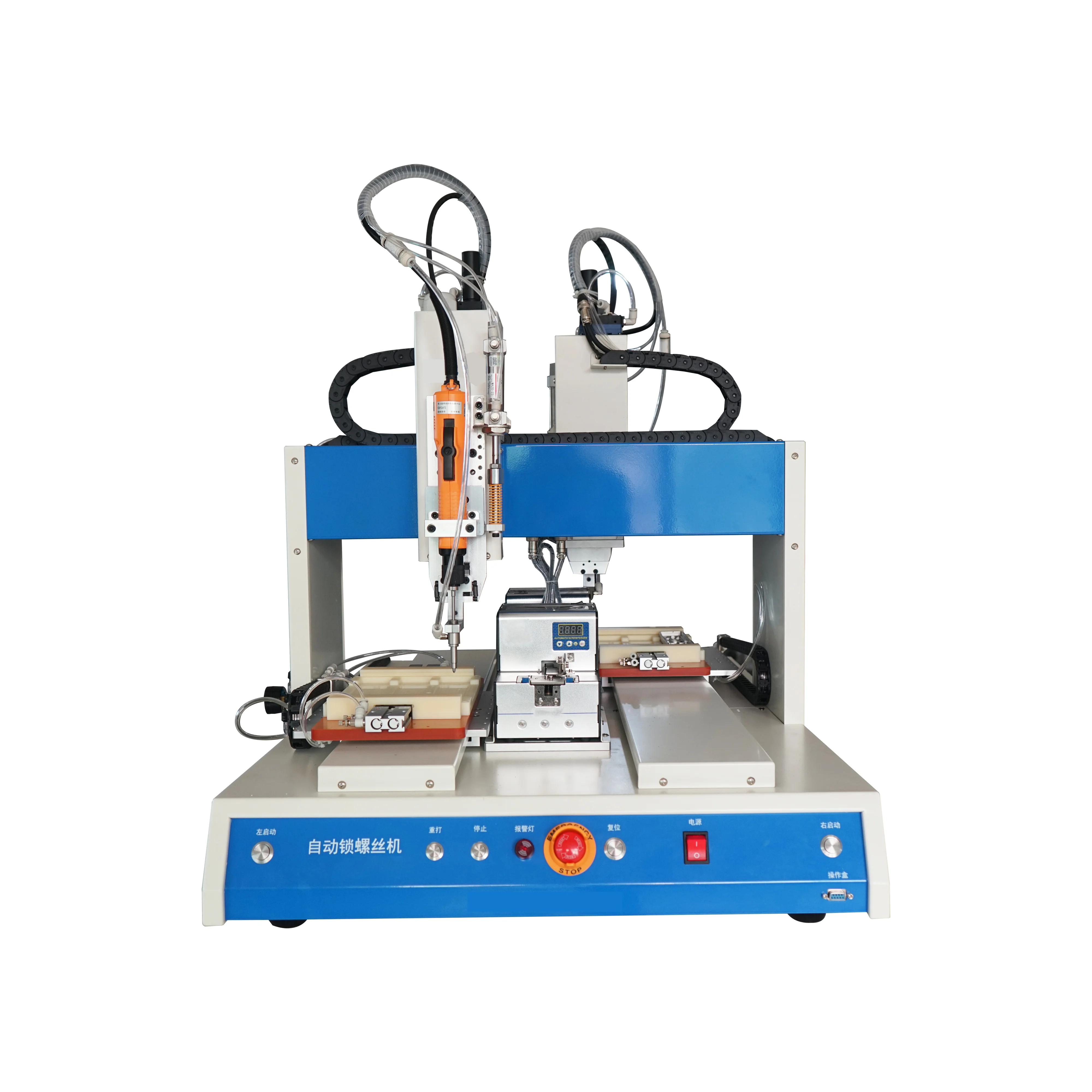

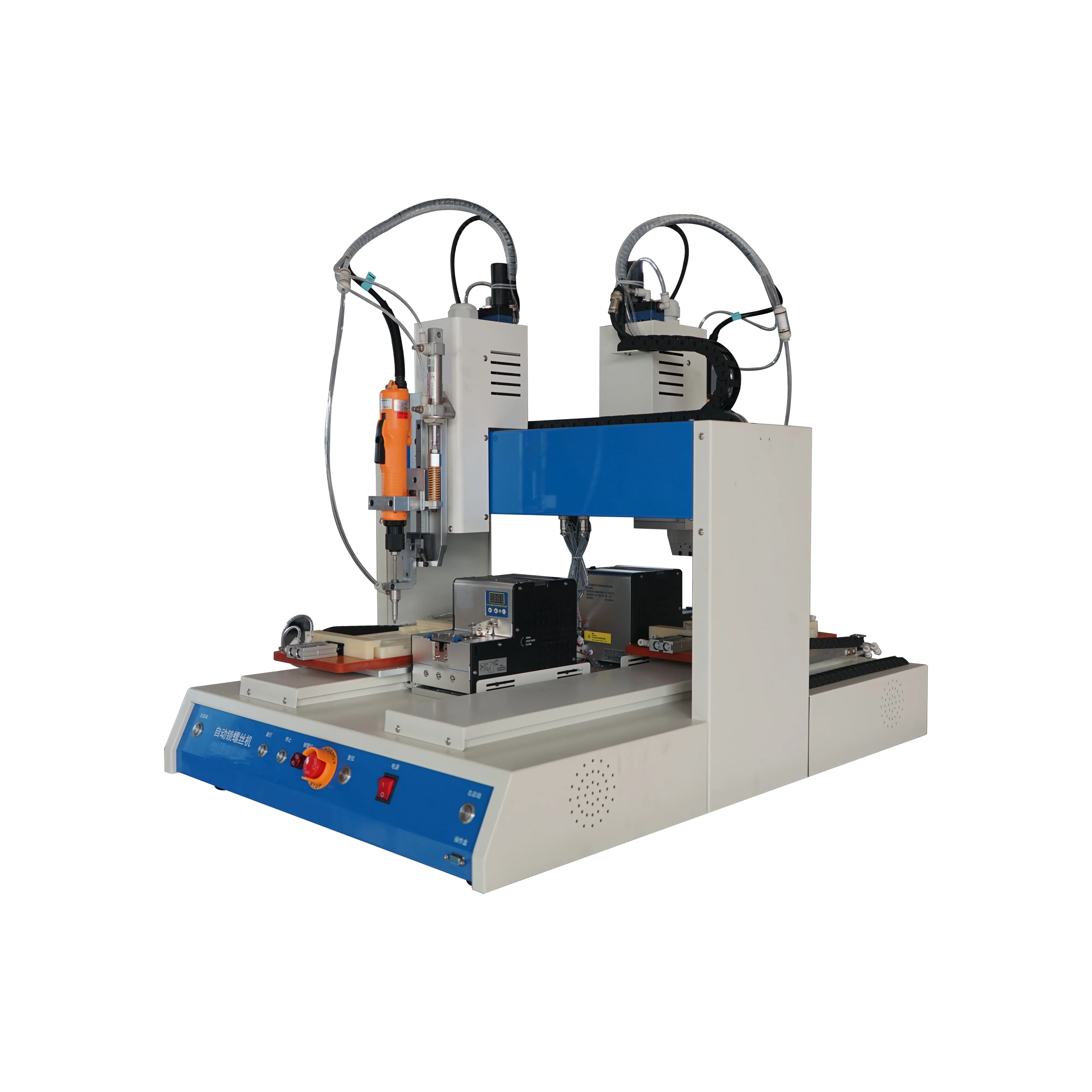

LED PCB Board Tablets Laptop Screwdriver Machine Automatic Locking Screw Machine With Double Locking Head and Double Platform
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Dongguan,Jinxiang,Automation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Display
The Product Description
Automatic screw locking machine, as an intelligent equipment replaced the people operation, has been widely used in small household appliances, electronic products, instruments, LED, communication, mobile phones, tablets, Laptop, keyboard and other production and assembly industries of screw locking operation
It is mainly composed of screw automatic supplying system, axes movement platform, control system and locking/fasten system. The work efficiency is much higher than the traditional manual work.
Automatic robot screw tight machine is with various types: single platform, double platform, screw feeding system has two mode of single screw feeder and double screw feeder, the screw feeder has two mode of blowing and suction to meet different product requirements. The automatic robot screw locking machine programmed by teaching pedant for easy operation with detection function as leak lock, sliding teeth, floating lock and so on.
It is mainly composed of screw automatic supplying system, axes movement platform, control system and locking/fasten system. The work efficiency is much higher than the traditional manual work.
Automatic robot screw tight machine is with various types: single platform, double platform, screw feeding system has two mode of single screw feeder and double screw feeder, the screw feeder has two mode of blowing and suction to meet different product requirements. The automatic robot screw locking machine programmed by teaching pedant for easy operation with detection function as leak lock, sliding teeth, floating lock and so on.
The machine features
1.Equipped with a manipulator on back side, once the products after completion the screw locking, then it will be automatically taken out through the rear manipulator and placed on the production line.2.Intelligent. The machine with intelligent detection function, can detect missing lock, float lock, sliding teeth, etc.

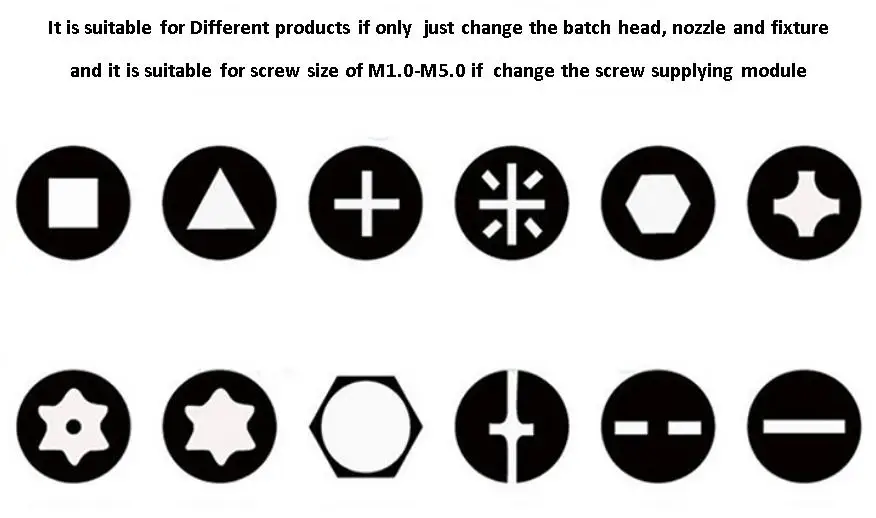

3.Wide universality, it can adapt to M1.0-M5 screw locking if replacement screw supplying module.
4.Strong flexibility, equipped universal fixture for a variety of machine types of screw locking.
5.Double platform design can be alternated operation automatically, no machine was down , make the operation high efficiency.
6.High efficiency, because it is completely eliminate hand, scrap screw, movement, screw on the screwdriver, no waiting time, just to be on the screw holes position to lock the screw, especially suitable for mass production.
7.Screw feeder using the latest turntable structure, high feeding reliability, never block screws, maintenance free.
8.Through the design of two screw lock head and two work platform in front side and back side on the machine, then realize lock two different specifications of screws in one machine.
Specification

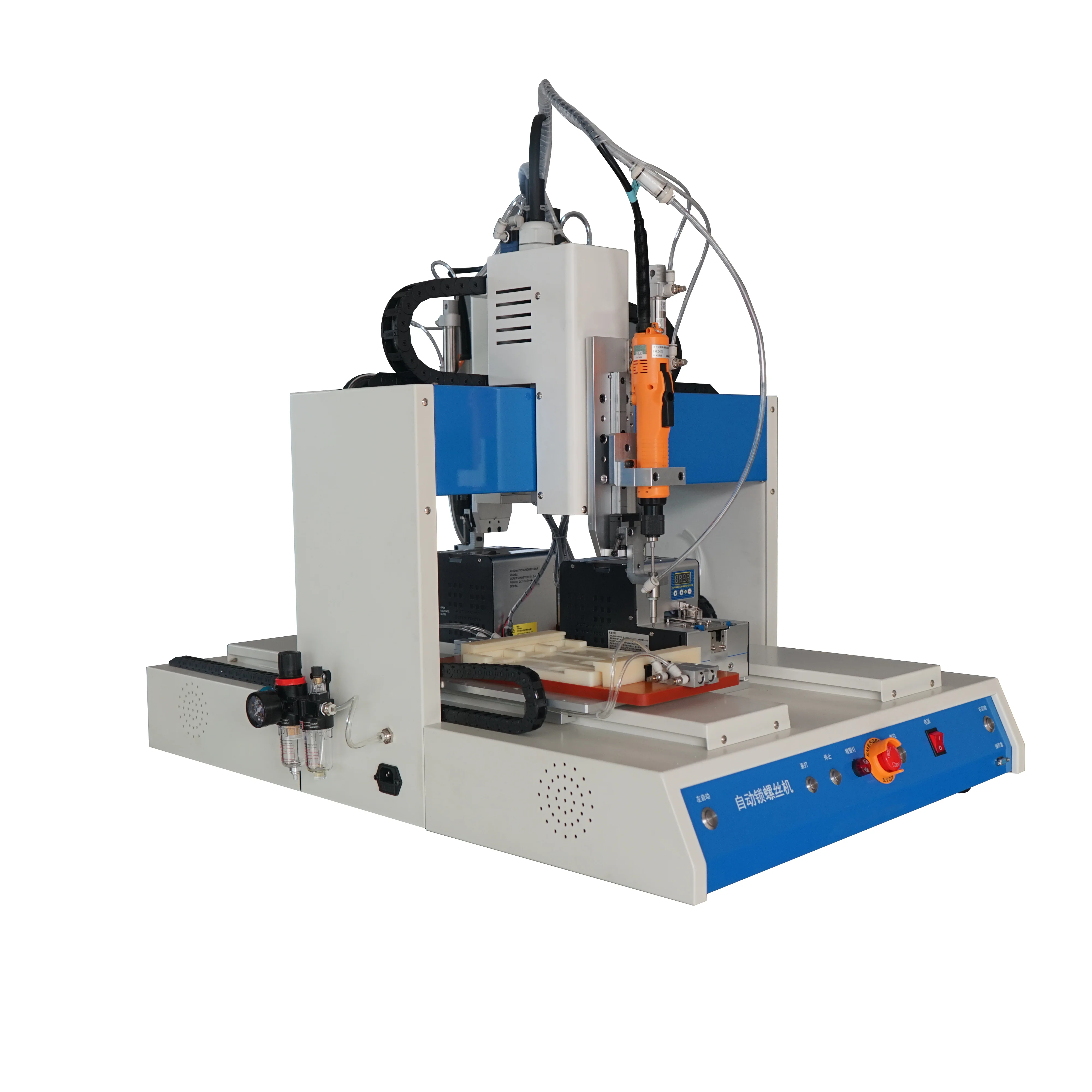

Product Name | BKB Automatic Locking Screw Machine With Double Locking Head and Double Platform |
Model | CBLS-581YII |
Axes range (X1/X2/Y1/Y2/Z mm) | 500/500/800/800/100 |
Work range | 180X*250Y*100Z; @can be customized |
Movement speed(mm/second) | 0.1-800 |
Number of platform | 2 sets |
Number of electronic batch head | 2 sets |
Number of Axis | 6 axes |
Repeated precision | ±0.02mm(X/Y/Z) |
Program record mode | 9999 groups,8000ints per group |
Electric batch | Servo electric batch |
Electric control mode | Handheld box control |
Display mode | touch screen |
Motor system | Precision stepping motor/closed loop stepper motor |
Control system | Special controller for screw locking machine |
Transmission mode | Precision stepper motor + precision timing belt +guide rail |
Alarm function | Floating lock, sliding teeth, missing lock |
Voltage | AC110V/220V, 50/60HZ |
Air Pressure | 0.4-0.6MPA(4～6kg cm2) |
Screw feeding mod | Vacuum suction |
Control Panel | Teach pendant box with touch Screen |
Working Temperature | 0--40℃ |
Working humidity | 20-90% |
Applicable screw | M1.0-M5.0 |
Working Efficiency | 0.8--1.5s/screw |
Packing Dimension | 680*970*725mm |
Net weight(kg) | 90kg |

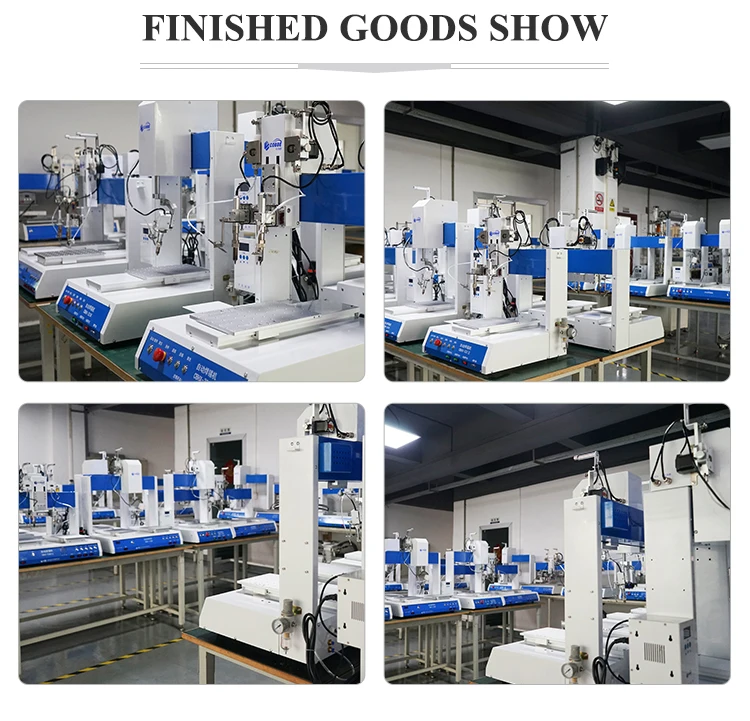

Main Products
