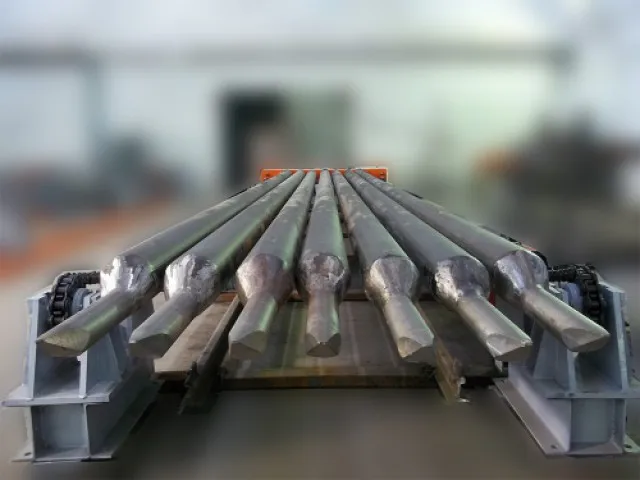

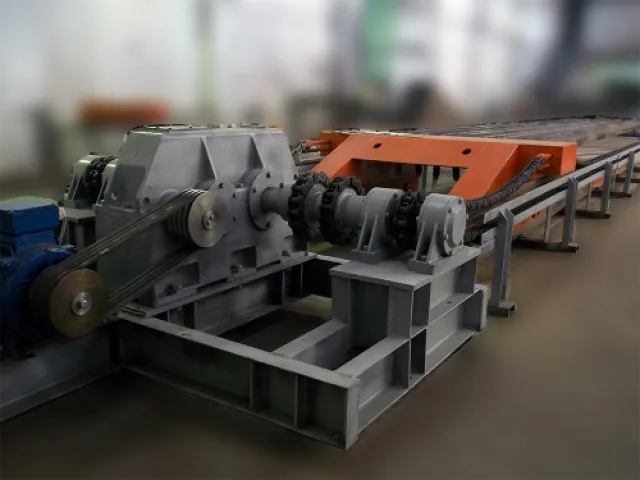

Moulding machine is used for hollow cores formation in concrete slabs at discharging and compaction of the concrete mix.

Technical characteristics:

• The dimensions of the manufactured panels:
      length, mm: up to 6280
      width, mm: up to 1490 mm
      height, mm: up to 220

• Max. extraction force of the inserts, N: 69000

• Extraction speed inserts, km/h:  0,17

• Working stroke, mm: 7200

• Installed capacity, kW: 15,2

• Nominal voltage, V: 380

• Dimensions:
      length, mm: 11440
      width, mm: 2510
      height, mm: 880

• Weight, kg 5400

• Spare parts for moulding machine

• The bearing housing

• Cover
