VANSE YZ28 4S Road Construction Machinery Vibratory Floor Paving Full Hydraulic Ride On Concrete Laser Screed Floors Machine
- Category: Other Construction Machinery >>>
- Supplier: Shandong,Vanse,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

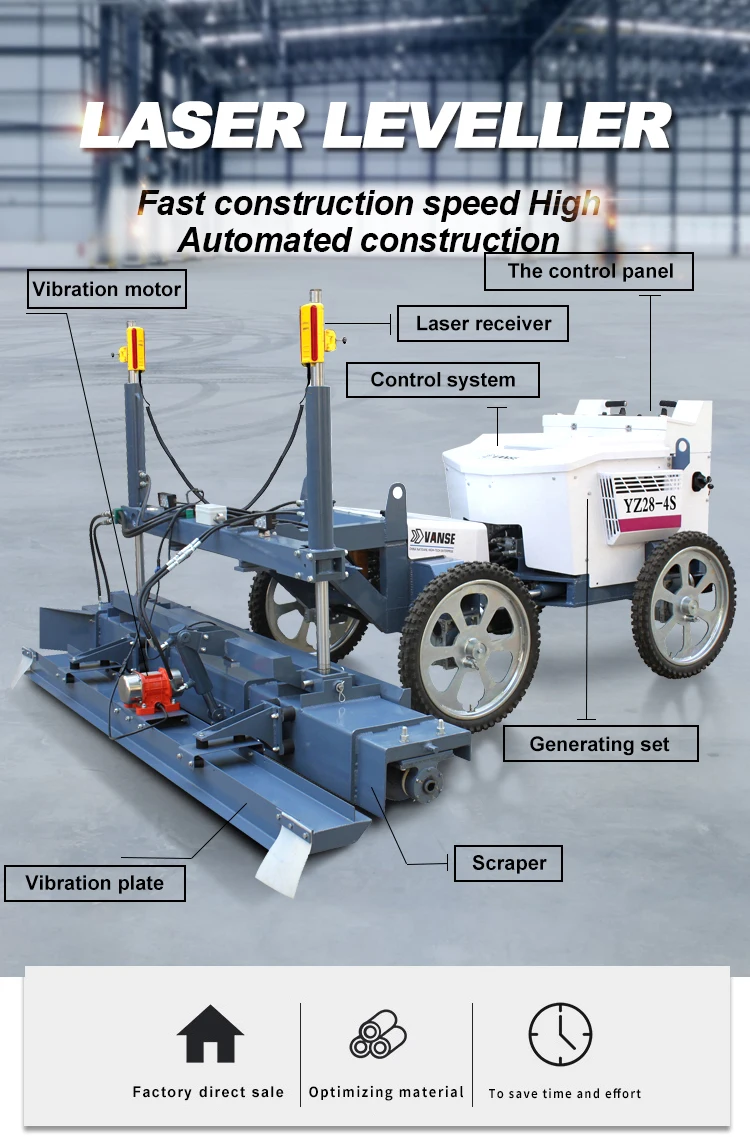

YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690
YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690
Details Images
YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690
Specification
TYPE | YZ28-4S |
ENGINE | HONDA GX690 |
CHARACTERISTIC | GASOLINE, AIR-COOLED, DOUBLE CYLINDER |
POWER | 18.4KW |
FUEL TANK VOLUME | 20L |
SCREED WIDTH | 2.5M |
Warranty | 1 Year |
PAVING THICKNESS | 5-30CM |
Dimension(L*W*H) | 3.3M*2.9M*1.3M |
EXCITING FORCE | 2000N |
WEIGHT | 890KG |
Certification | CE, EPA |
Laser system | Trimble brand(standard) Leica(optional) |
walking speed | 0-4.5km/h, stepless speed change |
Wheel track | 1233mm |
wheel base | 1288mm |
Paving mode | Screw conveyor pave |
Tyre Width | 9cm |
Tyre Width | 20cm (optional) |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Gearbox |
UNIQUE SELLING POINT | AUTOMATICA SELF-LEVELING |
DRIVE | FULL HYDRAULIC DRIVE |
YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690

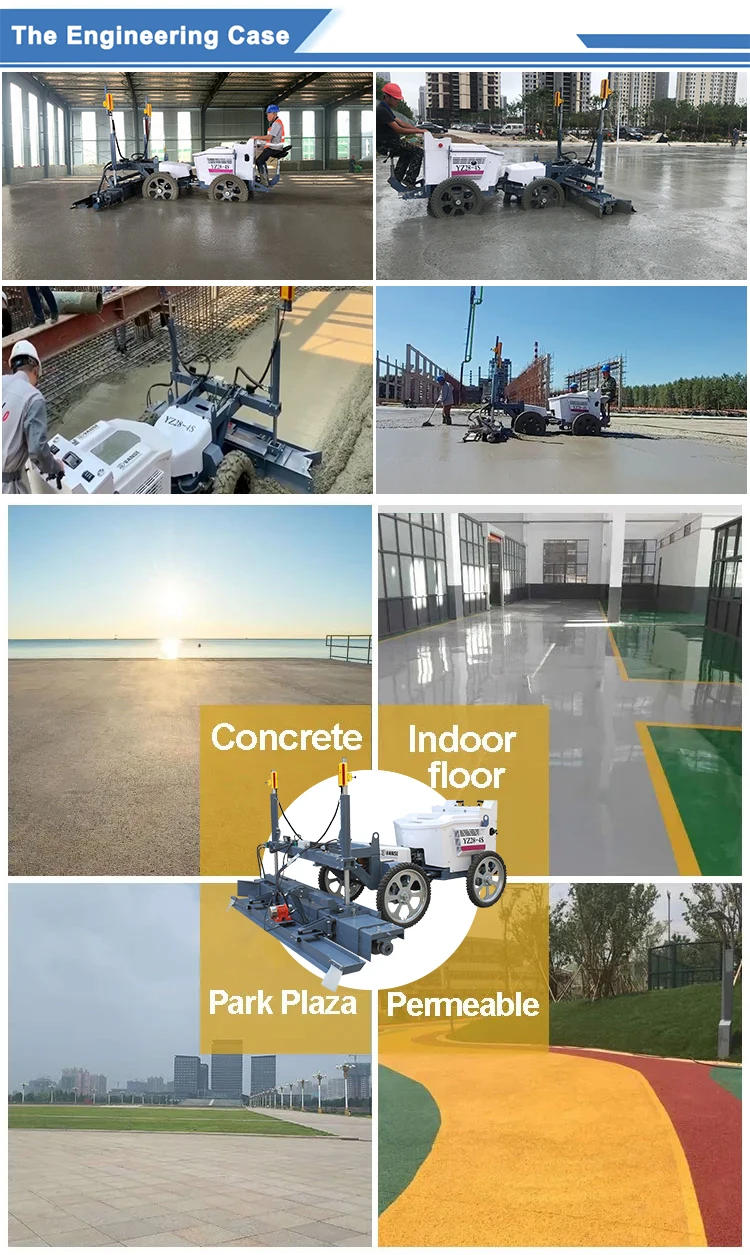

Application
Our Product Advantages:(YZ28-4S Concrete Laser Leveling Screed Machine / Concrete Level Screed With HONDA GX690)
A. Famous brand engine, brand quality assurance, superior performance, start easily.
B. Gearbox large module design, aluminum alloy enclosure, free maintenance, long service life.
C. Wipe the line-structure-light bracket, choose the strict heat treatment of large diameter carbon structural steel, strong and durable.
D. Scientific design of the centrifugal clutch driving mechanism, transmission torque, long service life, maintenance is very convenient.
E. Surface coating, beautiful design, rust corrosion.
A. Famous brand engine, brand quality assurance, superior performance, start easily.
B. Gearbox large module design, aluminum alloy enclosure, free maintenance, long service life.
C. Wipe the line-structure-light bracket, choose the strict heat treatment of large diameter carbon structural steel, strong and durable.
D. Scientific design of the centrifugal clutch driving mechanism, transmission torque, long service life, maintenance is very convenient.
E. Surface coating, beautiful design, rust corrosion.
Related Products
Company Information
Our Service
YZ28-4S 18.4KW Leveling Machine Concrete Laser Screed Machine / Concrete Level Screed With HONDA GX690
Become Our Dealer
Packing & Delivery
FAQ
1. What is the delivery time ?
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
