Product Overview

Description

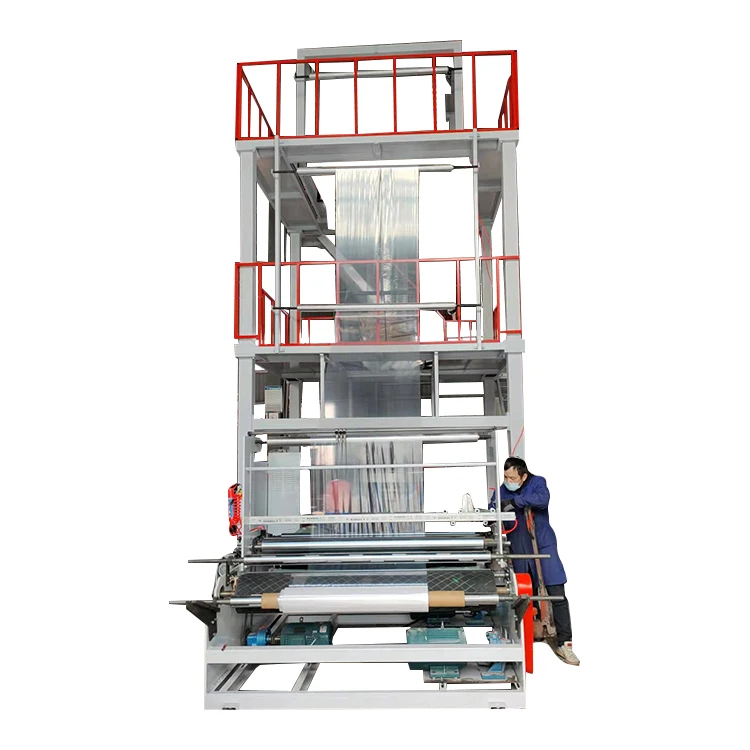

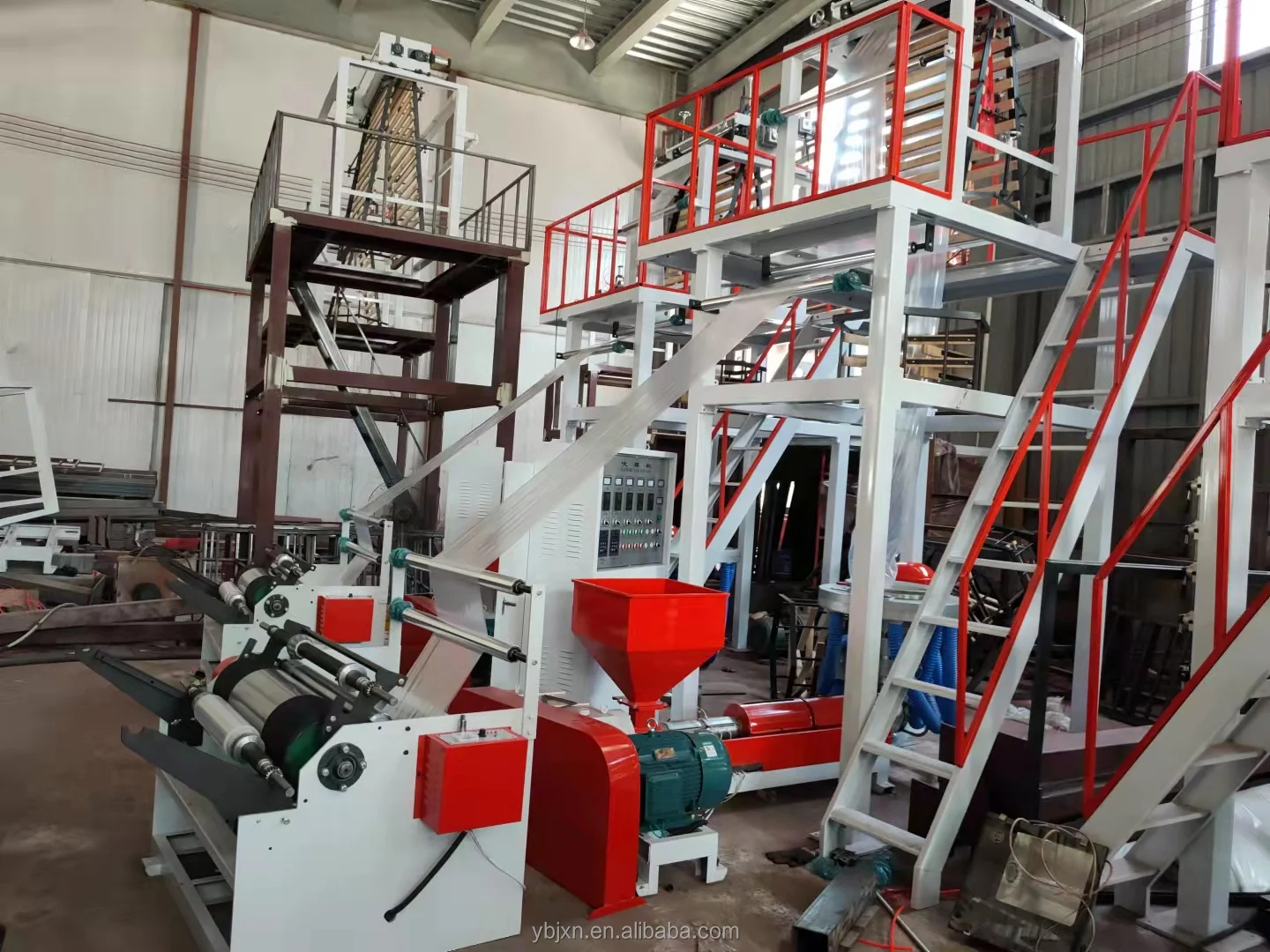

High Speed Film Blowing Machine (SJ-65-1700)






It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for textile and clothing and other packing material .The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type.No matter what size the film is, big or small,it can achieve the best effect of cooling .


Specification


Model
SJ-45-700
SJ-50-900
SJ-55-1300
SJ-65-1700
SJ-75-2200
Max. Layflat Width(mm)
500
800
1200
1500
2000
Max.Output(kg/h)
60
80
100
120
150
Raw Material
MLLDPE/LLDPE/LDPE/EVA
0.01-0.08mm
0.01-0.08mm
0.01-0.08mm
Screw Diameter(mm)
45
50
55
65
75
L/D
30/32:1
28/30:1
28/30:1
28/30:1
Power of Main Motor(kw)
15kw
18.5kw
22kw
37kw
45kw
Screw Max.Rotation Speed
150r/min
1.1kw
1.5kw
1.5kw
The Way of Screen Changing of Extruder
Hydraulic/Pneumatic/Maual Twin-station Changing Screen Quickly/Automatic Screen Changer
2.2t
2.6t
2.8t
Die Structure
With or without IBC(Internal Bubble Cooling  System)
Air-ring Structure
Double Tuyere/Single  Tuyere
Rotation Method

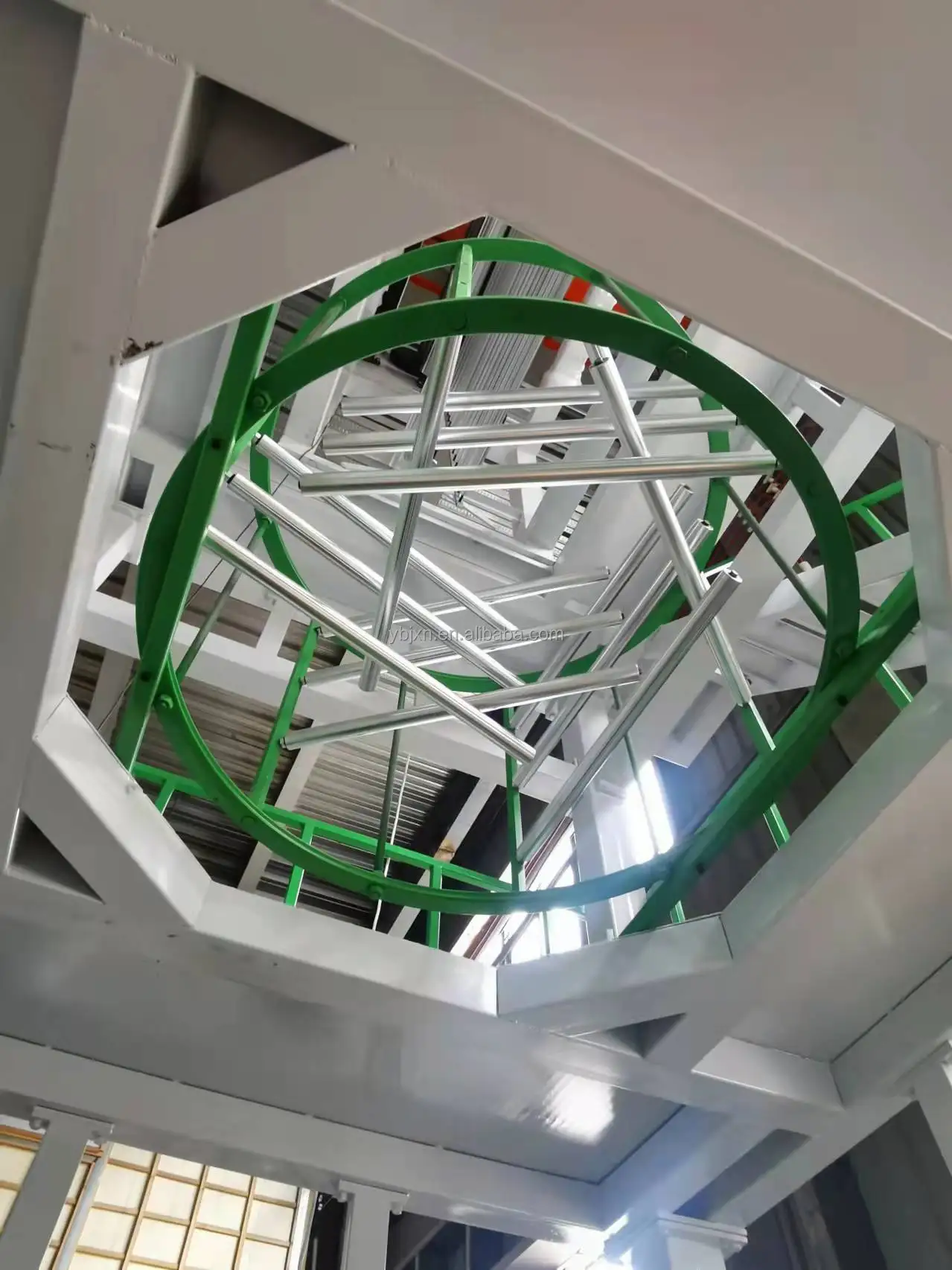

Head Rotation/Up Rotation
Take-off Wond-up Speed
60-80m/min
Total Power(kw)
38
50
65
78
100
Over Dimensions(L*W*H)mm
4500*800*4200mm
6000*2000*5000mm
7500*2500*5600
mm
9000*3000*7000
mm
11000*3400*10000mm
Weight(T)
1.5
2.0
2.5
4.5
8.0

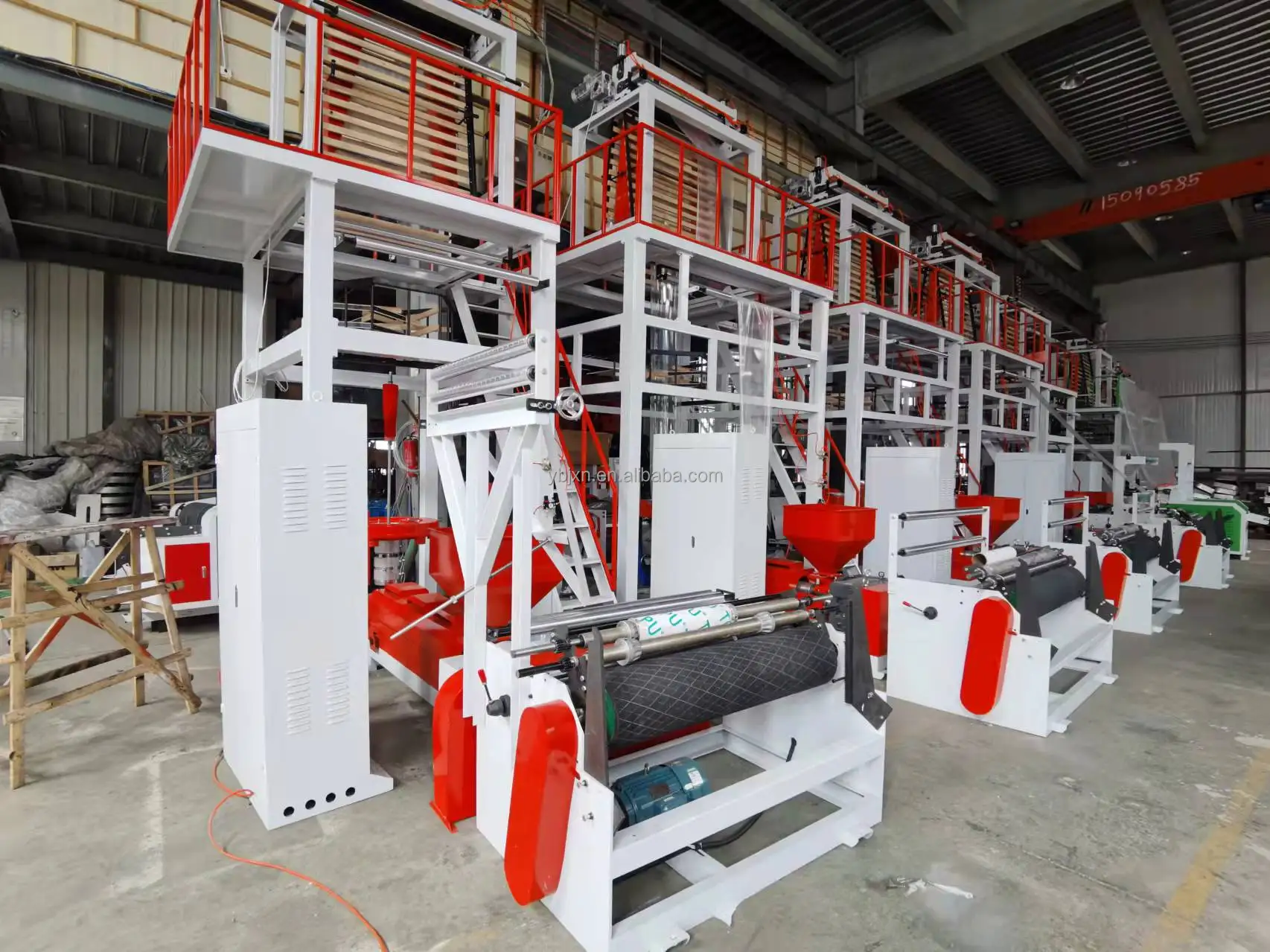

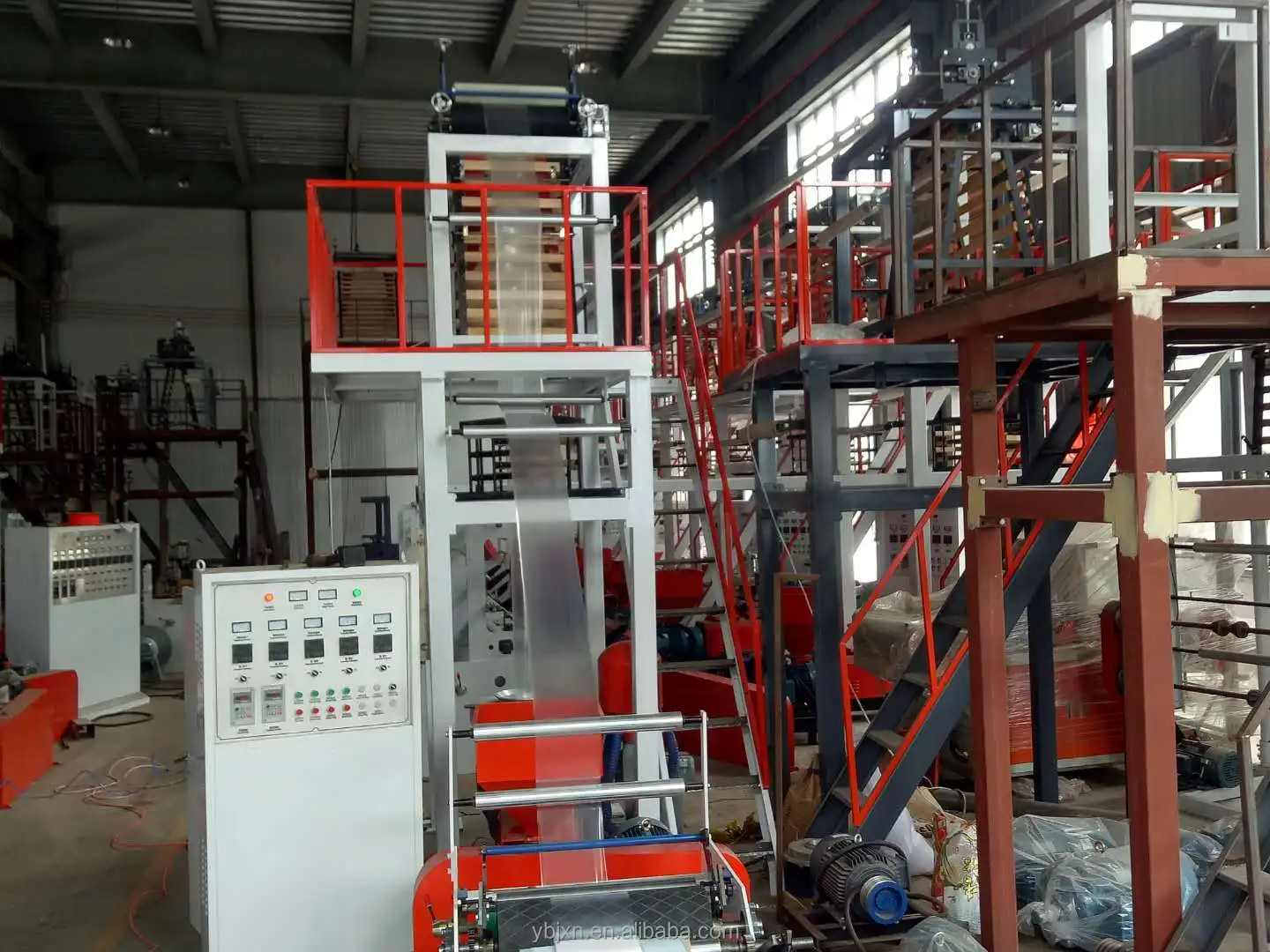

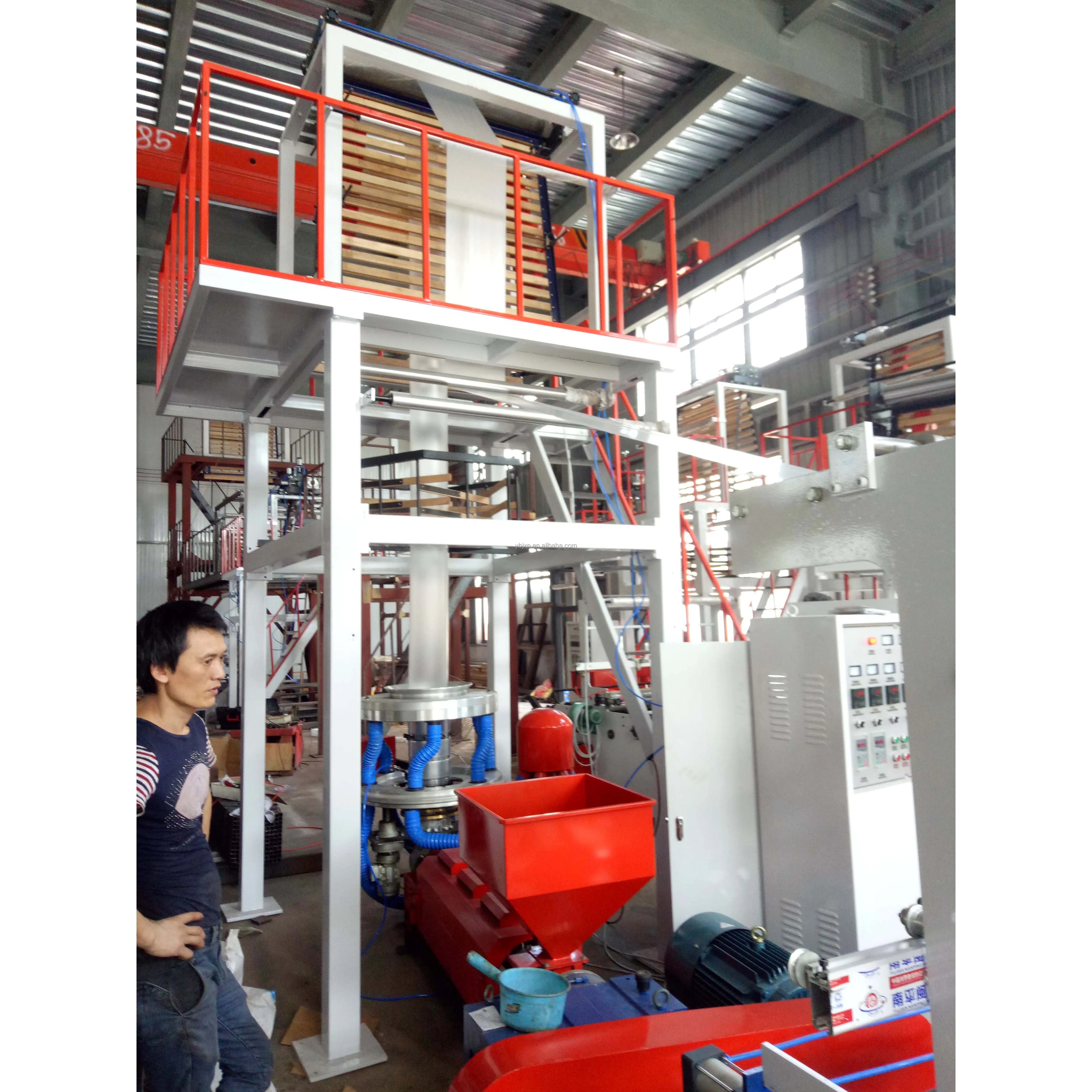

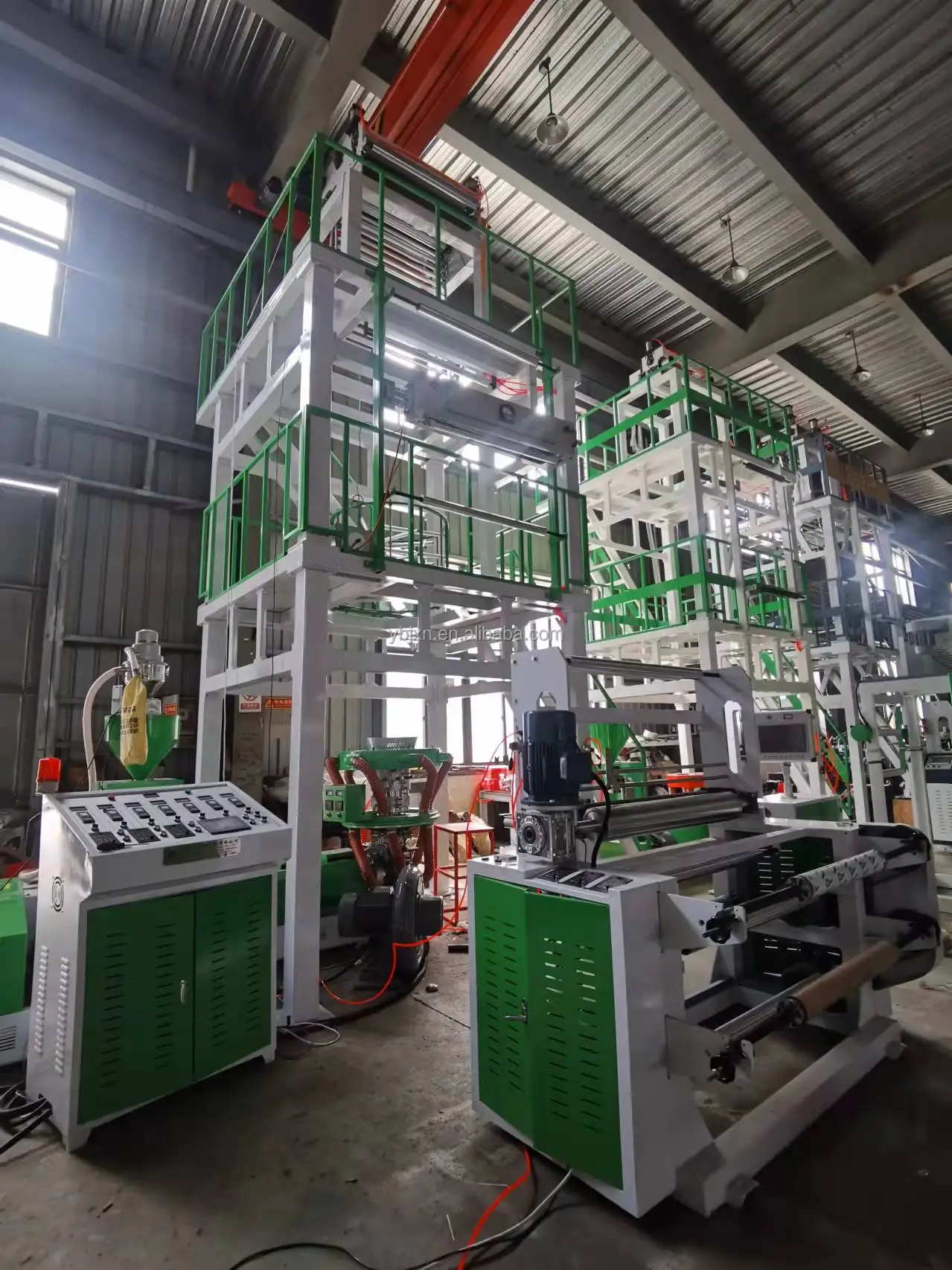

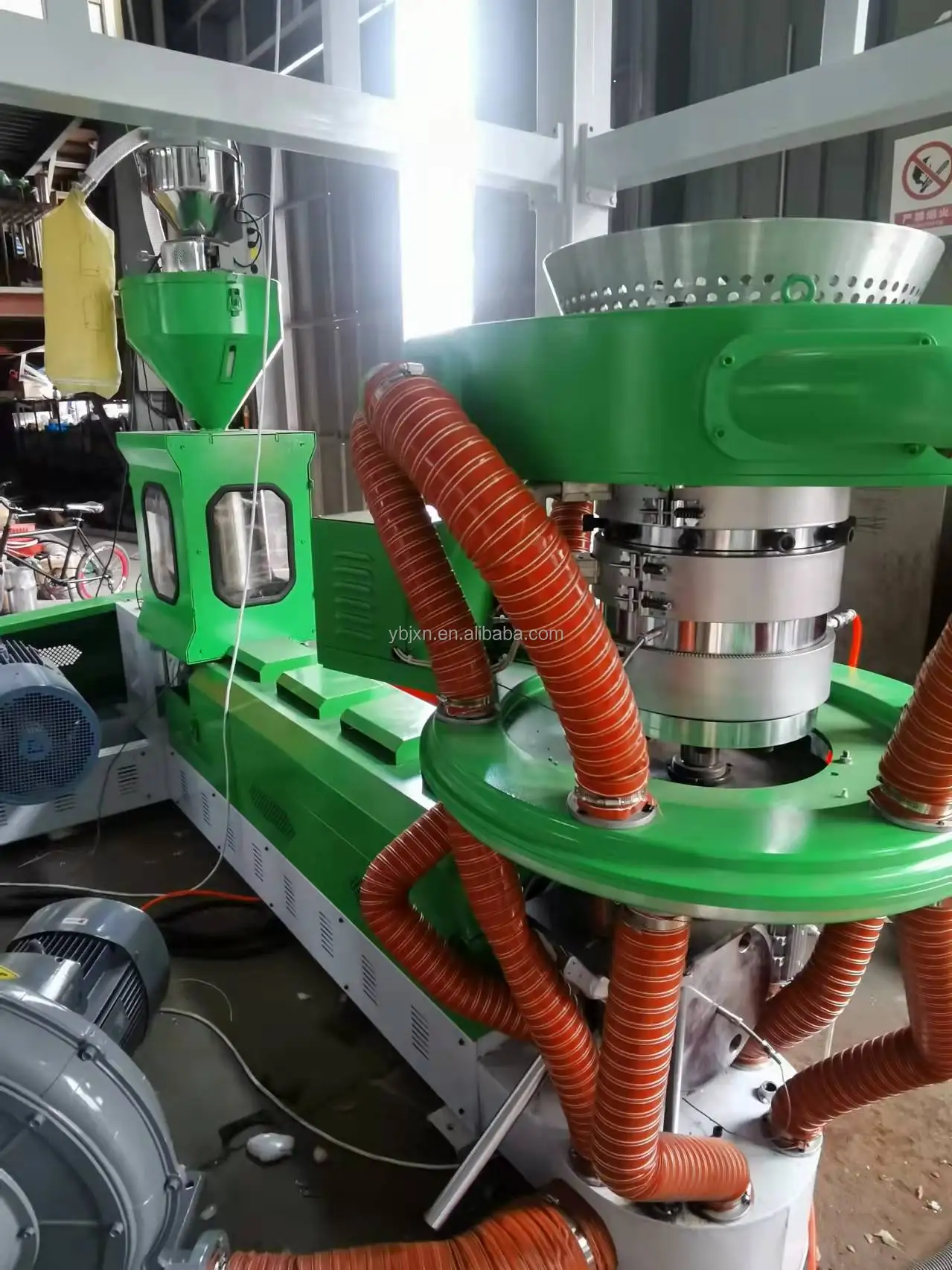

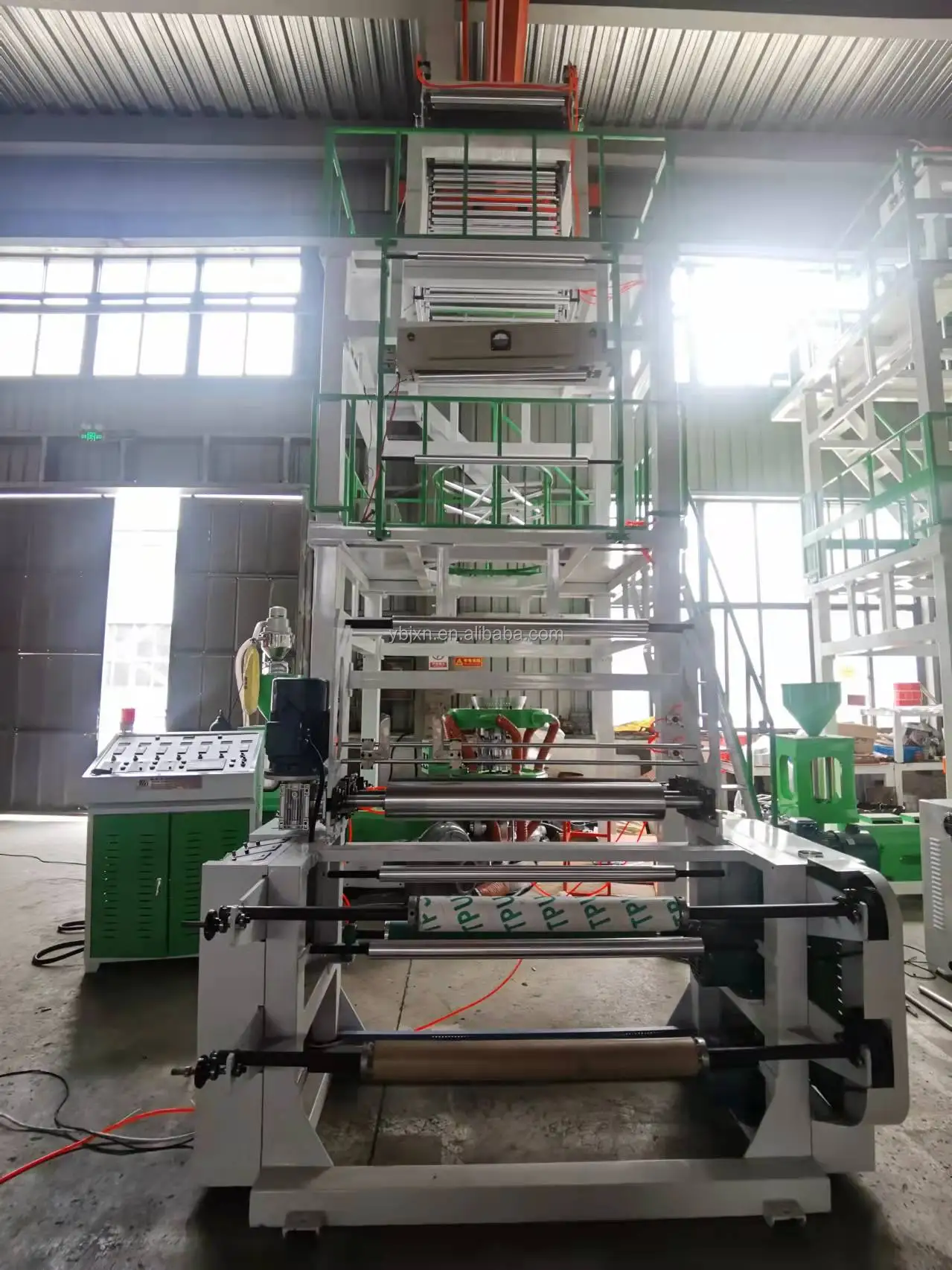

Details Images













 Optional Equipment:

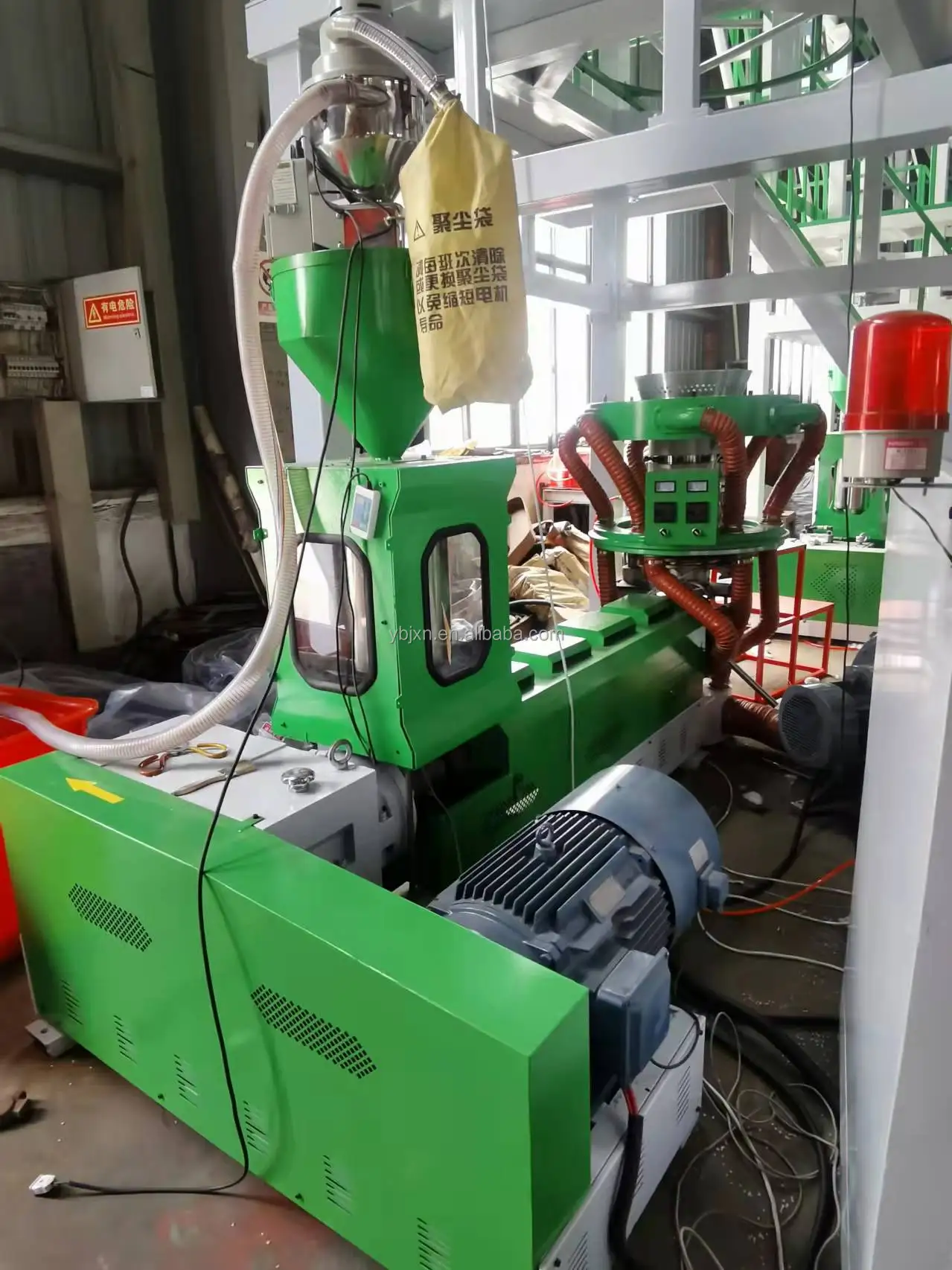

1) Auto Loader
2) Castalum Heat
3)Air Shaft
4)Rotary Die Device
5)Bouble Sides Winder
6)Upand Down
7)Pneumatic Device

Why Choose Us:
◆Good quality control
◆Highly competitive prices
◆state-of-art technology products
◆Best professional team of plastic film packaging machinery.
◆ Effective OEM&ODM service



FAQ


1. Q: Are you a factory or trading company?
A: We are a factory

2. Q:Does your machine with CE certificate?
A:Yes.

3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection

4.Q: How long is the warranty period?
A: All of our products have one year warranty.

5.Q: What is your delivery time?
A: Normally, It needs about 20-30 days. The exact time depends on production management.

6.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)

7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.

8.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.



MORE ABOUT US


Company Profile




Zhejiang Ruian Yunbang Machinery Co.,Ltd.is located in the scenic East China Sea-Ruian City,is a professional manufacturer of plastic packaging machinery main prodcuts are series of plastic film blowing machine,plastic film bag making machine ,embossing presses series,plastic granulator series full set of equipment.

Products sold throughout the country and exported to dozens of countries and regions in Southeast Asia,the Middle East,Central Asia,Russia,Europe,South America,North America,Africa,the market has responded favorably to legendary customer .

With the cooperation of a number of high-end technology,ranking domestic leading level,perfect product user prouction will improve the qualiy,efficiency ,and will create a better economic benefits.Provide timely and thoughtful pre-sale ,sale,service,free onsite equipment installation and commissing,technical training,experenced technical instructors on standby,and the escirt if your equipment operating techniques,innovation,continous development,ans constantly improve efforts to "first-class mangament,first-class products,first-class service"dedicated to the community.
