TD 5030A X Ray security scanner X Ray baggage scanner for hotels
- Category: Other Security & Protection Products >>>
- Supplier: Heyuan Zhonganxie Technology Co. Ltd.
Share on (11000003512381):
Product Overview
Description
Product Description
Promotion during: 25th July, 2022 to 25th Aug. 2022
X-Ray Baggage Scanner
Functional features
● Original Japanes hamamatsu detector, image quality, Omron electrical components. Overall quality of the machine to improve
●global leading parameters: in the inspection report issued by the ministry of public security, each parameter is leading other products. See the inspection report for details.
●energy-saving design: the machine can automatically sense objects, with luggage on the machine to start running, no luggage, the machine is still.(optional)
● one key shutdown control: when shutdown only need to rotate the key, automatic safety shutdown equipment, reduce equipment failure.
●environmental protection design: lead curtain external protective film, prevent guests from touching lead, avoid lead pollution.
● dynamic picture switching: the picture can be switched when it is still, and can be switched freely when it is dynamic
●global leading parameters: in the inspection report issued by the ministry of public security, each parameter is leading other products. See the inspection report for details.
●energy-saving design: the machine can automatically sense objects, with luggage on the machine to start running, no luggage, the machine is still.(optional)
● one key shutdown control: when shutdown only need to rotate the key, automatic safety shutdown equipment, reduce equipment failure.
●environmental protection design: lead curtain external protective film, prevent guests from touching lead, avoid lead pollution.
● dynamic picture switching: the picture can be switched when it is still, and can be switched freely when it is dynamic
Product certification
● Strict internal quality control, implementation of engineering and production double inspection principle
● guarantee measures for machine parts
● Passed the security and police electronic products quality testing center of the ministry of public security
● EU CE certification
● passed ISO9001 quality management system certification
● ISO14001 environmental management system certification
● GB/T28001 occupational health and safety management system certification
● through the provincial environmental protection department radiation safety certification
● through the provincial occupational health detection center detection radiation dose test
● computer software copyright registration certificate of the national copyright administration of the People's Republic of China
● double soft certification
● guarantee measures for machine parts
● Passed the security and police electronic products quality testing center of the ministry of public security
● EU CE certification
● passed ISO9001 quality management system certification
● ISO14001 environmental management system certification
● GB/T28001 occupational health and safety management system certification
● through the provincial environmental protection department radiation safety certification
● through the provincial occupational health detection center detection radiation dose test
● computer software copyright registration certificate of the national copyright administration of the People's Republic of China
● double soft certification
Product Paramenters
X-ray generator | ||
Beam direction | Bottom typ | |
Tube current | 0.4~1.2mA(adjustable) | |
Tube voltage | 100-160 kV(adjustable) | |
Angle of beam divergence | 80° | |
Chilling／work period | Sealed oil cooling/100％ | |
Image processing system | ||
X-ray sensor | L-shaped photodiode array detector(C),24bit deepness | |
Display | High resolution 19-inch LCD Samsung display | |
Image display | Black and white 24 bit color display | |
Edge enhancement | Outline edges of the objects are clearer | |
Super image enhancement | The images are more detailed | |
High penetration display | Improve the contrast of the bright areas in the image and make the easy to penetrate areas clearer | |
Low penetration display | Improve the contrast of dark areas in the image and make the hard-to-penetrate areas clearer | |
Magnifying glass | Local amplification | |
Lighten/darken | Increase the brightness of the image /decrease the brightness of the image | |
Image pull-back/pull-forward | Display the first 20 images and perform any image processing on the current image | |
Image restoration | Image display restored to its original state | |
Image storage | Real-time save any image, and can carry out any image processing, continuous work save | |
Operating environment | ||
Working temperature／humidity | 0℃～45℃／20%～95% (non-condensing) | |
Storage temperature／humidity | -20℃～60℃／20%～95% (non-condensing) | |
Working voltage | 220VAC(±10%) 50±3Hz | |
Power consumption | 1.0KW(maximum) | |
Noise level | ≤ 58dB(A) | |
Technical standard | Technical parameter | |
Aisle size | 500（W）×300（H）mm | |
Belt speed/efficiency | 0.22m/s | |
Rated load of conveyor belt | 120 kgs | |
Definition | Diameter 0.0787mm metal wire | |
Penetrating power | ≥ 10 mm steel plate | |
Display | 19-inch LCD monitor | |
Image Storage | 1T hard disk saves any image in real time，can storage more than 1000000 processed arbitrarily and saved continuously | |
Film safety | ISO1600 film safety | |
Leaking radiation dose rate | Away from any device outer surface of 5cm, the ray irradiation leak rate should be ≤ 0.12uGy / h | |
Overall Dimensions | （L） 1750mm （W）730mm（H）1200mm | |
NW / GW | 290 kgs / 360 kgs | |
Details Images
Exhibition
Company Profile
Certifications

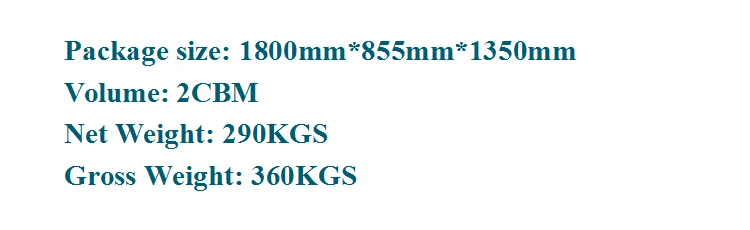

Product packaging
