Gas meter diaphragm gas meter /aluminum shell membrane Gas Meter

Product Overview

Description

Household Digital Electronic Smart Diaphragm Fuel Gas Meter

Gas meter

1.Application:



TG - J1.6/2.5 aluminium shell household membrane type natrual gas flow meter watchcase adopt aluminum alloy die casting, the plastic parts such as high strength engineering plastics processing molding, to high quality material and reasonable structure design to ensure that the product is still under long-term work can reach the indicators, this series of  aluminium shell household membrane type natrual gas flow meter a specifications conform to GB/T 6968-1997 the requirements stipulated in the membrane type gas meter, therefore is an ideal gas industry measuring instruments.



2.Model and Meaning:





3.Main Technical Parameter:

Item	Unit	Parameter
		TG-J1.6	TG-J2.5
Nominal flow rate	m3/h	1.6	2.5
Maximum flow	m3/h	2.5	40
Minimum flow	m3/h	0.016	0.025
maximum working pressure	kPa
The basic error	%	10
The pressure loss	Pa	Q min ≤Q<0.1max±3 0.1Qmin≤Q≤Q max±1,5
Air tightness		Q max 200 or less under normal working conditions, and 1.5 times the pressure does not leak
Long-term performance		Under the maximum flow running 2000 hours can still reach the indicators standards
Overall dimensions	mm	168x125x220		176x135x228
Table joint thread		M30x2		M30x2
Table joint center distance	mm	130		130
weight of the	kg	1.7		1.8

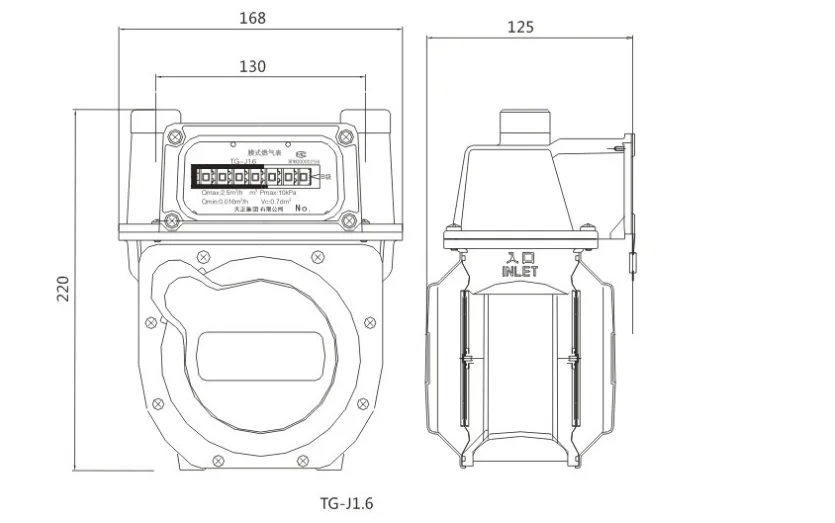

4.Overall and Installation Dimension:
