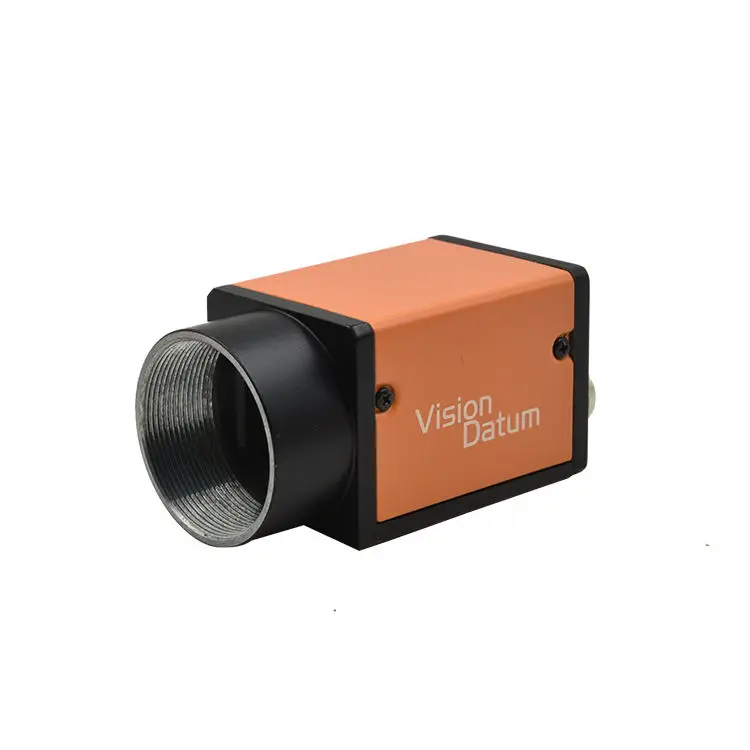

Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera
Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera

Top sellers 1.3MP 90fps Industrial infrared nir Camera Machine Vision Monochrome Cmos Camera High Speed 1000 fps Camera

Share on (11000004627501):


Price:

Quantity:

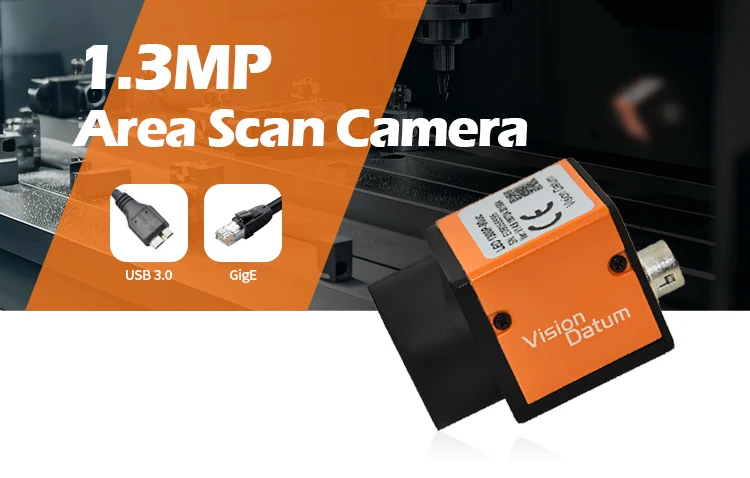

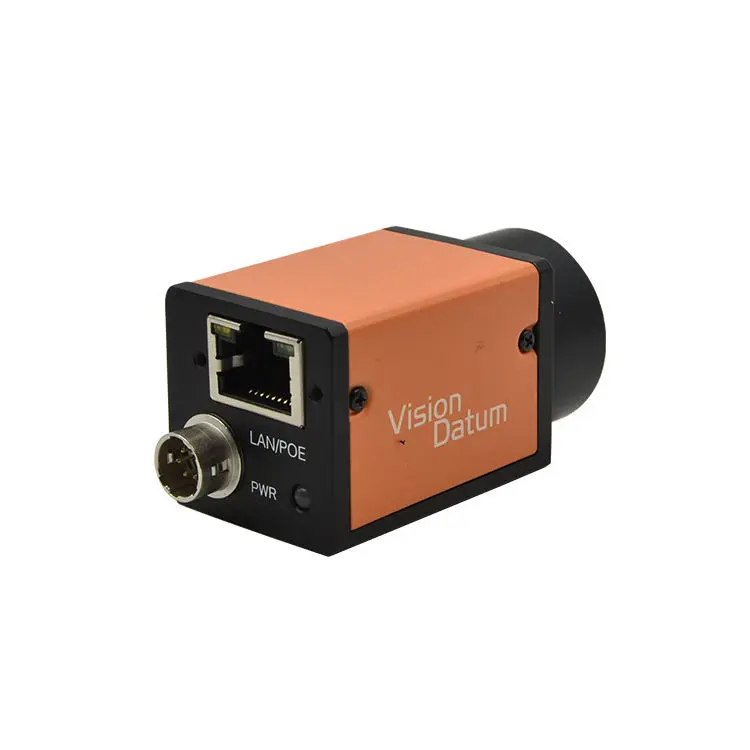

Product Overview

Description











Model Name
LEO1300P-90gm-NIR
Resolution
1280*1024
Pixel Size
4.8μm2
Frame Rate
90fps
Interface
Gigabit Ethernet (1000 Mbit/s)
Mono/Color
NIR
Driver
LEO Series Camera Software Suite
,Halcon,opencv.Labview,
python
Conformity
GigE Vision, GenICam

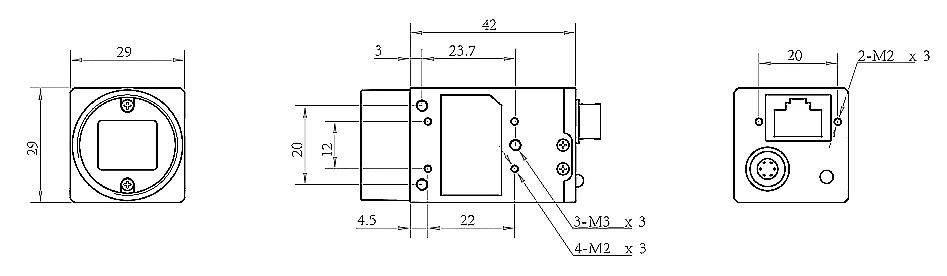

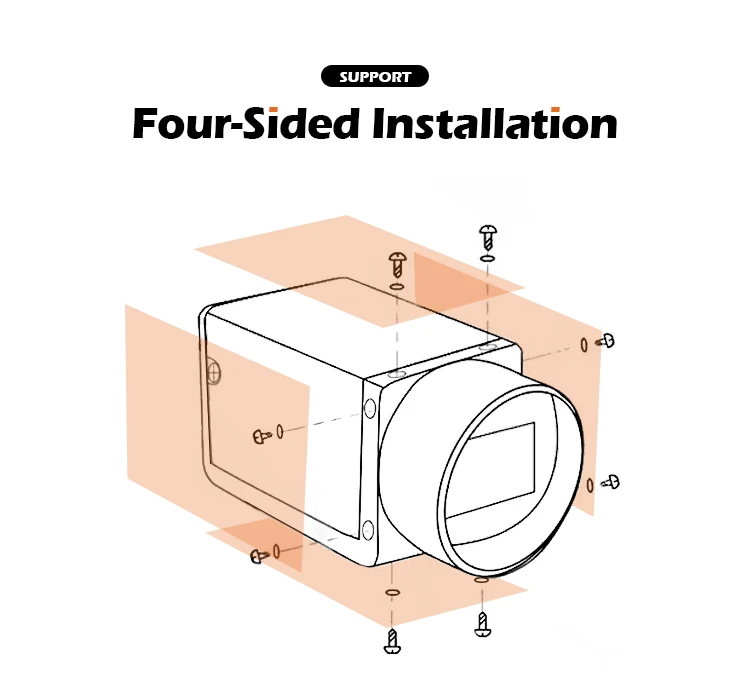

Product Dimension & Drawing:42.0 x 29.0 x 29.0 (mm)

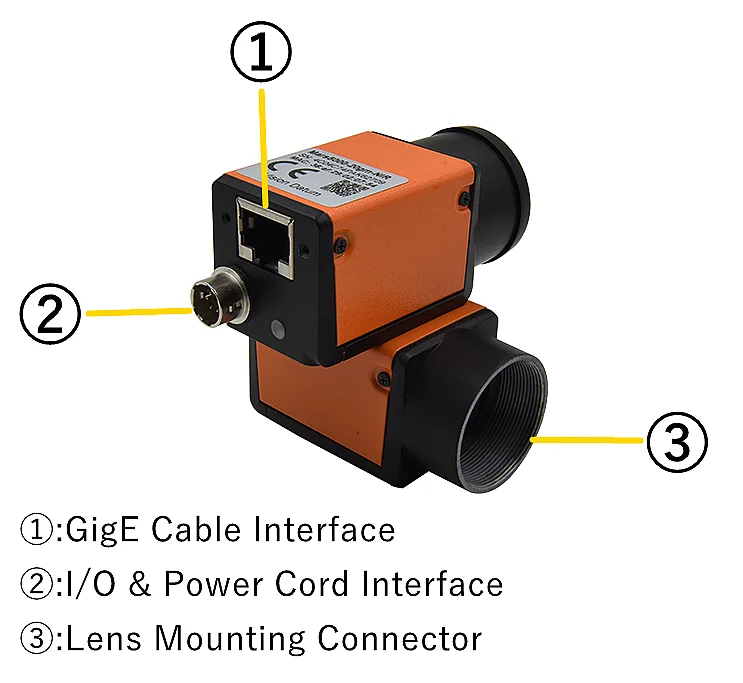

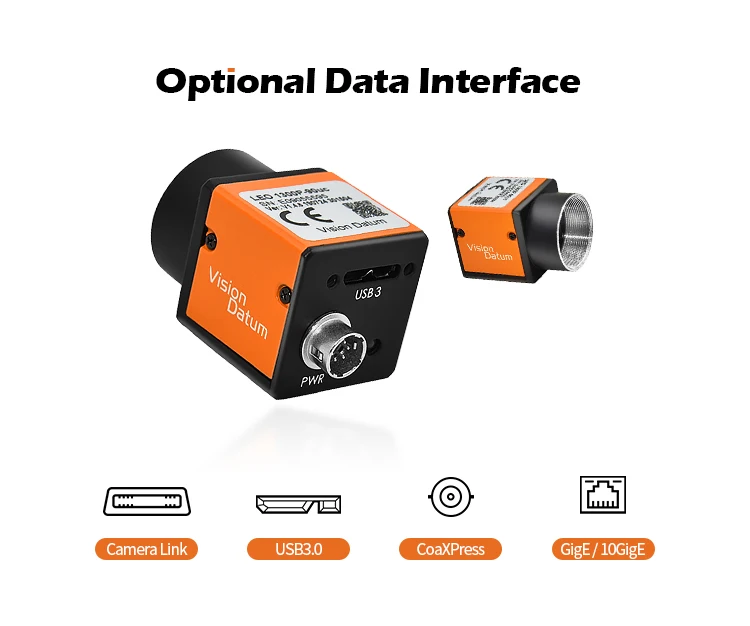

Camera Interfaces Instruction


LEO Series GigE Area Scan Cameras
Warm Tips:
                     1. Please click the specific model name for more details.
                     2. gm: GigE Mono, gc: Gige Color, NIR: Near Infrared. 1/4": 1/4 inch.
Model Name
Resolution
(H*V pixels)
Frame Rate
(fps)
Sensor Size
(inch)
Pixel Size
(μm2)
LEO640P-170gm/gc
640 × 480
173
1/4"
4.8
LEO640P-300gm/gc
640 × 480
300
1/4"
4.8
LEO640H-200gm/gc
640 × 480
200
1/3"
7.4
LEO800P-116gm/gc
800 × 600
116
1/4"
4.8
LEO1200H-30gm/gc
1280 × 960
30
1/3"
3.75
LEO1300P-90gm/gc/NIR
1280 × 1024
90
1/2"
4.8
LEO1300E-50GM
1280 × 1024
50
1"
10
LEO1440S-73gm/gc
1440 × 1080
70
1/2.9"
3.45
LEO2000P-54gm/gc
1920 × 1200
51
2/3"
4.8
LEO2300S-41gm/gc
1920 × 1200
40
1/1.2"
5.86
LEO1920S-25gm/gc
1920 × 1440
25
1/1.8"
3.69
LEO3000S-38gm/gc
2048 × 1536
38
1/1.8"
3.45
LEO4020S-10gm/gc
4024 × 3036
9.7
1/1.7"
1.85
LEO3840A-7gm/gc
3840 × 2748
7
1/2.3"
1.67
LEO3840A-11gm
3840 × 2748
11.2
1/2.3"
1.67
LEO5000A-14gm/gc
2592 × 1944
14
1/2.5"
2.2
LEO5000P-22gm/gc/NIR
2592 × 2048
22
1"
4.8
LEO5000S-24gm/gc
2448 × 2048
24
2/3"
3.45
LEO5470S-6gm/gc
5470 × 3648
6
1"
2.4
LEO6000S-17gm/gc
3072x2048
17
1/1.8"
2.4








Cases Exhibition
Case 1:Piezometer Value Inspection.





Case 2: Food Integrity Detection.
