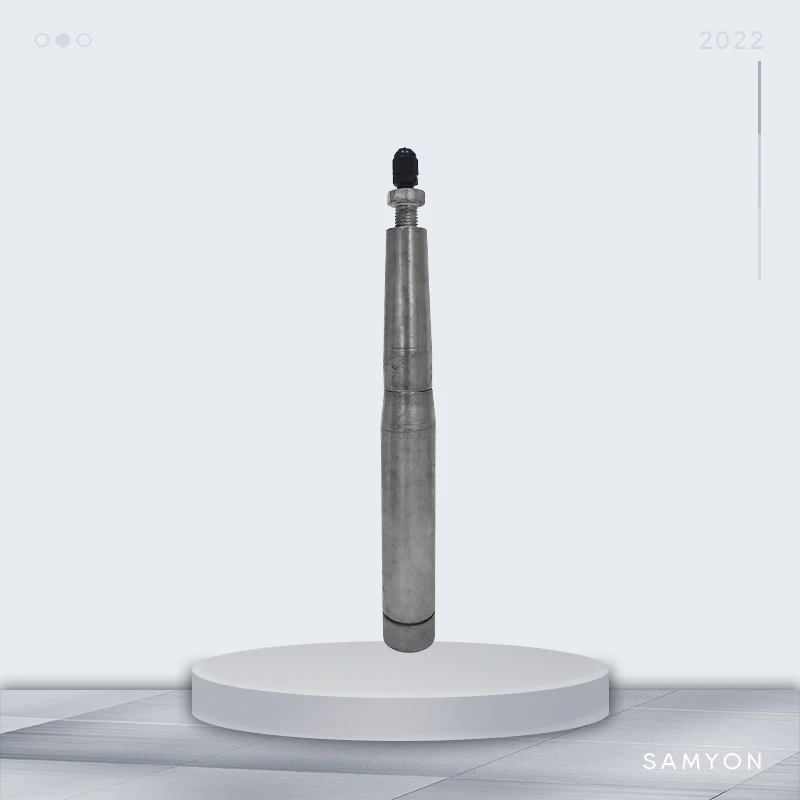

Portable test analog 40mm diameter simple probe and 200m deep well inspection manual winch design SAMYON borehole camera
- Category: Surveillance Products >>>
- Supplier: Beijing Samyon Instruments Co. Ltd.
Share on (62215125872):
Product Overview
Description
Introduction
40mmS Broehole Camera(200m)

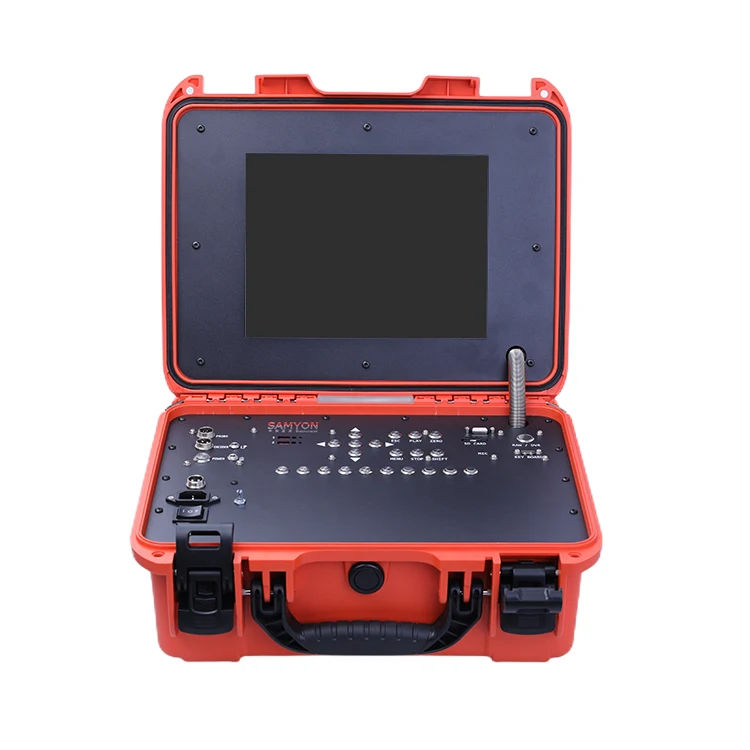

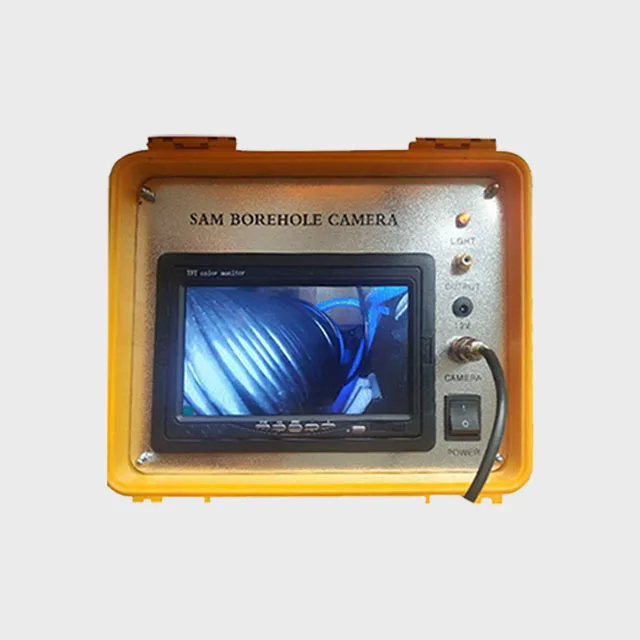

Borehole Camera
Borehole Camera is a special instrument for well testing, it uses the latest television camera technology, so well wall can be reflected on the monitor very clearly to the ground.
The images can be saved on the disk,and it provides the reliable data for the various geological conditions in the mine.
The images can be saved on the disk,and it provides the reliable data for the various geological conditions in the mine.
More Other Borehole Camera
Borehole Camera is suitable for the engineering geology, hydrogeology, geotechnical engineering, mining and petroleum geology and other industries.It can be used to detect fissure, dislocation, falling objects, blockage of filter pipe hole,position of fluid sand, bedrock fissures.
Borehole Diameter | 65mm Single | 65mm Dual | 73mm Dual | 73mm DualF | 73mm Single | 40mm Single | |||||
Rotate Angle | 360⁰ | Side Camera 360 ⁰ | Side Camera 360 ⁰ | Side Camera 360 ⁰ | ×××××× | ×××××× | |||||
Camera Number | One | Two | Two | Two | One | One | |||||
Material | 316L Stainless Steel | 316L Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | Steel | Steel | |||||
Bear Pressure | Max.20Mpa | ||||||||||
Centralizer | Equip With | ||||||||||
Depth Meter | Digital Depth Meter | ||||||||||
Controller | Red Color | Red Color | Red Color | Red Color | Red Color | Red Color | |||||
Display | 12inch | ||||||||||
Focus Function | Yes | NO | NO | Yes | NO | NO | |||||
