DS 2DE3A400BW DE 3 inch 4 MP ColorVu Network Speed Dome Hik Original 2023 Hot Sale (1600408654555)

Share on:


Price:$110.00 - $136.00
Price in USD:Details

Quantity:


Product Overview

Description



FAQ

002001004

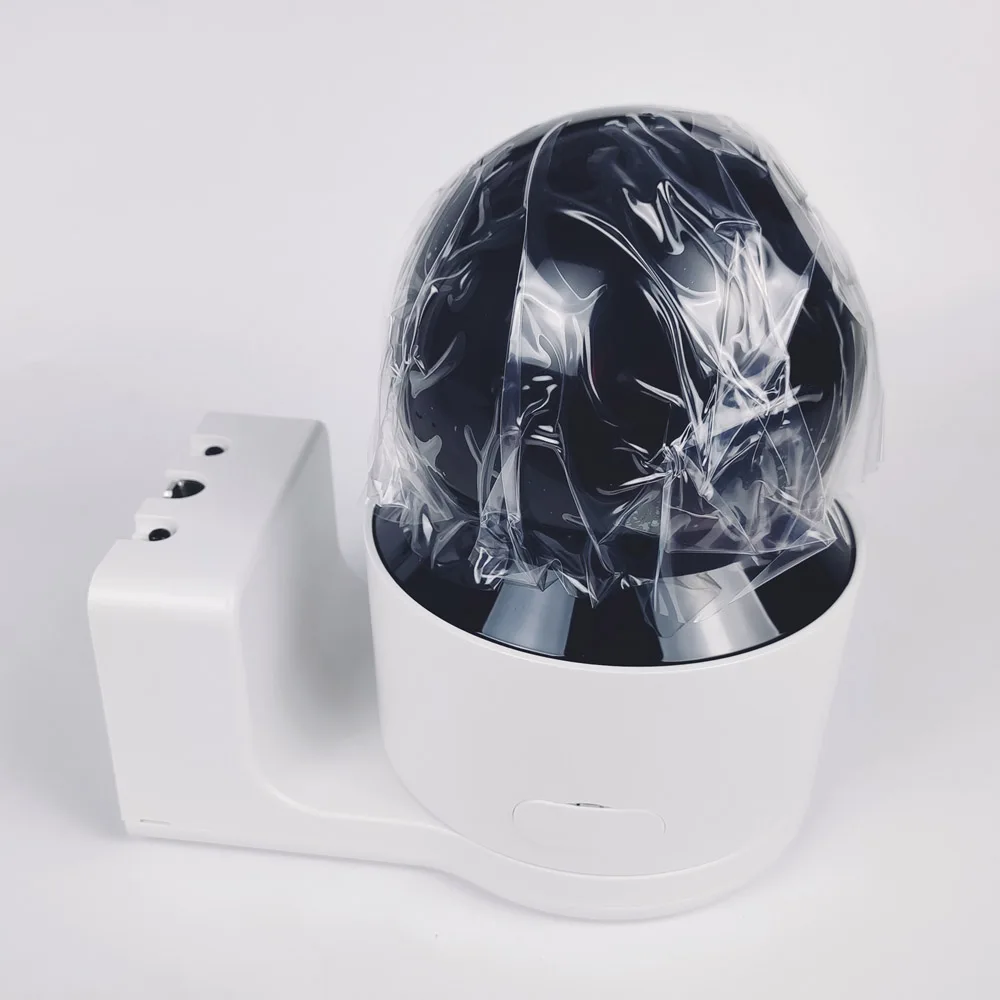

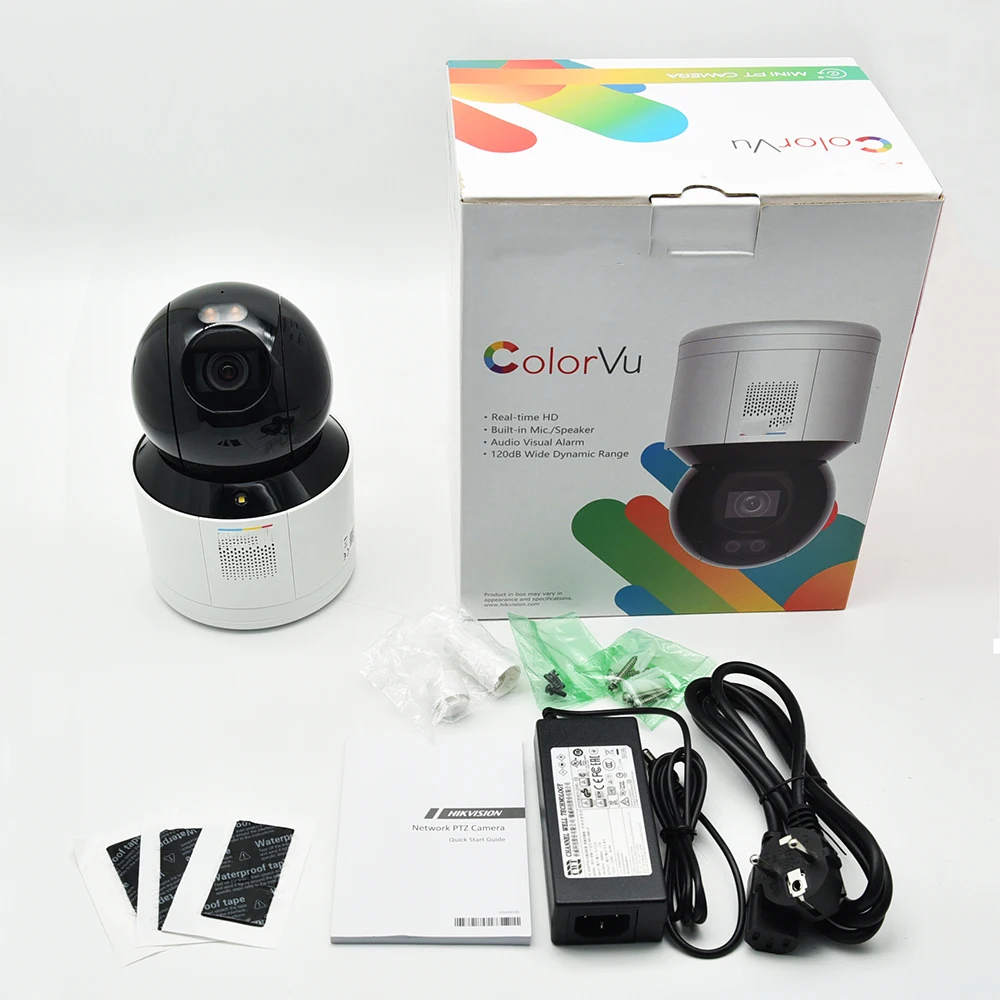

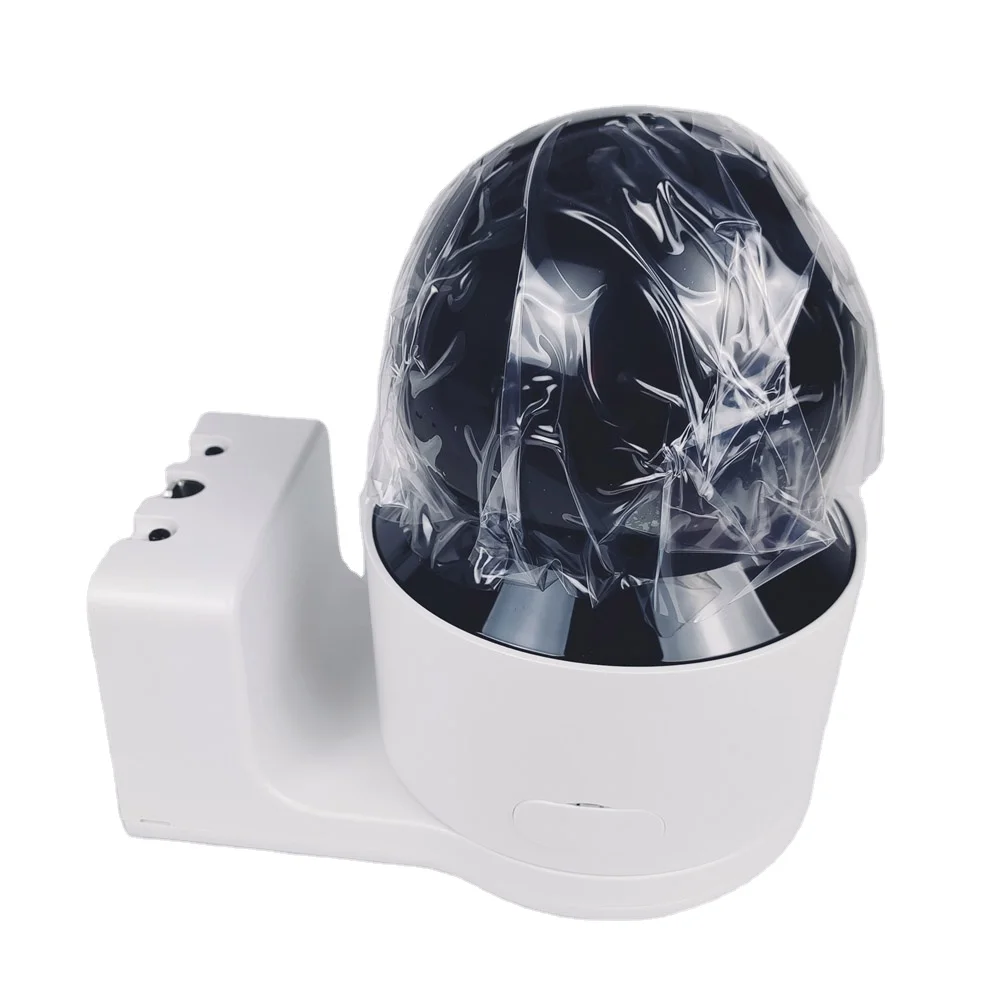

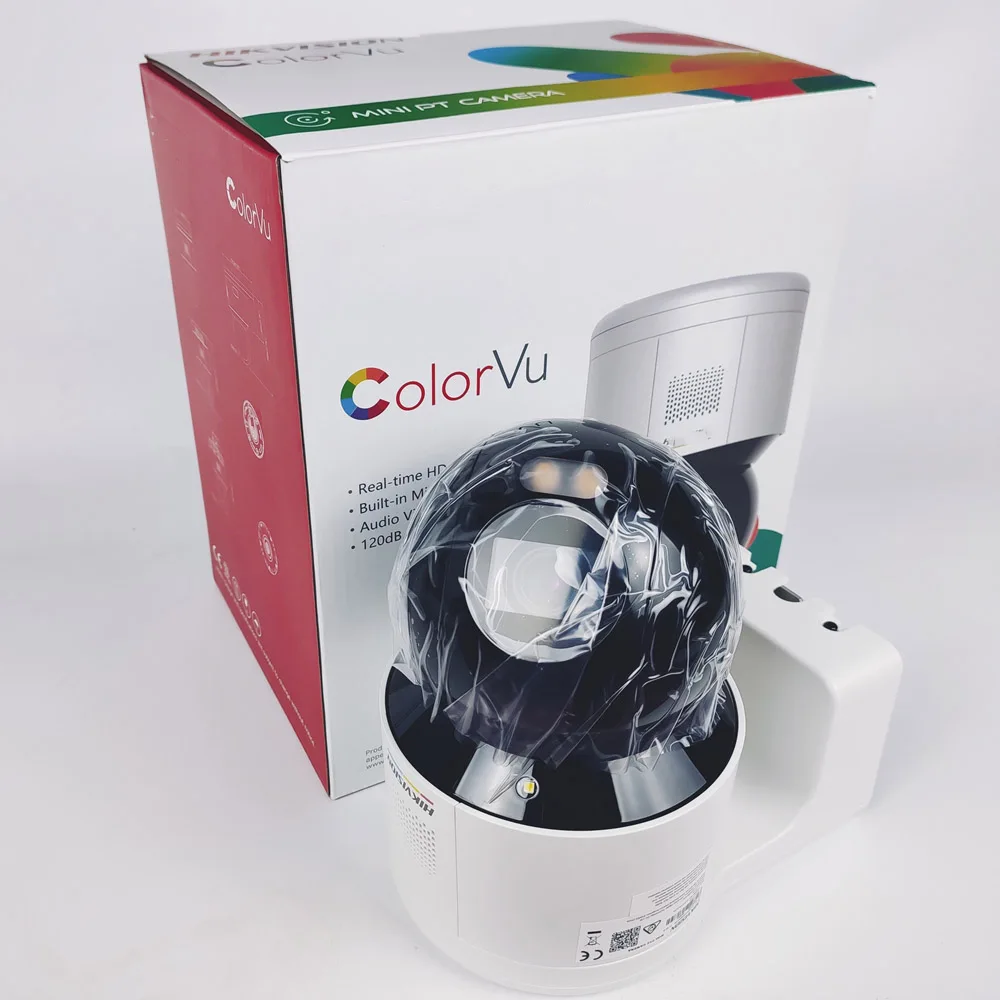

3-inch 4 MP ColorVu Network Speed Dome



  • Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm

  • Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time

  • Linked audible and visual alarm. Built-in microphone and speaker

  • Up to 2560 × 1440 @ 30 fps

  • Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

  • 24/7 colorful imaging with low power consumption. Up to 30 m white light distance

  • 120 dB WDR, 3D DNR, HLC, EIS

  • IP66; PoE



    • Camera

    • Image Sensor1/1.8" progressive scan CMOS

    • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light

    • Shutter Speed1/1 to 1/30,000 s

    • Day & Night24/7 colorful imaging

    • Zoom16x digital

    • Max. Resolution2560 × 1440



    • Lens

    • Focal Length4 mm

    • FOV

      Horizontal field of view: 88.7°


      Vertical field of view: 46.5°


      Diagonal field of view: 105.0°



    • ApertureF1.0



    • Illuminator

    • Supplement Light TypeWhite Light

    • Supplement Light RangeWhite Light Distance: up to 30 m



    • PTZ

    • Movement Range (Pan)350°

    • Movement Range (Tilt)0° to 90°

    • Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s

    • Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s

    • Proportional PanYes

    • Presets300

    • Power-Off MemoryYes

    • Park ActionPreset, patrol scan

    • 3D PositioningYes

    • PTZ Status DisplayYes

    • Preset FreezingYes

    • Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, aux output



    • Video

    • Main Stream

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);


      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)



    • Sub-Stream

      50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);


      60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)



    • Third Stream

      50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);


      60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)



    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264


      Sub-stream: H.265/H.264/MJPEG


      Third stream: H.265/H.264/MJPEG



    • Scalable Video Coding (SVC)H.264 and H.265 encoding

    • Region Of Interest (ROI)8 fixed regions for each stream



    • Audio

    • Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

    • Environment Noise FilteringYes



    • Network

    • Network StorageNAS (NFS, SMB/ CIFS)

    • ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

    • APIISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP

    • Simultaneous Live ViewUp to 20 channels

    • User/HostUp to 32 users. 3 levels: Administrator, Operator and User

    • SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, IP address filter

    • Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+



    • Wireless (Wi-Fi)

    • Wi-Fi ProtocolsIEEE802.11b, 802.11g, 802.11n

    • Frequency Range2.4 GHz -2.4835 GHz

    • Channel Bandwidth20/40 MHz

    • Modulation

      802.11b: CCK, DQPSK, DBPSK


      802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK


      802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK



    • Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

    • Transfer Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps

    • Wireless RangeUp to 50 m



    • Image

    • Day/Night SwitchDay, night, auto, scheduled-switch

    • Image EnhancementBLC, HLC, 3D DNR

    • Wide Dynamic Range (WDR)120 dB WDR

    • DefogDigital defog

    • Image StabilizationEIS

    • Regional ExposureYes

    • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

    • Image Parameters SwitchYes

    • Privacy MaskUp to 24 masks (8 masks for each scene)

    • SNR> 52 dB



    • Interface

    • Built-In Speaker1 built-in speaker

    • Power Output12 VDC; < 60 mA

    • Ethernet Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)

    • On-Board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB

    • Alarm1 input, 1 output

    • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

    • ResetYes



    • Event

    • Basic EventVideo tampering alarm, motion detection, alarm input, alarm output, exception

    • Smart EventLine crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

    • Alarm LinkagePreset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing



    • Deep Learning Function

    • Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting


      Support alarm triggering by specified target types (human and vehicle)





    • General

    • General FunctionMirror, password protection, watermark, IP address filter

    • Power

      12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A


      Max. 16 W (including max. 4 W for white light)



    • Operating ConditionHumidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)

    • DemistYes

    • Dimension179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")

    • Approx. 1.125 kg (2.48 lb.)



    • Approval

    • ProtectionIP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection




1. What are the main products of your factory?
The main products of our factory are security products, including Ip Camera, NVR, speed dome, baby monitor, smart fingerprint lock, security accessories, etc.
2. Can we visit your factory?
Of course, we welcome customers to visit our factory at any time.
3. Do you provide test samples?
Yes, we provide test samples at the buyer's expense. In addition, we believe we believe that seeing is believing, and we welcome sampling.
4. How is the quality?
We have the best professional and experienced engineers and strict quality assurance and quality control system. The strict quality control department will inspect and test the products again before shipment.
5. Can you accept OEM&ODM service?
Yes, we provide OEM&ODM services according to customer requirements, and the minimum order quantity is 500-1000 pieces. Custom LOGO and packaging.
6. What are the advantages of your factory?
We are a direct factory with advanced SMT assembly machines, stable quality and competitive prices
7. What is your purpose?
Our goal: quality, continuous innovation, and quality service are our tenet, and win-win cooperation is our development philosophy.
