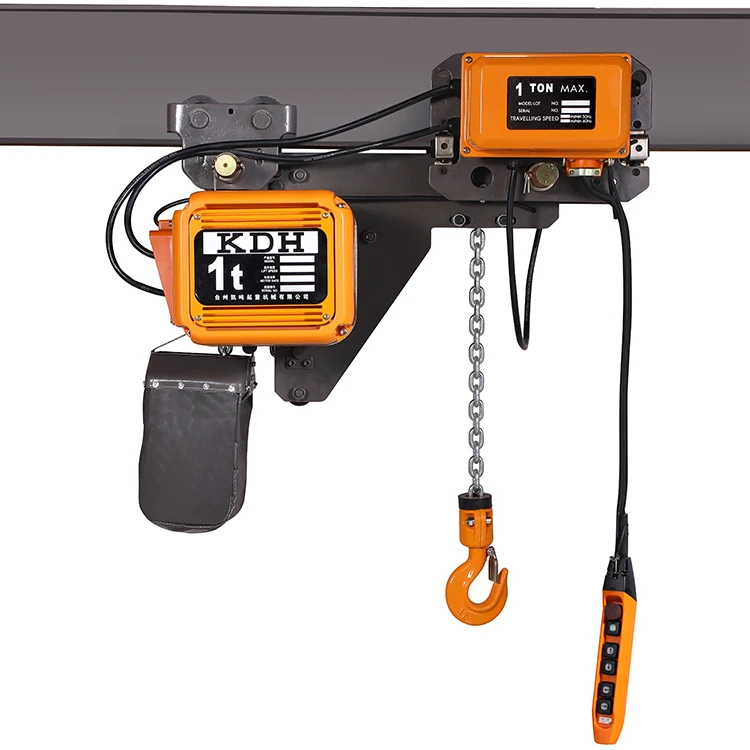

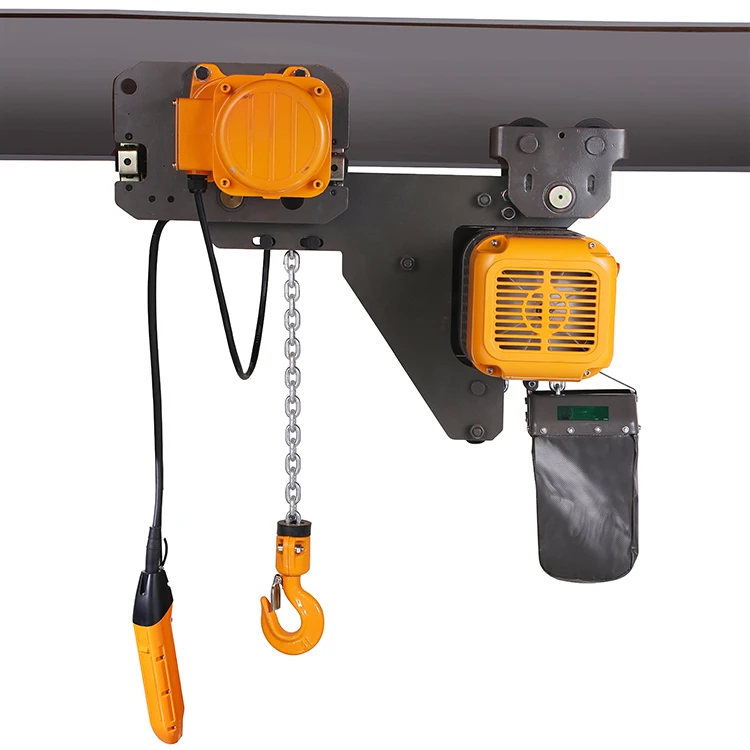

1ton 2 ton Customized 220v 380V motor drive high speed Low clearance Low Headroom electric chain hoist
- Category: Lifting, Pulling & Positioning >>>
- Supplier: Zhejiang Junchi Industry And Trade Co. Ltd.
Share on (11000004809801):
Product Overview
Description
Product Description

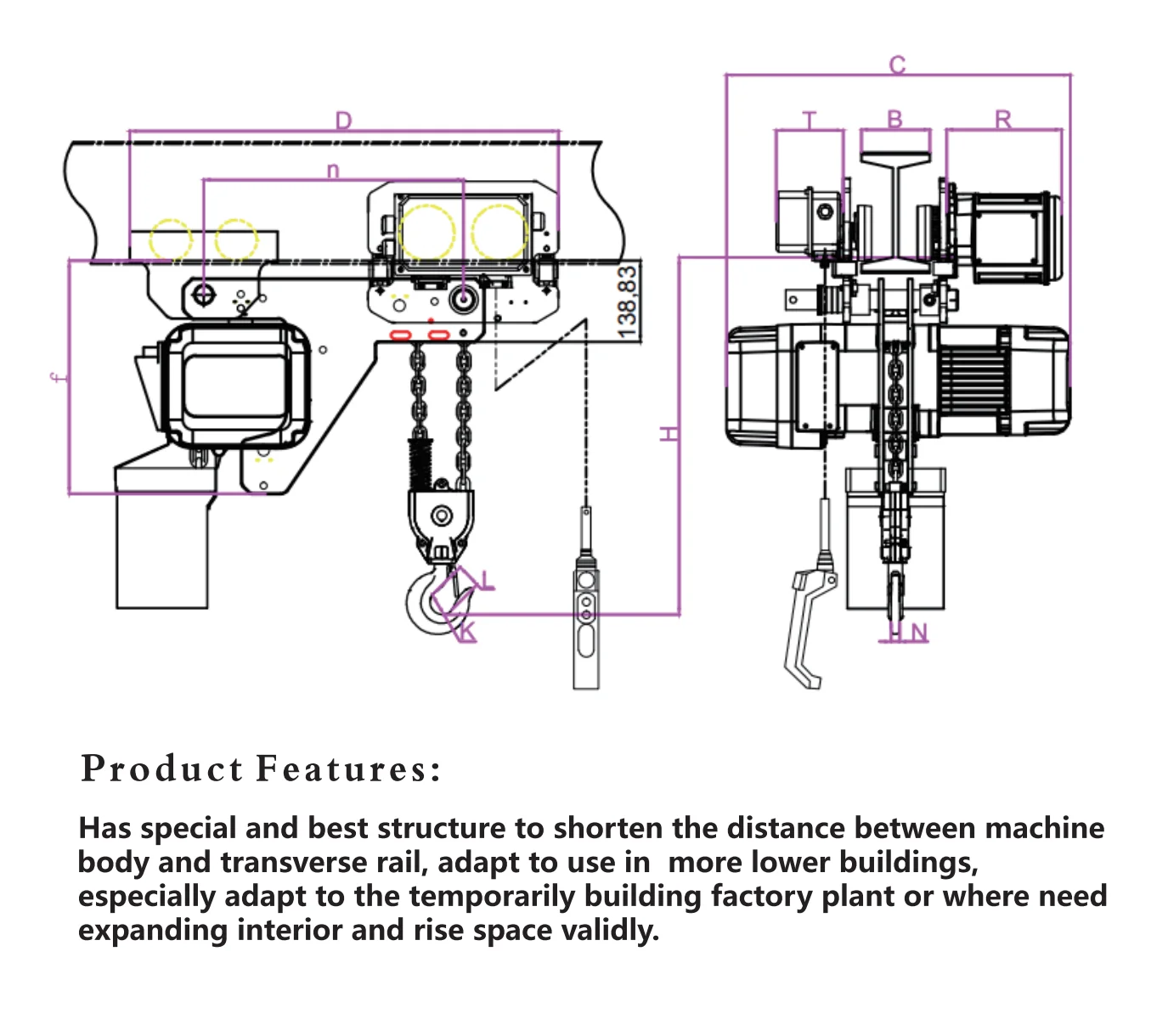

Technical parameters:
Type:EQ02-01L
Capacity(Ton):1-2ton
Lifting height: 4m
Liftign speed(m/min): 3.5-7.1m
Type:EQ02-01L
Capacity(Ton):1-2ton
Lifting height: 4m
Liftign speed(m/min): 3.5-7.1m
Chain Size:DIA.7.1mm
Work duty :M5
Insulation class : V
Lifting motor:
Power (kw): 1.5-3.0 kw
Rotation speed（r/min）：1440r/min
Phase: 3
Votage(v):380v
Frequency(Hz) :50 Hz
Rotation speed（r/min）：1440r/min
Phase: 3
Votage(v):380v
Frequency(Hz) :50 Hz
Pacage:
1set /Wooden box
Gross weight:130kgs
Wooden box meas.: 68*63*42cm
Leading time:10 days
Traveling motor :
Power (kw): 0.4 kw
Rotation speed（r/min）：1440r/min
Rotation speed（r/min）：1440r/min
Traveling speed(m/min) :11/21
Phase: 3
Votage(v):380v
Frequency(Hz) :50 Hz
Votage(v):380v
Frequency(Hz) :50 Hz
Product Features:
With special and best structure to shorten the distance between machine body and transverse rail, adapt to use in more lower buildings, especially adapt to the temporarily building factory plant or where need expanding interior and rise space validly.

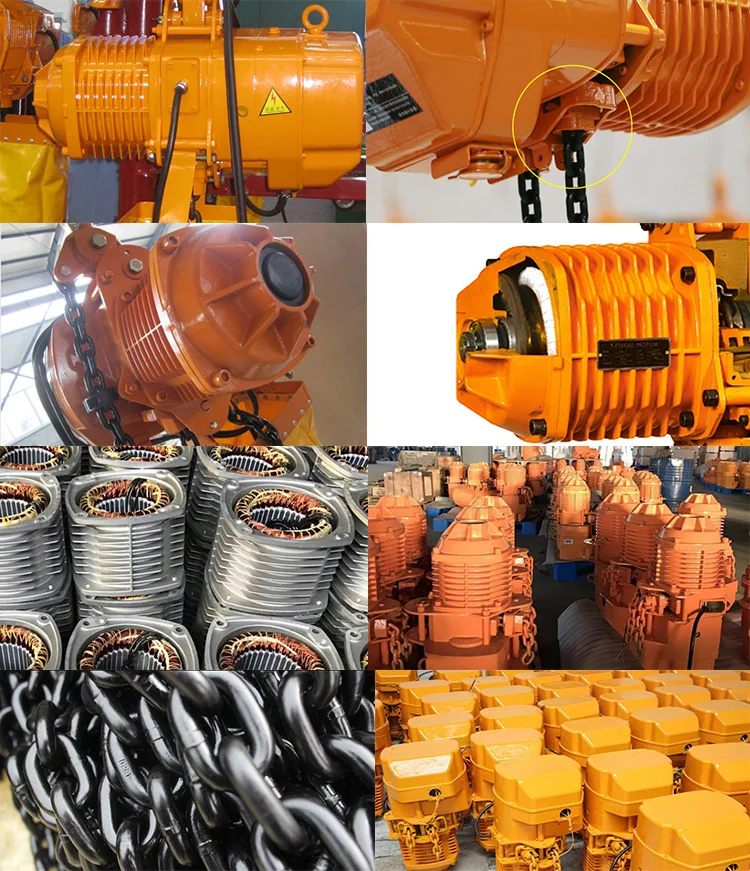

Pure Copper Motor
ROBUST MOTOR & DURABLE SHELL - Features full copper motor and aluminum alloy housing, durable, anti-rust, anti-corrosion. Special cooling fin ensures fast cooling and high working efficiency.
Hook & Remote Control - Hot Forging Hook:
Durable hook made of steel and through hot forging technology to meet the demand on strength and hardness. The operation safety of the lower hook is ensured safety latch; Wired Remote Control: Your safety always comes first. The wired remote control has the emergency stop button and 11.48Ft/3.5M long allows you to operate from a safe distance;
Wide Applications -
Junchi power lift Electric Chain Hoist is suitable for factories, warehouses, construction, building, goods lifting, railway construction, industrial and mining enterprises and others and also Suitable for harsh indoor or outdoor environments. In addition, Extra slings we offer just to help to make your job done easier.High speed and high efficiency give you better working experience;
ROBUST MOTOR & DURABLE SHELL - Features full copper motor and aluminum alloy housing, durable, anti-rust, anti-corrosion. Special cooling fin ensures fast cooling and high working efficiency.
Hook & Remote Control - Hot Forging Hook:
Durable hook made of steel and through hot forging technology to meet the demand on strength and hardness. The operation safety of the lower hook is ensured safety latch; Wired Remote Control: Your safety always comes first. The wired remote control has the emergency stop button and 11.48Ft/3.5M long allows you to operate from a safe distance;
Wide Applications -
Junchi power lift Electric Chain Hoist is suitable for factories, warehouses, construction, building, goods lifting, railway construction, industrial and mining enterprises and others and also Suitable for harsh indoor or outdoor environments. In addition, Extra slings we offer just to help to make your job done easier.High speed and high efficiency give you better working experience;
Packing & Delivery
FAQ
1.Are you manufacturer ?
Yes, We Junchi professional crane and hoist manufacturer for 12yeas. We have our own factory in Zhejiang which covers 12000 square meters.
2. Is your products customized?
Yes, because the working condition are different, all our products can be customized depending on detail requirement!
3.About sample?
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
4.How many staffs you have in your factory?
100 Staffs , 30% of them worked in Junchi for more than 10years especially R&D team.
5.How many countries you have ever exported to ?
Till now we have exported to 38 countries.
6.What is the lead time of the goods?
It depends on the order quantity and specification and the season you place the order. Normally 15 days after confirmed order. 10 days could be available for some items in sufficient stock and standard requirement, and 30 days during New Year and hot season.
7.How about the quality control before shipment?
Every products in Junchi 100% strictly quality checked and tested with 3 steps before packing to promise all the hoists operating well before delivery.
8.How many years quality guarantee ? What about the after sale service ?
Normally 12monthes, we have fast service within 24hours, any problem just contact with our sales team we will solve any problem.
Yes, We Junchi professional crane and hoist manufacturer for 12yeas. We have our own factory in Zhejiang which covers 12000 square meters.
2. Is your products customized?
Yes, because the working condition are different, all our products can be customized depending on detail requirement!
3.About sample?
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
4.How many staffs you have in your factory?
100 Staffs , 30% of them worked in Junchi for more than 10years especially R&D team.
5.How many countries you have ever exported to ?
Till now we have exported to 38 countries.
6.What is the lead time of the goods?
It depends on the order quantity and specification and the season you place the order. Normally 15 days after confirmed order. 10 days could be available for some items in sufficient stock and standard requirement, and 30 days during New Year and hot season.
7.How about the quality control before shipment?
Every products in Junchi 100% strictly quality checked and tested with 3 steps before packing to promise all the hoists operating well before delivery.
8.How many years quality guarantee ? What about the after sale service ?
Normally 12monthes, we have fast service within 24hours, any problem just contact with our sales team we will solve any problem.
