Китайская Фабрика KCM 80ST A Автоматический манипулятор станок для скашивания кромки под углом 45 градусов железная стальная короткая труба стержень аппарат для снятия фасок
- Category: Machine Tool Equipment >>>
- Supplier: Lishui Keensaw Machine Co. Ltd.
Share on (11000006602175):
Product Overview
Description
Product Description
1.Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface once quickly and accurately.
2.The central line of the processing object and the cutter is precise. Specially design and standardization of the blade make adjusting blade easily.
3.Monobloc Casting machine construction, Manual loading, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the insert holder can make the machie available for different size of workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 4-6 second/piece.
2.The central line of the processing object and the cutter is precise. Specially design and standardization of the blade make adjusting blade easily.
3.Monobloc Casting machine construction, Manual loading, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the insert holder can make the machie available for different size of workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 4-6 second/piece.

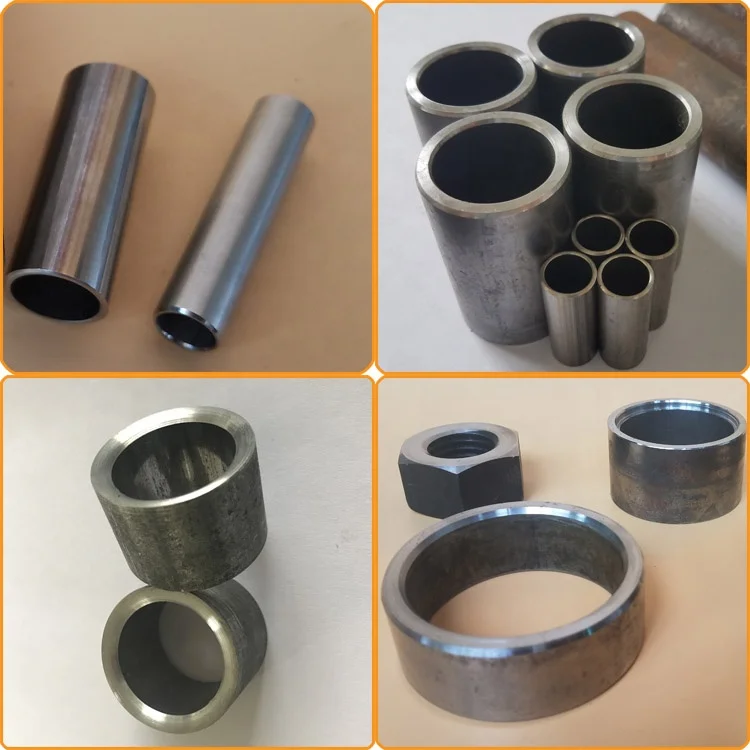

Chamfer Samples
Product Parameters
Model | KCM-80ST-A |
Type | Hydraulic & Automatic type & Double End |
Tube Diameter | 20-80 mm |
Work Length | 20-150 mm |
Work Accuracy | ±0.1 mm |
Work Speed | 4-6s/pcs |
Main Motor | 2.2 kw*2 pcs |
Air Pressure | MPA 6-8 KG |
Machine Weight | 1500 KG |

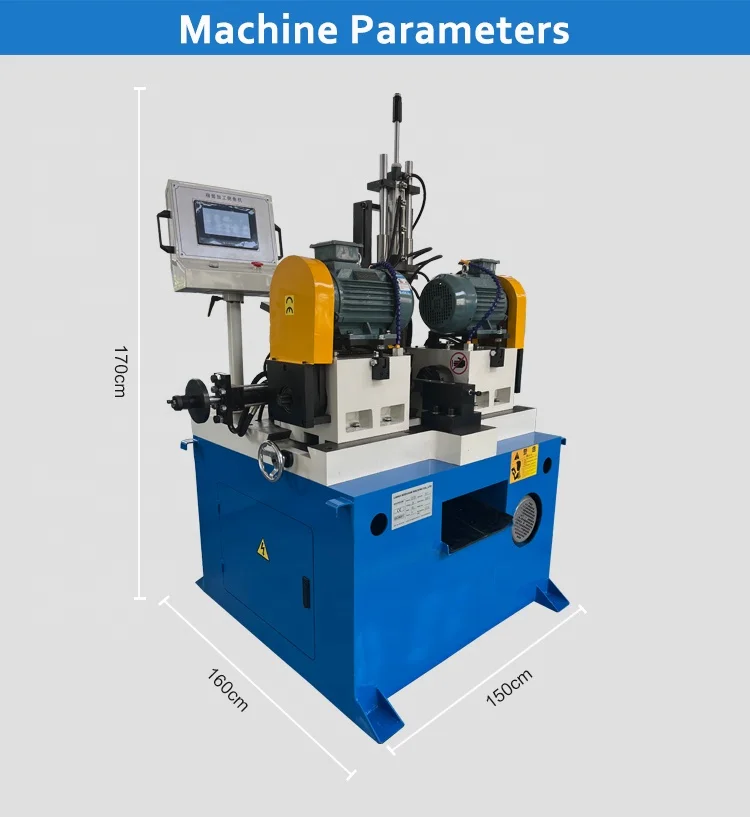

Machine Size | 150 *160 *175 cm |
Standard Accessories | One set clamp mold, one set insert holder, one set chamfer blade |

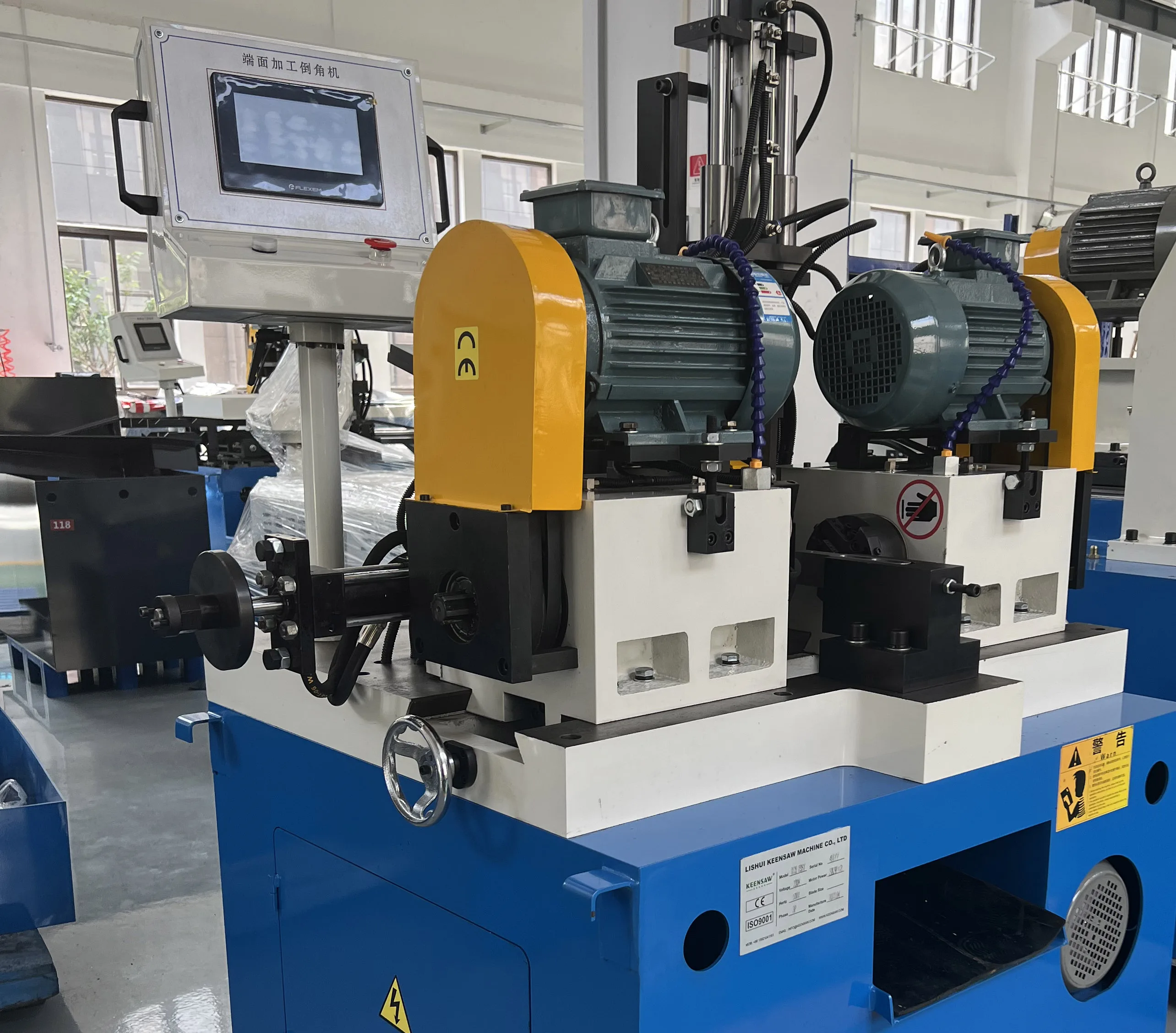

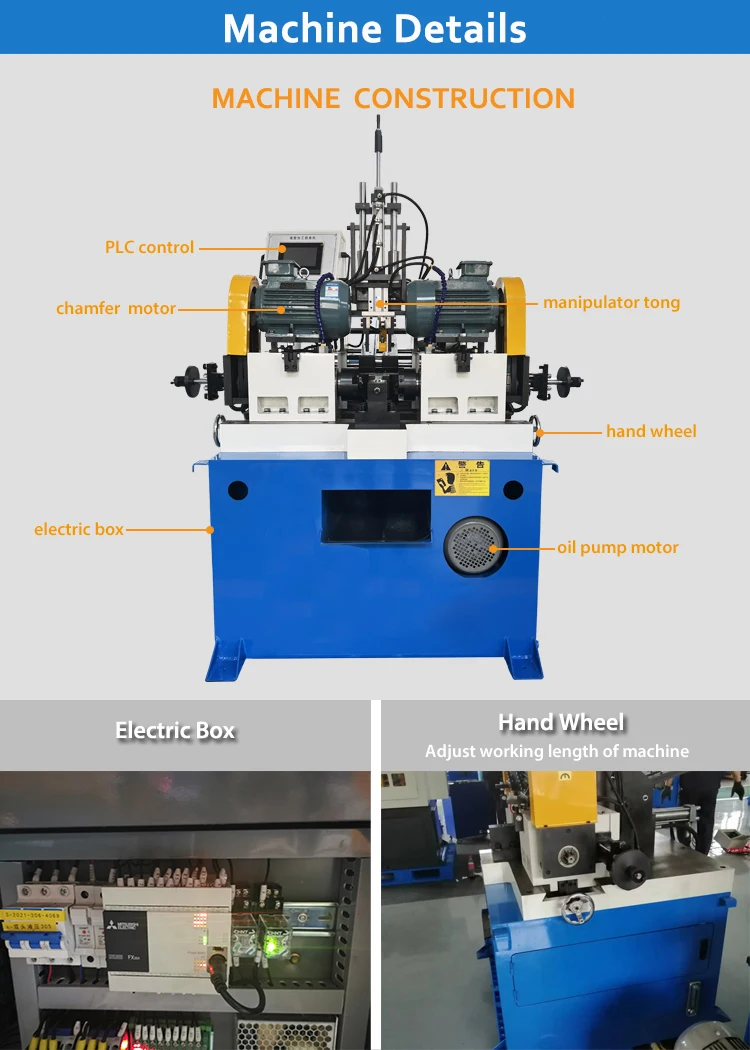

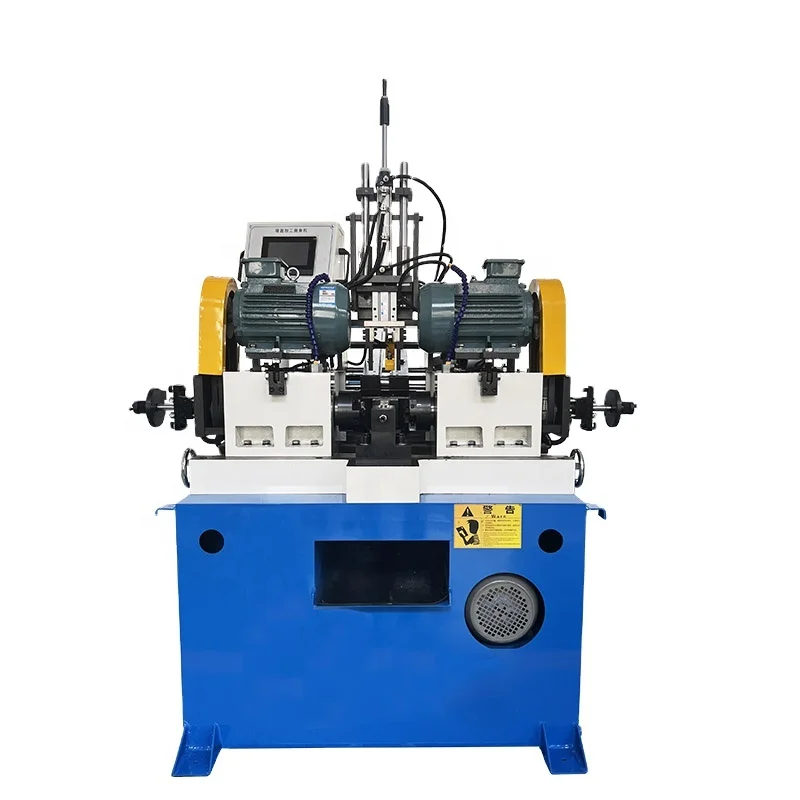

Product Show
NC Touch Screen Control
PLC touch screen surface, easy to understand and operate.
Simple operation surface, both English and Chinese language are availabe.
Simple operation surface, both English and Chinese language are availabe.

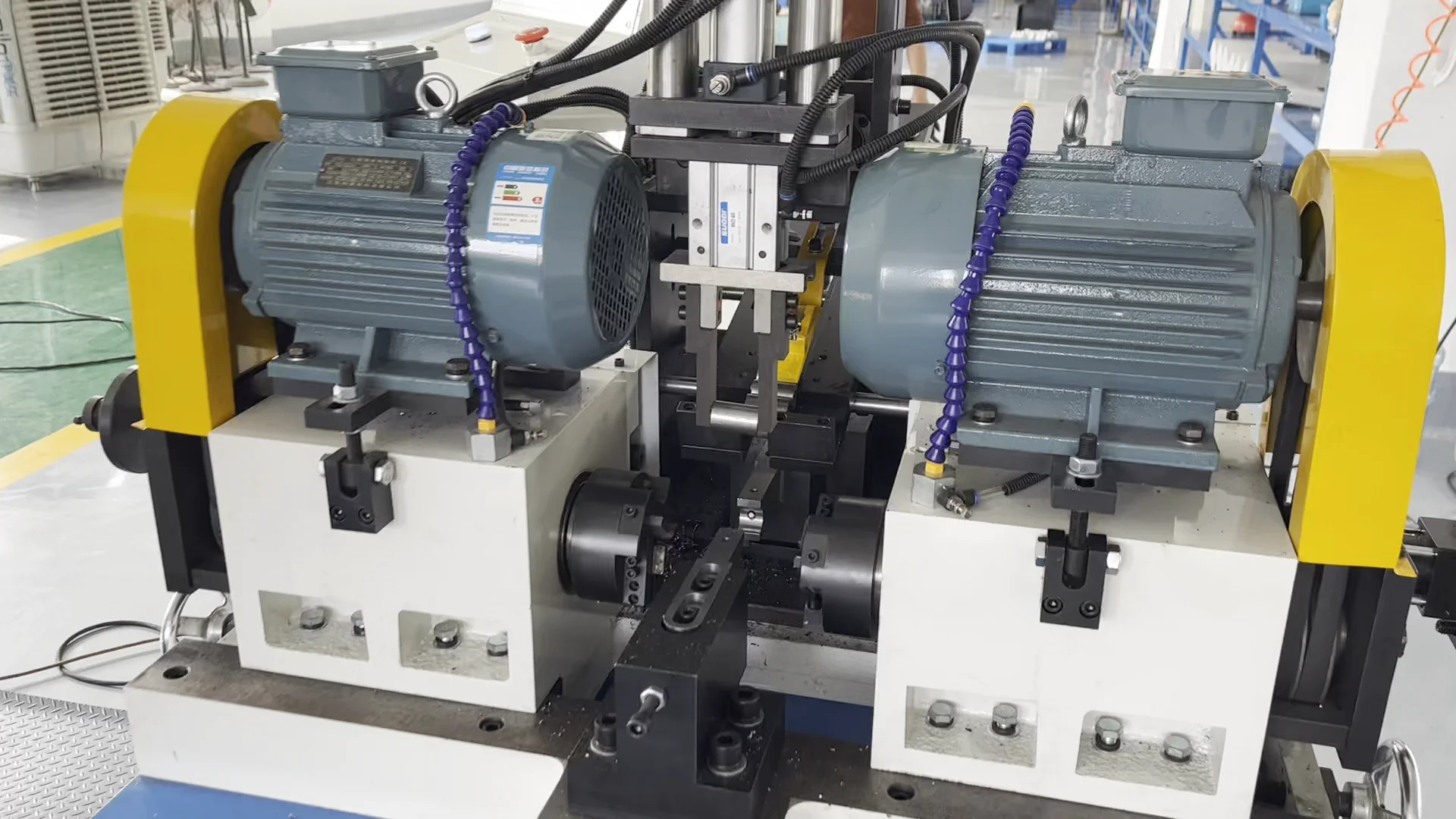

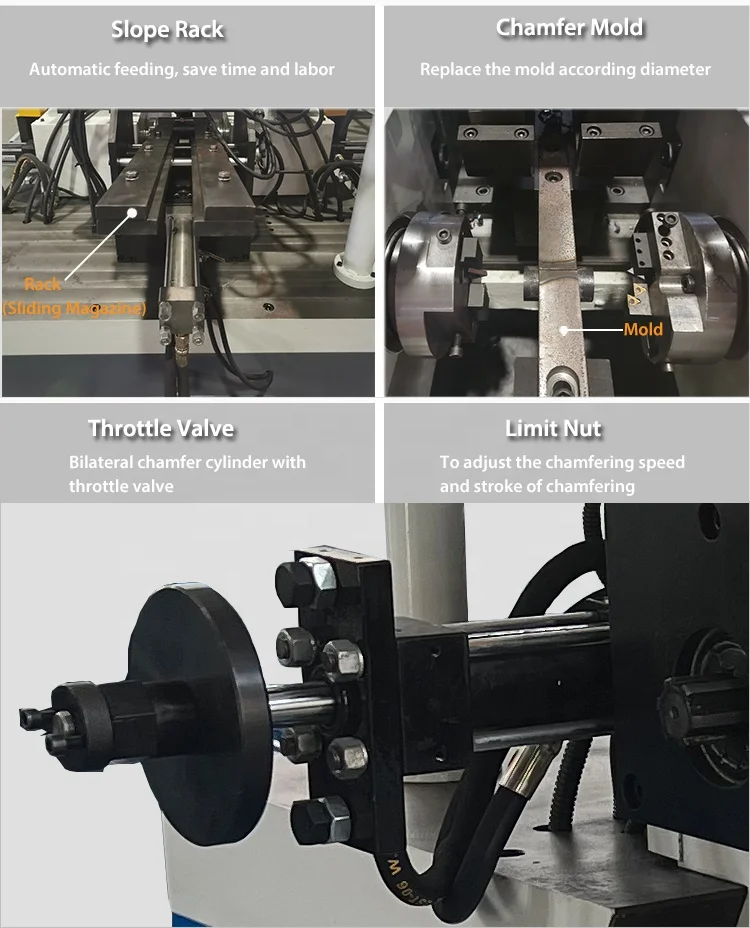

Manipulator Automatic Feeding
KCM-80ST-A Automatic chamfering machine with Manipualtor automatic feeding, then make the machine more stalbe and high accuracy.

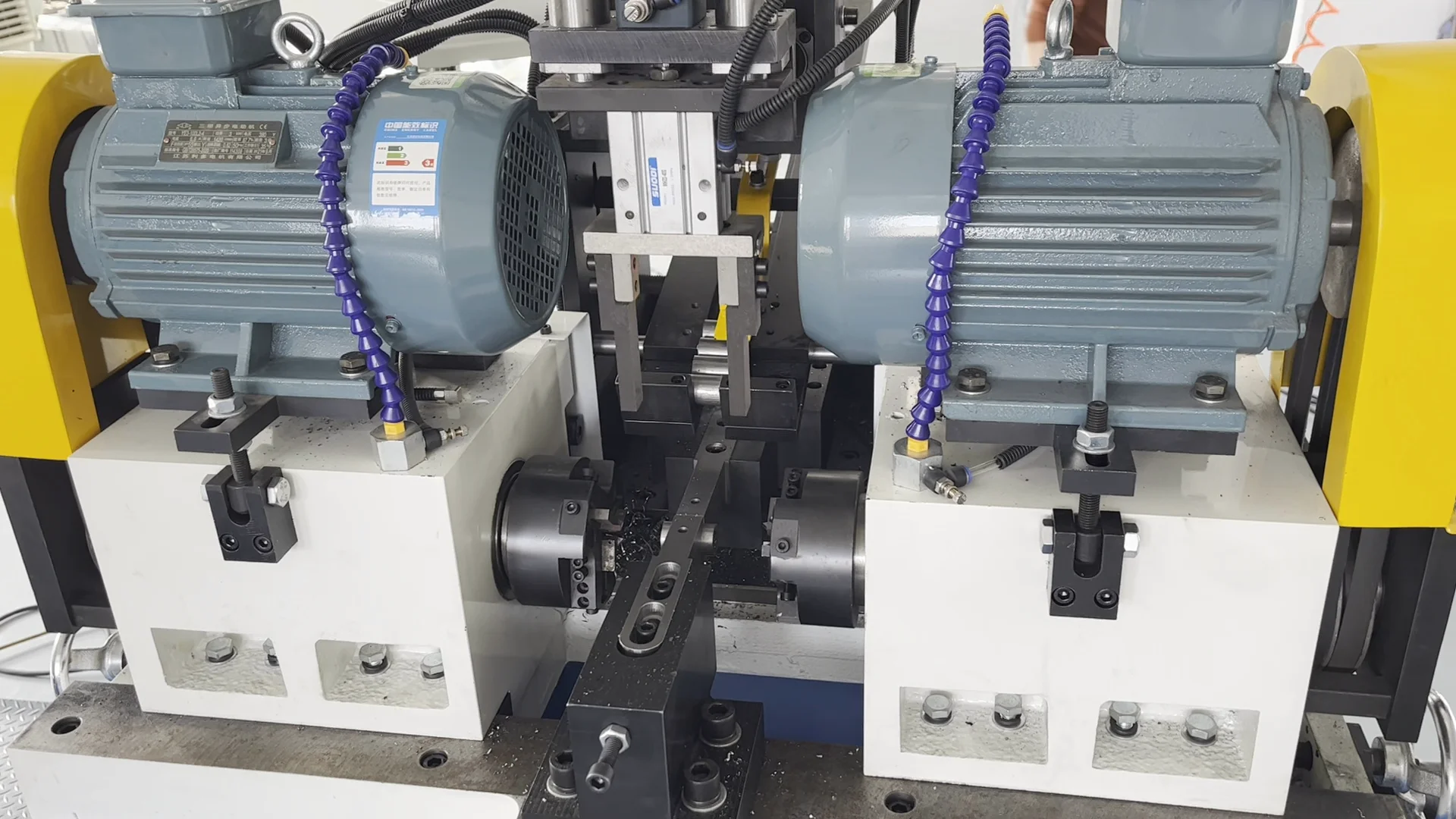

Automatic Clamping

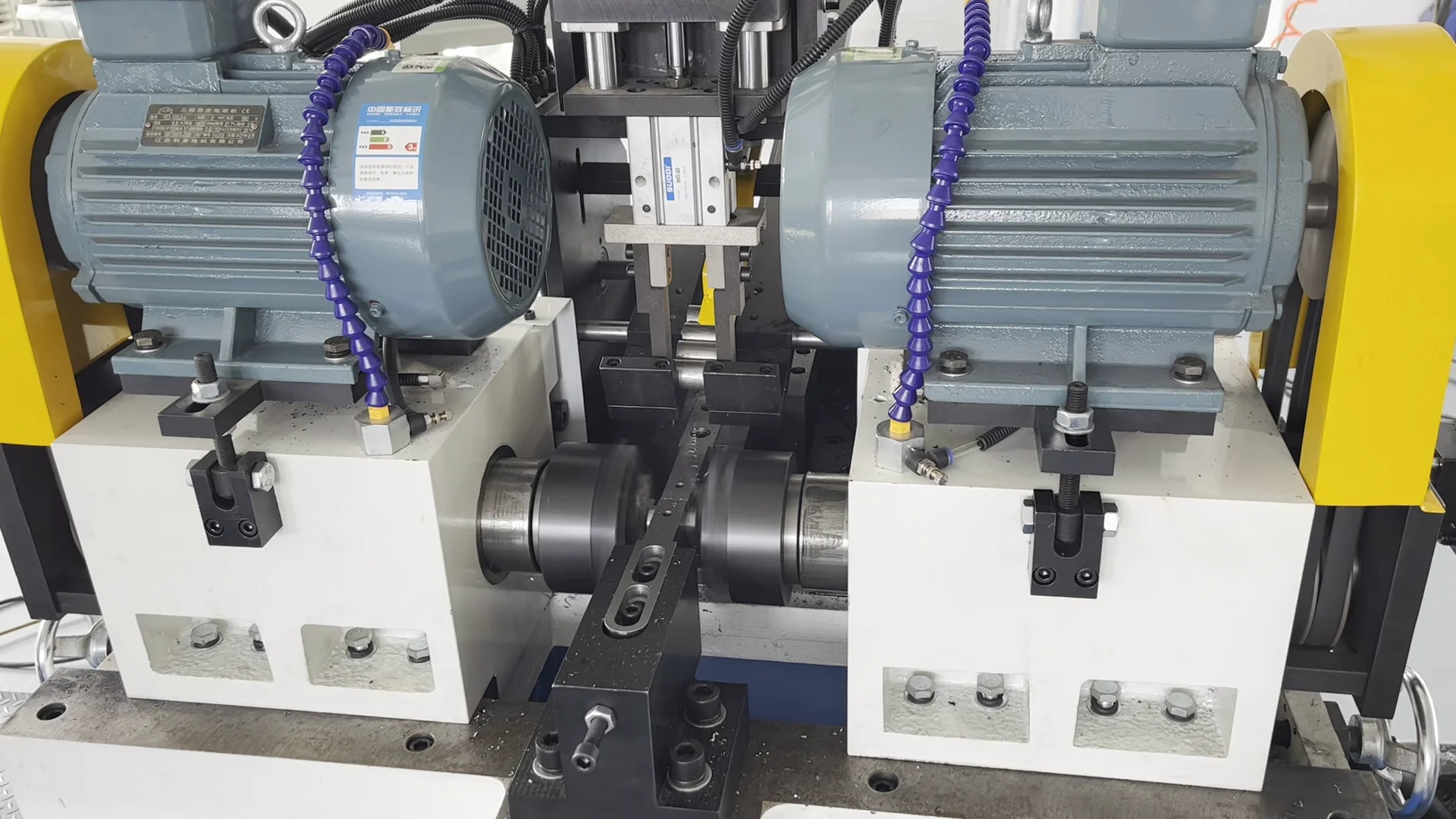

Automatic Chamfering
Packaging&Shipment
Why Choose Us
FAQ
1) Q: May i have your quotation?
A:please offer us the information of your material size,without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No, but we normally help our clinets to solve the problems through phone, skype, internet video with high efficiency.
3) Q: Do you have quality guarantee?
A: Quality guarantee period within 1 year, during this year, if component breaks, It will be deliveried to you for free.
4) Q: How about your payment term?
A: T/T 30% deposit, 70% of balance paid before shipment.
5) Q: What is the delivery time?
A: Normally the delivery time is 30 days
