NEW EVA air cooling automatic granule line pettlize line masterbatch granulation production equipment
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Quanzhou Hongtai Machinery Co. Ltd.
Share on (11000006892688):
Product Overview
Description
Technical parameters
DESCRIPTION | SPECIFICATION | QUANTITY | ||||

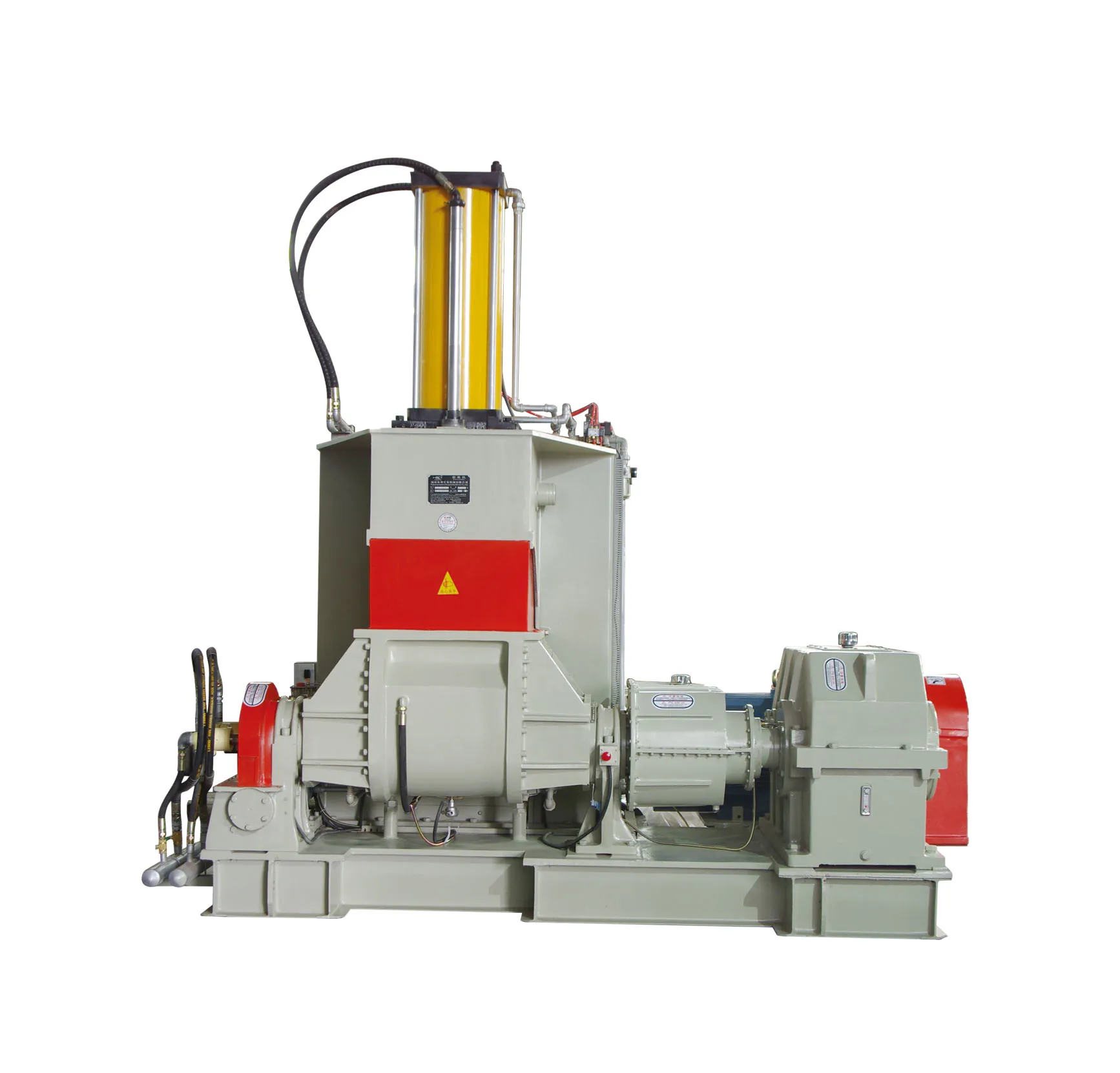

1.Capacity：35L 2.Main motor power：55kw 3.Temperature adjustment: steam heating or water cooling 4.Material feeding:Front and back feeding 5.Mixing capacity per time: 30-40kgs/time 6.Mixing time: 4-8minutes/time 7.Overall dimension：3200x1900x3000mm 8.Weight：6500kg | 1set | |||||

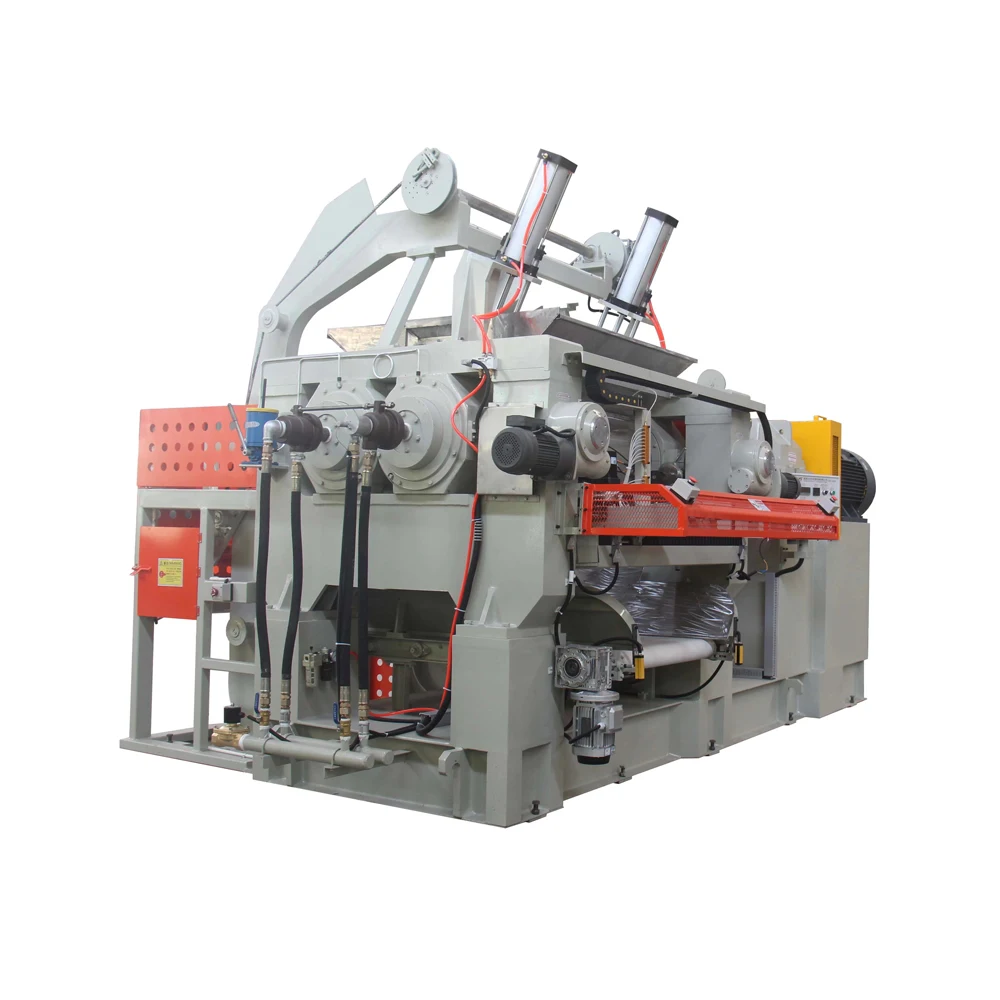

Automatic mixing mill | 1.model：XKA-315 2.motor power: 22KW 3.roller diameter: 315mm 4.roller working length: 900mm 5.speed ratio: 1:1.33 6.mixing capacity: 20-30kgs 7.reducer ratio: 1:40 8.machine size: 3600x2000x2400 9.weight: 6500kgs | |||||

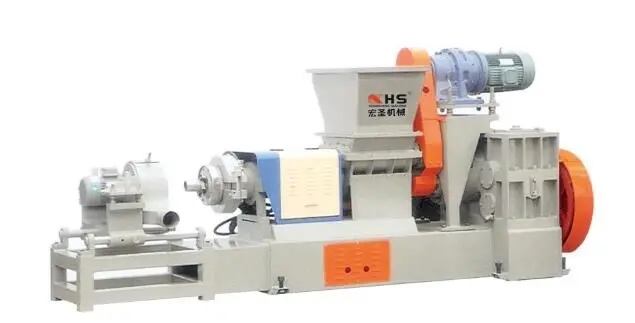

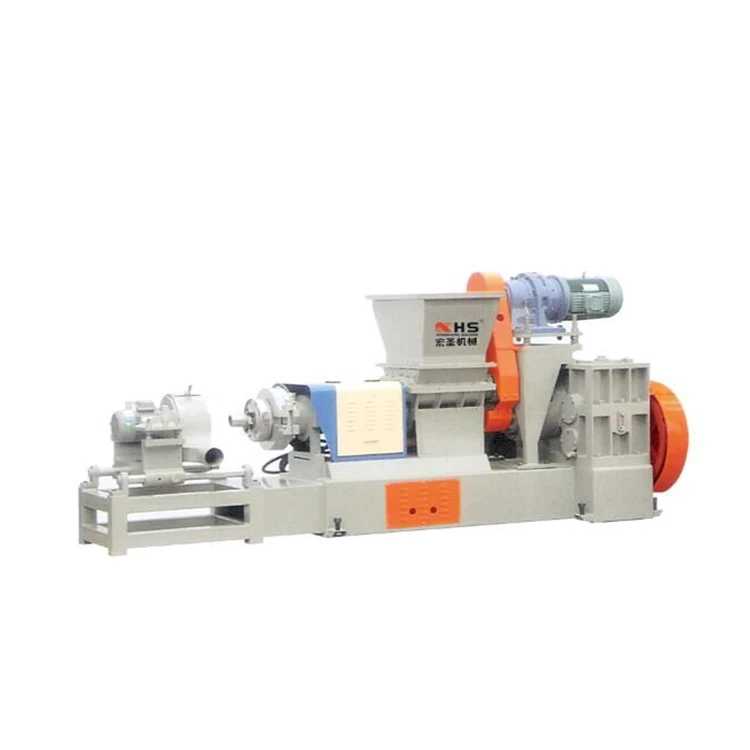

Extruder mainframe and cutter | 1.Screw diameter : Φ100 mm 2.Screw speed : 0-50r/min 3.Main motor power : 30kw (all with inverter) 4.Feeder motor power : 4kw (all with inverter) 5.Cutter motor power :1.5kw(all with inverter) 6.Heat power : 9kw 7.Gear box : oil bath lubrication,hardened gear reducer 8.Cutting system :air cooling 9.Auto thermo control: 5 zones 10.Screw/barrel material :38CrMoAIA 11.Barrel cooling system: water cooling 12.Granule diameter : 3-5mm 13.L/D : 10/1 14.Overall dimension (L*W*H) : 4100*1900*1550mm 15.Weight : 1800kg | |||||

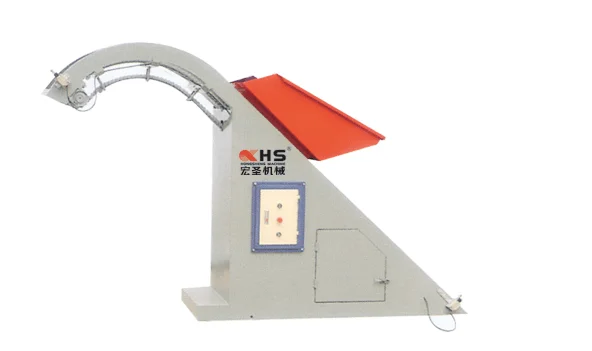

1.Bucket dimension：700*600*300mm 2.Overall dimensions：3300*1000*2000mm 3.Material：stainless 4.Motor Power：1.5kw 5.Weight：550kg | 1set | |||||
Cooling conveyer | 1.Length and width : 2800*510 2.Motor power : 1.1kw 3.Overall dimensions(L*W*H) : 3000*750*1080mm 4.Weight : 650kg 5.Material :stainless | |||||

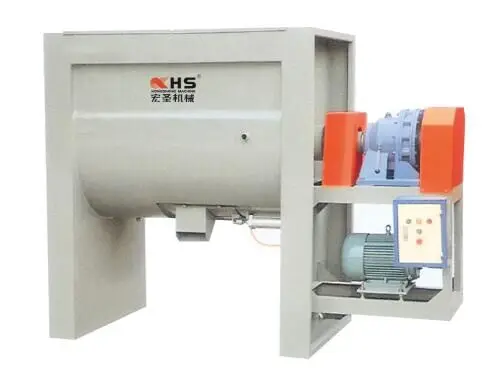

1.Capacity : 500L 2.Spindle speed : 11r/min 3.Motor power : 7.5kw 4.Overall dimensions(L*W*H) : 2450*1000*2100mm 5.Weight : 1400kg 6.Material : stainless 7.Thickness : 4mm | 2sets | |||||

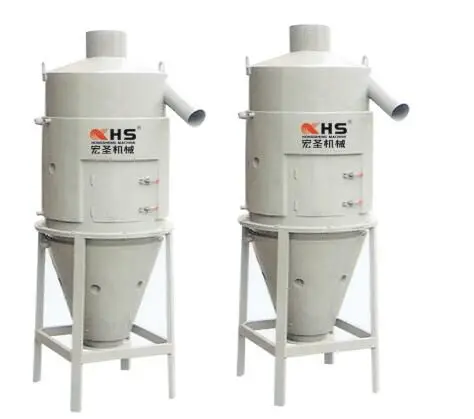

Whirlwind Cooler | 1.Cooling tank diameter : Φ650 2.Joint diameter : Φ125 3.Overall dimensions(L*W*H) : 880*880*2830mm 4.Weight : 200kg 5.Material :stainless | |||||
Whirlwind Cooler | 1.Cooling tank diameter : Φ850 2.Joint diameter : Φ125 3.Overall dimensions(L*W*H) : 980*980*2600mm 4.Weight : 250kg 5.Material :stainless | |||||
Air machine | 1.Motor power : 3kw 2.Screw speed : 2880r/min 3.Overall dimensions(L*W*H) : 750*500*650mm 4.Weight : 200kg | |||||
Transparent tube | 1.Model : 5inches 2.Material : PVC | 30M | ||||
Machine Pictures

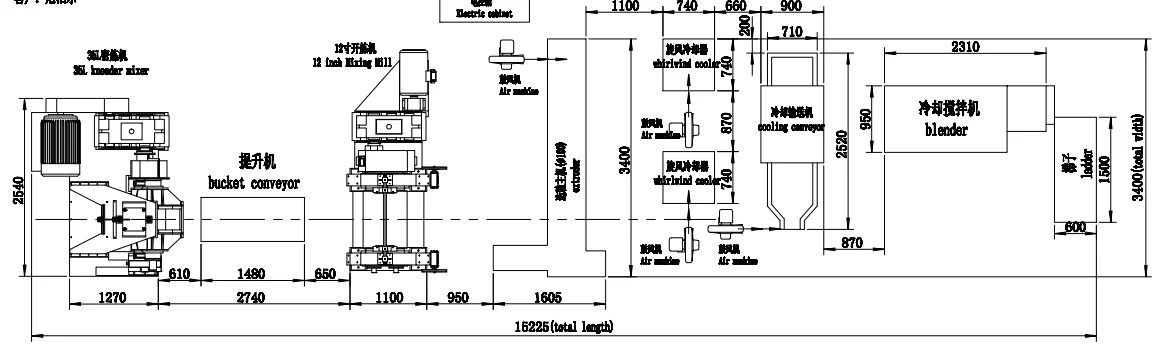

Installation drawing
Factory photo

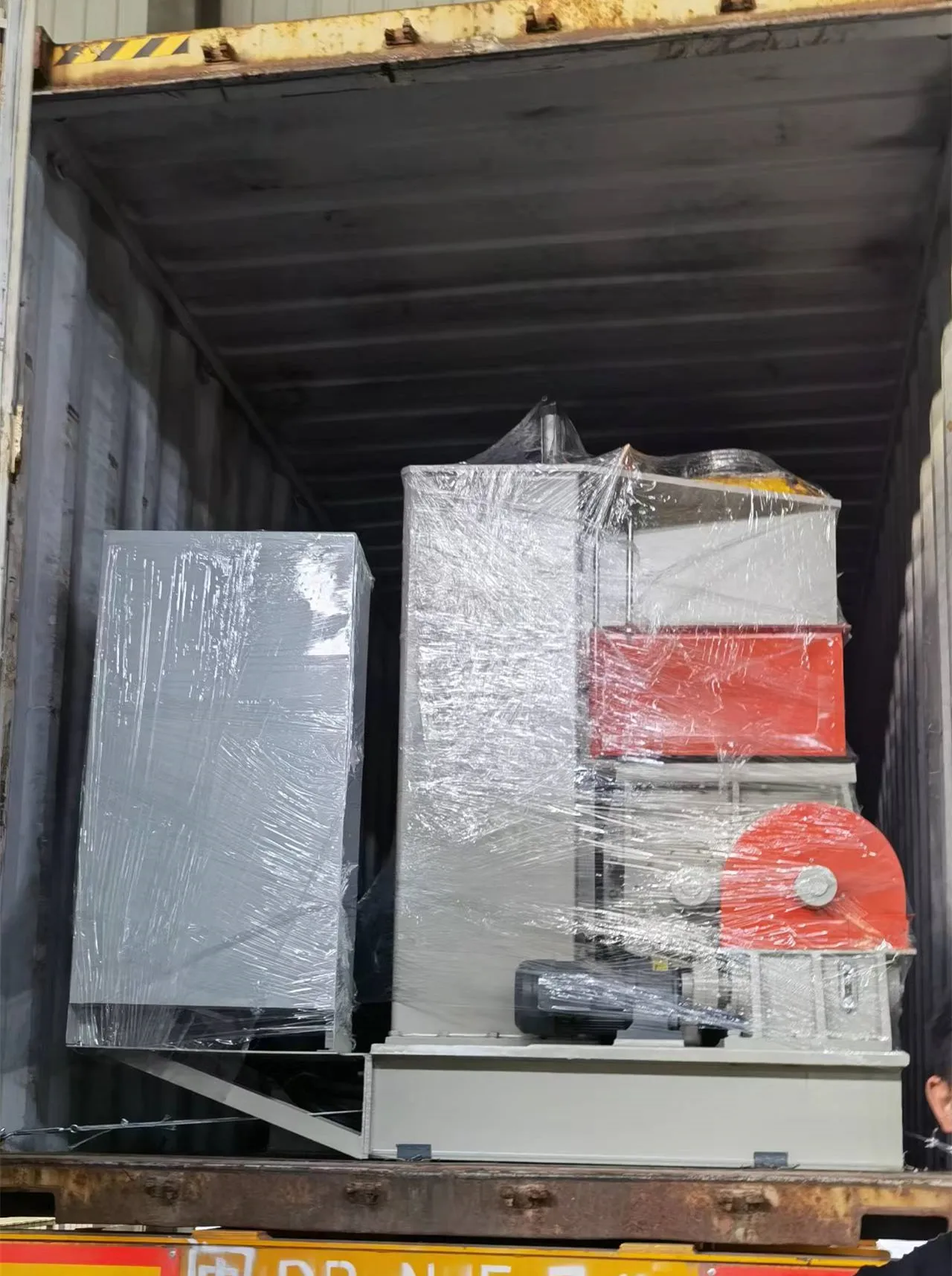

Packing&shipping
FAQ
1. How to choose the most suitable equipment line?
We will give you best advice as long as you make an inquiry to us.
2. What’s the delivery term?
If you need machine urgently, we can consider making special arrangement for you.
3. How to install and use the machine?
The product is shipped with an operating instructions.We support installation drawing,circuit diagram and provide professional guidance for installation.
We will give you best advice as long as you make an inquiry to us.
2. What’s the delivery term?
If you need machine urgently, we can consider making special arrangement for you.
3. How to install and use the machine?
The product is shipped with an operating instructions.We support installation drawing,circuit diagram and provide professional guidance for installation.
