Preferential Price Hot sale original HPE ProLiant dl380 dl360 dl180 dl20 DL160 Gen9 gen10 gen11 rack Server
- Category: Servers >>>
- Supplier: Shenzhen Keyue Times Technology Co. Limited
Share on (11000007251799):
Product Overview
Description
HPE ProLiant DL160 Gen9 Server
Specification
Description | HP ProLiant DL160 Gen9 Hot Plug 8SFF Configure-to-order Server | |
SKU Number | 754520-B21 | |
Processor | 2 (optional) x HPE Smart Socket Guide | |
DIMM Slots | 16 DIMM slots for RDIMM, LRDIMM DDR4 Memory | |
Storage Controller | HPE Dynamic Smart Array B140i | |
PCIe | Optional (None ship standard) | |
Drive Cage | 8SFF Hot Plug | |
Network Controller | HPE Embedded Dual Port 361i Adapter Network Interface | |
Fans | 3 hot swap fans, non-redundant | |
Management | iLO Management (standard), Intelligent Provisioning (standard | |
USB | 1 front, 1 internal, 2 rear | |
We supply most of parts above, contact me for further information. My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com | ||
item | value |
Products Status | Stock |
Type | Rack |
Processor Type | xeon |
Brand Name | inter |
Model Number | E5-2600v3, E5-2600v4 |
Place of Origin | China |
Product Description

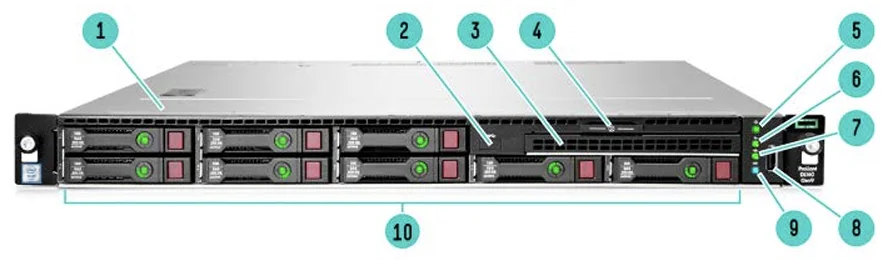

Front View
1. Access Panel
2. Optional USB3.0 (optional with 8SFF only)
3. Optical disk drive bay
4. Serial label pull tab
5. Power On/Standby button and system power LED
6. Health LED
7. NIC status LED
8. USB 2.0 connector
9. UID button/LED
10. 8SFF drive cage
7. NIC status LED
8. USB 2.0 connector
9. UID button/LED
10. 8SFF drive cage

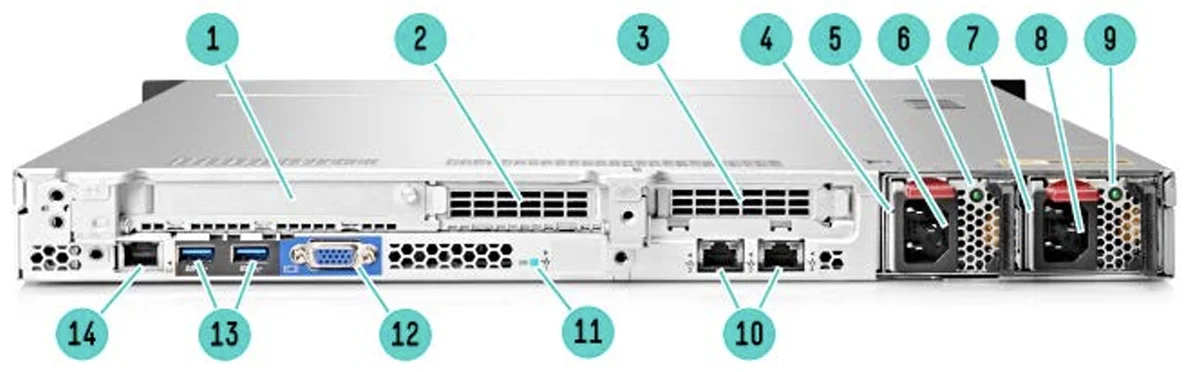

Rear View
1. PCIe3 slot 1 (primary, associated with processor 1)
2. PCIe3 slot 2 (primary, associated with processor 1)
3. PCIe3 slot 3 (secondary, associated with processor 2)
4. Power supply 1 bay
5. Power supply 1 Power Connector (Optional)
6. Power supply 1 LED (Optional)
7. Power supply 2 bay
8. Power supply 2 power connector
9. Power Supply 2 LED
10. Embedded 2x1GbE network adapter
11. Unit ID LED
12. Video Connector
13. USB3.0 connectors
14. Dedicated iLO connector (optional)
9. Power Supply 2 LED
10. Embedded 2x1GbE network adapter
11. Unit ID LED
12. Video Connector
13. USB3.0 connectors
14. Dedicated iLO connector (optional)

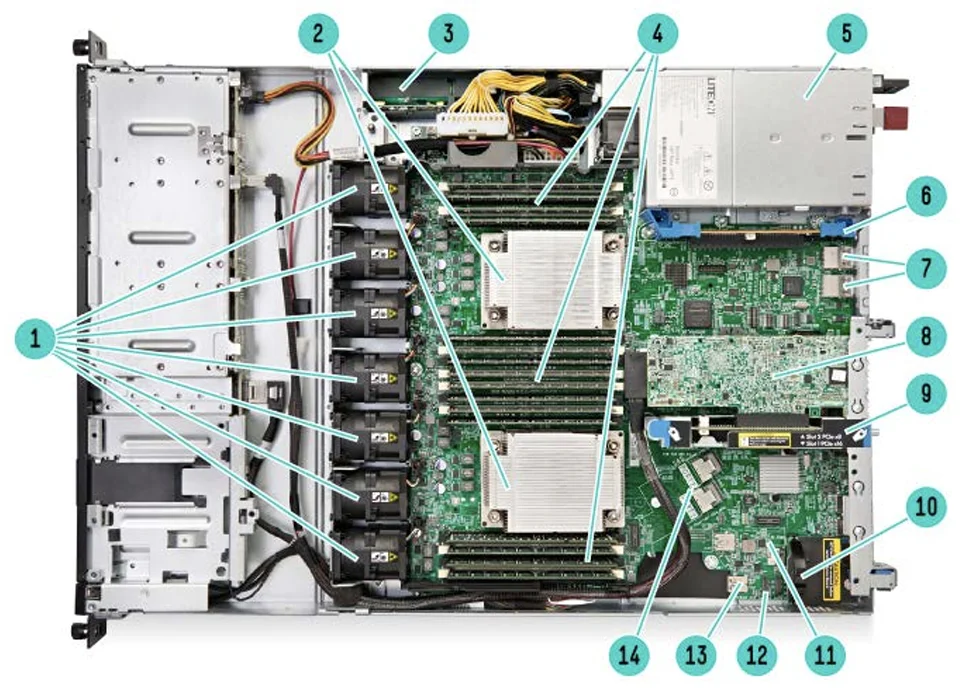

Internal View
1. Hot Swappable fans (up to 7)
2. Processor heat sinks (processors with HPE Smart Sockets placed below heat sinks)
3. HPE Smart Storage Battery (optional)
4. DDR4 DIMM slots (up to 16). Shown fully populated in 16 Slots (8 per Processor)
5. Entry level power supply bay (1x900W shown)
NOTE: RPS (with one module) shown in the picture above.
6. Connector for secondary PCIe riser
(associated with CPU2)
7. Embedded 2x1GbE network adapter8. HPE Smart Array P440 controller (optional)
9. Primary PCIe riser (2 PCIe3 slots associated with CPU1)
10. Dedicated iLO module connector (optional)
11. MicroSD card slot
11. MicroSD card slot
12. Internal SATA ports (one for ODD and another one reserved)
13. Internal USB 3.0 connector14. Embedded B140i SATA controller (2x SATA ports for up to eight drives)
13. Internal USB 3.0 connector14. Embedded B140i SATA controller (2x SATA ports for up to eight drives)

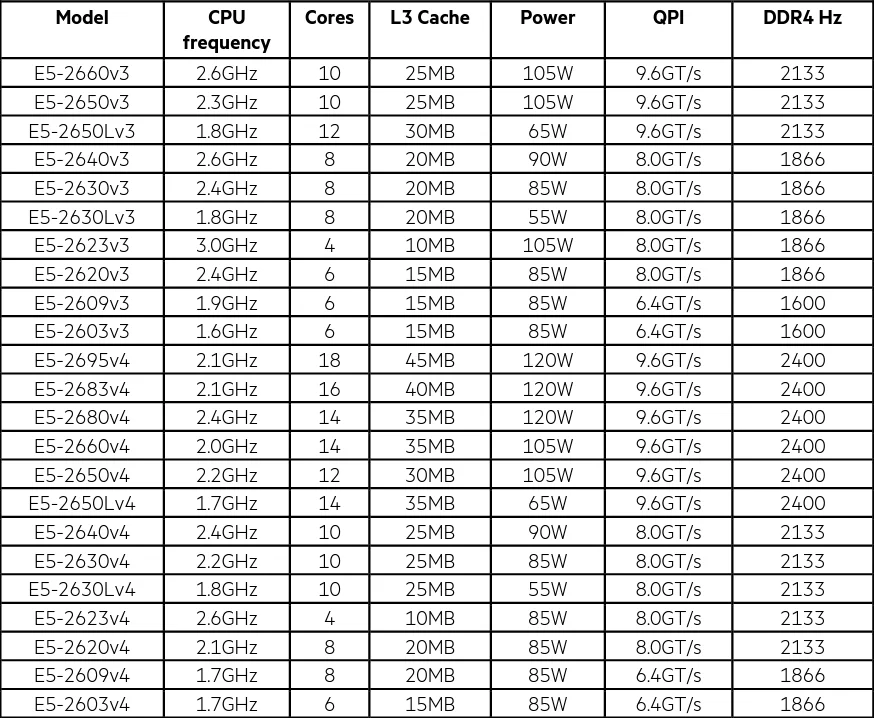

Processor
Up to two of the following depending on model
