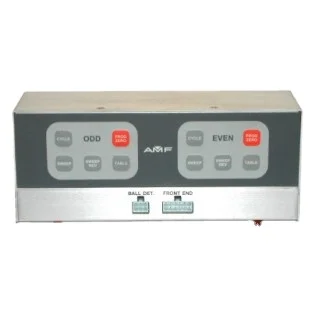

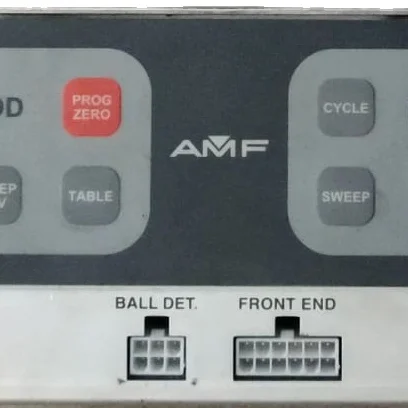

  • Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material
Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material
Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material
Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material
Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material
Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material

Used Working Condition AMF 090005827 Front End Bowling Electronic Control Box for 8290XL Pinspotters Plastic Lane Ball Material

Share on (11000007735822):


Price:

Quantity:


Product Overview

Description


 Front End box for black 90XL chassis

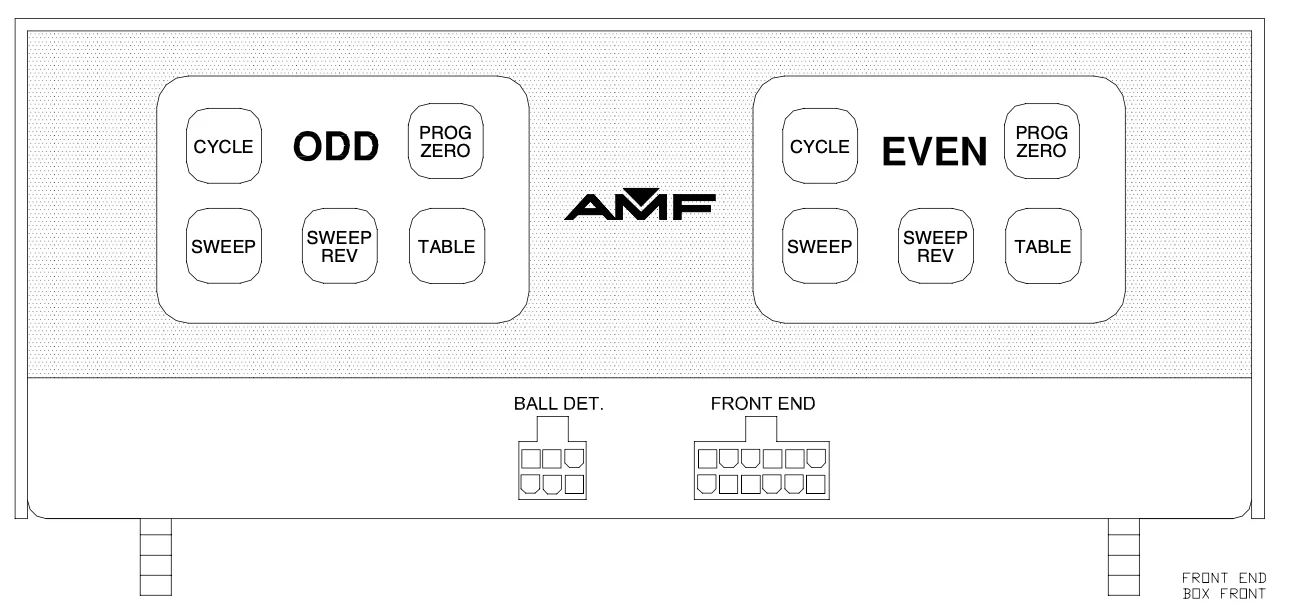

front end box.png





Install the communication and power cables between the front end box and the chassis as described below. All of the cables must be routed through the wiring channels of the respective even or odd pinspotter. If the wiring channels have not yet been installed, install them and remove their covers before performing this step.



  1. Connect the DB-9 front end communications cable (090-005-733) between the
    "BACKEND" connector on the front end box and the "FEB" connector on the back of the 90XL chassis.

  2. Connect the Molex power cable (090-005-714) between the "POWER" connector on the front end box and the "FEB PWR" connector on the back of the 90XL chassis.

  3. Verify that the odd and even machine's Strike/Foul cables (090-005-734) are connected between the mask and the front end box.

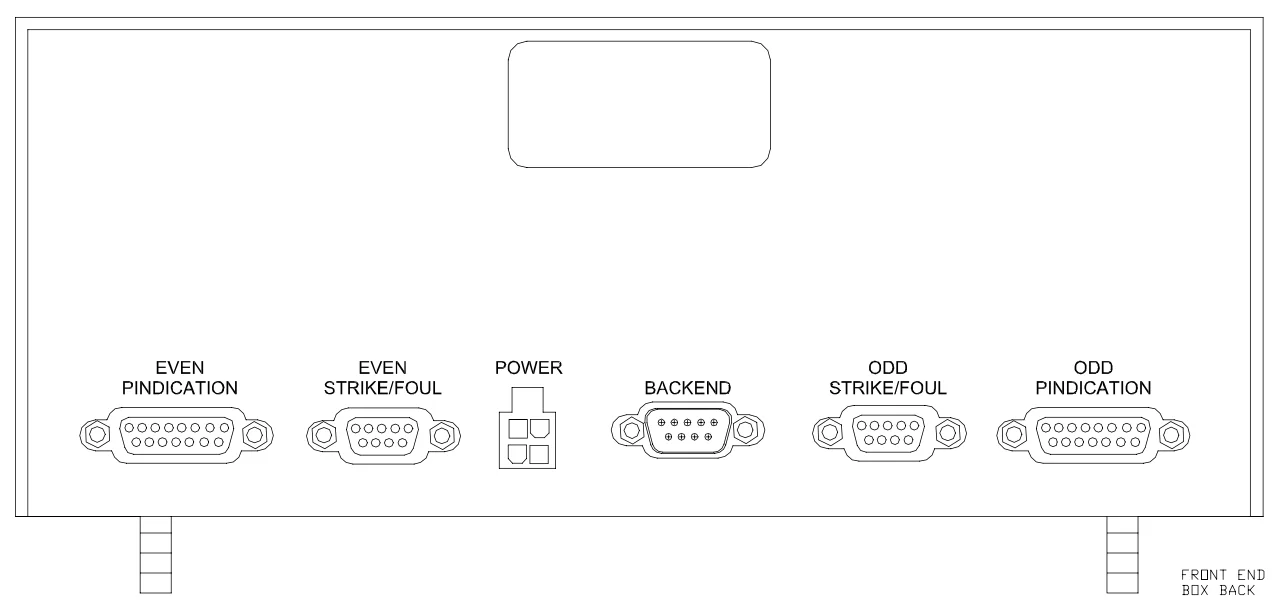

 Front end box back.png
