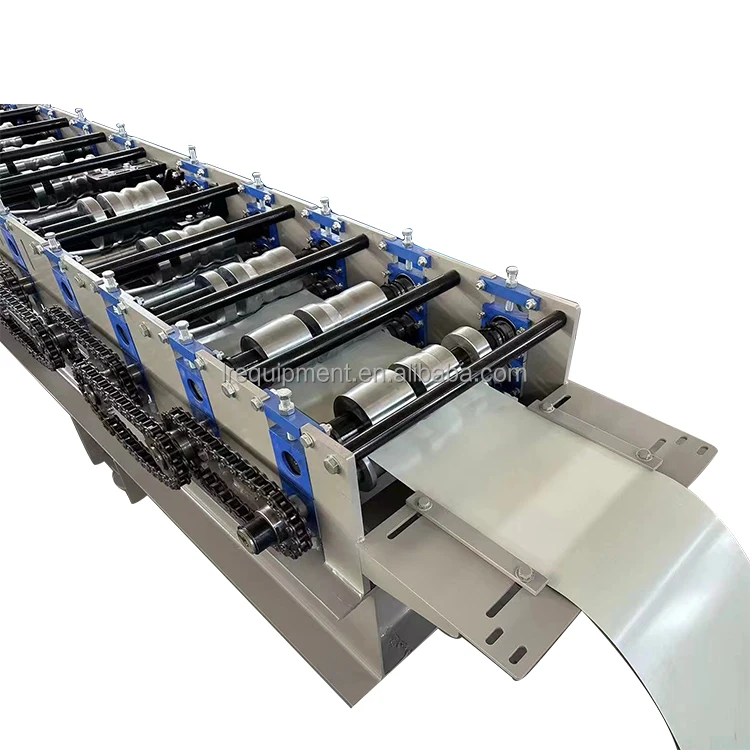

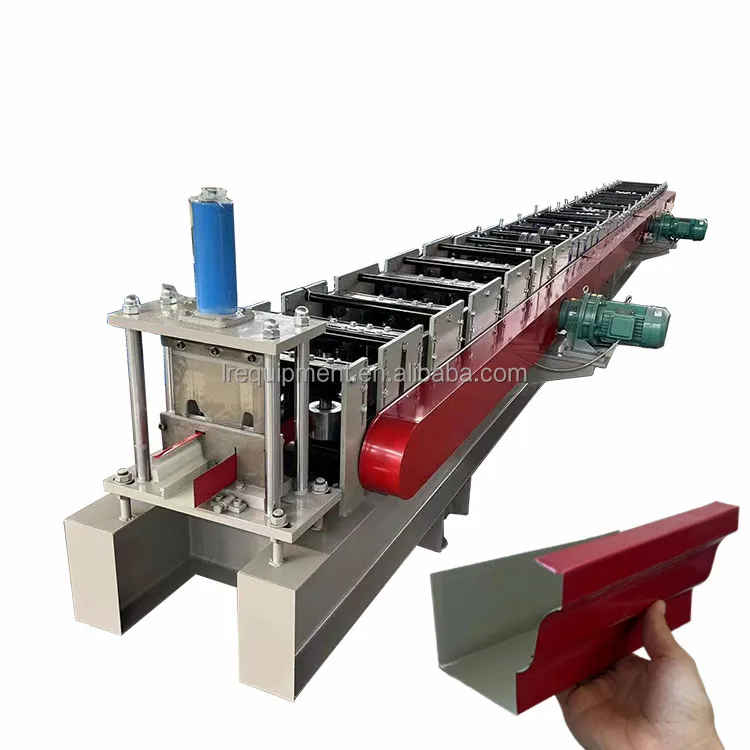

GI PPGI Rain Water Round/K Gutter Machinery Manufacturer for Automatic Furring Channel Cold Roll Forming Machine

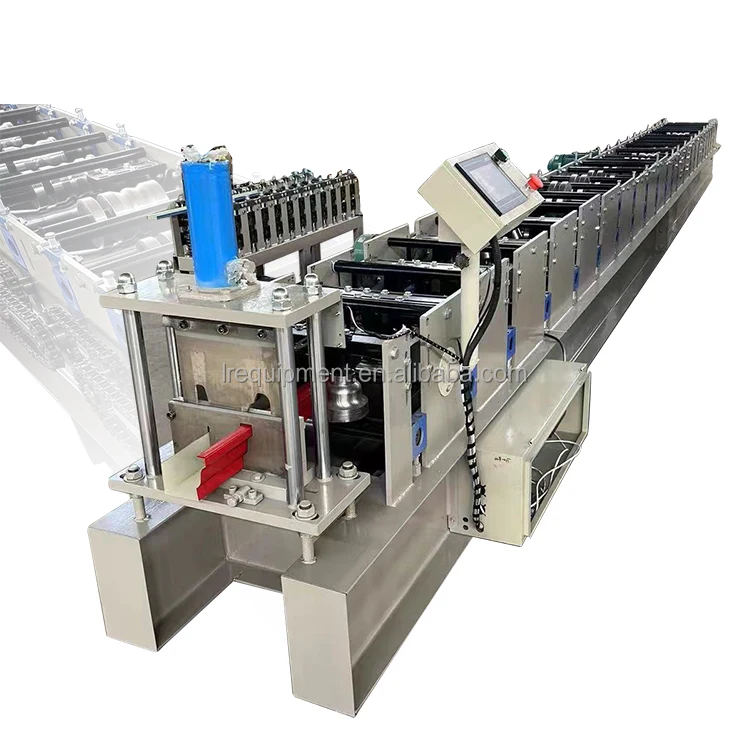

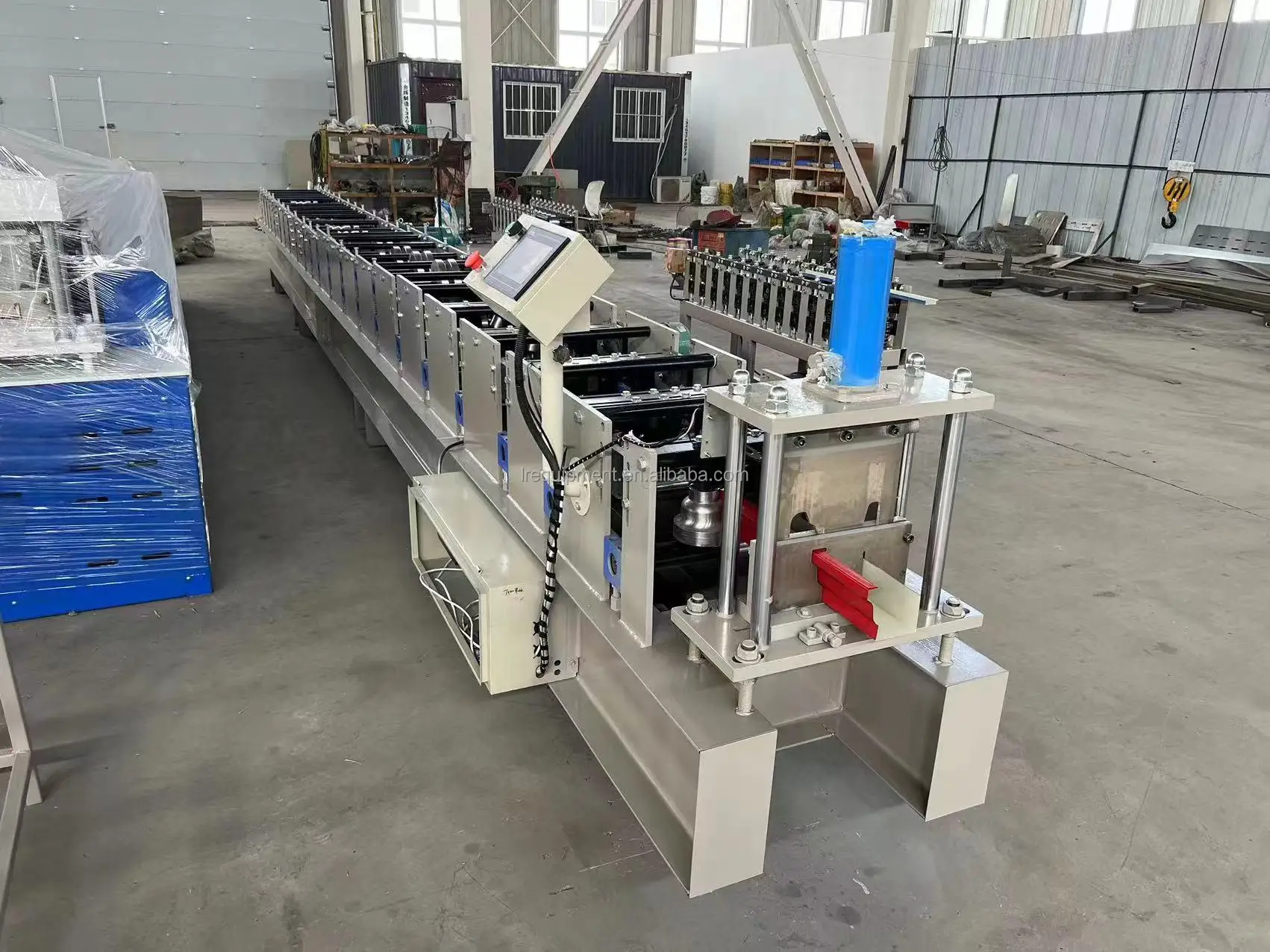

Rain gutter forming machine
GI PPGI Rain Water Round/K Gutter Machinery Manufacturer for Automatic Furring Channel Cold Roll Forming Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

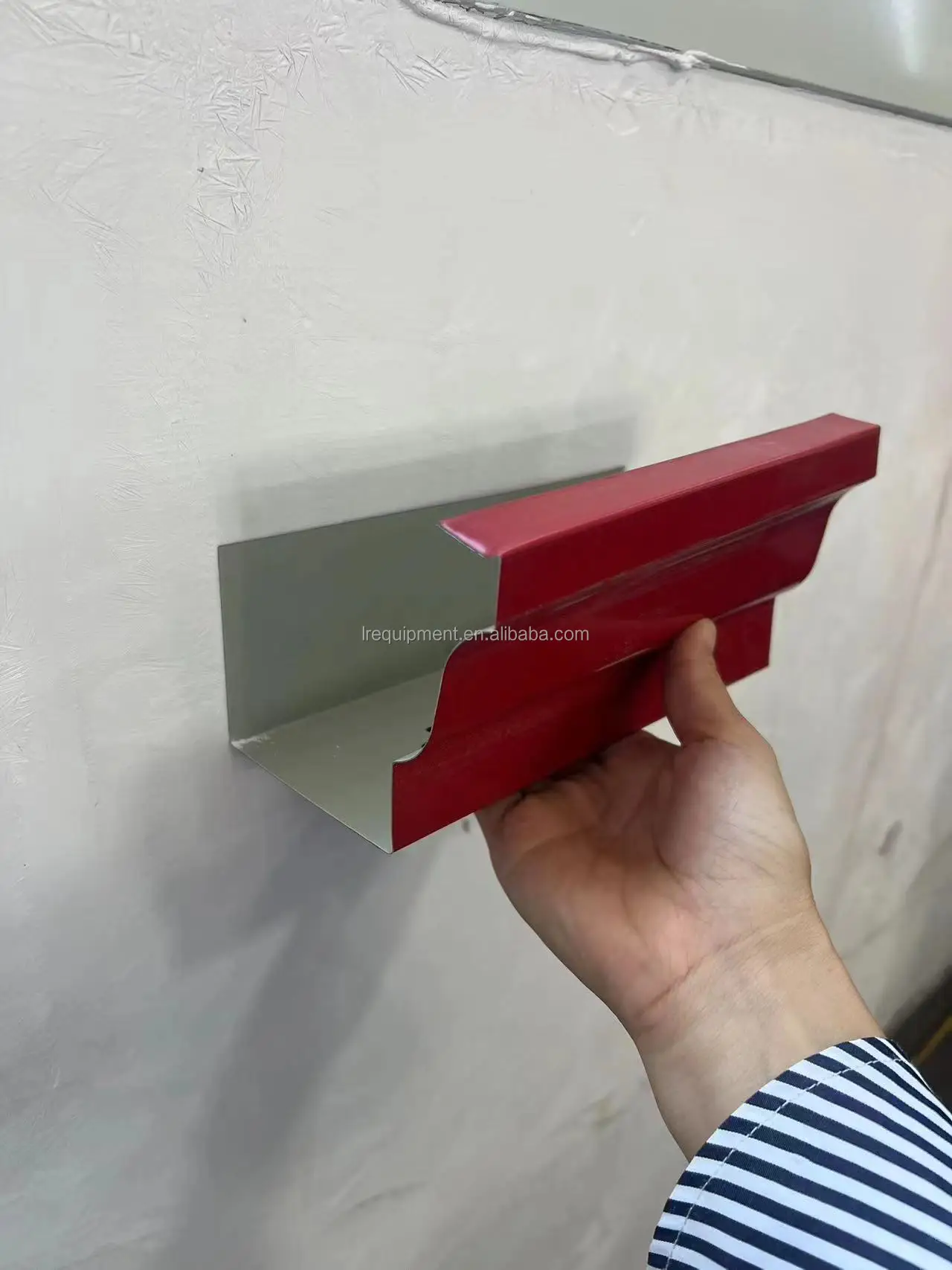

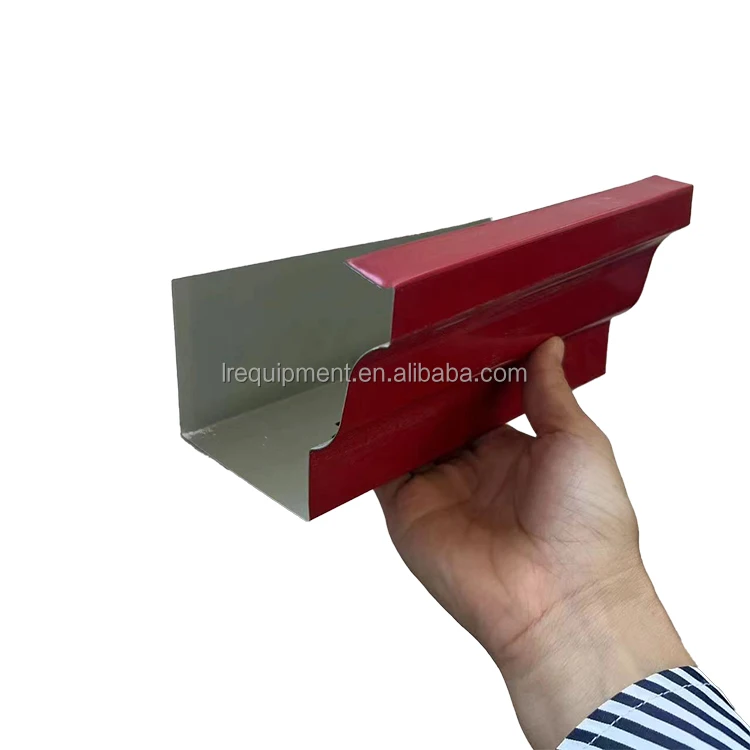

Forming profile show
Work flow
Rain gutter forming line process: 3T decoiler-- Feeding system--Forming system--Cutting system--Receiving system
Product Paramenters
GI PPGI Rain Water Round/K Gutter Machinery Manufacturer for Automatic Furring Channel Cold Roll Forming Machine | ||||||||
1 | Raw material | PPGI /PPGL | Material thickness | 0.25-0.8mm | ||||
2 | Feeding device | Platform, the width is adjustable | Roller stations | 22 stages | ||||
3 | Roller shaft | 45# steel | Shaft diameter | φ70 mm | ||||
4 | Roller | 45# steel | Work speed | 25m/min | ||||
5 | Main structure | Middle plate weld with structure | Motor power | 5.5KW, SHANGHAI LICHAO BRAND | ||||
6 | Transmission | 1.0 INCH CHAINS | Machine basic frame | 400# H steel welded with diagonal bracing inside | ||||
7 | Bearing | Chinese famous brand: Harbin | PLC brand | Delta (original) | ||||
8 | Hydraulic system | 4.0KW | Driving type | By pillar type cylinder | ||||
Configuration

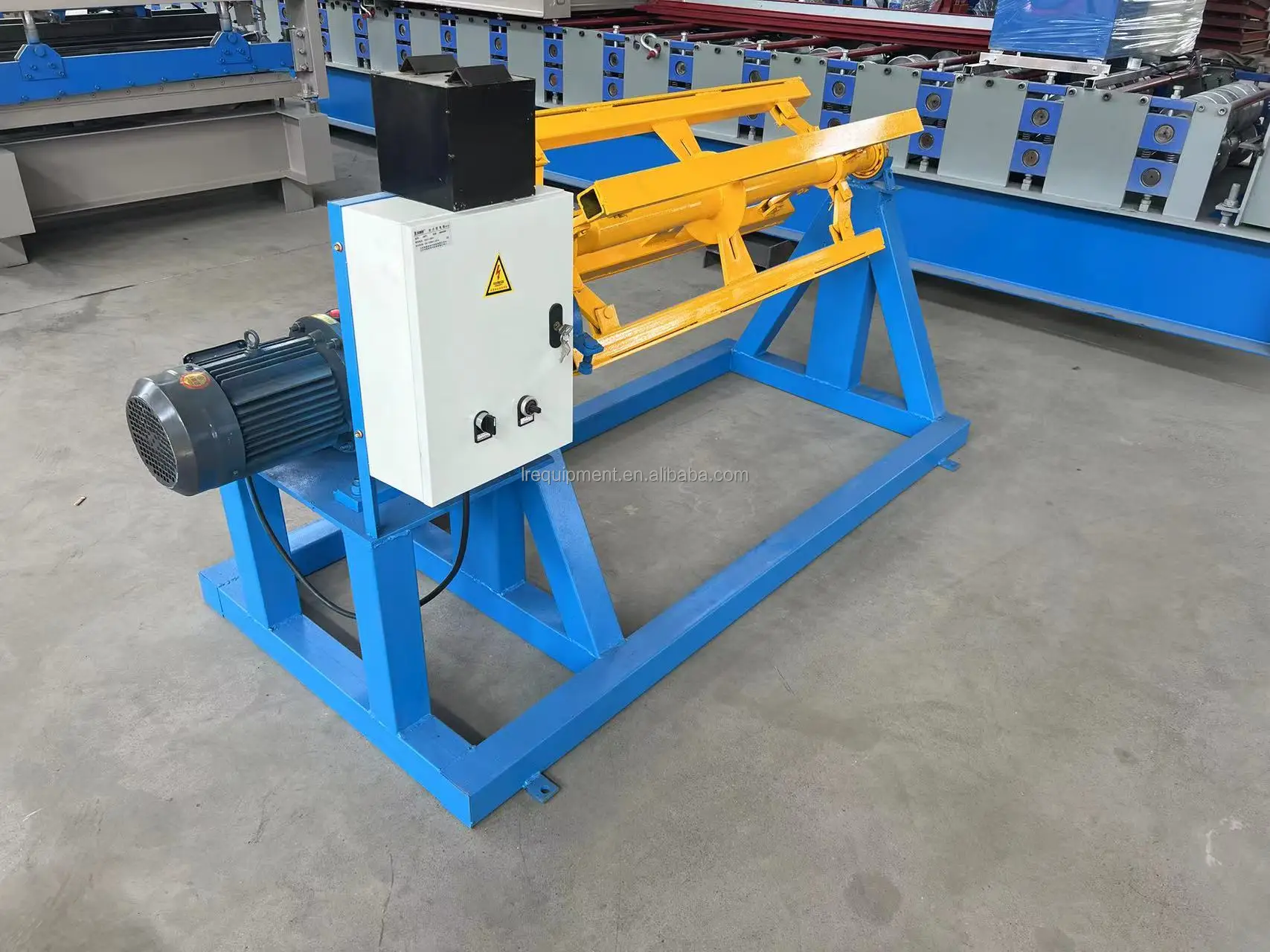

1.5/3ton Feeding rack
Coil Width: Max. 800mm
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
Coil Inner Diameter: 450-550mm
Structure: Welded by The Steel Plates and Profiled Bar.
Size: ~1800×1600×1500mm(L×W×H)
Feature:
The Shrink and Expand of The Core is Manually, with Manual Brake;
The Coil Moving Forward or Recerse is Pulled Passively by Roll Forming Machine.
Founction: It is used to support the steel coil and uncoil it in a turnable way.
The feeding guide device at the main entrance of the machine during work,Raw materials on both sides of the plate the enter into the machine by the guiding device,make the raw materials and roll forming system to maintain the correct position.The guiding
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
position can be adjusted by the manual screw mechanism,and the feeding guide width can be adjusted independently.
We add water cooling system in the feeder,it is can reduce coil material when the weather very hot.
Forming mold: Cr12 molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end face.
The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 12-step to form Main Motor =5.5KW, Frequency speed control
Cutter stype: Hydraulic stop cutting
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:4KW
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
Hydraulic oil pump with fan cooling system
Power:4kw+4kw
Gear pump
Power:4kw+4kw
Gear pump

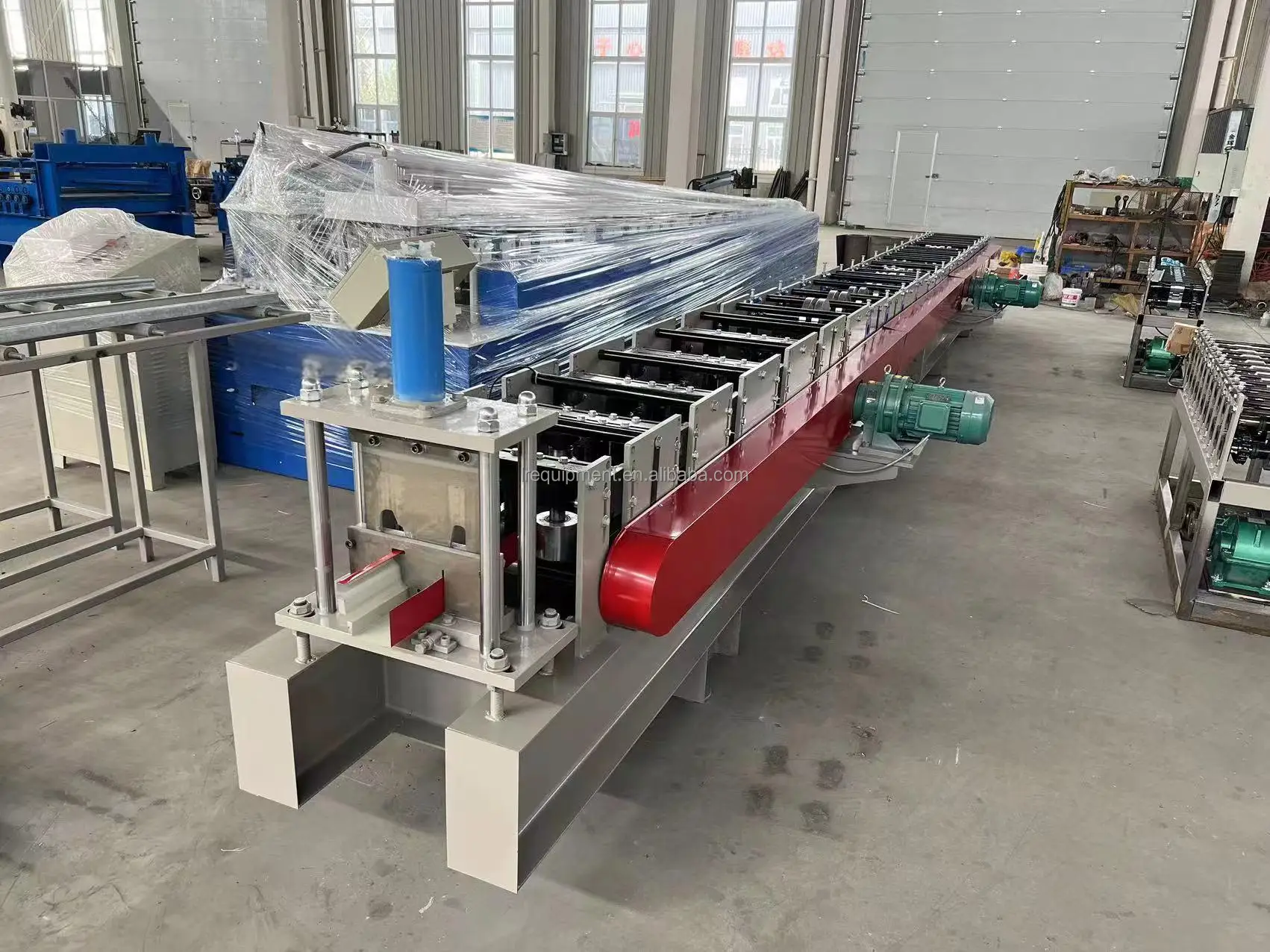

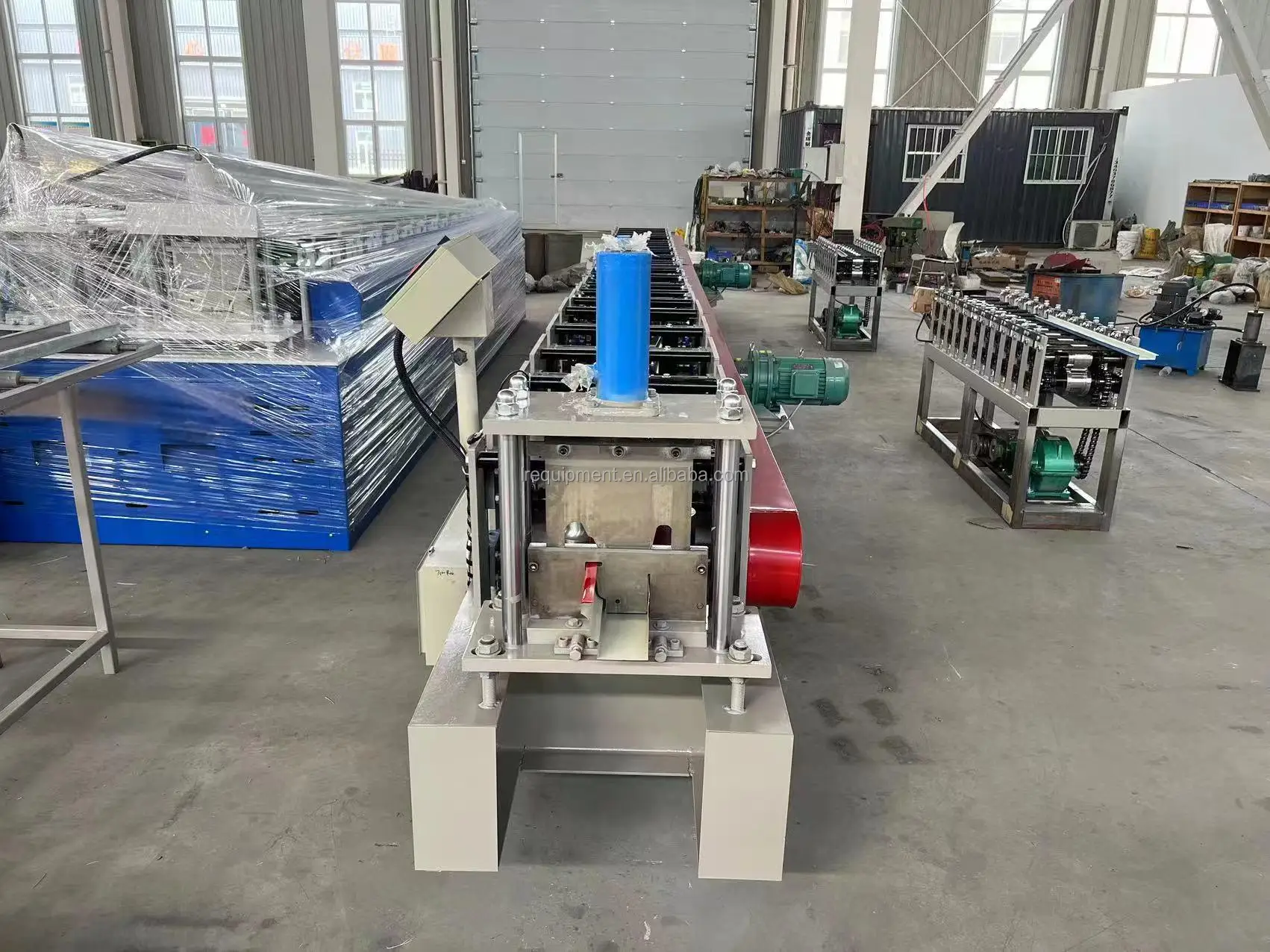

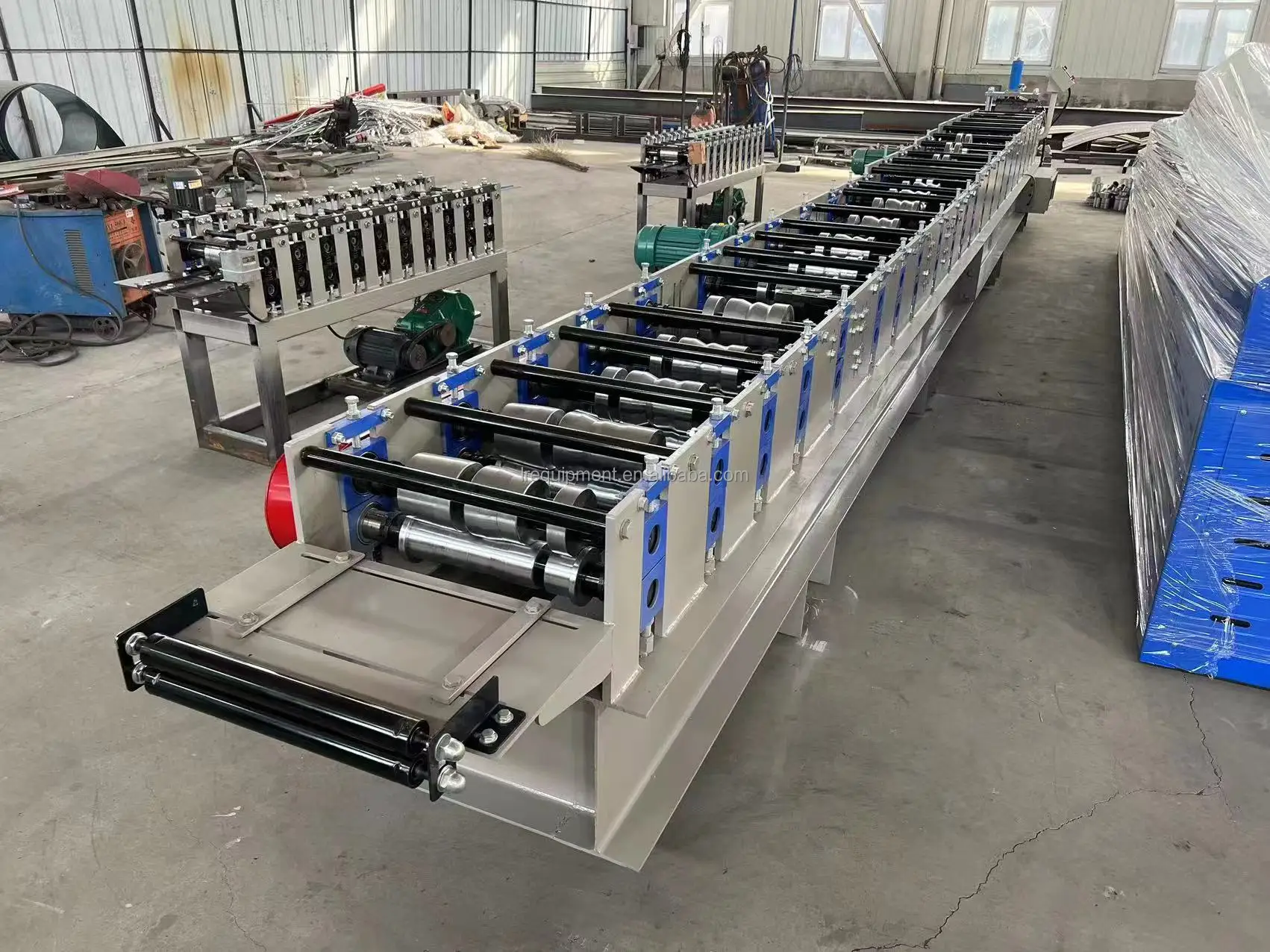

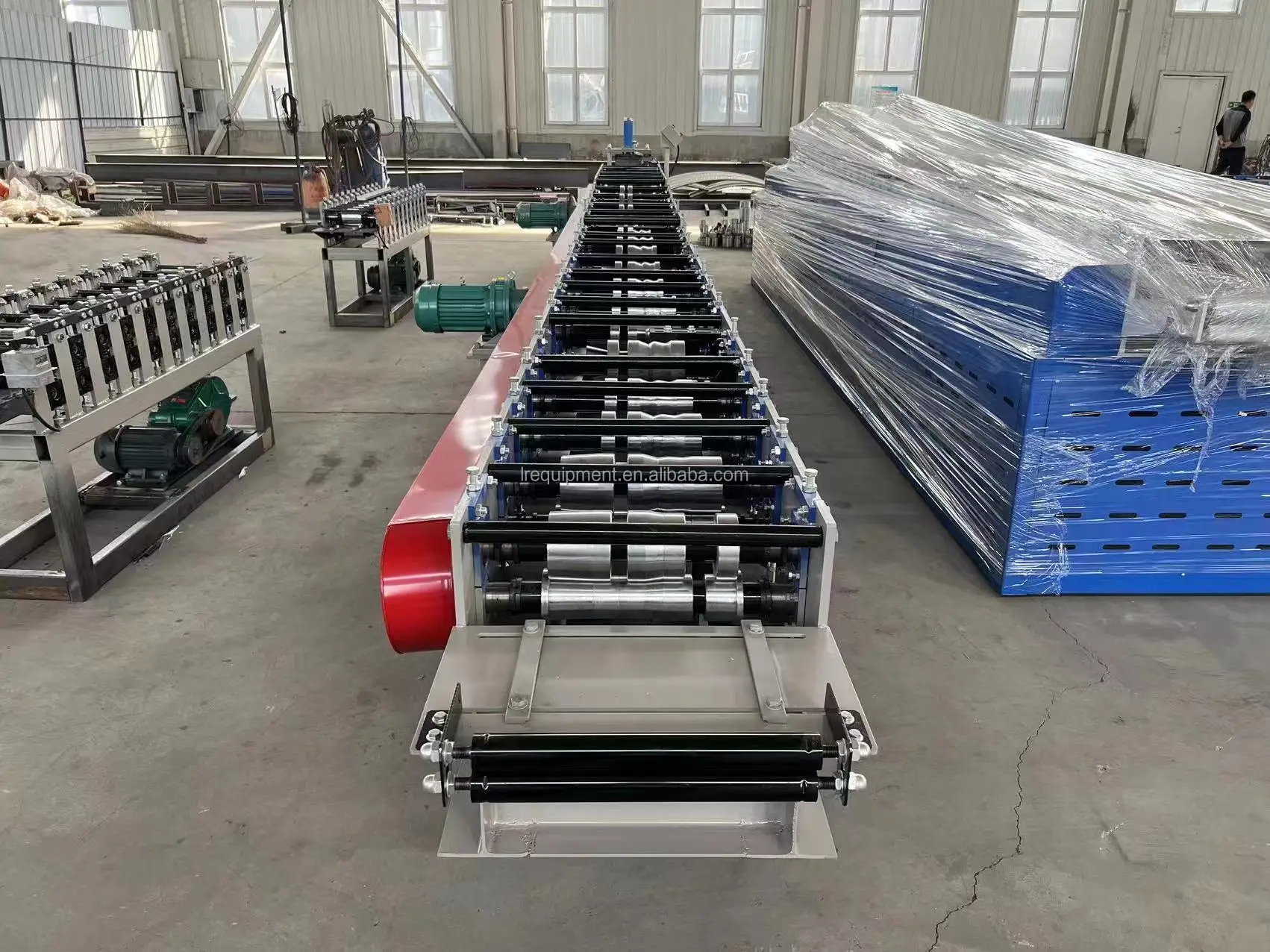

Details Images
Recommend Roll forming machine accessories matched as spare parts
1:Free matched with machine
❊Relay
❊limit switch
❊encoder
2:Charged parts advise to prepare
❊Sprocket wheel
❊Oil pump
❊Shaft
❊limit switch
❊encoder
2:Charged parts advise to prepare
❊Sprocket wheel
❊Oil pump
❊Shaft
Our Advantages
Packing & Delivery
1.Packing:
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train

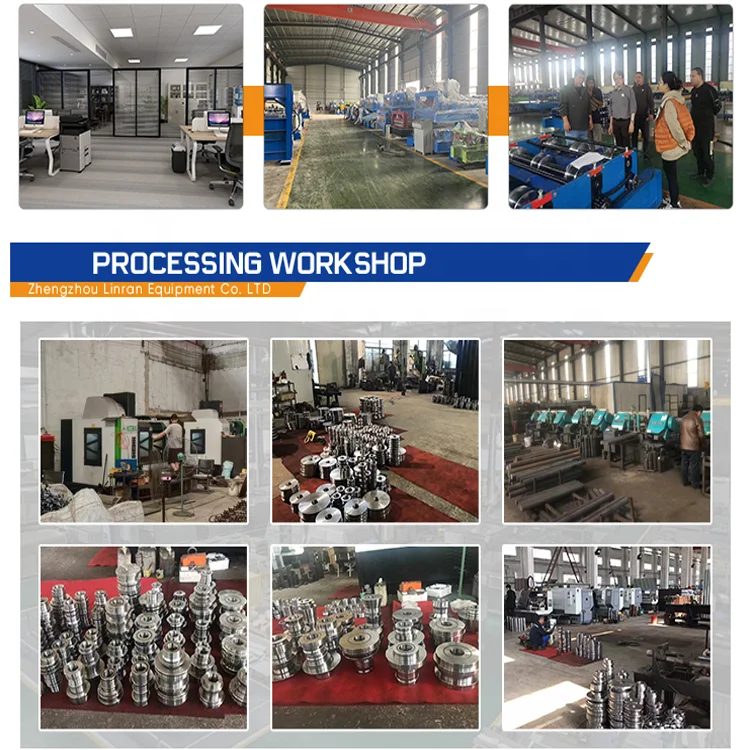

Zhengzhou Linran equipment Co., LTD established in the year 2003, manufacturing and exporting Metal Roll Forming Machines.All efforts are devoted to the research and development of how to provide customers with high-quality and durable molding machines.Our main product Metal Roll Forming Machine, such as C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine,Omega profile roll forming machine, Guardrail roll forming machine, Downspout roll forming machine, Rain gutter roll forming machine etc. have been exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc.Our company has successfully established and passed the ISO9001 quality insurance system, also had been approved with CE certificate.For our roll former, 36 month free warranty, and our company promises that we will provide product service life maintenance service.
