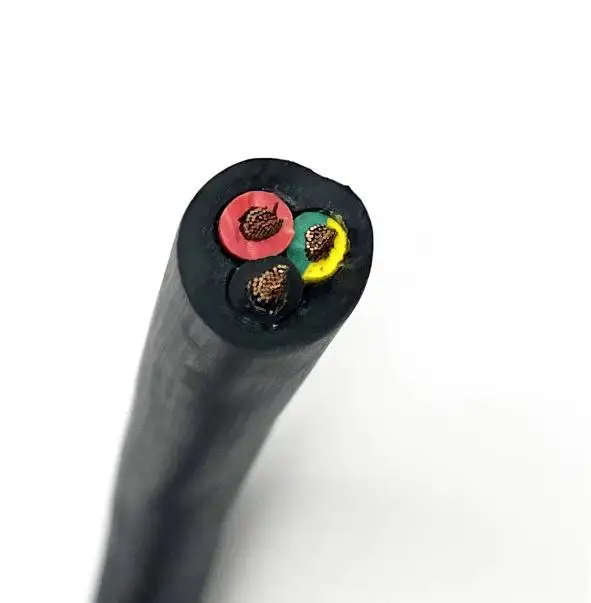

Flexible horn7f h07m f rubber 2 3 4 core sheath power cable
Flexible horn7f h07m-f rubber 2 3 4 core sheath power cable
Flexible horn7f h07m-f rubber 2 3 4 core sheath power cable
Flexible horn7f h07m-f rubber 2 3 4 core sheath power cable
Flexible horn7f h07m-f rubber 2 3 4 core sheath power cable
Flexible horn7f h07m-f rubber 2 3 4 core sheath power cable

Flexible horn7f h07m f rubber 2 3 4 core sheath power cable

Share on (11000020042085):


Price:

Quantity:


Product Overview

Description



Product Description






Rubber Sheathed Cable for Medium-Level Mechanical Stress
Application:For general use in dry, humid and wet locations, for outdoor use, for agricultural applications or in locations subject to explosion hazards. Also suitable for connections of industrial and workshop electrical equipment submitted to medium-level mechanical stress. It can be used for fixed installations in temporary buildings as well as for connections of mobile machines and hoists.
CHARACTERISTICS
Voltage Rating U/Uo 450/750V
Temperature Rating
Fixed:-30°C to +60C
Fixed protected installations.+85°C
Flexed: -15°C to +60C
Insulation tested to +90oC
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

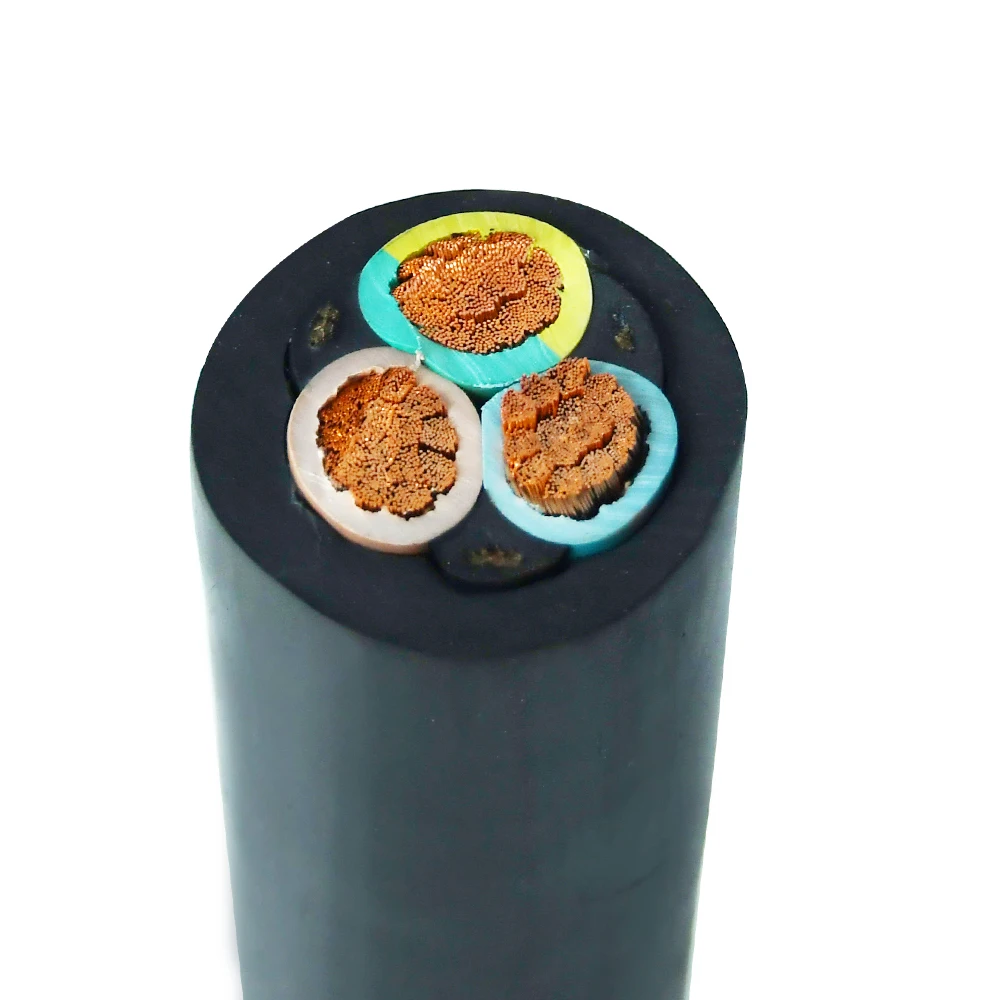

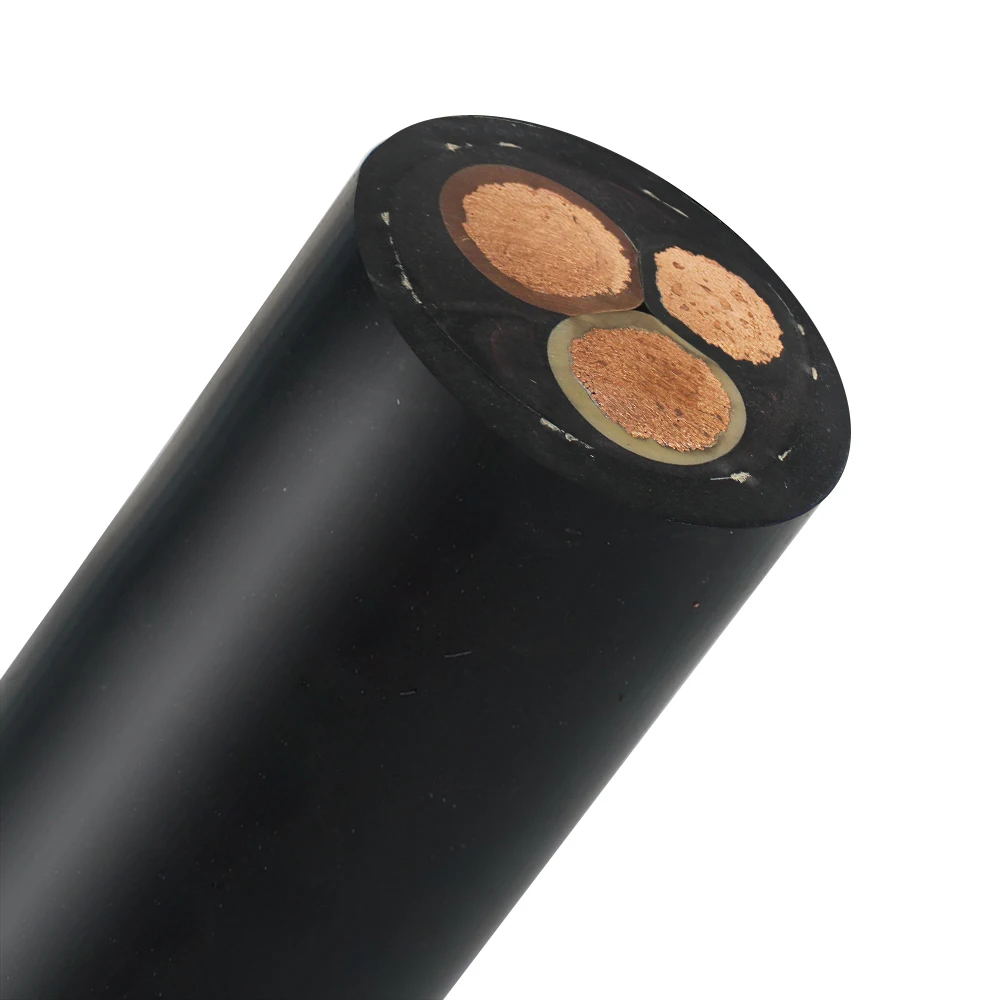

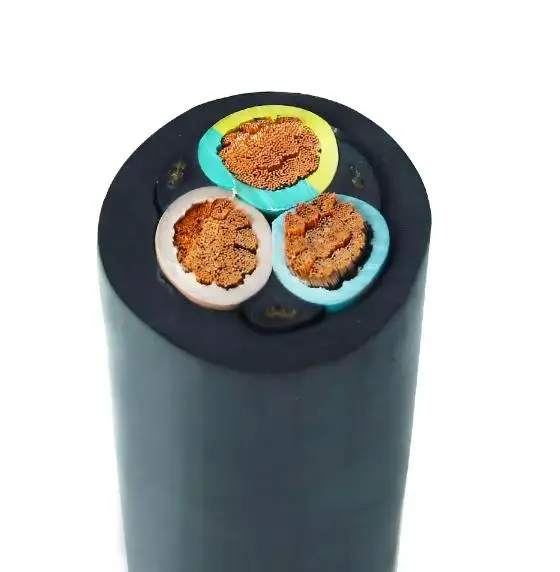

CONSTRUCTION
Conductor Class 5 flexible copper conductor
Insulation EPR (Ethylene Propylene Rubber)
sheath PCP(Polychloroprene)

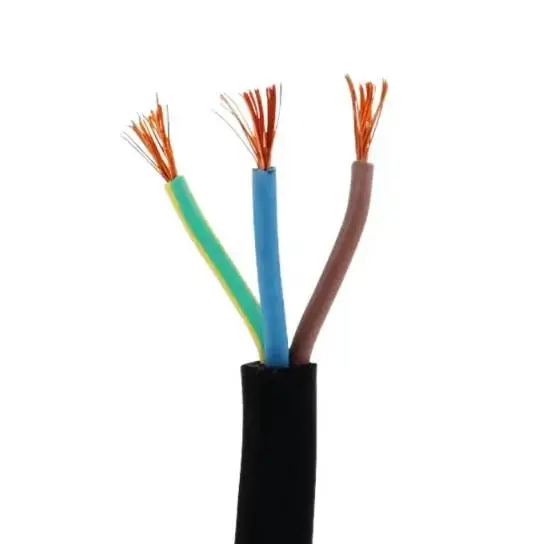

Core ldentification
1 core. Black
2 core: Blue Brown

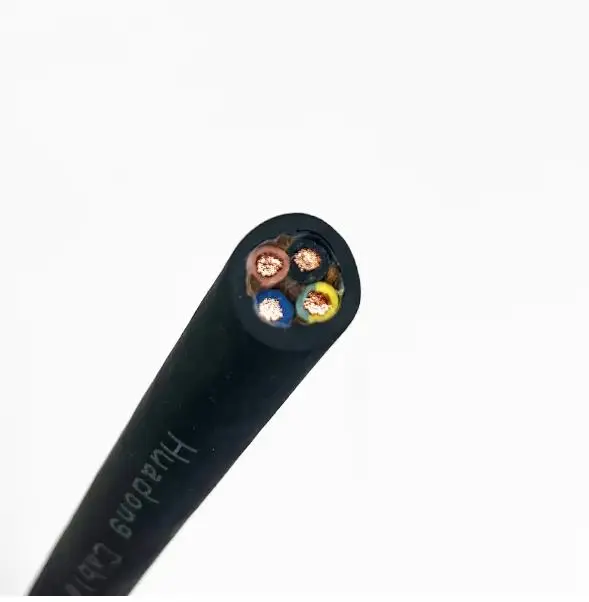

3 core: Green/Yellow Blue Brown4 core: Green/Yellow Brown Black Grey5 core: Green/Yellow Blue Brown Black Grey6 core and above Black with White numbers
Green/Yellow
sheath Colour Black


Specification


Number of cores and
nominal cross section(mm2)
Copper
figure(kg/km)
Cond.
construction
(appr. value)
(mm)
Overall
diameter
appr.
(mm)
Overall
diameter
max. value
appr. mm
Weight

appr.
(kg/km)
1 X 1,5
15.0
30 x 0,26
5,7
7,1
50,0
1 X 2,5
25.0
50 x 0,26
6,3
7,9
66,0
1 X 4
40.0
56 x 0,31
7,2
9,0
94,0
1 X 6
60.0
84 x 0,31
7,9
9,8
109,0
1 X 10
100.0
80 x 0,41
9,5
11,9
182,0
1 X 16
160.0
128 x 0,41
10,8
13,4
256,0
1 X 25
250.0
200 x 0,41
12,7
15,8
369,0
1 X 35
350.0
280 x 0,41
14,3
17,9
482,0
1 X 50
500.0
400 x 0,41
16,5
20,6
662,0
1 X 70
700.0
356 x 0,51
18,6
23,3
895,0
1 X 95
950.0
485 x 0,51
20,8
26,0
1.160,0
1 X 120
1200.0
614 x 0,51
22,8
28,6
1.430,0
1 X 150
1500.0
765 x 0,51
25,2
31,4
1.740,0
1 X 185
1850.0
944 x 0,51
27,6
34,4
2.160,0
1 X 240
2400.0
1225 x 0,51
30,6
38,3
2.730,0
1 X 300
3000.0
1530 x 0,50
33,5
41,9
3.480,0
2 X 1
20.0
32 x 0,20
7,7
10,0
99,0
2 X 1,5
30.0
30 x 0,26
8,5
11,0
111,0
2 X 2,5
50.0
50 x 0,26
10,2
13,1
161,0
2 X 4
80.0
56 x 0,31
11,8
15,1
238,0
2 X 6
120.0
84 x 0,31
13,1
16,8
279,0
3 G 1
30.0
32 x 0,21
8,3
10,7
117,0
3 G 1,5
45.0
30 x 0,26
9,2
11,9
134,0
3 G 2,5
75.0
50 x 0,26
10,9
14,0
195,0
3 G 4
120.0
56 x 0,31
12,7
16,2
290,0
3 G 6
180.0
84 x 0,31
14,1
18,0
346,0
3 G 10
300.0
80 x 0,41
19,1
24,2
663,0
3 G 35
1050.0
280 x 0,41
29,3
37,1
1.760,0
3 G 50
1500.0
400 x 0,41
34,1
42,9
2.390,0


Company Profile


















FAQ


1.what ls our payment term ?
Our payment term is usually by 30% TT in advanced, the balance before picking up the goods or L/C at sight

2.what ls the lead time ?
The lead time usually is 10 - 30 working days

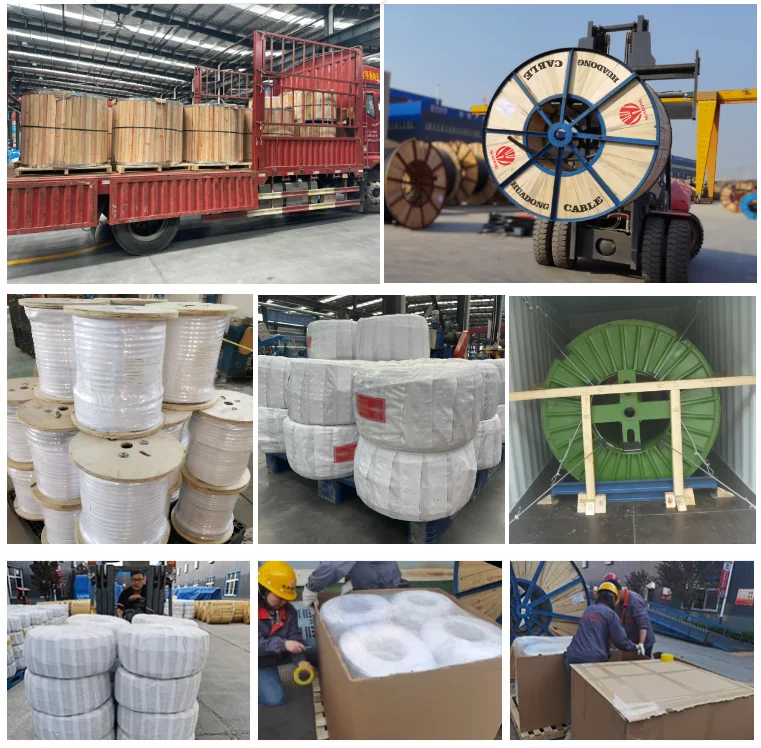

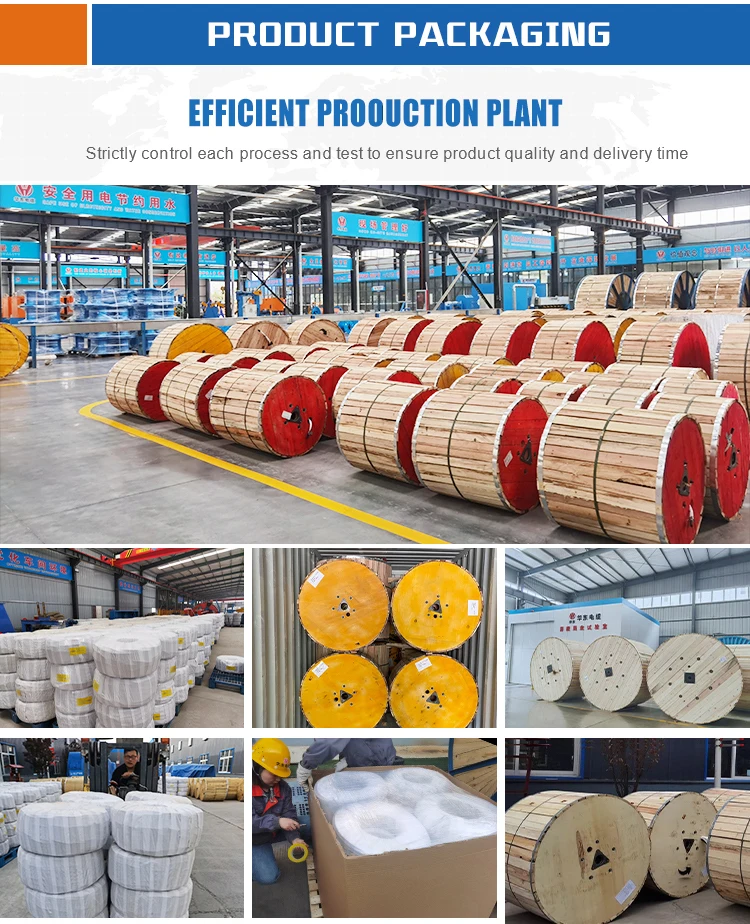

3.What ls the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirement

4.Could we provlde the free sample for customer ?
Sure. we provide the free sample for customer to checking Please feel free to leave your requirement,
We will reply you in 12 hours
