Предварительно установленный Алюминиевый кабель 3x50 1x50 1x25 мм2 Aislacion de XLPE

Applications
Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross linked polyethylene (XLPE) insulated conductors.

Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP cross linked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Standards
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded. B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Note :
Designated sizes are : ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for
6201.Conductor temperature of 90°C for XLR 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9;
2ft./sec/wind in sun. To determine current ampacity by conductor size, please consult The National Electric
Code, latest edition.

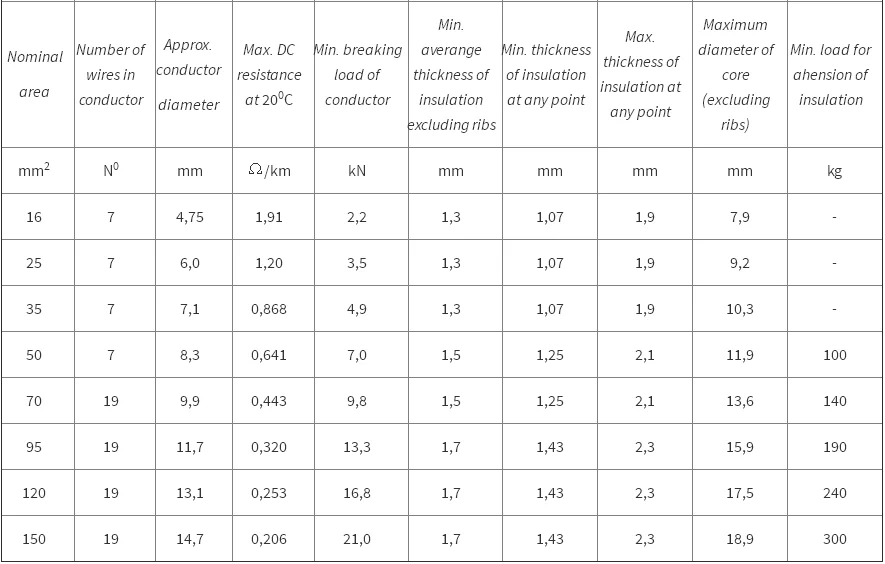

TECHNICAL CHARACTERISTICS

•    Rated voltage U0/U: 0,6/1 kV.

•    Maximum conductor temperature for normal operation is 80 OC.

•    Maximum conductor temperature for short-circuit

    (5 s maximum duration) is 250 OC.

•    Type: self-supported, phase and neutral cores have the same cross-sectional area.

•    Insulation: XLPE, black color (blended with Masterbatch, carbon black content ≥ 2 %), UV-resistant, maximum tensile stress that can be transmitted through XLPE insulation at strain clamp is 40 MPa.

•    Type of conductor: The alluminum conductor shall be stranded, circular compacted.

•    Material of conductor: Alluminum with minimum tensile stress is 140 MPa.

•    Highest value for maximum working tension is 28 % minimum breaking load of cable (28 % MBL).

•    Highest value for everyday tension is 18 % minimum breaking load of cable (18 % MBL).
