2.5/4/6mm2 Solar Cable Supplier High Voltage 2 Core DC 1500V Solar PV Cable
- Category: Power Cables >>>
- Supplier: Shanghai,Sdo,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification

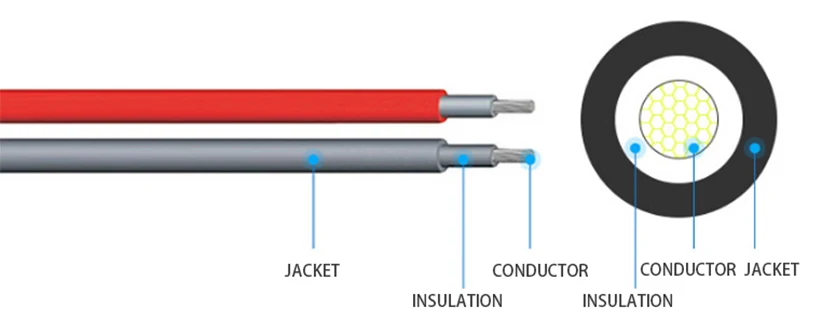

CHARACTERISTICS | ||
Conductor | Stranded Tinned Copper | |
Insulation | XLPE | |
Jacket | XLPE | |
Rated Temperature | -40℃~+90℃ | |
Rated Voltage | AC1000V,DC1500V | |
Weather Resistance | Sun Resistance | |
SPECIFICATIONS | ||||||||||||
Cross Section (mm²) | Conductor Structure (n/mm) | Jacket Thickness (mm) | Cable Diameter (mm) | Cable Weight (kg/km) | Conductor Resistance (ohm/km) | Test Voltage (AC.KV) | ||||||
1X1.5 | 30/0.25 | 0.8 | 4.8 | 35 | 13.5 | 10 | ||||||
1X2.5 | 49/0.25 | 0.8 | 5.3 | 48 | 8.21 | 10 | ||||||
1X4 | 56/0.285 | 0.8 | 5.9 | 64 | 5.09 | 10 | ||||||
1X6 | 84/0.285 | 0.8 | 6.5 | 85 | 3.39 | 10 | ||||||
1X10 | 80/0.4 | 0.8 | 7.5 | 130 | 1.95 | 10 | ||||||
1X16 | 126/0.4 | 0.9 | 10 | 195 | 1.24 | 10 | ||||||
1X25 | 196/0.4 | 1.0 | 12 | 295 | 0.795 | 12 | ||||||
Products Description
Certifications

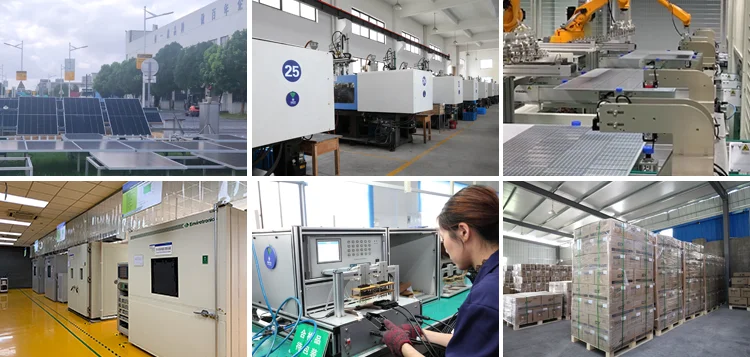

Company Information
Exhibition
Packaging&Shipping
FAQ
1) Are you a factory or trading company?
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) How to guarantee the quality of your products?
Our products have U L, TUV, IEC, RoHs, SGS and other certifications.
We have our own factories.
2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.
3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.
4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.
5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.
6) How to guarantee the quality of your products?
Our products have U L, TUV, IEC, RoHs, SGS and other certifications.
