Product Overview

Description

PDA3501 handheld mobile 3G wifi scanning industrial pda android

Advantages of our industrial pda android:

1..Using WI-FI module, supports IEEE802.11b / g (standard configuration)  IEEE802.11g (transfer rate of 6M / sec),  good performance, high speed .





2.Powerful, with 2G / 3G communication, barcode scanning,GPS, Bluetooth, NFC,wifi,2 million pixel camera, OTG data transfer,audio and video playback capabilities







3.NFC function, easy to use and efficient, market prospects are very uncertain, the application is very rich, pretty extensive







4.Can be connected with many peripheral devices,good compatibility.







5.Fashion apperance, fool-operation, simple, portable , convenient







6.Customers can download the appropriate Android application software according to their needs, to fully meet the

diverse needs of customers function







Application Fields: android mobile terminal



1.Supermarkets, clothing industry



2.Logistics tracking



3.Mobile communications



4.Business data management



5.Warehouse inventory management



6.Service and other fields



Industrial pda android specification:

CPU	Model	MediaTek MT6572		ARMV7 Processor rev 3(V71)
	Frequency	1.2 GHz
Memory	RAM	1GB
	ROM	4GB
	Available space	1.2GB
	Extended Capacity	32GB
Display	Screen Size	3.5 inch
	Touch screen	Capacitive touch screen
	Resolution	320×480
Operating system	Android 4.2
Hardware parameters	Network	Support Network	Unicom 3G (WCDMA),Unicom 2G / mobile 2G (GSM)
		Communication(support frequency band)	2G:GSM 850/900/1800/1900 (TD-SCDMA WCDMA) 3G:900/2100MHz(WCDMA)
		WIFI	IEEE 802.11 n/b/g
		Bluetooth	Bluetooth V2.0
		Position	GPS Position/navigation
	NFC	Protocol Support:ISO14443A,ISO14443B,ISO 15693,MIFARERead / write mode, etc. On the transmission mode:P2P
	Webcam	Built-in 2 million camera, 1D/2D scanning
Language	Support multi-languages
Secondary development	Provide SDK development kit
Video Player	Support for audio and video playback
Input Output	Speaker	Built-in speakers	8 ohms 0.5W   Diameter 50MM
	OTG output	Can be accessed by U disk, mouse and other USB devices
	Mini-USB port	Can be accessed 5PIN USB data cable, support and PC data connection	access to 5PIN USB cable(Mini USB)
	Power Interface	Can be accessed DC5V, 2A DC power adapter
	SIM card	Unicom 3G card inserted	SMD clamshell snaps
Panel buttons	11 digital symbol keys + 16 function keys
Battery	Battery capacity	3.7V   3100mAH lithium battery
	Charging time	4.5hours
	Standby time	7 days
	Playback time	9.5hours
Accessories	Power adapter, Mini-USB data line
Size and Weight	Product Size:41*75*170mm
	Weight:272g

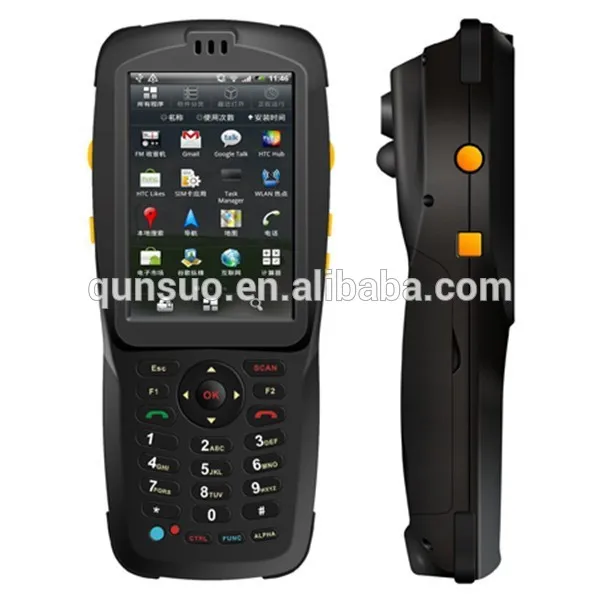

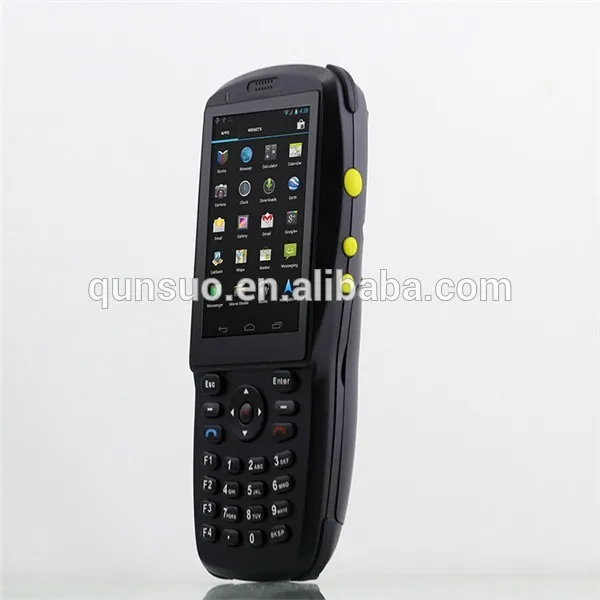

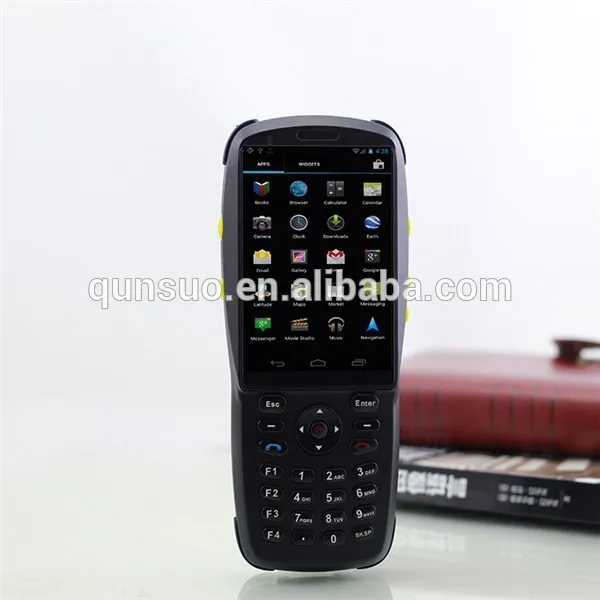

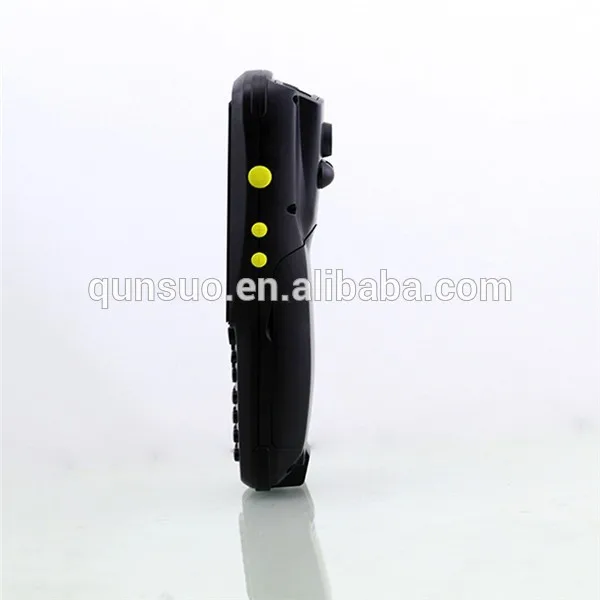

Industrial pda android images show:

industrial pda android

Factory information:

industrial pda android

QC Flowchart

industrial pda android

Packing&Shipping

industrial pda android

Certificate information:



industrial pda android

We are the professional manufacturer of the handheld terminals,pos terminals and portable printers ,have powerful technology support and will provide best service.Plz just fell free to contact us when you want know more about our industrial pda android :)
