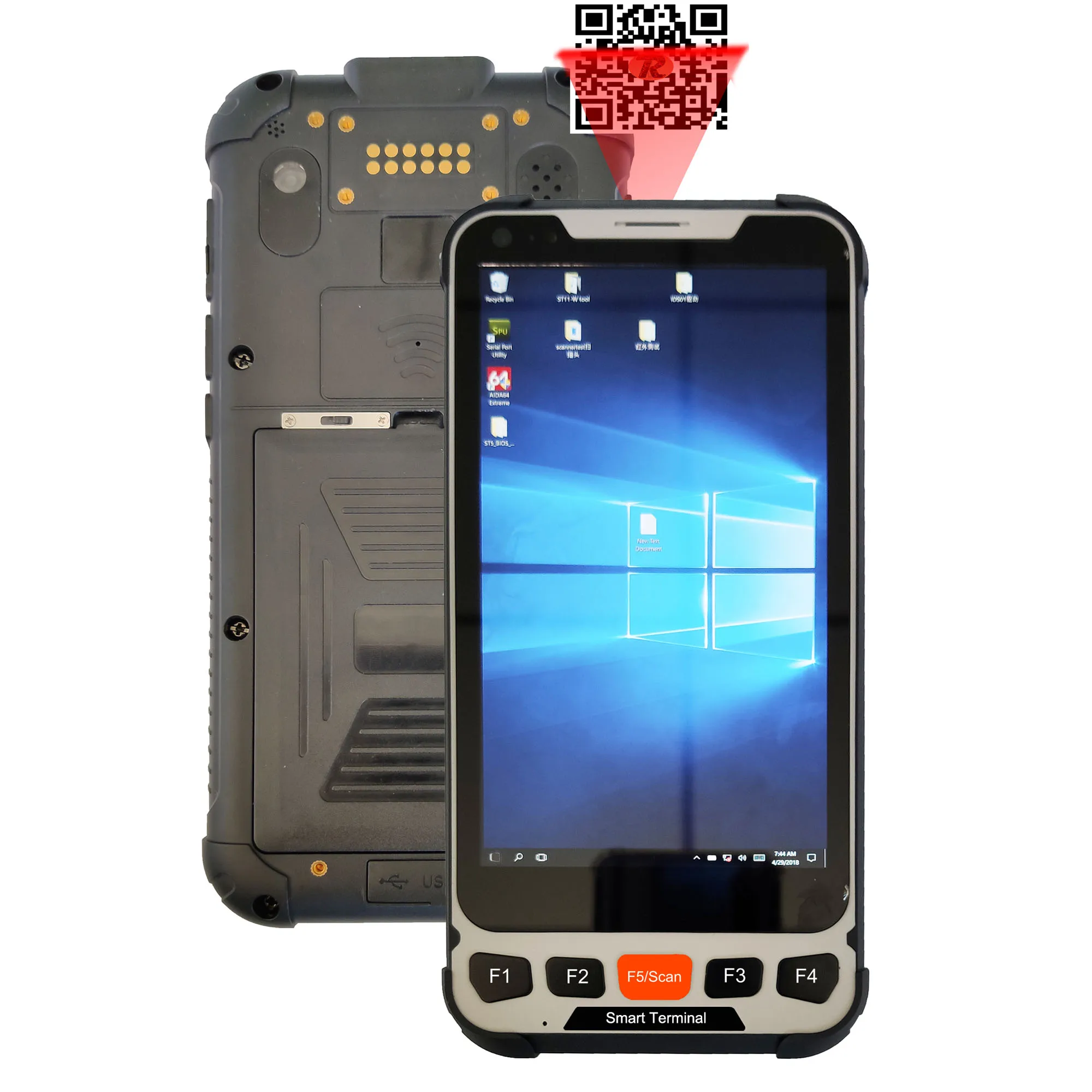

КПК Защищенный для Win dows 10, сборщик данных с 1D/2D сканером штрих кодов, 3G/4G, NFC, промышленный портативный терминал

ITEM

DESCRIPTION

detail

OS

windows 10 home/pro/iot

CPU

intel cherry trail Z8350

RAM/ROM

4GB/64GB

SD card slot

support TF card max 128GB

LCD

5.5 inch 1080X1920, 500nits

Touch screen

5 point touch, support stylus

Camera

5M

MIPI/5MP(OV5648)

Power and battery

battery  capacity 5000mAh

3.8V 5000mah

WWAN

4G LTE, 3G WCDMA, GSM EC-25

EG91
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: 900/1800MHz

GPS

beidou,GPS, glonass, U-blox ONE

wifi

802.11a b c, g,n wireless internet  Wireless AP ( Mobile AP )2.4G, 5G

Intel Stone Peak3165  802.11ac 1x1+BT4.0

BLUETOOTH

4.0 version

NFC

13.56 MHz, distance 5cm or above

SPEAKER

1.5 watt

Sensor

1. light sensor

Dimension

181*85*20mm

weight

350g

Multi-media
(Hardware decoding)

Photo Viewer

BMP, JPG, GIF, PNG

Video Format

MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)

Audio Format

MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

language

multi language

interface
in/out port

1.micro USB*1 otg + 1*USB 3.0
2. bottom pogopin*1, USB
3. back pogopin*1 USB
4. DC 3.5*1.35

Pogopin definition

1.8 pin back, included(2USB, 1 RS232, 1 UART, 3.3V, 5V out put), 5V input
2. 8pin on bottom; (1*USB) 5V input

casing material

ABS/PC

buttons

V+ -, Power, F1, F2, F3,F4,SCAN-KEY*3

2D barcode module

honeywell N3680

accessories

1. USB cable   2. charger
3. hand strap
4. car holder (OPTIONAL)
5. docking station (optional)
6. car charger(optional)
7. white box, no logo

proof rate

1. water proof IP67
2. Dropping proof 1.2 meters

Certification

1. 810G   2. CE,FCC

Temperature

1. storage temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
