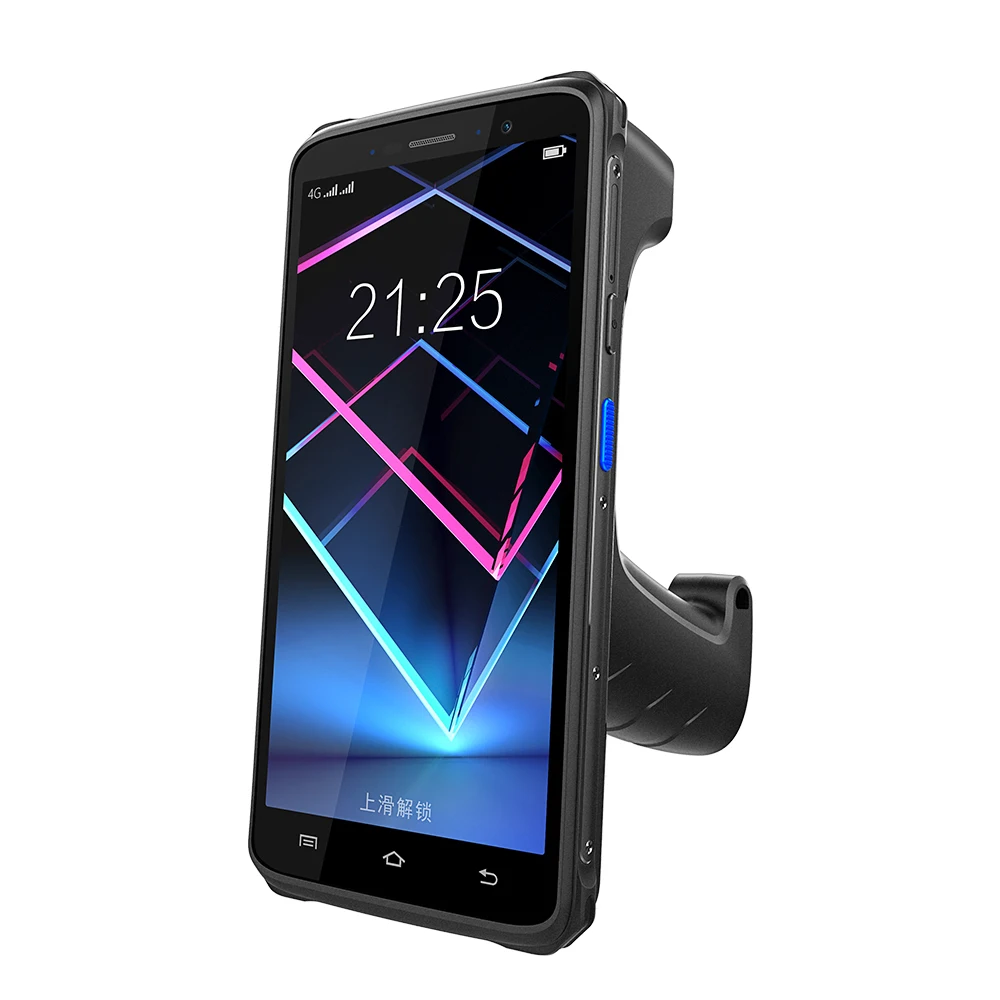

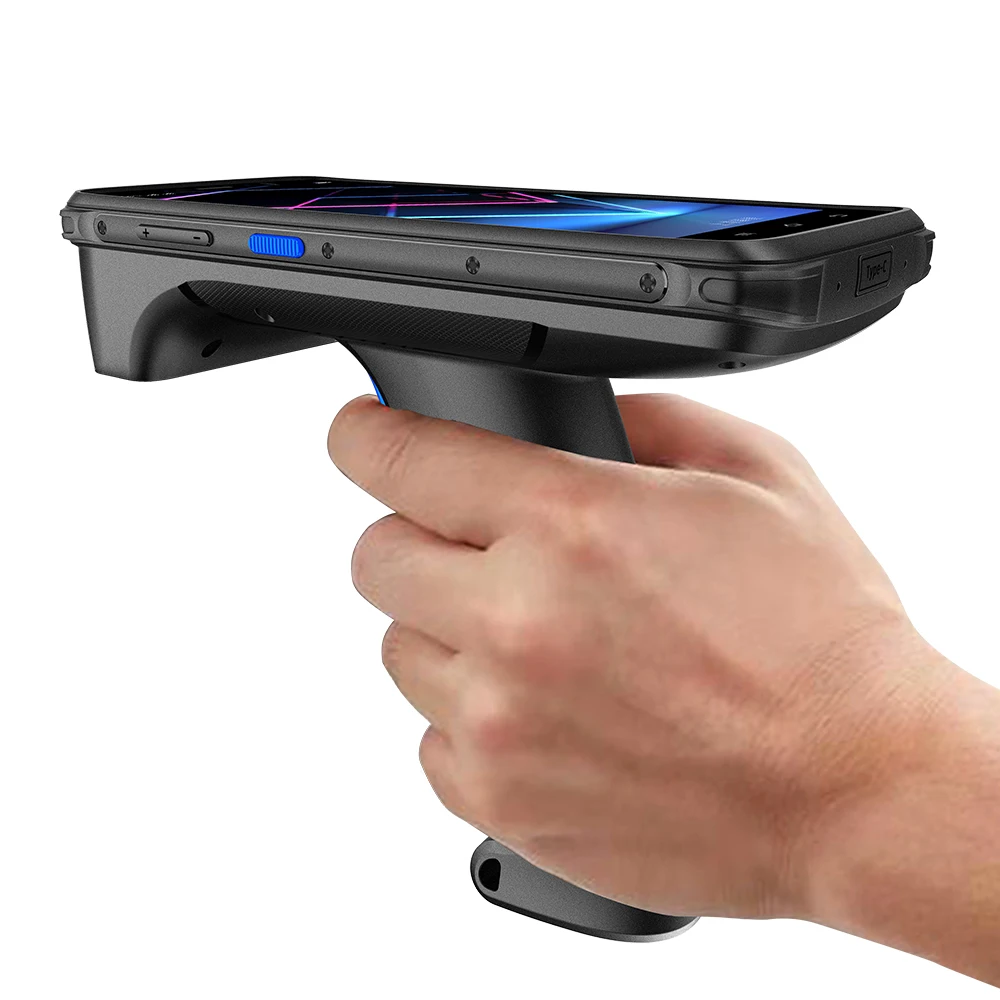

10000mAh 64GB 4GB Mobile Computer 5.45Inch Android 9.0 13 IP65 1D 2D QR Code Barcode Scanner Rugged Pistol Grip Handheld PDAs
- Category: PDAs >>>
- Supplier: Shenzhen,Effon,Limited
Share on:
Product Overview
Description
Product Description
Product Name | 10000mAh 64GB+4GB Mobile Computer 5.45Inch Android 9.0 13 IP65 1D 2D QR Code Barcode Scanner Rugged Pistol Grip Handheld PDAs |
Keypoint | High-speed operation performance: With the Android 9.0 operating system, matching 2GHz 4*A53high-speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirements. |
18W fast charge, only takes 5 hours for a full charge | |
Fast bluetooth 5.0 transmit | |
Excellent identification ability Fully support 1D, 2D and QR barcode scanning | |
Convenient appearance design: Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (800x480) | |
Abundant means of data transportation(option) 2G,3G,4G,Wifi,Bluetooth,OTG, NFC, GPS etc. | |
Industrial-grade durability IP67 industrial grade, solid and light body can bear the height of 2m dropping Waterproof, dustproof provide a long time using without fatigue. | |
Multiple extensions Support GPS, AGPS, and Beidou compass navigation. | |
Always-available wireless connection Supports 802.11 a/b/g/n full-band wireless communications and maintains a real-time connection with the system to ensure high efficient operation. | |
Bearing 2M drop test, supporting IP67 waterproof grade in harsh environment | |
Supporting OEM and system customization including On / off page logo |
Specification
Model | TA12 | |
System Configuratio Specifications | ||
Processor | MT6762V/CA(Octa-core，2.0GHz) | |
Operating System | Android 9.0 | |
Memory | 64 GB ROM+4 GB RAM(Standard) | |
Expansion Slot | Micro SD card (Up to 64GB SDHC） | |
Display | 5.45"，720*1440, HD+ 18:9，LTPS | |
Touch Panel | GFF 10 touch, Glove mode/Wet hand operation | |
Front Camera | 5MP（ FF） | |
Top Camera | 13MP, PDAF, with flash LED | |
Touch Glas | Tempered glass | |
Keypad | Three virtual keys: Menu , Home , Back Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-) | |
Battery Capacity | 10000mAh build-in lithium polymer battery，discharge temperature-20~60℃ | |
Fast charge | 9V/2A | |
Speaker | 12*17*2.5（Dual speaker | |
Prompt | Vibration prompt /LED prompt/audio prompt | |
Vibration | Built-in vibration motor | |
Sensor | G-sensor/Proximity sensor/Light sensor/Gyroscope/geomagnetic sensor | |
Communication Transmission | ||
Wireless WAN (Network frequency） | GSM：B2/B3/B5/B8 CDMA/CDMA-EVDO：BC0 TD-SCDMA：B34/B39 WCDMA：B1/B8 TDD-LTE Bands：B34/B38/B39/B40/B41 LTE_FDD/TDD Bands：B1/B3/B8 CA: B3+B3 2CA；B1+B3 2CA Optional for other special Band | |
Wireless WAN (Data Service） | GSM/CDMA/CDMA-EVDO/TD-SCDMA/WCDMA/TDD LTE/FDD LTE | |
Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac (Dual-band：2.4GHz+5GHz) | |
Bluetooth | Bluetooth 5.0 | |
GPS | Support GPS/AGPS/Glonass/BDS | |
2D Barcode Scanning | ||
Scan engine | Professional scanner SE6100-2D （developed together with Zebra). Honeywell scan Engine N6703 | |
Optical resolution | 1280*800 pixes / 844*640 pixes | |
Scan precision | ≥3mil , Code 39/128 | |
Scan Angles | Tilt:360°，Pitch:±45°，Skew:±60° | |
Laser Safety Grade | Class II | |
NFC | ||
Frequency | 13.56 MHz | |
Reading Distance | Within 2cm | |
Protocol | ISO14443A/ISO14443B | |
Special feature | Support contactless CPU card, support 2 generation ID card read | |
User Environment | ||
Operating Temp. | -20~55° | |
Storage Temp. | -40~60° | |
Humidity | 0~95% | |
Drop Specification | Concrete 1.5M | |
IP Grade | IP65 | |
ESD | ±12 KV air discharge； ±8 KV conductive discharge | |
Input / Output Ports | ||
USB Port | 1 PCS，Type-C USB waterproof port | |
Charger Port | 1 PCS, Type-C USB waterproof port | |
OTG | Support | |
Develop Tools | ||
Developing Tool | Android SDK | |
Supported language | Java | |
Accessories | ||
Standard | Power adapter、USB cable、Battery， Lanyard，tempered glass screen protector | |
Optional | Desktop charger (Optional) | |
Mechanical Parameter | ||
Dimension(LxWxD) | 158mm×76mm×13.7mm | |
Weight | 227g | |
