Product Overview

Description



Gearbox Description

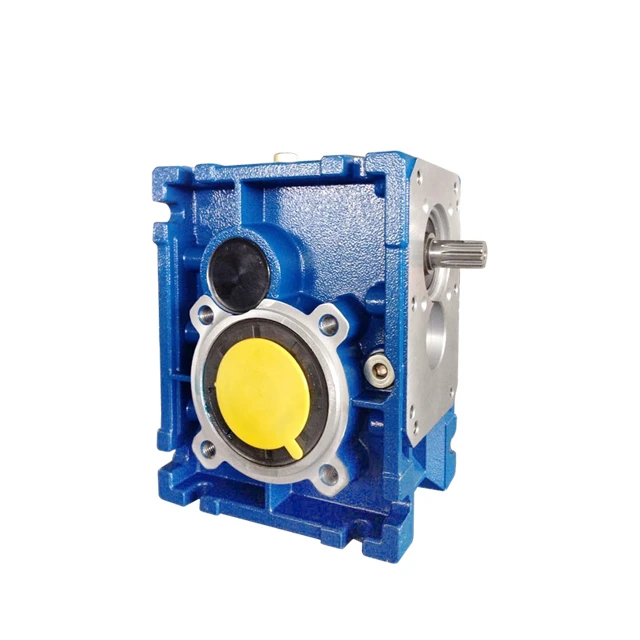

KM 090 Hypoid Gear Reducer Ratio 60 gear box speed reducer gearbox for Shredder

KM16_gear reducer_

Components:
1. Housing: Aluminium Alloy (KM050~KM090)
Gray Cast Iron (KM110)
2. Gears: Helical & Hypoid Bevel Gear Set, 20CrMnTi Steel, Carburizing & Nitriding, 0.3-0.6mm remaining carburized layer after precise grinding
Gears Hardness: 58-62 HRC
3. Input Configurations:

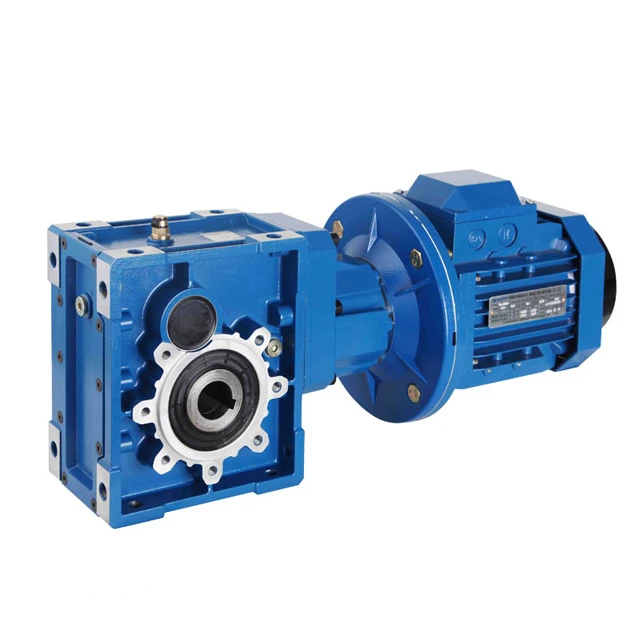

Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
Hollow Shaft Input with IEC Flange (B5/B14)
Hollow Shaft Input with NEMA Flange



Hollow Shaft Input with Servo Motor Flange
Solid Shaft Input
4. Output Configurations: Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
5. Spare Parts:
Output Shaft, Output Flange, Torque Arm, Dust Cover
6. Gearbox Painting:
Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL5010 Blue or RAL7035 Silver Grey

Models:
KM050~KM110

Features:
1. 2-stage or 3-stage helical & hypoid bevel gear set, large reduction ratio
2. Hardened gears, higher gear hardness and strength than RV series worm gears. Wearable and long service life
3. Energy efficient. The efficiency is more than 90%. About 10%~40% efficiency difference compared with RV series worm gearbox
4. Modular design, various combinations
5. Mounting dimensions are compatible with RV series (Except KM050 and RV050)
6. High efficiency KM series can replace RV series in wide applications

Gearbox Parameters

Models
Stage
Nominal Ratio
Output Speed (n2)*
Max. Torque
Input Shaft Dia.
Output Hole Dia.
Output Shaft Dia.
KM050
3 Stage
50~300
4.8~27
130N.m
Φ11
Φ20, Φ24
Φ25

2Stage
7.5~60
24~181
130N.m
Φ11

KM063
3 Stage
50~300
4.6~27
200N.m
Φ11
Φ25, Φ28
Φ25

2 Stage
7.5~60
23~184
200N.m
Φ14

KM075
3 Stage
50~300
4.7~28
350N.m
Φ14
Φ28, Φ30, Φ35
Φ28

2 Stage

7.5~60
24~187
350N.m
Φ16

KM090
3 Stage
50~300
4.7~28
500N.m
Φ14
Φ35, Φ38
Φ35

2 Stage
7.5~60
24~187
500N.m
Φ19

KM110
3 Stage
50~300
4.7~27

750N.m
Φ19
Φ40, Φ42
Φ42

2 Stage
7.5~60
24~187
750N.m
Φ24


*Input Speed: n1=1400r/min
3 Stage Ratio: 300, 250, 200, 150, 125, 100, 75, 60, 50
2 Stage Ratio: 60, 50, 40, 30, 25, 20, 15, 12.5, 10, 7.5

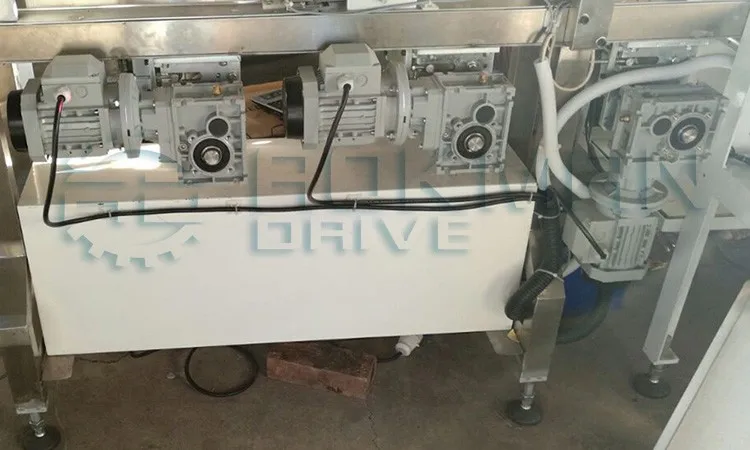

Gearbox Application

Company Profile

ABOUT US
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper rolution for uncountable applications. Our products are widely used in the ranges of metallurgical,steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
