Helical gear high torque reducer flange output gearbox
Flange Output Planetary Gear Box PAD PAD sereis flange output planetary reducer features compact structure and high precision. Compared with other general gearbox, the use of PAD enables the installation space to be saved. The compact structure performs high torsional rigidity, and the taper roller bearing support provides high axial and moment load capacity.
PAD planetary gearbox is suitable for motion transmission where high positioning precision is required, and other automatic fields like dynamic cyclic operations, CNC machines and robotic industry.

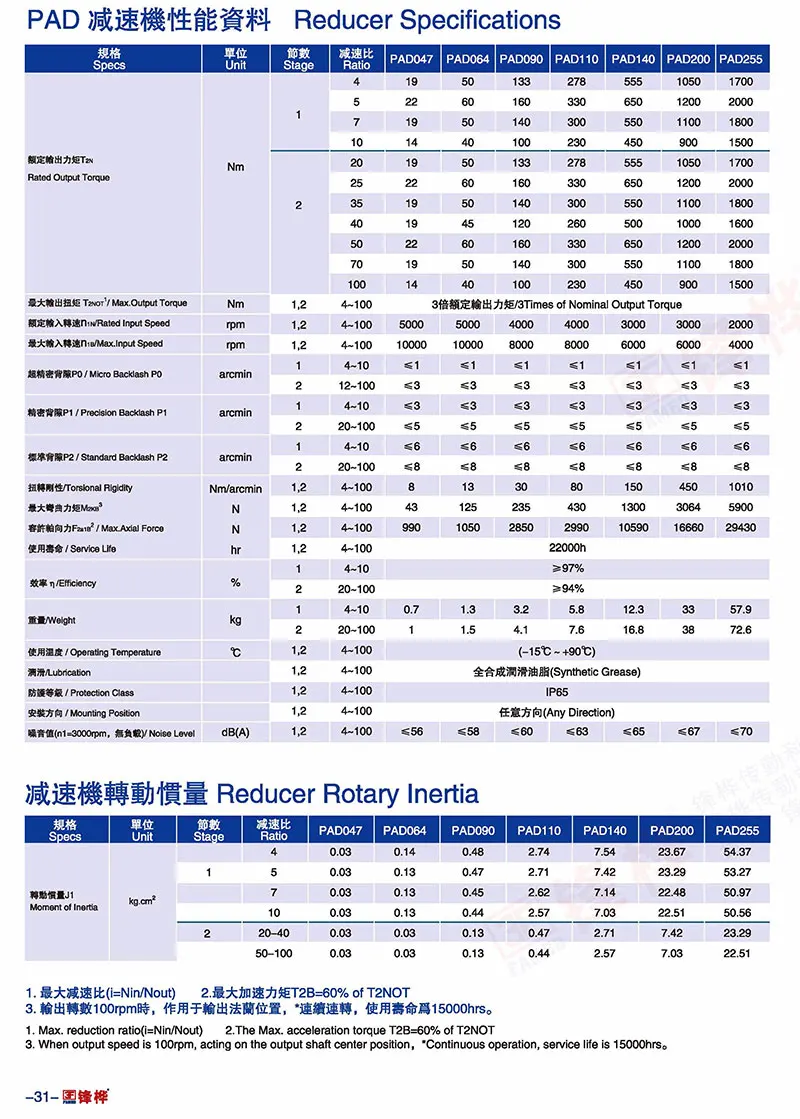

- Precision Grade: P0 ( ≤ 1 arcmin, ≤ 3 arcmin ) P1 ( ≤ 3 arcmin, ≤ 5 arcmin )
P2 ( ≤ 6 arcmin, ≤ 8 arcmin )
- Service Life: 22000h
- Operating Temperature: -15℃ ~ +90℃
- Protection Grade: IP65
- Mounting Position: Any Direction
- Efficiency: ≥ 94% ~ ≥ 97%
3F Famed company developed from a factory which professionally manufactures the gears. All staffs of factory and R & D team have more than 20 years’ gear manufacturing and designing experience. The factory cooperated with planetary gearbox technology team in the early period, and then established business department of the planetary gearbox, and developed the design and manufacturing process of product line of planetary gearbox series. Products can be compatible with servo motors and stepper motors produced by any servo factory. High precision planetary reducers features of reducing rotating speed, increasing torque greatly, increasing inertia of the motor rotor, improving rigidity, shortening the locating time of start and stop, miniaturizing the motor power and improving the stability of the inertia load and reducing the vibration at the same time.
