Product Overview

Description



Gearbox Description

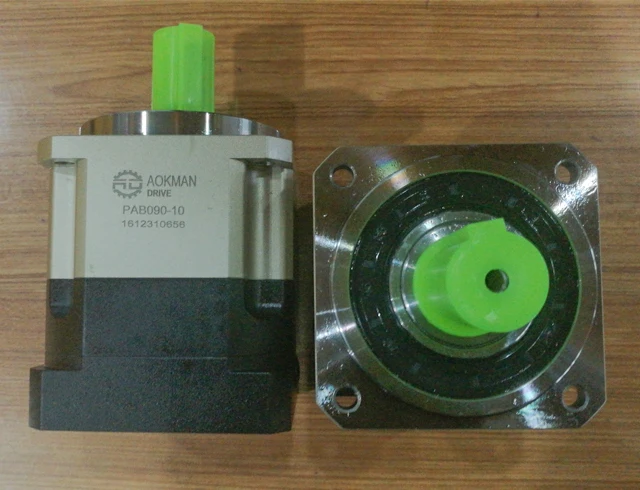

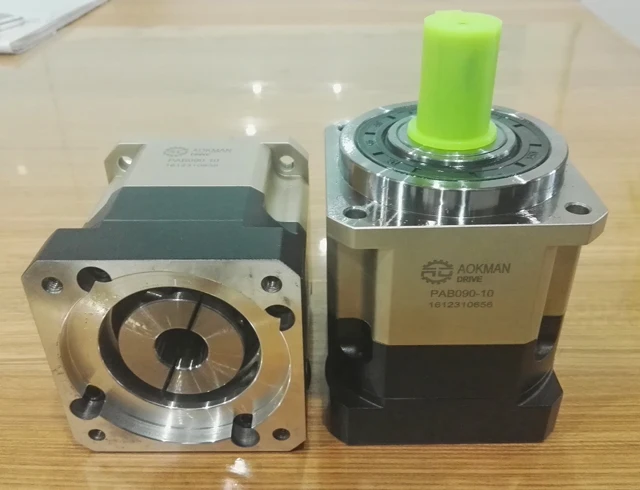

PPG040~PPG160 series high precision Small CNC Machine Mini Planetary Gearbox





Components:

1. Gearbox Housing & Flange: Aluminum-alloy Die Casting ADC12
2. Gearset: Precision Planetary Gear Set
Ring Gears: 40Cr
Planetary Gears: 20CrMnTi, Surface Hardness HRC58~62, Inner Hardness HRC33~40
3. Input Configurations:
Keyed Hollow Shaft with Motor Adaptor
4. Output Configurations: Keyed Solid Shaft Output
Keyless Solid Shaft Output
5. Applicable Motors: Servo Motors, Stepper Motors



Features:

1. AOKMAN® high percision planetary gearboxes including a full series of inline(linear) and right angle precision planetary gearboxes

2. High precision, high dynamic, low backlash

3. Up to 3 optional backlash: Ultra Precision Backlash, High Precision Backlash, Standard Backlash

4. Superior performance for precision industrial automation and servo applications



Models:

PAB/PABR Series

Gearbox Parameters

Series
Stage
Models
Ratio
Rated Torque
Output Flange Dia.
Output Shaft Dia.
Backlash
Efficiency
PAB (Linear)
1
PAB042, PAB060, PAB090, PAB115, PAB142, PAB180, PAB220
3, 4, 5, 6, 7, 8, 9, 10
14N.m~2000N.m
42mm~220mm
Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75
≤1, ≤3, ≤5 arcmin
≥97%

2
PAB042, PAB060, PAB060A, PAB090, PAB090A, PAB115, PAB142, PAB180, PAB220
15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100
14N.m~2000N.m
42mm~220mm
Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75
≤3, ≤5, ≤7 arcmin
≥94%
PABR (Right Angle)
1
PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220
3, 4, 5, 6, 7, 8, 9, 10, 14, 20
9N.m~2000N.m
42mm~220mm
Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75
≤2, ≤4, ≤6 arcmin
≥95%

2
PABR042, PABR060, PABR090, PABR115, PABR142, PABR180, PABR220
15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 120, 140, 160, 180, 200
14N.m~2000N.m
42mm~220mm
Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75
≤4, ≤7, ≤9 arcmin
≥92%
Customer Visiting

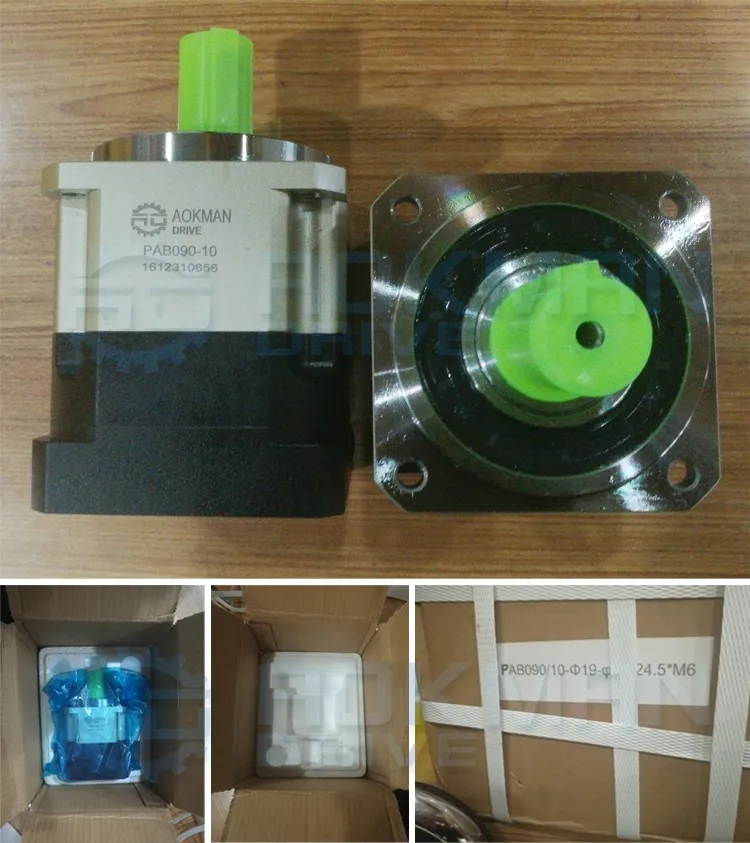

Packing & Delivery

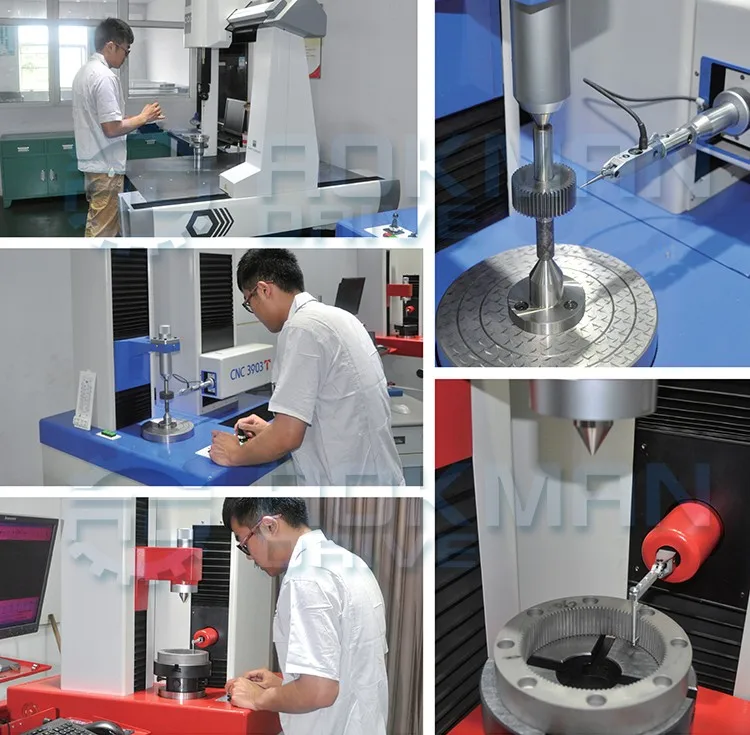

Gear Inspection

Our Company


AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.

FAQ


Q1: How long is your delivery time?
A1: Generally it is 7-20 days if the goods. or it is over 20 days if the goods are custom-made.

Q2:Where is your sea port?
A2:Shanghai or Ningbo

Q3:What is your MOQ?
A3:1 Set

Q4:How about your packing?
A4:standard exporting packing container

Q5:Is possible to visit your factory?
A5:Welcome to our factory.

Q6: What is your terms of payment ?
A6: 30% Advance payment by T/T after signing the contract.70% before delivery
