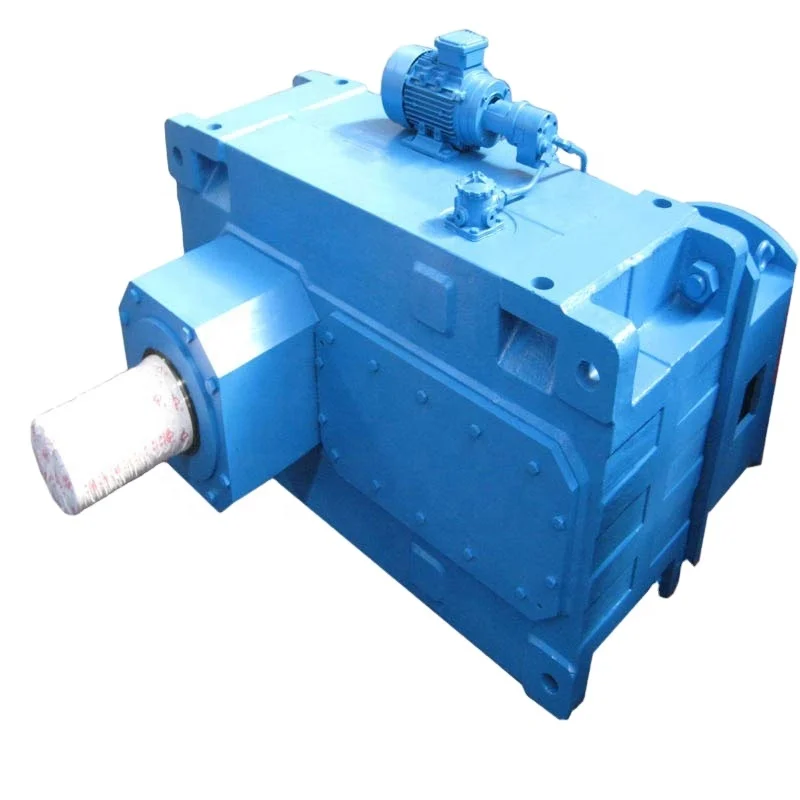

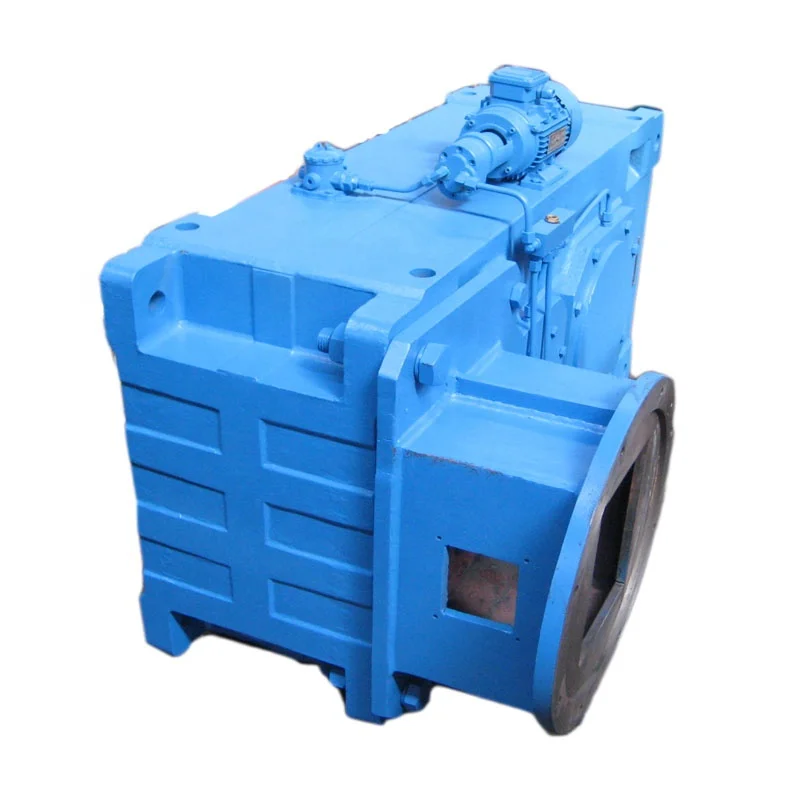

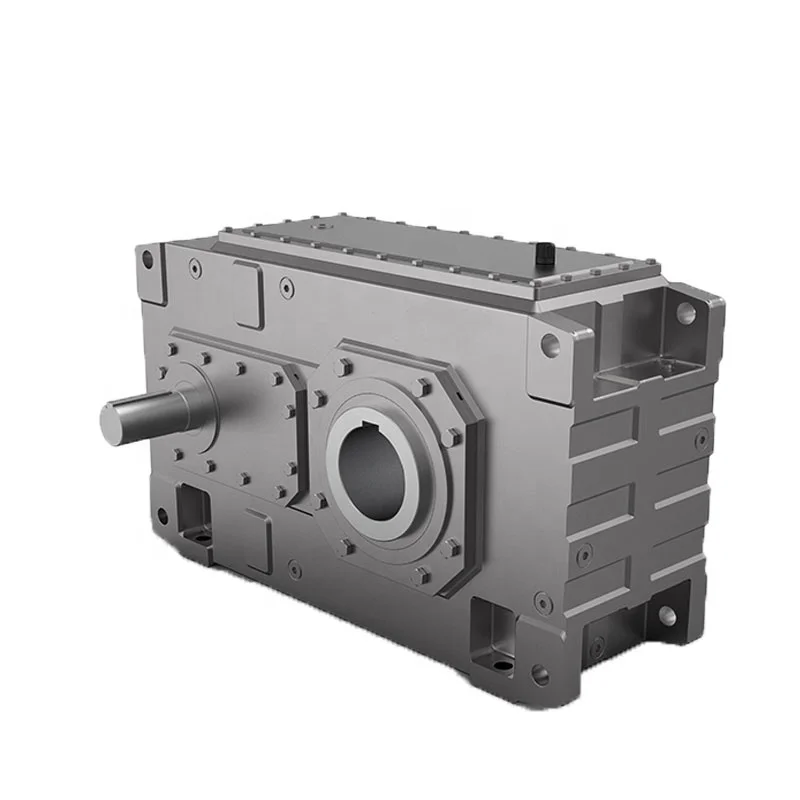

Промышленная винтовая высокопрочная промышленная коробка передач Guomao серии H (60363302503)

Share on:


Price:1 500,00 $
Price in USD:Details

Quantity:


Product Overview

Description


P series industrial helical heavy duty industrial Guomao gearbox



Product Description


_01
















































PV series 45 KW gearbox high power gear speed reducer gearbox for wind
Type PV
Power2.6-5193KW
Output Speed 3.75-1200RPM
Output Torque10.6-952000NM
Ratio1.25-4744
Weight128-5860KGS
Standard voltage and frequency380V&50HZ
Production time 25-30DAYS
Advantages1.Compact structure, light weight, large torque and excellent performance.
2. Stable in running, low in noise, large in load, low in consumption, efficient in transmission, low in temperature and long in service life.

Service

1 .Rich export experience more than 14 years


2 .Devote to transmission systematize solution more than 21 years experience


3. we passed CE &ISO9001&ISO14001 certified


4. 100% Payment protection


5. 100% Product quality protection


6.Provide consultation and after-sale,experienced engineers








Guomao PV, HB Series Helical Reduction motor Gearbox


1.It has solid shaft output, hollow shaft output and contract disk hollow shaft output,which can be installed horizontally , vertically . It is made of high strength quality alloy steel through quenching and possesses

high efficiency and long life gear .Othermore, it can bear large axial and radial load. Features is low in run noise, high in reliability, compact and so on.


2.The housing of one size can realize parallel shaft,right-angle shaft modes and horizontal,vertical mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.


3.Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.


4.Input mode : motor connected flange ,shaft input.

Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk,  hollow or solid shaft with involute splines , solid shaft with flange.


5.Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.


H.B. (P.V.)series include sizes 3-26, number of stages is 1-4,ratio is 1.25-450. Combining with CR,S and K series, ratio will be higher.




Vacuum Belt Filter






























  • Characteristic Features of Guomao PV series small right angle gearbox with electric motor  :


        1.Design


          Highly standard modular designed,more sizes with a reduced variet of parts


          Higher operational reliabilit combined with increased power capacity.


        2.Mounting position


         The gear units can be supplied for either horizontal or vertical installation.


         Other arrangments are also possible on request.





         3.Long service life


         Under the condition of accueately selecting type size and the normal maintenance and use,main components.





        4.Low noise


        All key components are finished by precisely machining;grinding the gears;


        designing noise finally tested and therefore,fairly low noise is reached.





      5.Thermal Conduction


        The gear units have a high efficiency.


        Through enlarged housing surface areas.









Packaging & Shipping








Cooperation


_01





Company Information


ww_01_


More Than Ten Years Of Foreign Export Experience


Guomao Reducer Group Co.Ltd was found in 1993. Past 25 years developing ,now we have over 2200 workers and 630,000 square meters production area.
Our company mainly produced Industrial Motor and reducer.


Guomao Reducer Group annual output is over a million machines. We have our own researching and developing department, every year we recommend new items to our old customers. OEM and ODM are always welcome.

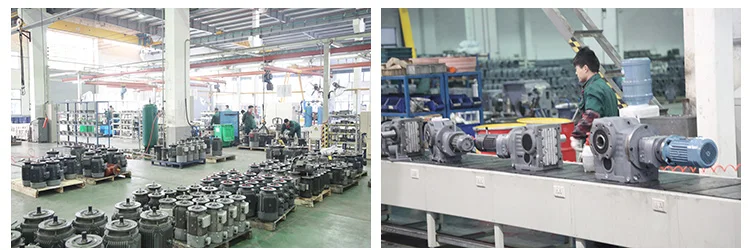

                              Workshop                                                            Assembly Line

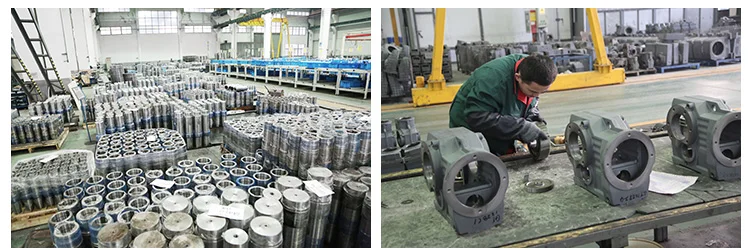

                             Raw Materials                                                 Mold Inspection
