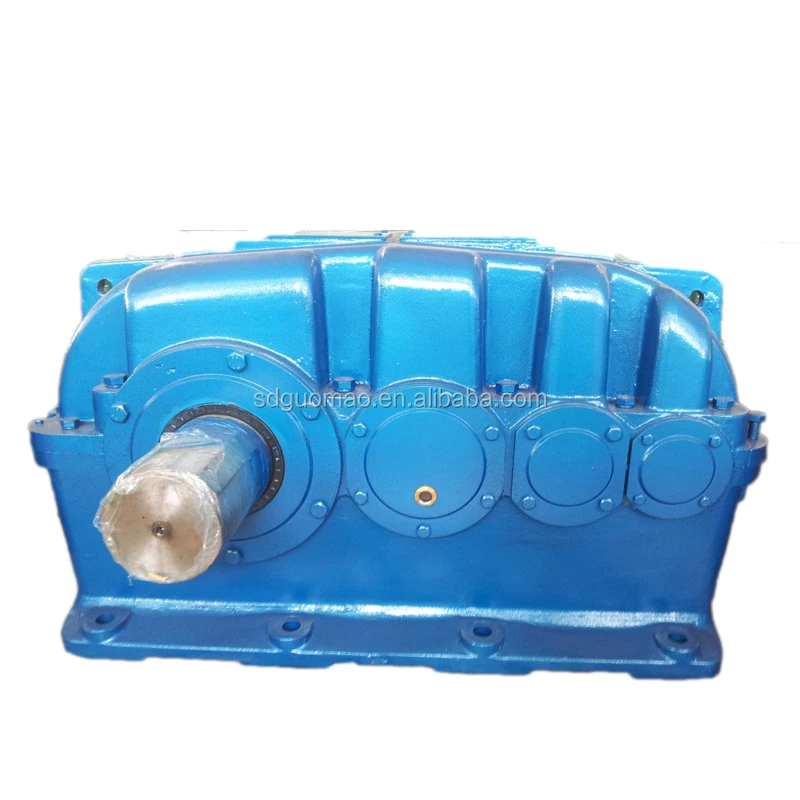

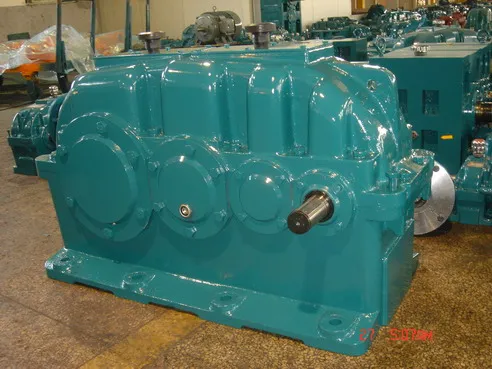

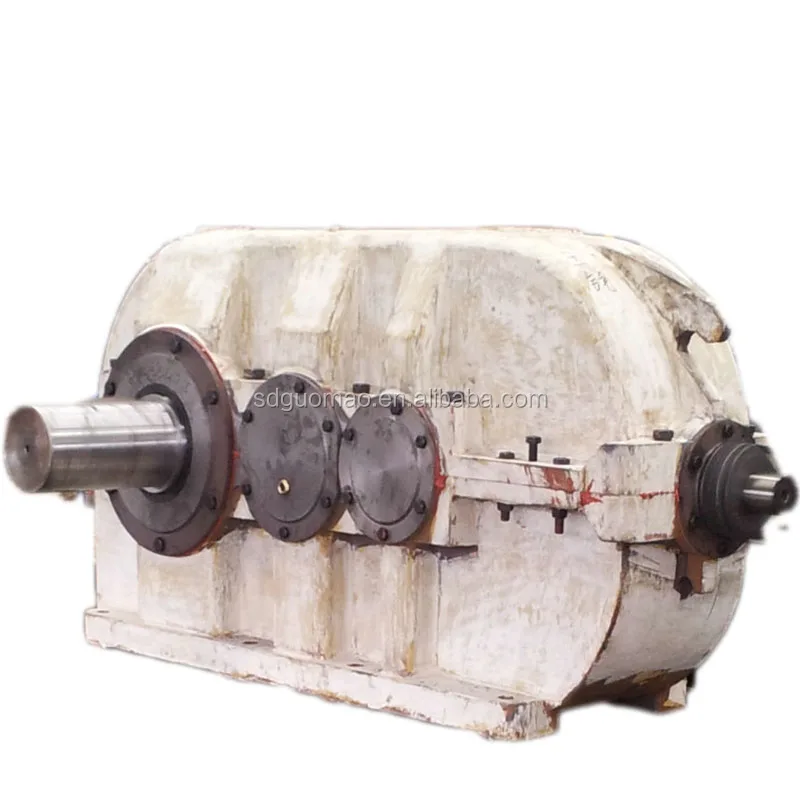

ZSY 400 as motor speed reducer for steel plant industry
Product Description
Features:
1- The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance
2- High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3- Smooth and stable in run, low noise;
4- Compact, light, long life, high bearing capacity;
5- Easy to disassemble, inspect and assemble.
Outline Dimensions of Z Series Cylindrical Reducers:
Technical data
| Type | Stage | Model | Ratio | Nominal ower (KW) | Nominal Torque(N.m) | Shaft |
| Z Series Cylindrical Reducer | Single-stage | 80--560 | 1.25--5.6 | 350-4,793 | 357-154,550 | Solid Shaft |
| Double-stage | 112--710 | 6.3--20 | 6.8-6,229 | 1,162-426,541 | ||
| Three-Stage | 160--710 | 22.4--100 | 4-1,905 | 4,075-519,520 | ||
| Four-Stage | 180--800 | 100--500 | 1.5-1,100 |

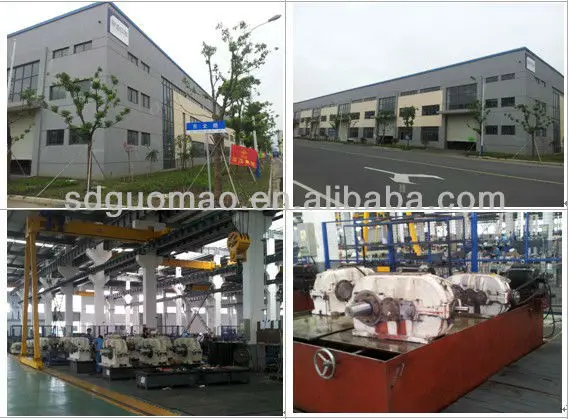

Photos Display of our factory and equipments:
Workshops:
We offer high quality product as well as perfect service, if you have any requests feel free to contact us please.
