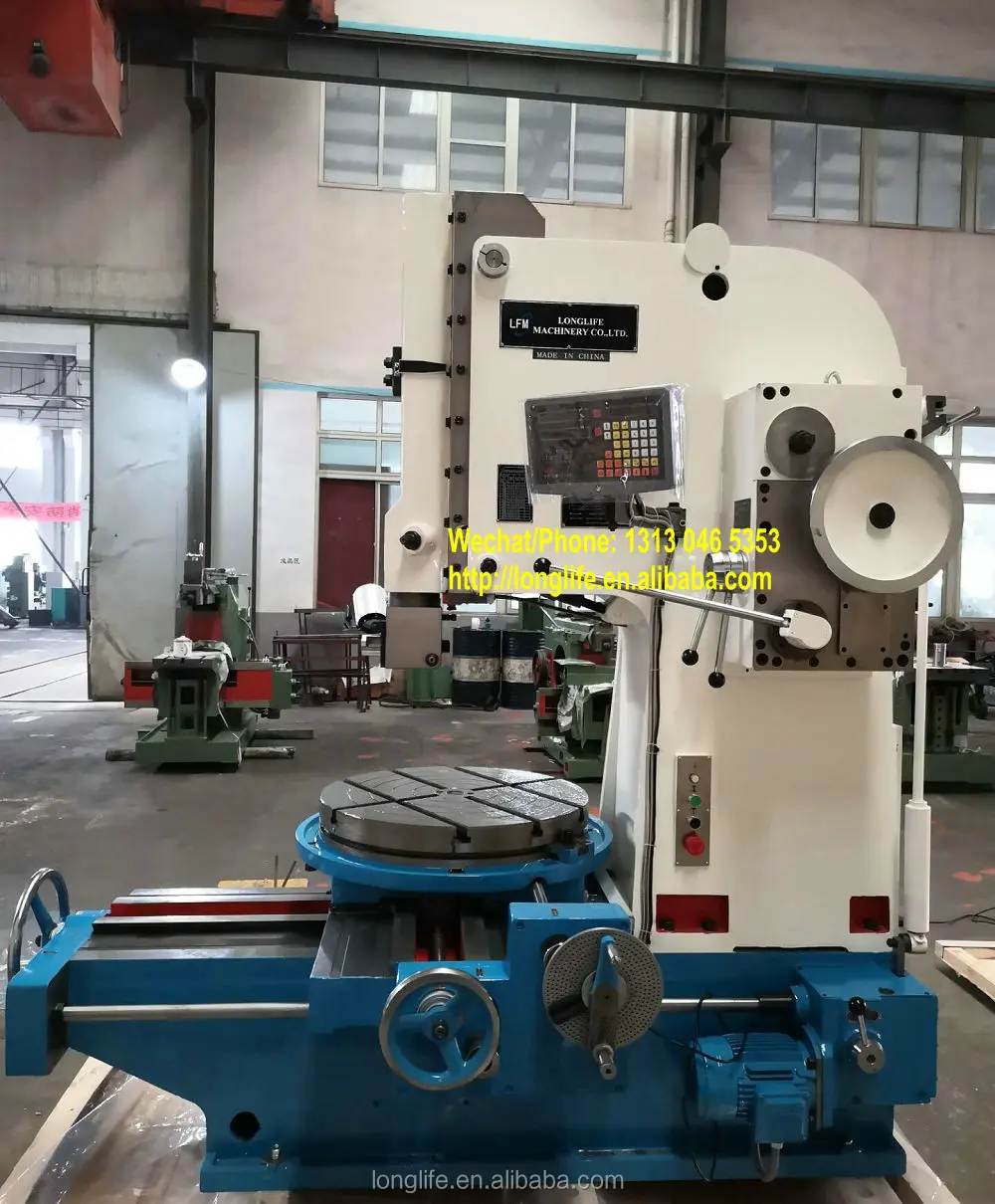

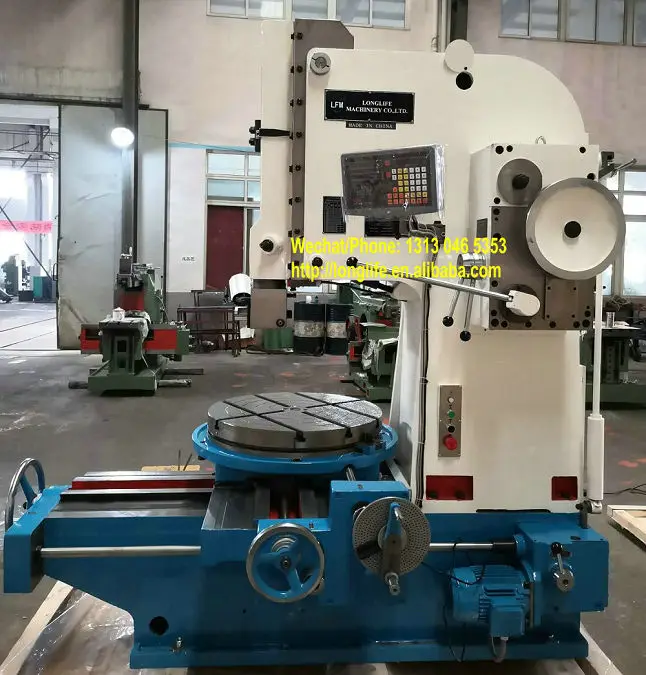

1. Being designed for cutting various plane, Formed surface and key of workpiece, the machine is suitable for single piece or small Batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the tam is achieved by a crank connecting link.
3. An auto- matic mechanism for vertical, horizontal and rotary feeding and rotary motion of the table which is equipped with an indexing gear for rotary motion.
Main Technical Data
Specifications
Unit
Parameter
Max. slotting length
mm
200
Number of ram reciprocation per minute
No/min
32/50/80/125
Inclination of ram
0~8°
Diameter of worktable
mm
¢460
Adjusting vertical distance of slide block
mm
200
Distance from tool holding surface to column front
mm
480
Distance from worktable surface to underside of slide rack
mm
320
Max. longitudinal travel of worktable
mm
420
Max. transverse travel of worktable
mm
420
Max. rotary angle of worktable
·
360°
Feed range of worktable in longitudinal and transverse
mm
0.054~1.24
Rotary feed range of worktable
0.035~0.805°
Max. size of slotting tool(Length X High)
mm
25×40
Max. slotting force
kN
5
Max. loading weight on worktable
kg
400
T- slot width in the center of worktable
mm
18H8
Power supply of main electric motor
kW
3
Speed of main motor
rpm
1420
Net weight (approx)
kW
0.75
Speed of motor of rapid traverse
rpm
1390
Dimensions of machine tool
kg
2200
(Length × Width × High)
mm
1717×1221×1885
Working Accuracy
Flatness of machined surface on tested workpiece
mm
0.015
Verticality of machined surface on tested workpiece
mm
0.025
Surface roughness on tested workpiece
mm
6.3
Verticality of machined side on tested workpiece against base
