Китай Автоматический Металлический формирователь формируя машину (BC6050 BC6063 BC6066 BC6085 BC60100 формирователь машина цена для продажи)
- Category: Planer & Slotting Machines >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (62433926677):
Product Overview
Description

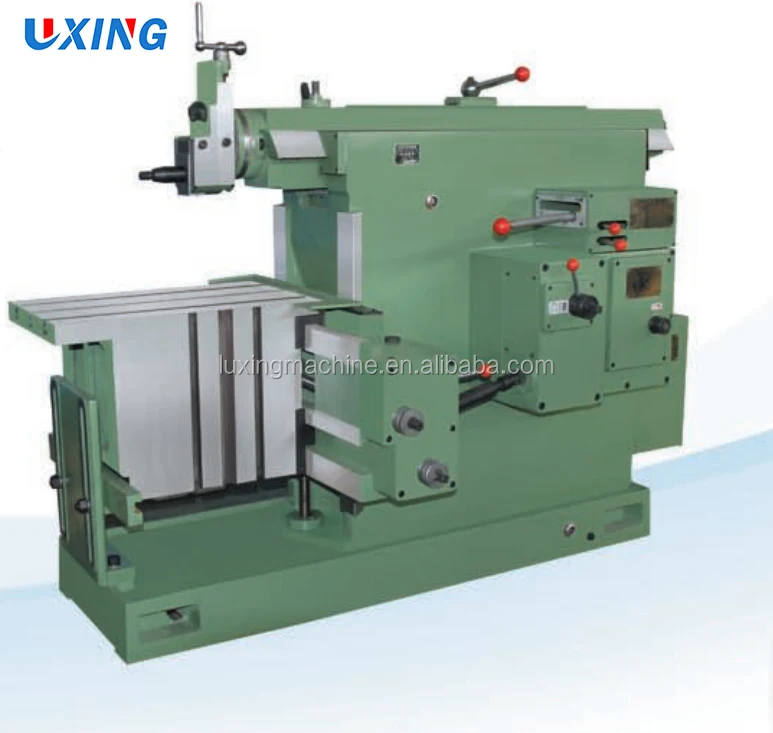

China automatic metal shaper Shaping Machine (BC6050 BC6063 BC6066 BC6085 BC60100 Shaper Machine price for sale)
Product Description
Product main specifications:
Specifications | Units | BC6063 | |
Maximum shaping length | mm | 630 | |
Max.range of the horizontal movement of the table | mm | 385 | |
Max.distance between he ram bottom and table | mm | 630 | |
Max.length of the vertical movement of table | mm | 360 | |
Dimension of table top(L*W) | mm | 630X400 | |
Travel of tool head | mm | 120 | |
Number of ram strokes per minute | Times min | 14,20,28,40,56,80 | |
Swivel of tool head | ° | +/-60 | |
Maximum size of tool shank(W*T) | mm | 20X30 | |
Range of table feed | Horizontal 12 steps | mm | 0.4-5 |
vertical 12 steps | mm | 0.08-1.00 | |
Width of the T-slot for center positioning | mm | 18 | |
Main motor power | KW | 3 | |
Overall dimension(L*W*H) | mm | 2000X1300X1550 | |
N.w./G.W | kg | 1750/1870 | |
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
