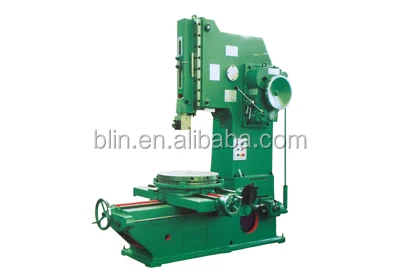

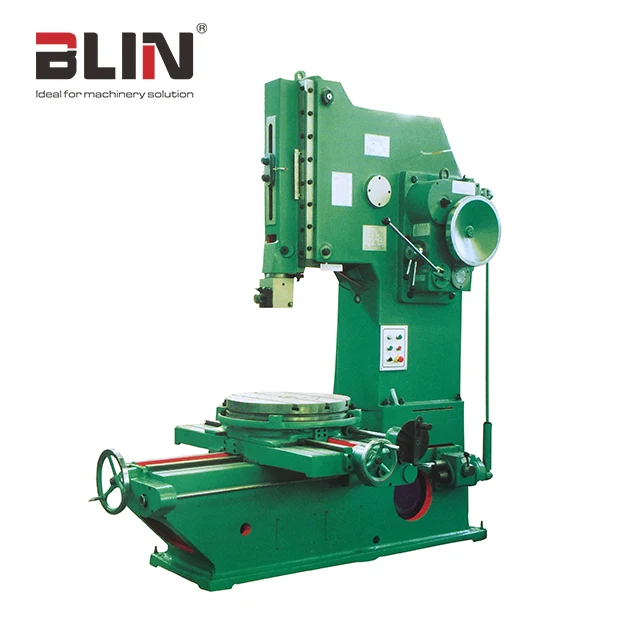

Slotting Machine(BL-BQ5040)



Features:
This machine is used to process planes,model surfaces,key seating ect,is most suitable for the single-piece or small batch production
The main transmission is to change the crank gear's rotary motion into the reciprocating motion of the ram.
Worktable can be vertical, horizontal and rotary moving, maual or automatic feeding.The feed will stopped automatically when worktable is meet trouble.
This machine is well designed as standard,universalization,serialization,automation.Good appearance and convenient maintenance.



Specification:



Item

Unit

BL-BQ5040

Max.slotting length(360mm for internal slotting)

mm

400

Max. weight of workpiece

kg

500

Max. cutting force

N

7500

No. of ram strokes per minute

times

20.32.50.80

Vertical adjustment distance of ram

mm

315

Tilting angle of ram

deg

0-8°

Max. tool shank size(W×H)

mm

25×40

Table diameter

mm

630

Distance between tool bloding surface and cloumn front

mm

600

Distance between table surface and low end of ram

mm

690

Max. longitudinal travel of table

mm

620

Max. cross travel of table

mm

560

Range of table olngitudinal and cross power feeds

mm

0.08-1.21

Range of table rotary power feeds

deg

0.052-0.783°

Power of Main drive motor

kw

4

Rotating speed of main drive motor

rpm

960

Overall dimensions(L×W×H)

mm

2290×1525×2485

Weight

kg

3700












0.0099 s.
