automatic screwdriver, electric junction box screw machine

Product Overview

Description

I. technical parameters

Efficiency:  2-4 second/piece

Screwing quantity: 1 pcs each time, in the mean time to assembly metal clamp (cusotmized)

Power supply: AC220V single-phase

Air Source: 0.6Mpa

Machine Dimension: 1100*850*1500mm (L* W* H)

Controlling system: Siemens PLC+ touch screen

Discharge:  manual unloading

II. Description:

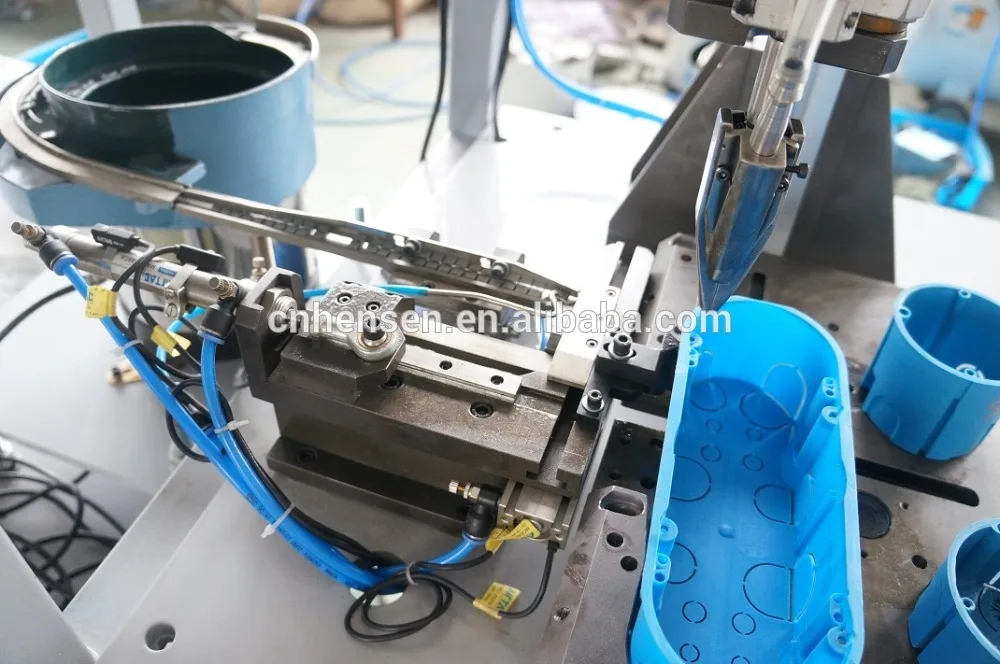

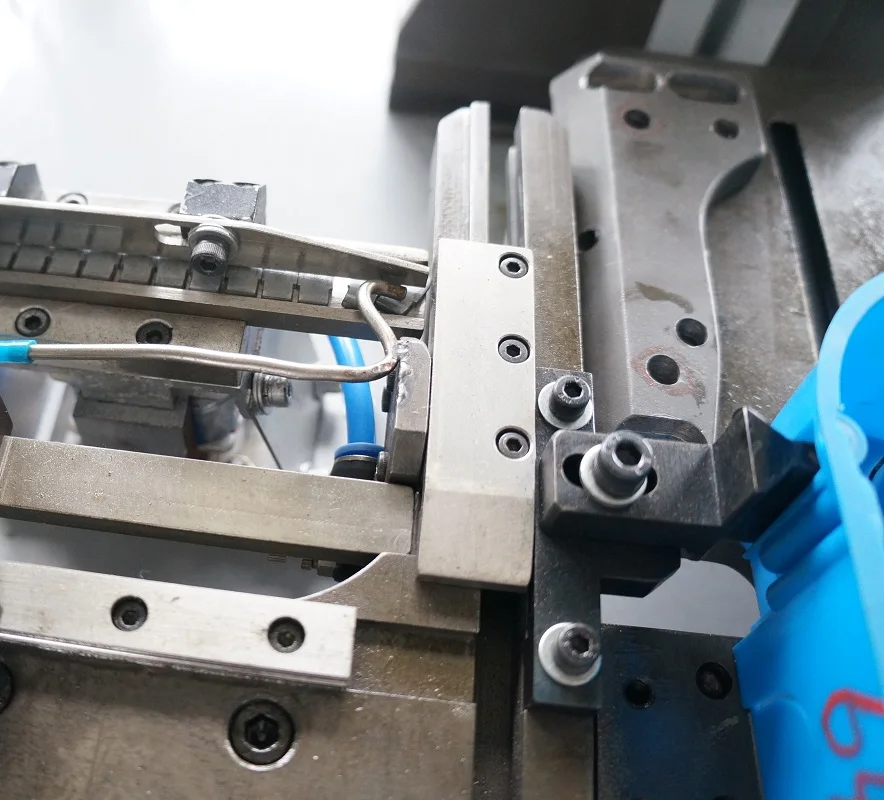

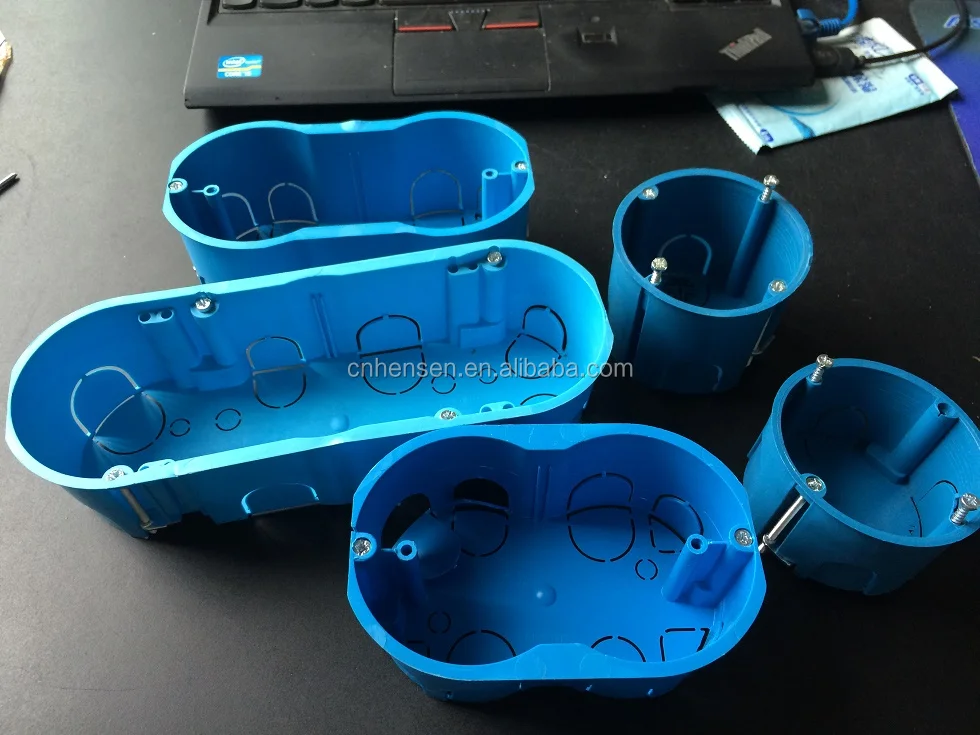

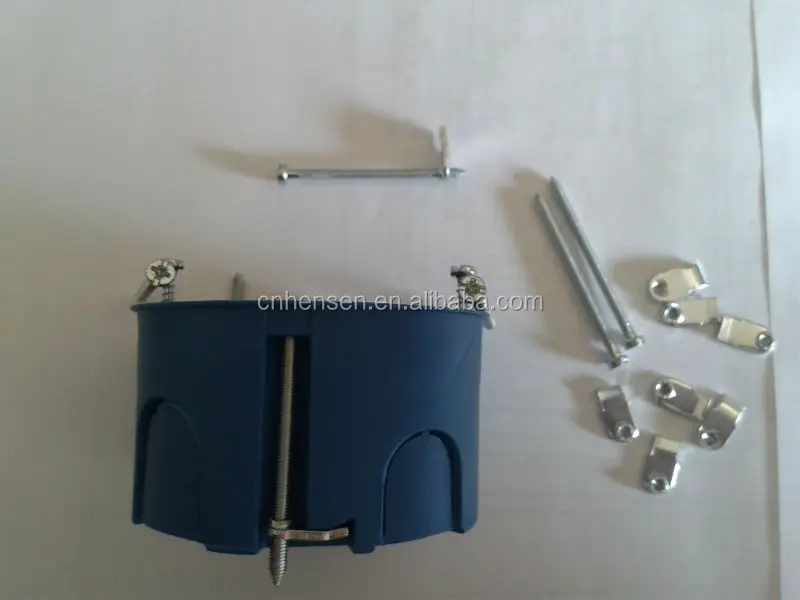

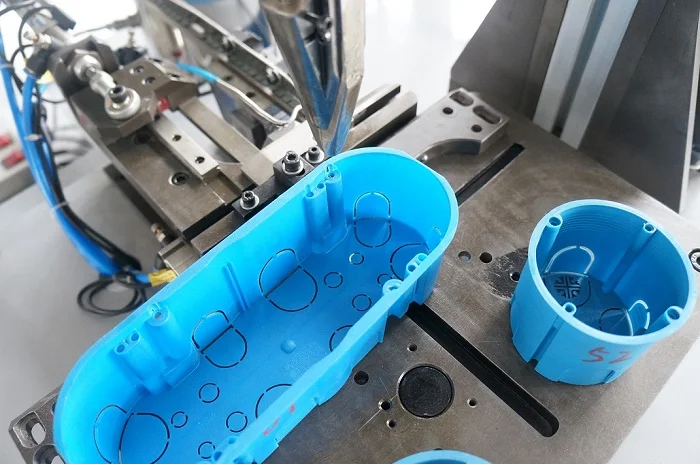

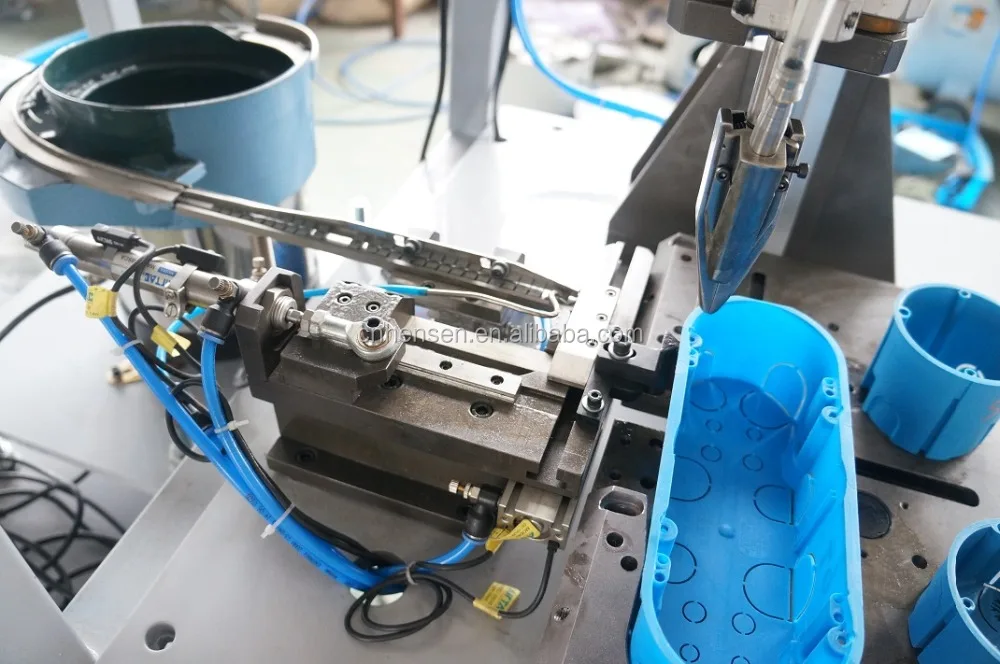

1. this machine is designed for plastic junction box (electric wire box), operator put the product into the fixture, machine push iron buckle and fix the screws, replace the fixture can be used in different styles, according to the customer's production requirements, design of multi-spindle screw machines to provide more efficient

2. screw dropping with fiber check, guaranteed the number of screws.

3. With automatic clutch screw driver, when the screws arrive to the torque will automatically stop, can determine the locking screw sliding, floating and other defective products, and displayed on the touch screen.

4. by replacing the fixture can be used for other models.

5. screw universal in the case of tooth size unchanged, different length is ok.
