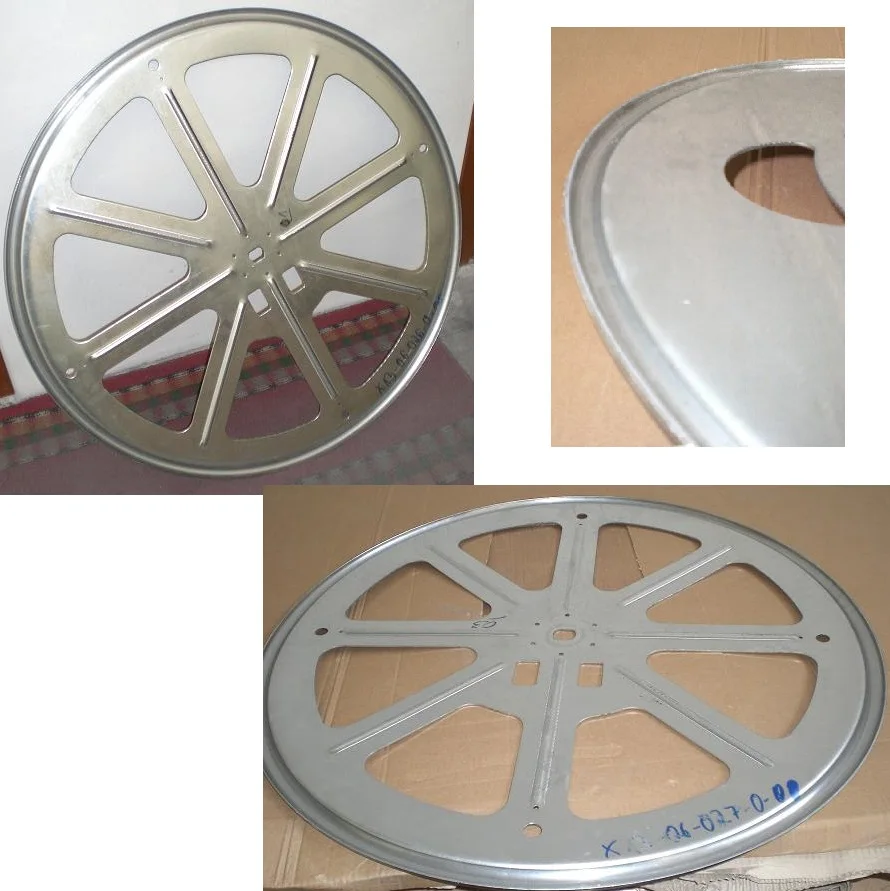

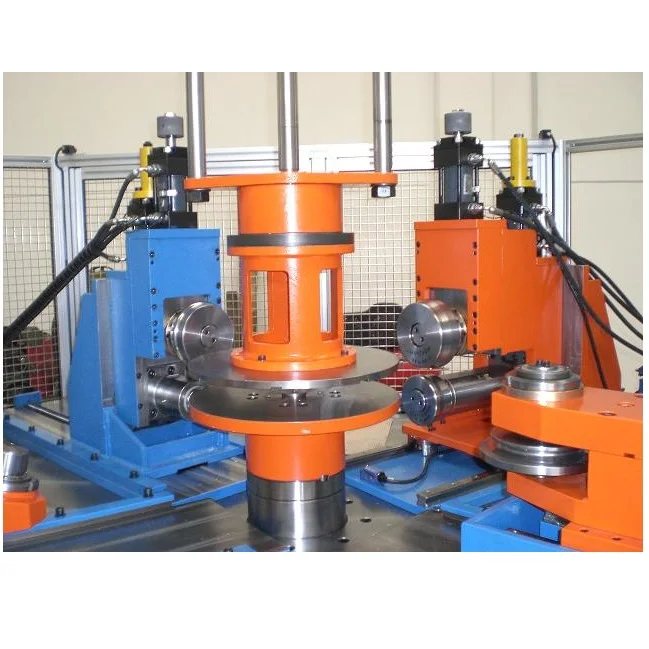

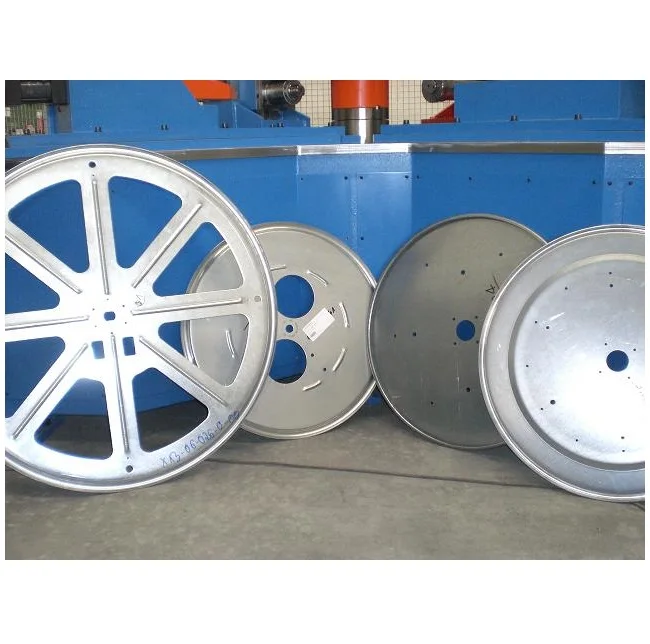

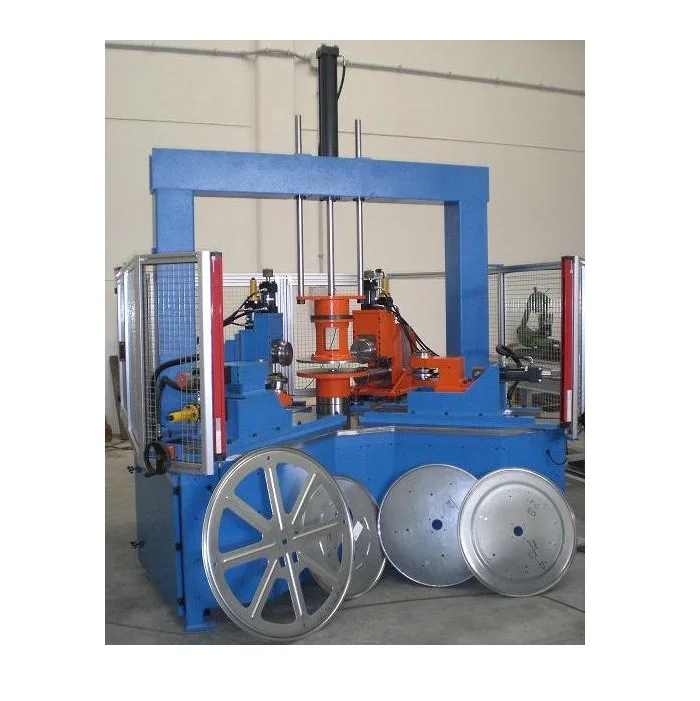

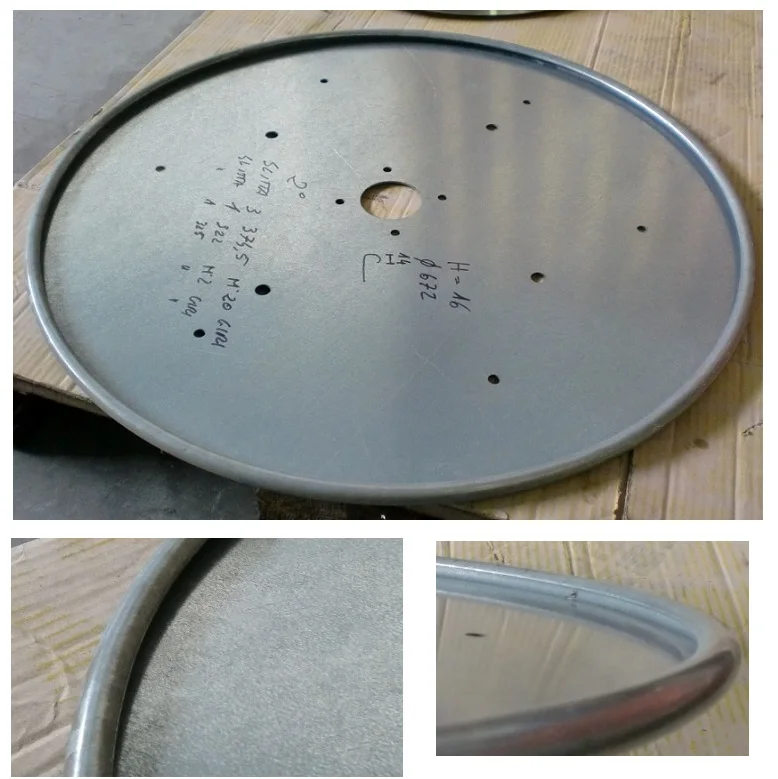

Trimming-beading machine SMM Ø1600 with hydraulic working units to manufacture cable reels. With this machine it’s possible to make following forming operations: - Vertical ribbing of metal disk. - Vertical beading of the edge of metal disk. - Curling of the edge of metal disk. Max diameter of the metal disk to be processed: Ø1600 mm.
Specification
Place of Origin
Italy
Brand Name
Sheet Metal Men
Condition
New
Video outgoing-inspection
Not Available
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Pressure vessel, Pump
Warranty
1 Year
after sale service
Online support, Video technical support
Key Selling Points
Automatic
Weight (KG)
4000
After Warranty Service
Video technical support, Spare parts
Applicable Industries
manufacturing plant, metalworking industry
Local Service Location
Italy
Showroom Location
Italy
Max diameter
1600 mm
Company Profile
Sheet Metal Men s.r.l. constructs trimming-beading machines for working operations, such as beading, trimming, flanging, curling, and lock-seaming, on round and/or polygonal section flat or drawn sheet metal elements. Example of working operations with trimming-beading machines: - internal / external beading; - horizontal / vertical trimming; - internal / external flanging; - inner / outer curling; - inward / outward ribbing; - threading; - lock-seaming 3 thickness; - lock-seaming 5 thickness. All the machines are designed and constructed according to international standard security laws (CE) and to the Specifications of the customer.
The machines have all the documentation that is simple to understand for the operator, with all the drawings, the diagrams and the plans.
FAQ
1. who are we?
We are based in VI, Italy, start from 1998,sell to Southern Europe(20.00%),Eastern Europe(10.00%),Mid East(10.00%),Western Europe(10.00%),Central America(10.00%),Northern Europe(10.00%),South Asia(10.00%),Domestic Market(10.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
4. why should you buy from us not from other suppliers?
For the past thirty years we have been researching and developing machines to manufacture sheet metal products. The wide range of machines of our production coupled with the experience acquired enables us to satisfy all drawing requirements.
