Product Overview

Description



Product Overview

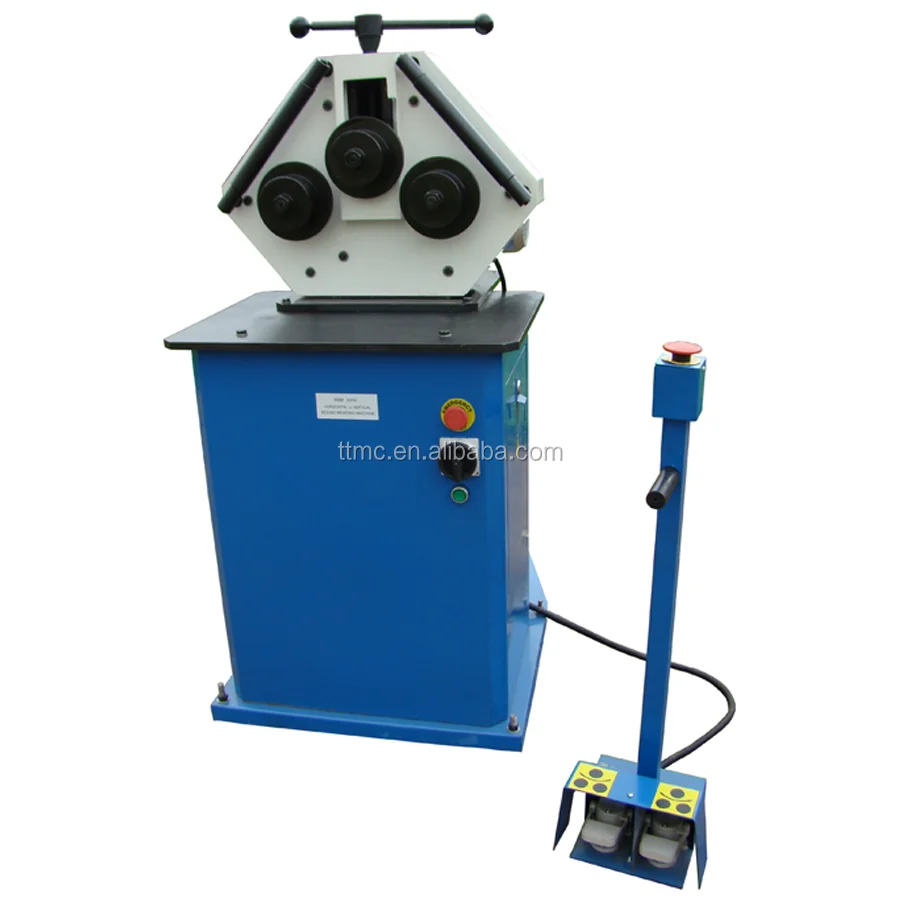

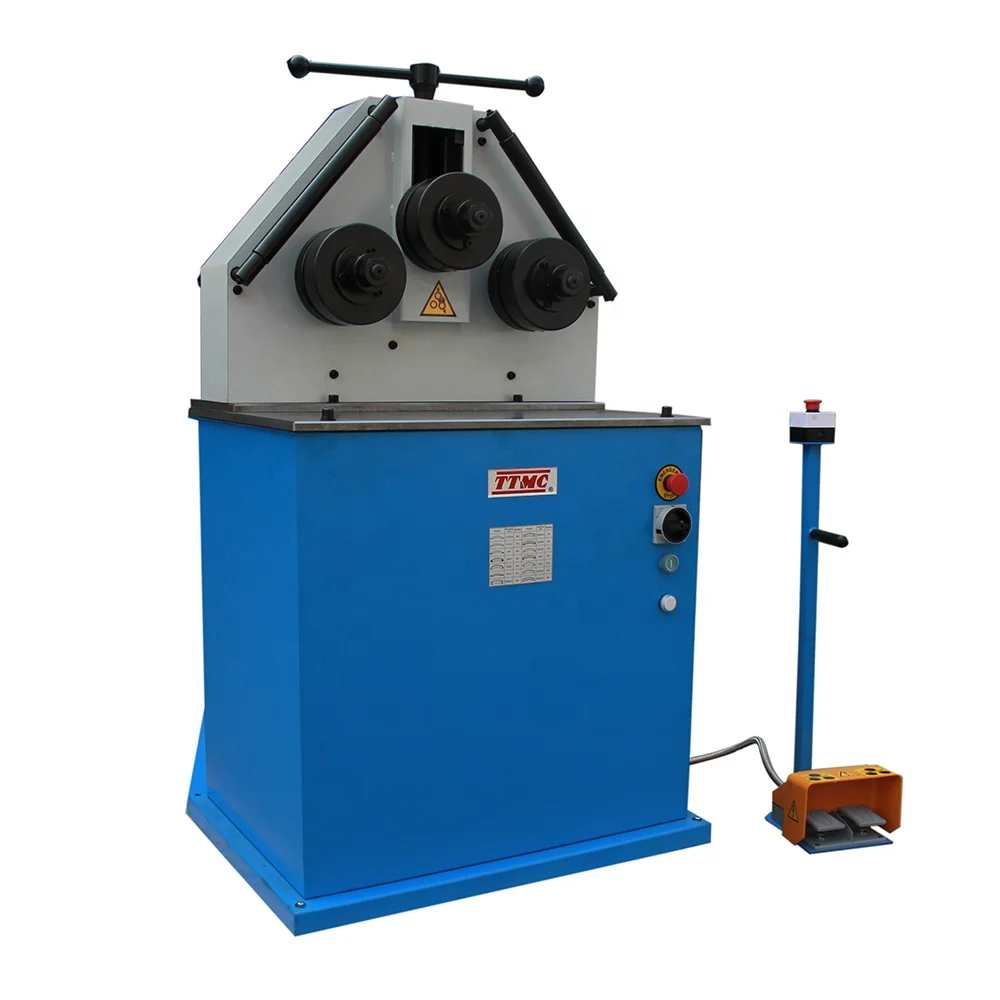

TTMC Round Bending Machine RBM40HV
This round bending machine could operate in vertical and horizontal position, ring roll machine for any fabricator looking to dive into profile bending


FEATURES AT A GLANCE


Three-phase motor, powerful rolling
Executes bends in upright or horizontal positions, to accommodate a range of material lengths.

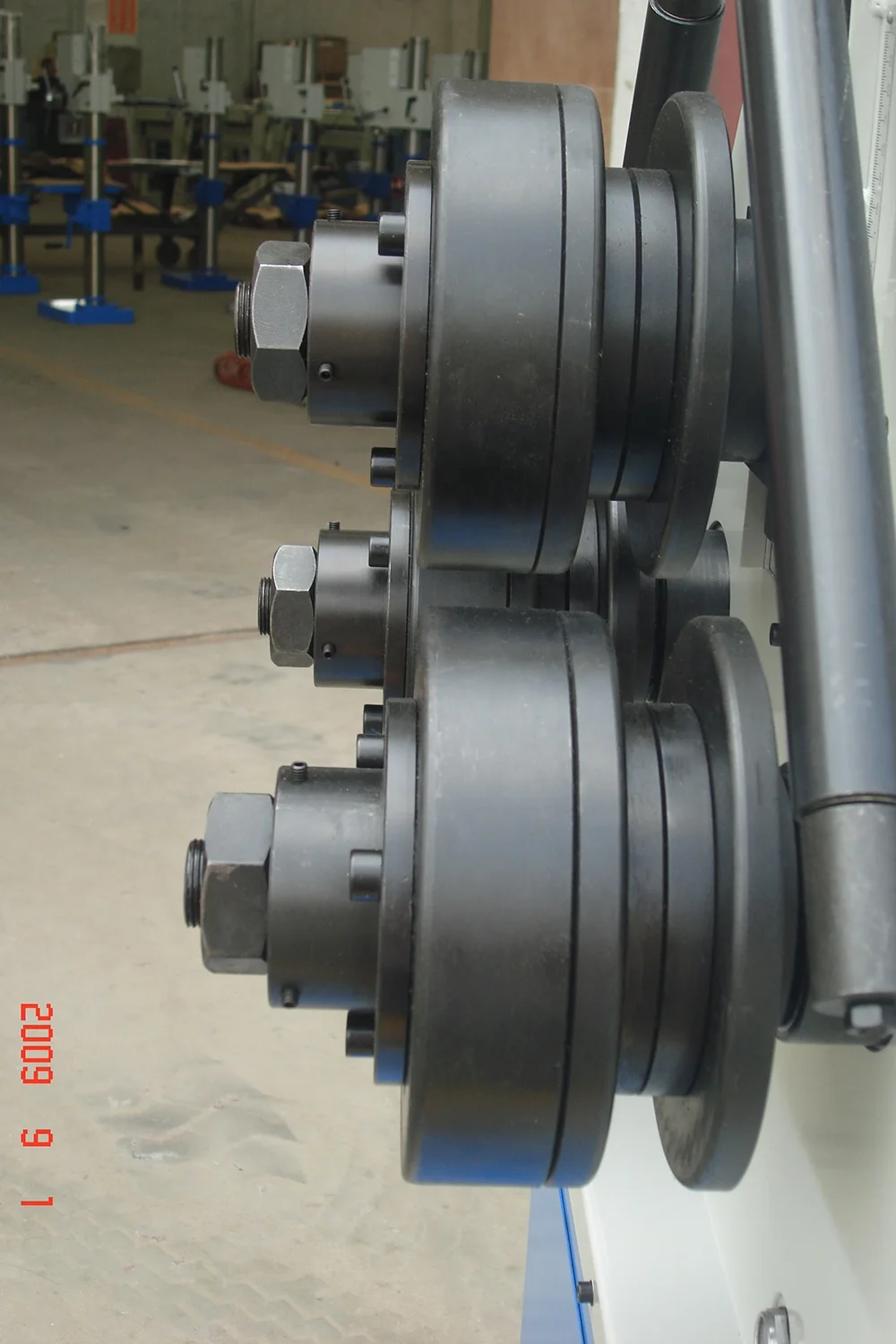

Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
*** Round tube dies as optional at extra cost**


PRODUCT SPECIFICATIONS


TTMC RBM40HV, HRBM40HV Section Roll Bending Machine


Item No.
391003
391022
Model
RBM40HV
HRBM40HV
Dia. of roller (mm)
ø40
ø40
Power
1.5kW/2HP
1.5kW/2HP
Spindle Speed
9.3r/min
9.3r/min
Packing size (cm)
140x95x134
134x93x185
N.W.G.W. (kg)
425/495
490/586
Different Materials' working capacity
Shape
Size (mm)
Min. Dia. (mm)
Rectangular bar
50x10
20x6
600
800
Flat bar
60x20
30x6
800
1250
T-Slot
50x6
30x3
600
500
C-Chanel
60x40x6
30x15x4
600
900
Angle iron
50x5
30x4
500
500
Solid bar
ø30
ø10
650
1100
Square tube
50x50x2.5
30x30x2
700
800
Rectangular tube
50x25x2.5
40x20x2
800
1000


SIMILAR PRODUCTS

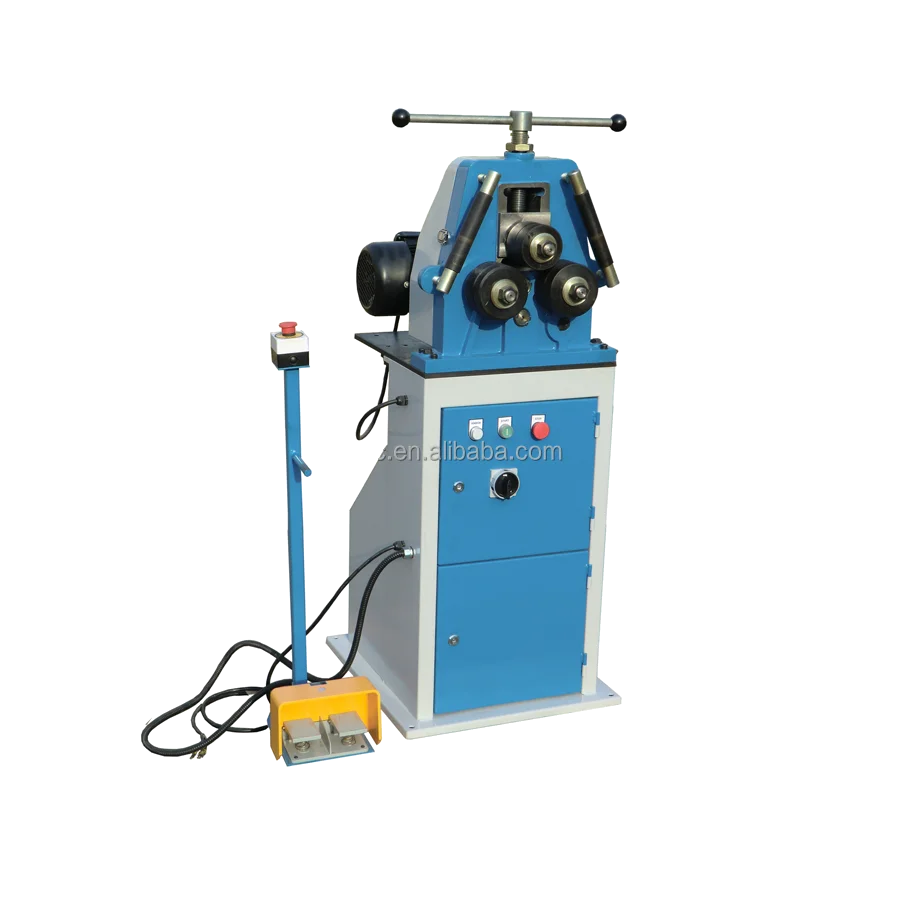

ERBM10HV
RBM30HV

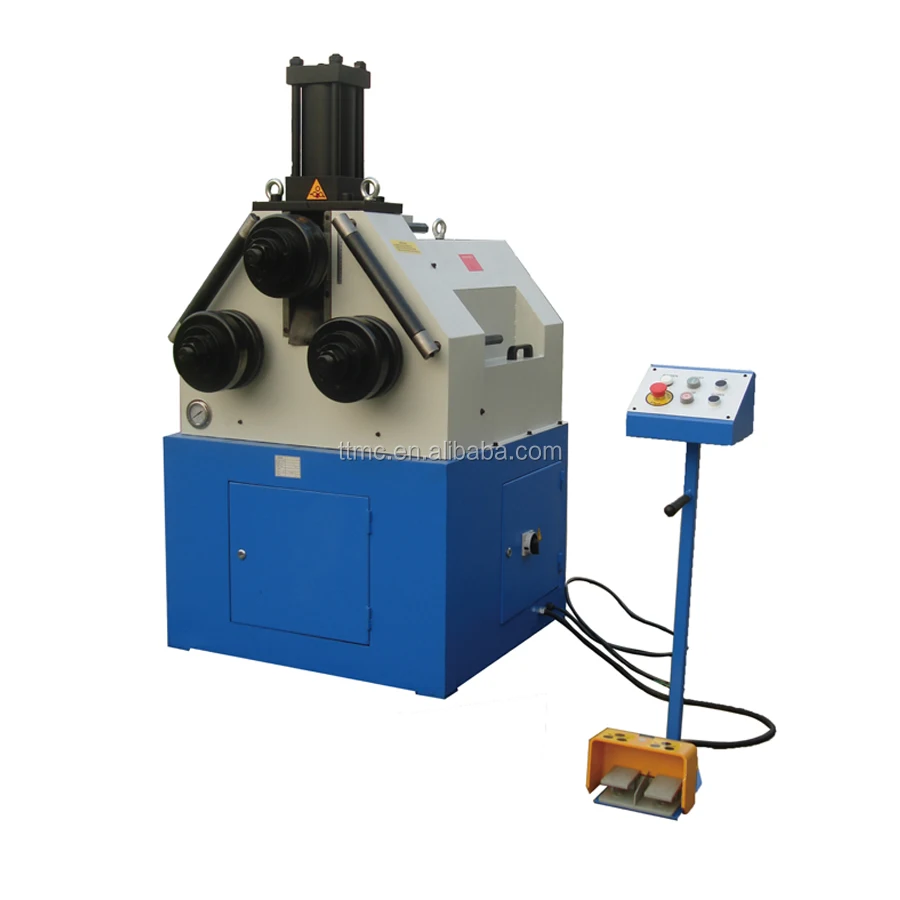

HRBM65
