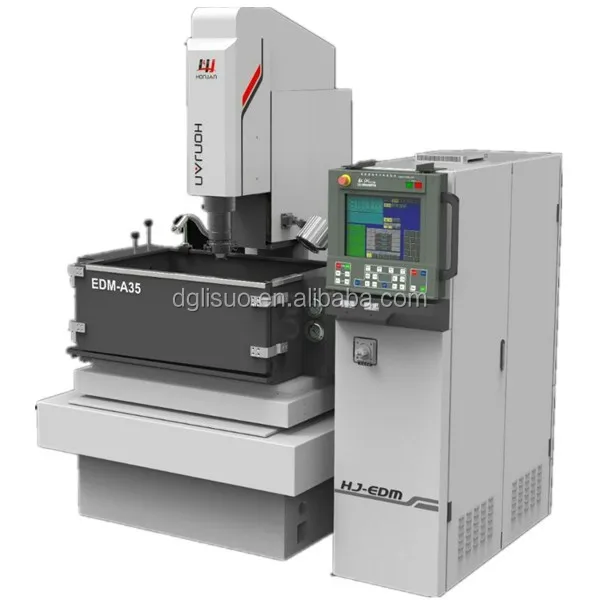

  Mini CNC-ACE30 edm spark machine with high quality












Product Description


 1. Product Description



































































































MACHINESPEC
Worktable Size 600x400 mm
Internal Dimensions of Processing Tank 815x580x410(length×width×height)mm
Liquid Level Adjustment Range 50~200mm
Max. Capacity of Processing Tank 120L
Running Distance of X,Y,Z Axis 300x210x270mm
Max. Size of Workpiece 900×585×270mm
Max. Weight of Workpiece 400kg
Distance From Electrode Plate to table 295~565(minimum~maximum)mm
Positioning Accuracy(JIS standard) 5μm/any 100mm
Repeated Positioning Accuracy(JIS standard) 2μm
Outline Dimension1580x2220x2250(lengthxwidthxheight)mm
Machine Weight 2000kg
LIQUID STORAGE TANKSPEC
Volume of Liquid Storage Tank 400L
 Filter Way of Processing Liquid paper core exchangable
 NC PULSE POWER SUPPLYSPEC
Max. Working Electric Current 50A
Total Input Power 9KVA
Input Power Supply 220/380(domestic)V
 Best Surface Roughness Ra0.1μm
 Input mode Touch screen, USB
Display Mode 15''LCD(TFT-LCD)







 2. Performance Upgrades


We have a comprehensive ability of development and upgrade on hardware and software, We have reached the following improvements, and will provide upgrade services for customers.





(1). Pulsing tool lifting


Up parameter, short tool lift, controlled by ten digits.


(a). Compared to the same previous params of tool lifting, a 15% processing time is increased, and a 30% speed is improved when processing the bone position.


(b). More continuous discharging.


(c). The smaller DN parameter can be used under special circumstance, the processing efficiency is not affectted.










(2). Low current processing, more stable servo algorithm is improved, and the processing efficiency of the rang of 0.5A~3A is improved by 10%.





(3). Fine processing speed


The fine processing speed of C825 and C810 is improved by 20%.





(4). Custom servo voltage


The original set of stalls is from 0 to 9. In order to solve the software problem that the servo stall gap is too big, the actual servo voltage which can be setted by customers is from 11 to 200.









Product Overviews


 3. Product show




EDM process has become the important part in the field of mechanical manufacture. They are widely used in the fields of moulds, electrinic instruments, precision mechanical process, automobile parts, military, etc.


Our company's EDM series machines are featured in strong functions, convenient and reliable operation, of fairly good rigidity, running placidly, of good controll ability, suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing.




Related Products:







The Products made by our machines are as follows:








Packaging & Shipping

 4. Delivery& Payment& Packaging:









Payment(1).T/T payment, L/C, D/A, D/P
(2). Paypal, Escrow.
(3).Western Union, MoneyGram.










Our Services


 5. Service We Can Offer You







































Quick
Response
Your inquiry will be replied with 24 hours.
High
Quality
Well-trained workers and more than 10 years experience.
Customer
First
Customer oriented, efficient solution to control the cost for our client.
Competitive
Price
Directly from factory to save your money.
After-sales
Warranty

Once there is problem after you received products, you can contact us


in time.We will resolve it in short time.


FlexibilitySmall orders are acceptable for quick delivery and to help you reduce
stock cost.
QC SystemEach part has been got 100% test and try out before shipment.
OEM ServiceCustom fabrication according to your drawings, samples or designs.











Company Information


 6. Introduction of Company:




As a professional manufacturer, our company war established in 2000 and located at Chang'An town, DongGuan City, GuangDong Province. We have an extensive stock holding and we ensure your order is properly packaged and dispatched to wherever you are in the world. All of our products are comply with international quality standard with competitive price.





If you need any assistant, please don't hesitant to tell me. Our mission is sticking with the good quality and satisfactory service.








FAQ


7. FAQ




1. Can I negotiate the price?


      Yes. we will consider the discounts based on your order quantity.





2. What's your minimum order requirement?


      MOQ is depended on the type of products.





3. How long will you prepare the goods?


      Generally, it's about 3 days to 15 days. But it finally according to the order quantity and product type.





4. How can I know my order's production progress?


      We will keep on eyes on the production progress, and inform you when start producing and shipping.





5. What warranty you can offer to me?


      Please send the goods back to us for replacement within one month if there is any problem with our products. Please keep the goods in the previous condition but we are not charge the delivery cost. Hope you can understand.
