3m3 concrete truck mixer with pump
US $2000-$4000
Бетономешалка 3 кубических метра с смесительным барабаном
- Category: Concrete Truck >>>
- Supplier: Zhengzhou,City,Reno,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

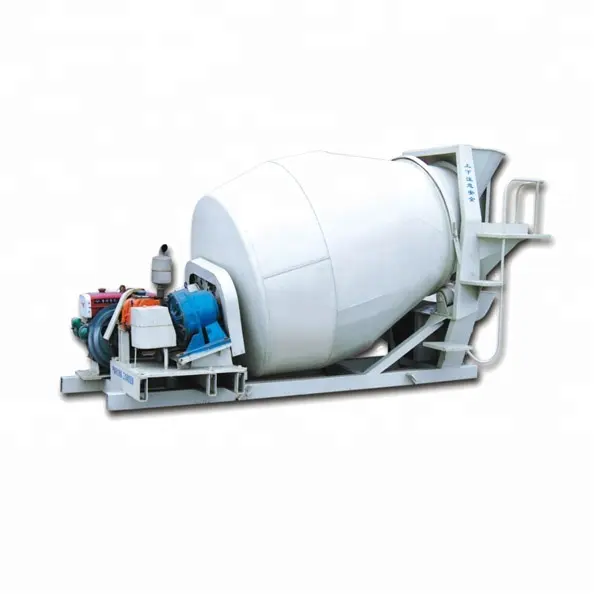

3 cubic meters concrete mixer truck with mixing drum
It mainly consists of chassis, mixing barrel, driving system (drive), the hydraulic drive system, water system, feeding and discharging system, discharge chute, operation platform, control system and protection equipment.
Its main role is to rapidly stirred concrete and timely delivery to a designated location. It can also be used to do the mixing tube.
Parameters of 3m3 concrete mixer truck
Type | HJC-3 | HJC-4 | HJC-5 | HJC-6 |
Mixing drum capacity(m³) | 3 | 4 | 5 | 6 |
Geometric capacity of mixing drum(m³) | 5.05 | 6.15 | 7.25 | 8.7 |
Loading ration | 0.62 | 0.62 | 0.62 | 0.62 |
Feed speed(m³/min) | 3 | 3 | 3 | 3 |
Discharging speed(m³/min) | 1 | 1 | 1 | 1 |
Axis angle | 16°±15 | 16°±15 | 16°±15 | 16°±15 |
Stirring speed(r/min) | 0-12 | 0-12 | 0-12 | 0-12 |
Inlet height(m) | 3.38 | 3.5 | 3.65 | 3.8 |
Outlet height(m) | 1 | 1 | 1 | 1 |
Mixing drum diameter(m) | 1.7 | 1.7 | 1.85 | 2 |
Outline dimensions(m) | 3.95*1.9*2 | 4.45*1.9*2 | 4.95*2*2.1 | 5.28*2.1*2.3 |
Workshop pictures of 3m3 concrete mixer truck

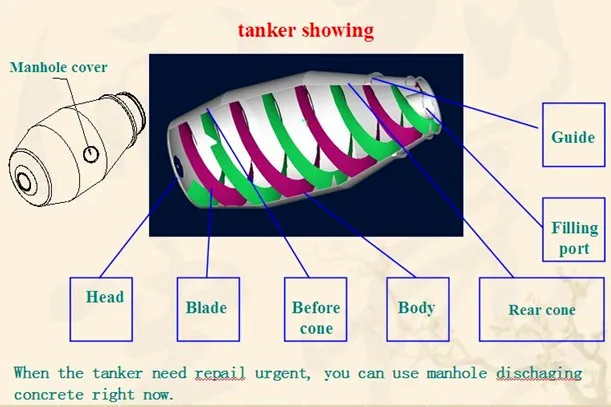

the mix tank through the introduction of automatic welding automatic welding system, improve the production efficiency and welding quality more fine refinement.
Welcome to our factory
The concrete mixer truck is our main product in our company, they are of good quality
and reasonable price.
If you are interested in our products, please contact me as soon as possible.
Contact us
Choose Reno Choose Success
Our professional team provides the professional service for you
*****************************************************
Contact: Lily
Phone: 008618237112120
Whatsapp : 0086- 18237112120
Skype: renomachinery
Zhengzhou City Reno Machinery Equipment Co.,Ltd
*********************************************************************************************
