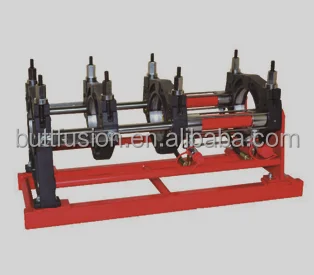

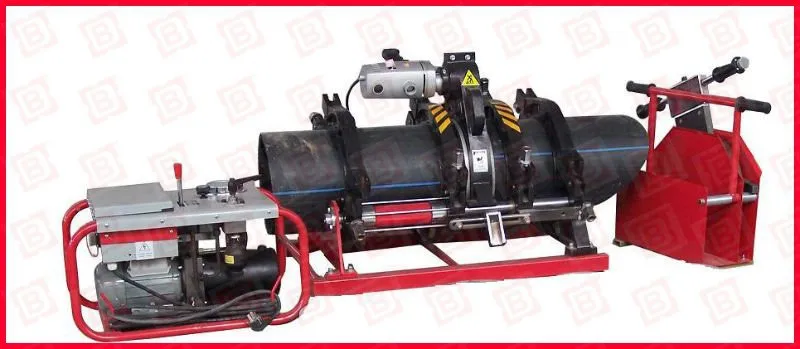

SHD315 PE pipe butt welding machine

Product Overview

Description

SHD315 PE pipe welding machine for welding HDPE pipe from 90mm to 315mm with CE certified







Application and features:

♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

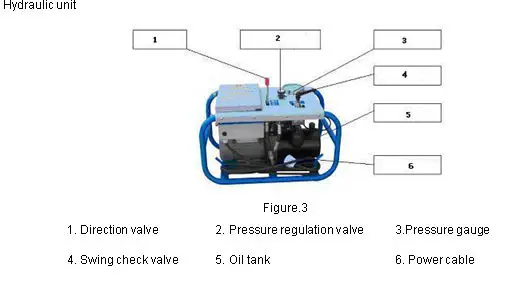

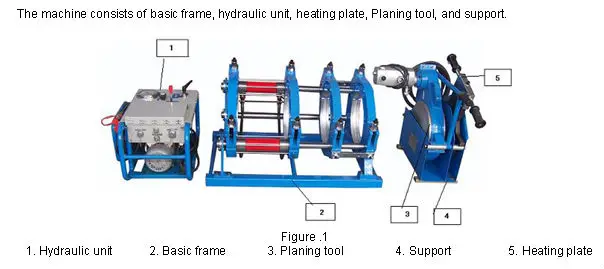

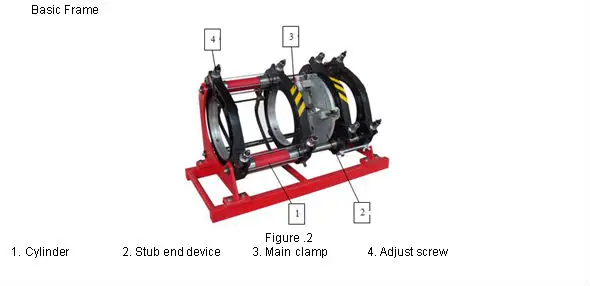

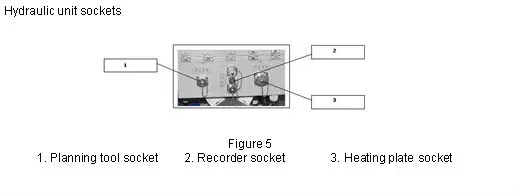

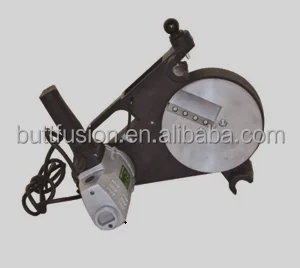

♦ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and   optional part
♦  Removable PTFE coated heating plate with high accurate temperature control system
♦  Electrical planing tool
♦  Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
♦  Low starting pressure ensures reliable welding quality of small pipe

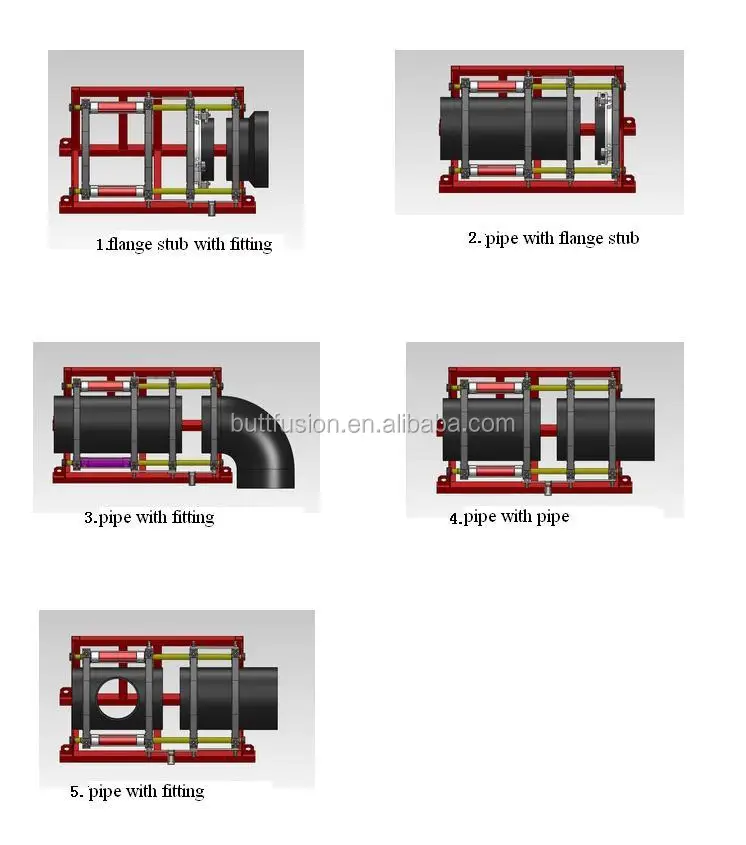

♦ Changeable welding position enables to weld various fittings more easily

♦  High accurate and shockproof pressure meter indicates clearer readings

♦  Separate two-channel timer records time in soaking and cooling phase







Optional parts:





Stub end device for short flange stub

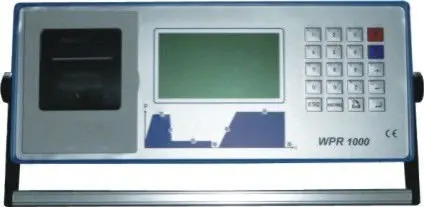

Data logger





The main parameters:





Model	SHD315
Pipe size(mm)	90,110,125,140,160,180,200,225,250,280,315
Heating plate Max. Temp.	270°C
Temp. deviation in surface(170~250°C)	<±7°C
Pressure adjustable ranges	0-6.3Mpa
Working voltage	220V,50Hz
Heating plate power	3.5KW
Planing tool power	1.1KW
Hydraulic unit power	0.75KW
Total power	5.35KW





Special Description:

Our Advantages:



Along with the property of PE material continuous perfecting and raising, PE pipes are extensively used in gas and water supply,

sewage disposal, chemical industry, mine and so on.

For more than ten years, our factory, WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO.,  LTD  has been researching and developing SH series plastics pipe butt fusion machine that is suit for PE, PP, and PVDF.

We have fulfilled the techniques requirements of ISO12176-1. Our products have outstanding features in convenience, reliability, safety and lower price.

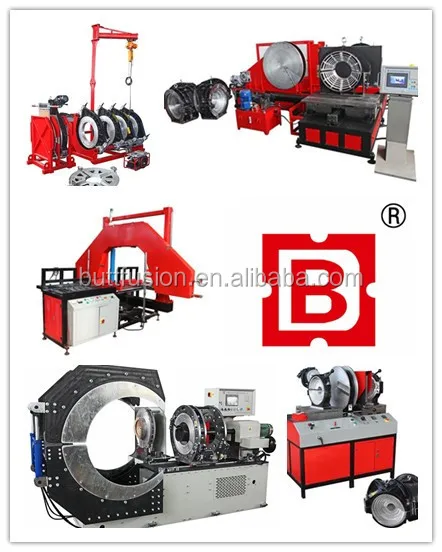

Today, our products include nine kinds and over than 20 types that can be applied to plastics pipe construction and make fittings in workshop









There are a group of excellent r&d staff constantly developing new products.

Our quality control people test each of detection device carefully and responsibly.

 Our packing workers customize plywooden cases according to the size of each

piece of equipment. We have a group of outstanding business developers.If you

are unable to solve some technical problems,we can take professional technical

engineers to on-site guidence on your side.

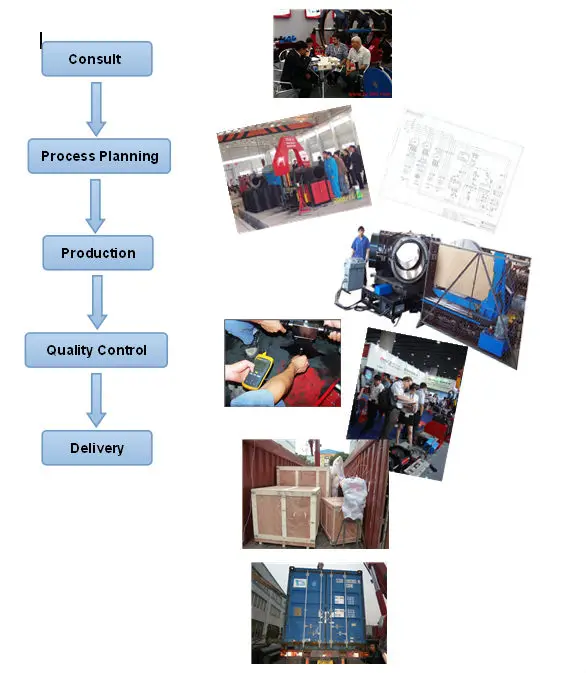

WORKFLOW

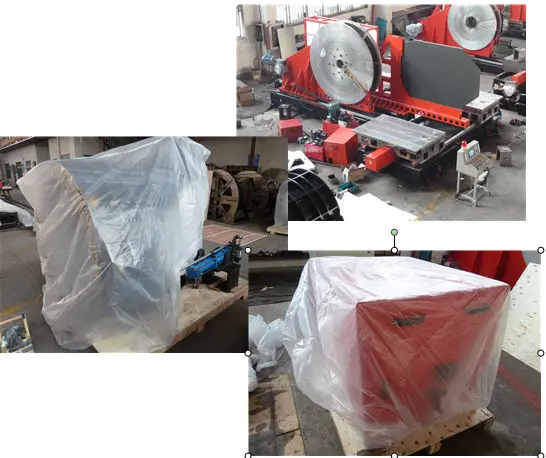

These are our finished product:

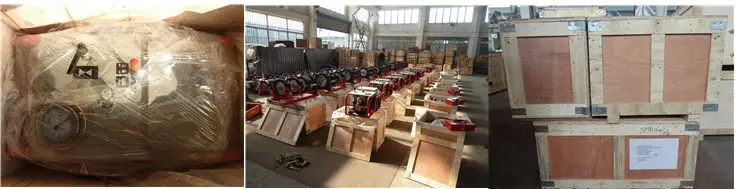

After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
