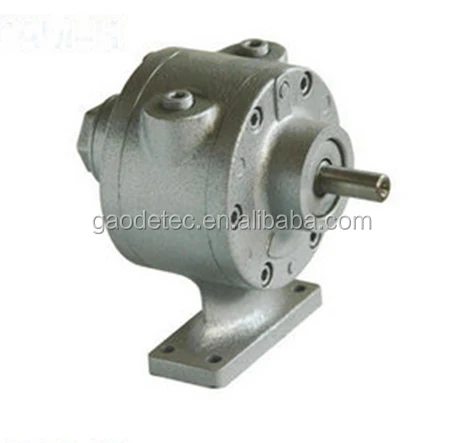

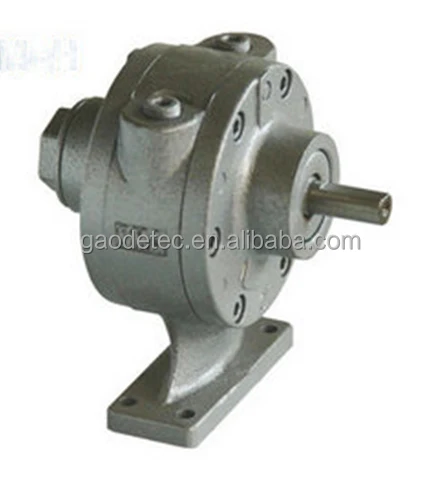

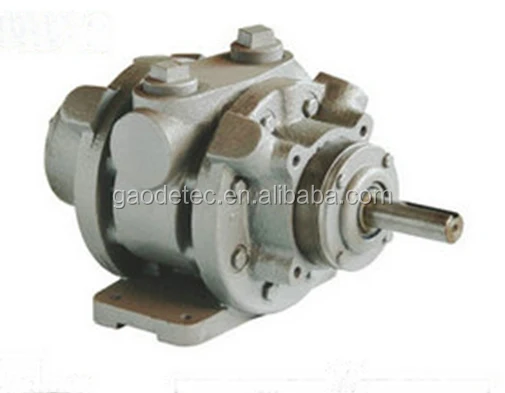

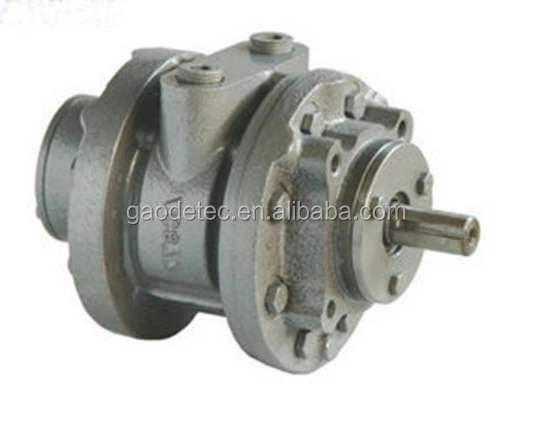

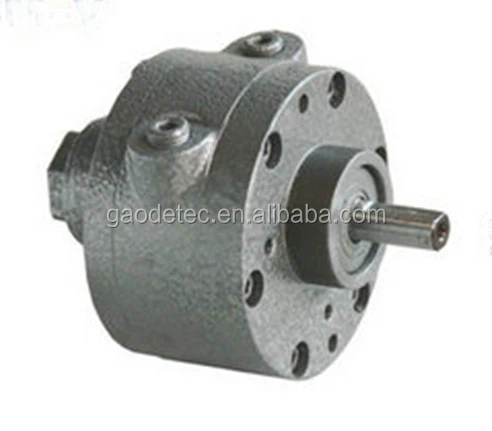

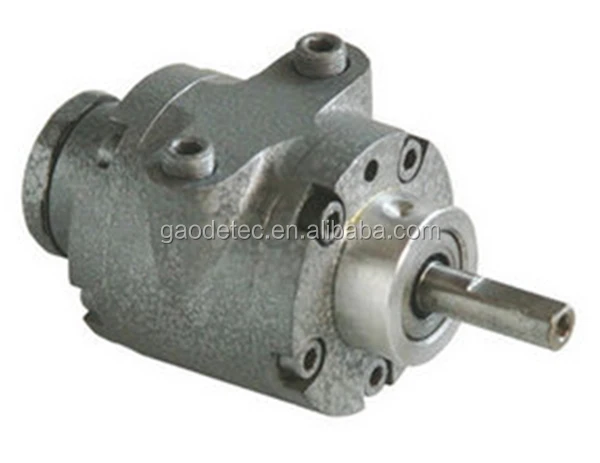

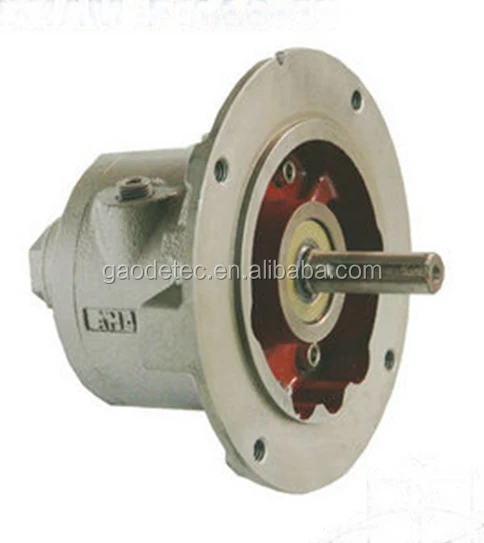

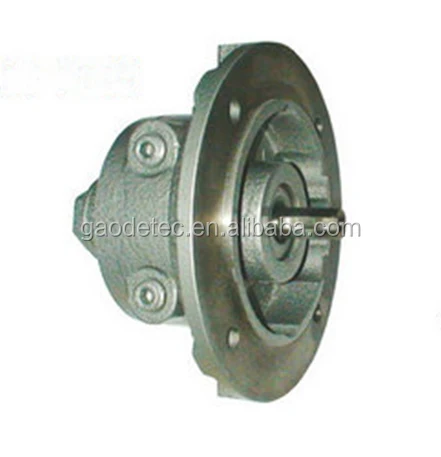

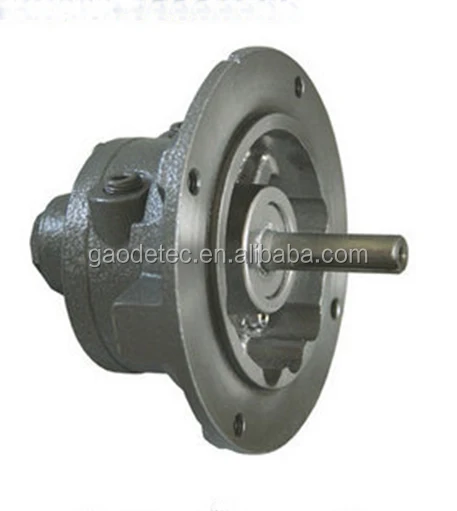

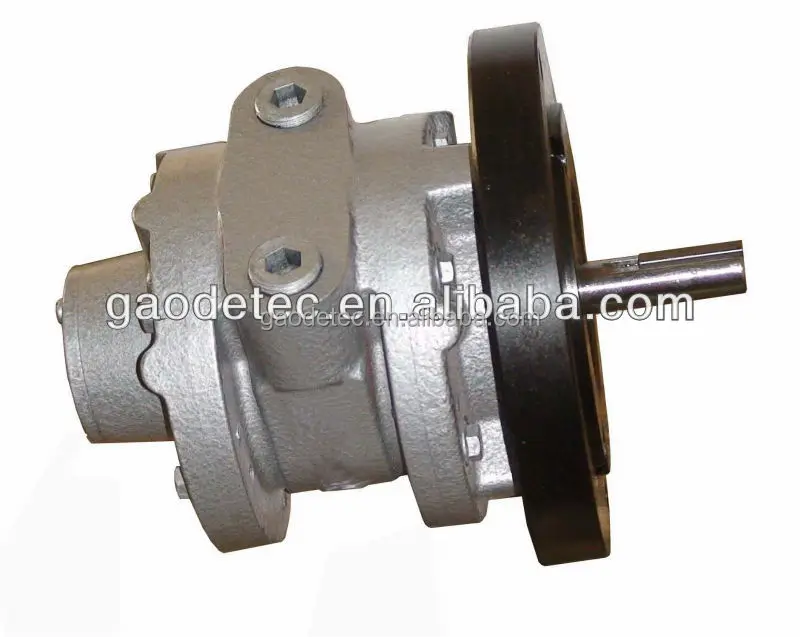

Легко управляемый и поддерживаемый 16AM лопастный воздушный мотор

Product Overview

Description



With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.

  features:

1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.


2. proof water, fire, moisture and explosion


3. can work in humid, high temperatures, high dust and other proof working environment







Model	Maximum Speed							Maximum Torque
	Power		Torque		Rotate Speed	Air consumption		Rotate Speed	Torque
	hp	kw	Nm	lb.in.	rpm	m3/h	cfm	rpm	Nm	lb.in.
1AM	0.45	0.33	0.31	2.75	10000	35.1	20.5	650	0.65	5.6
2AM	0.93	0.68	2.20	19.50	3000	49.5	30	350	3.05	26.1
4AM	1.70	1.30	4.10	36.00	3000	132.5	78	300	6.3	56
6AM	4.00	3.00	10.00	84.00	3000	228	128	300	13	115
8AM	5.25	3.90	14.40	132.00	2500	293	175	300	21	185
16AM	9.50	7.00	34.00	290.00	2000	475	275	300	43	372





Gear Air Motor Describe:

Known industry wide for their rugged construction and reliability, air motors are used

in a variety of applications. Air Powered Gear motors are available in right angle

and in-line models offering a maximum torque range of 73 to 5,200 lb.in(8

to 587Nm) and gearratios from 10:1 to 60:1 single reduction gear reducers.

A full line of recommended accessories is also available.

Model	Gear Ratio	Operation Data							Maximum Torque
		Power		Torque		Rotate Speed	Air Consumption		Rotate Speed	Torque
		Hp	Kw	Nm	Ib.in	rpm	M^3/h	cfm	rpm	Nm	Ib.in
1AM-NRV-95	15:1	0.34	0.26	7.1	62	350	36	21	30	8.1	72
1UP-NRV-16	15:1	0.32	0.23	5.5	49	400	36	21	30	8.0	71
4AM-RV-10	10:1	1.26	0.94	31	274	300	98	57.5	30	48	425
4AM-RV-15	15:1	1.25	0.9	45.2	400	200	102	60	20	72	640
WG01	20:1	0.64	0.48	21	172	110	34	20	12	28	240
WG02	20:1	0.90	0.68	29	256	150	46	27	17	40	343.5

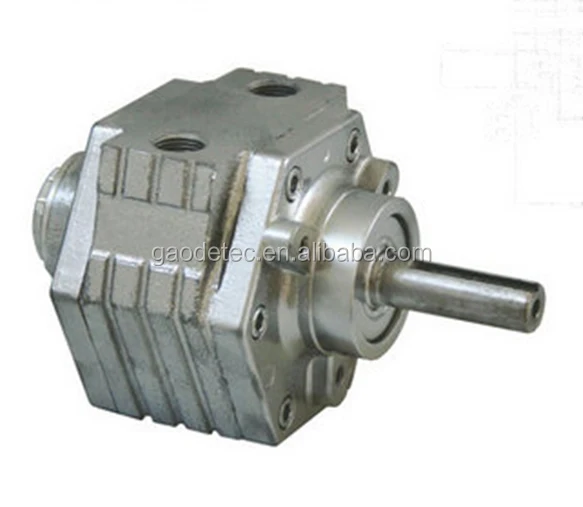

Stainless Steel Vane Air Motor

Stainless Steel Air Motors offer fully sealed operation with two basic models ranging from .45 to 1.7 HP (0.33 to

1.3 kW) and with motor speeds up to 10,000 RPM





























2AM:



4AM:



6AM:



8AM:
