European standard adjustable DHA Motor Rail motorized linear Track Series Motor Slide SM MB SMA Common Motor Pedestal Base

Product Overview

Description

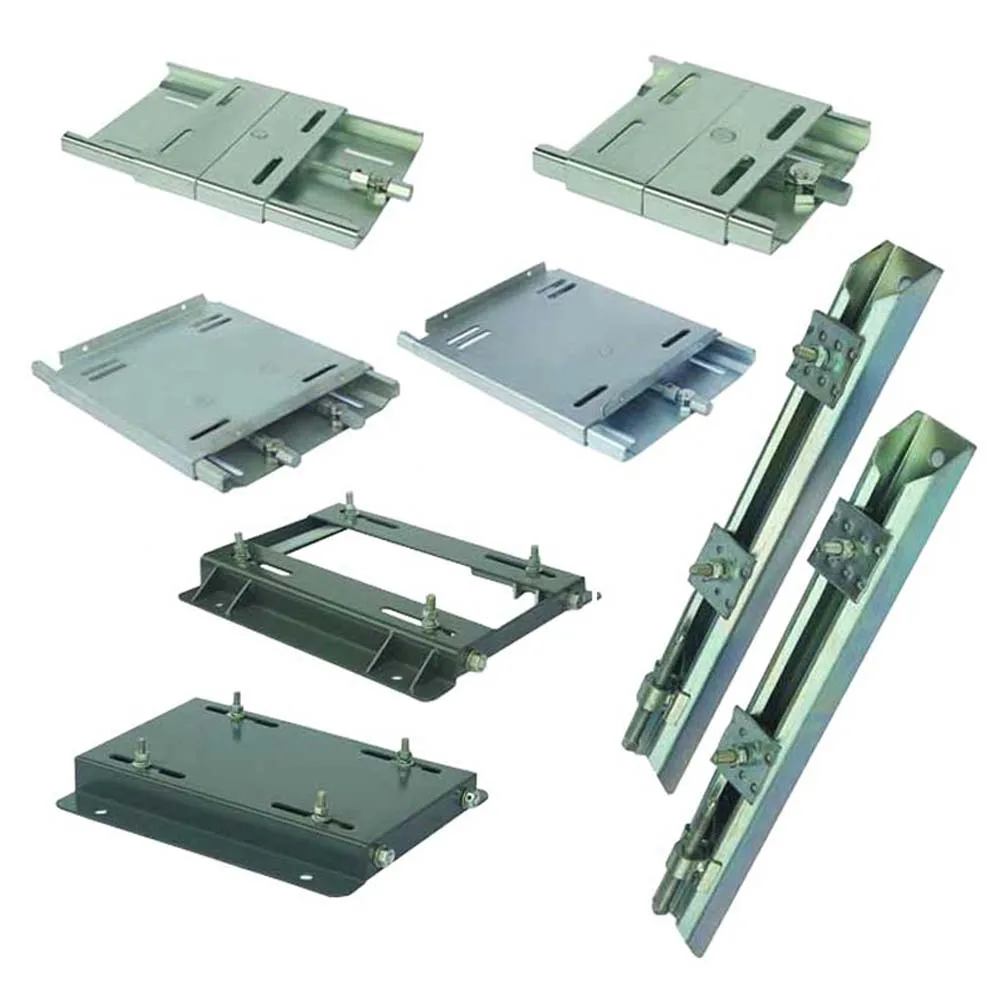

Motor Base/Motor Slide

SMA Common Motor Base	SMA210B SMA210  SMA270  SMA307  SMA340  SMA380  SMA430  SMA450  SMA490
MP Motor Base	270-60/90-MP  307-90/112-MP  340-100/132-MP  430-100/132-MP  430-160/180-MP  490-180/200-MP  600-250-MP  735-280-MP  800-315-MP
MB Type Motor Pedestal	56  66  143  145  182  184  213  215  254B2  256B2  284B2  286B2  324B2  326B2  364B2  365B2  404B2  405B2  444B2  445B2  447B2  449B2
DHA Motor Rail Track Series	312/6  312/8  375/6  375/8  375/10  395/8  395/10  495/8  495/10  495/12  530/10  530/12  630/10  630/12  686/12  686/16  864/16  864/20  1072/24  1330/24



Product Description
Type	Adjustable Motor Base
Finish	Galvanized, power coated
Material	Steel, aluminum, stainless steel
Color	Black, green, blue, red, white, etc
Process	Stamping/laser cutting, bending, assembly

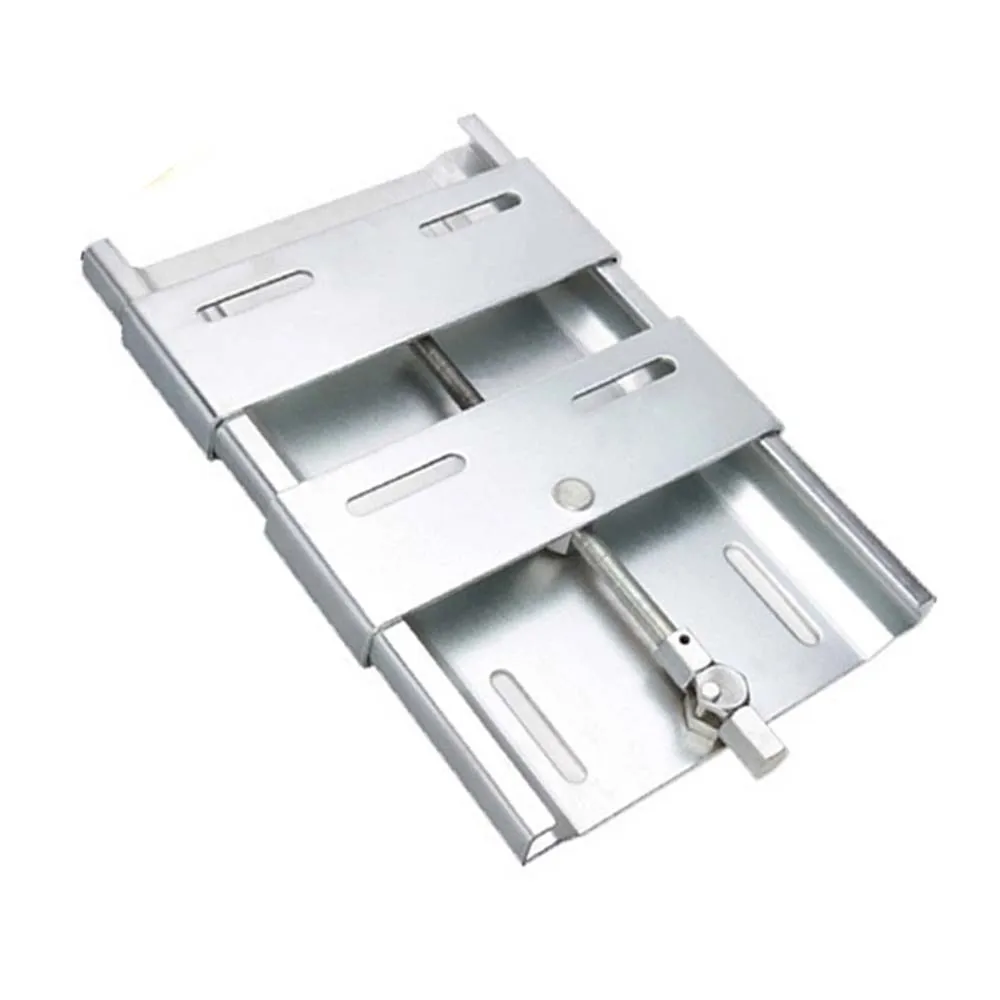

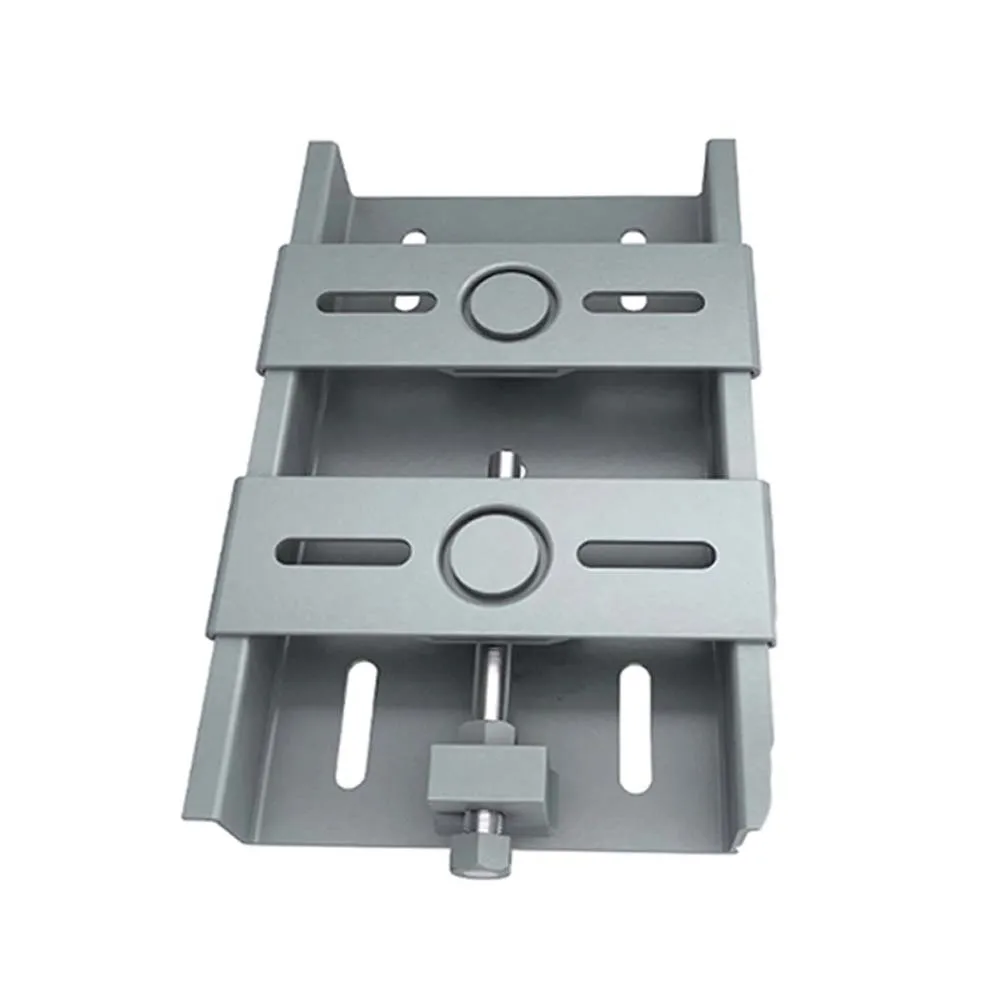

1. SMA Common Motor Base



Characteristics: galvanization finish, with split plates sliding, it's convenient for bolts fixing of motors.

Application: fixing and adjustment of all series motors.

We also can supply Adjustable Motor Mounts products according to drawings or samples.

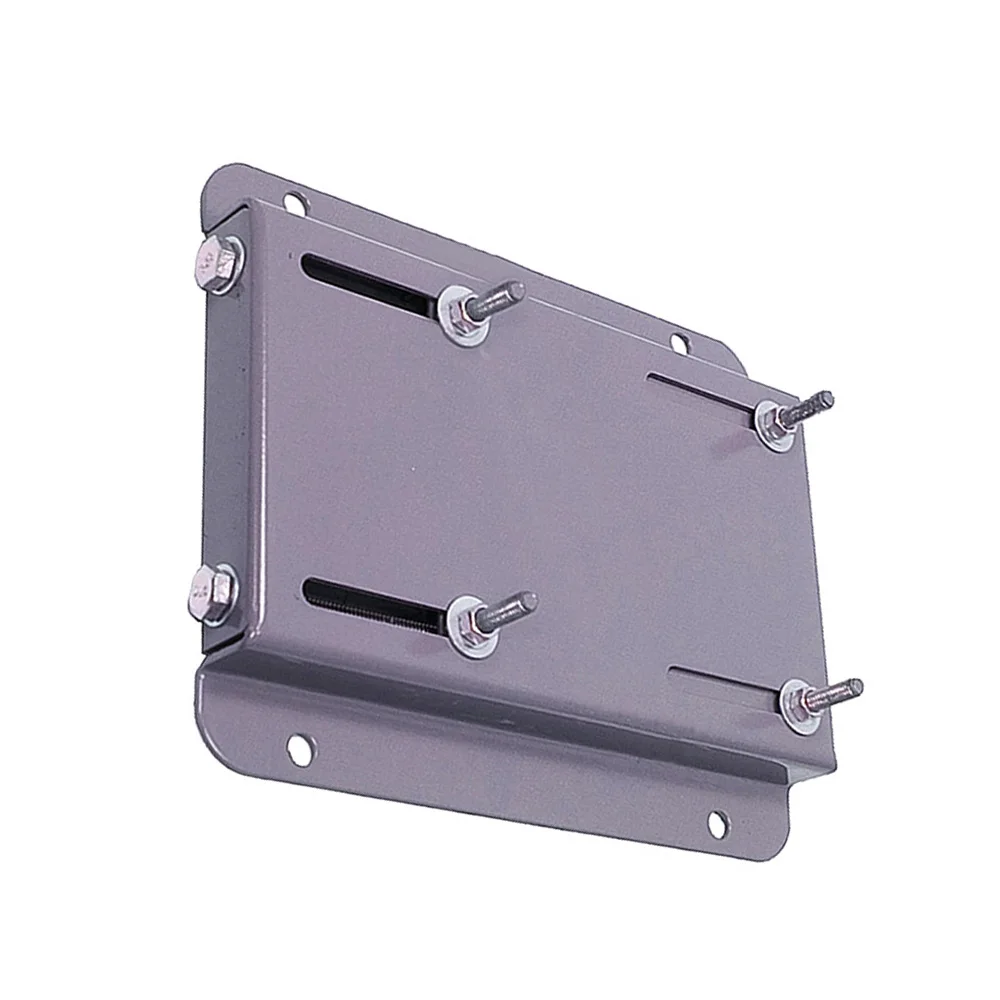

2. MP Motor Base



Characteristics: galvanization finish, with monoplateslidng, bending and pressing.
Application: the fixing and adjustment of large power motors.
We also can supply Motor slide base products according to drawings or samples.

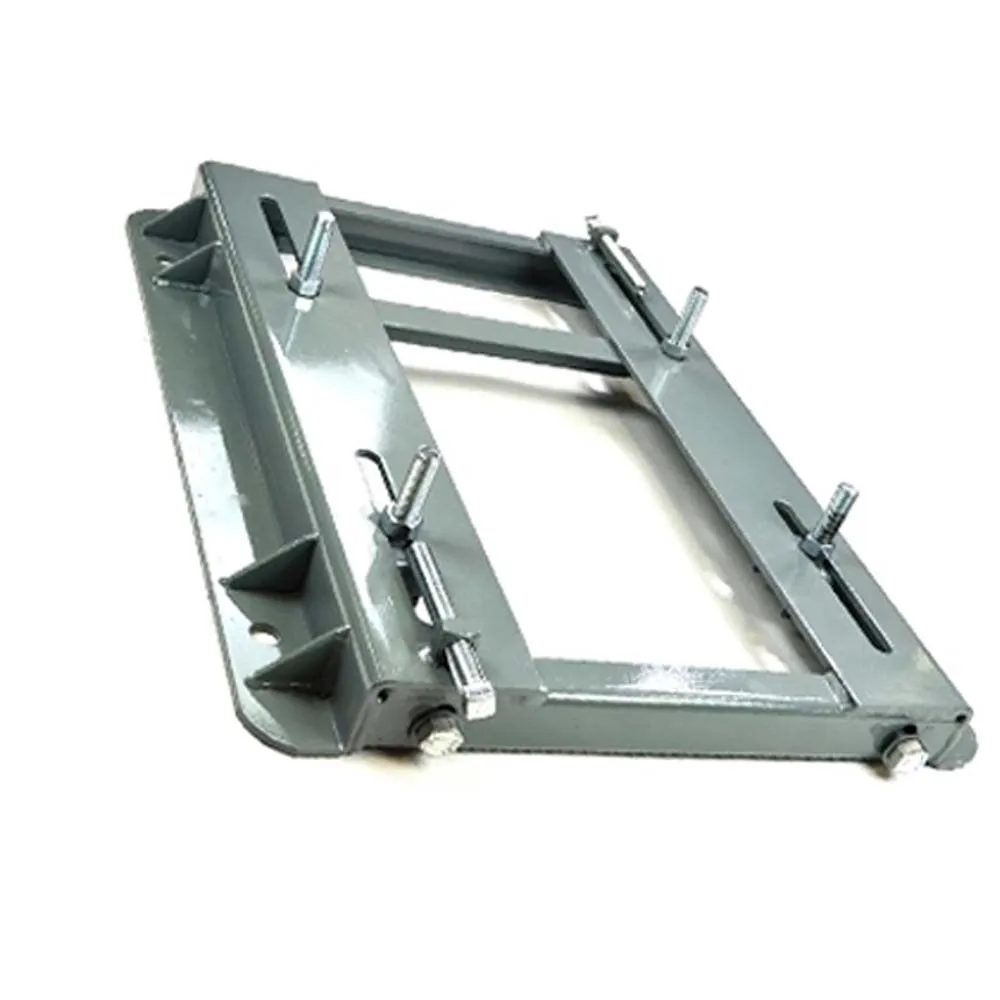

3. MB Type Motor Pedestal



Characteristics: welded with high quality steel, powder coating finish, with matched fixing screw of motors, it is much convenient for fixing and adjustment.
Application: suitable for the fixing and adjustment of large, medium and small power motors.
We also can supply Motor Pedestal & motor base products according to drawings or samples.





4. DHA Motor Rail Track Series



Characteristics: Made of high qualty steel with pressing and processing. It is whith matched fixing screw of motors, much convenient for adjustment.
Application: the fixing and adjustment of all kinds of motors.
We also can supply Motor Rail products according to drawings or samples.





Advantages



1. Professional manufacturer customized products, one stop source for new product developing.
2. Quick response to all your inquiry.
3. Custom logo printing, OEM/ODM service.
4. Strict inspection procedures to guarantee the good quality of each product.
5. Fast delivery and competitive price



Briefly introduce our company, We are one of the leading manufactures ( Hangzhou Chinabase Machinery CO., ltd.) in China



We have started the power-transmission business since 1992, we've been expanding every year with volumes, sales and product ranges. We can supply a full-range of power transmission products, such as chains, sprockets and plate wheels, pulleys, belts, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. Our products are used in many different industry sector, like in automation engineering, drive engineering, conveyor technology, assembly and handling technology, packaging industries, the beverage, food and medical engineering, pharmaceutical production, and laboratory equipment. We also help our customers to make customized different new types of products, according to provided drawings.
