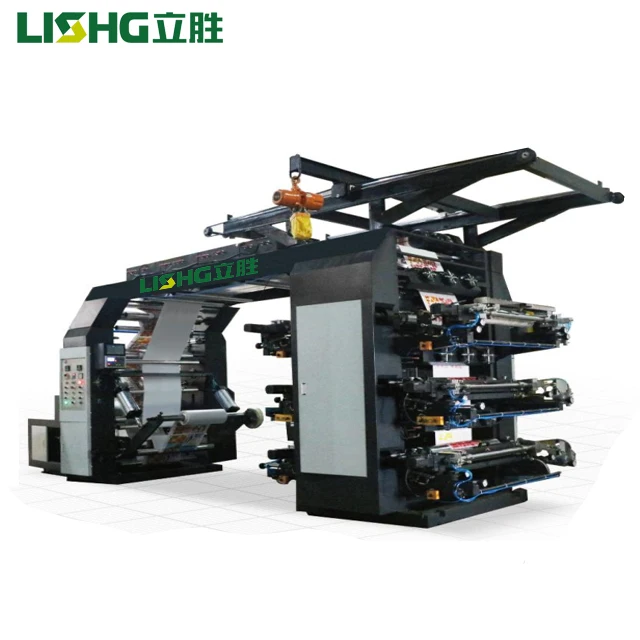

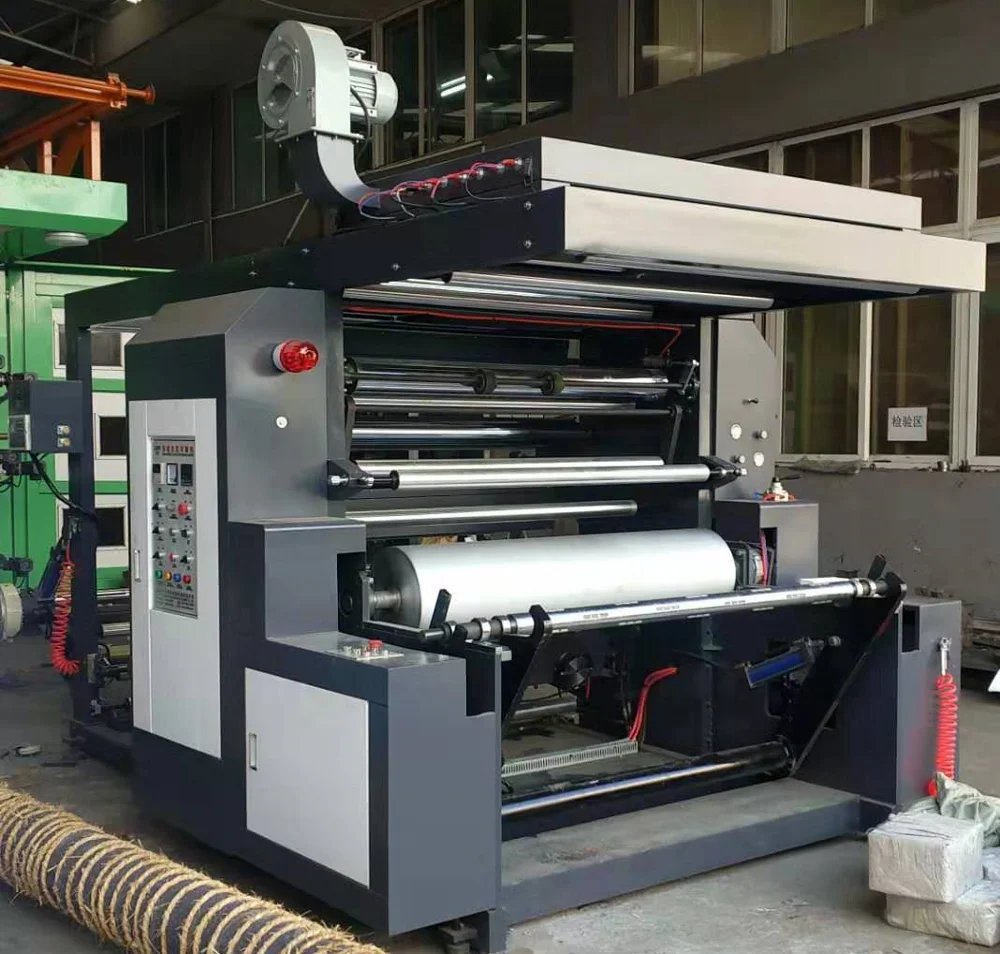

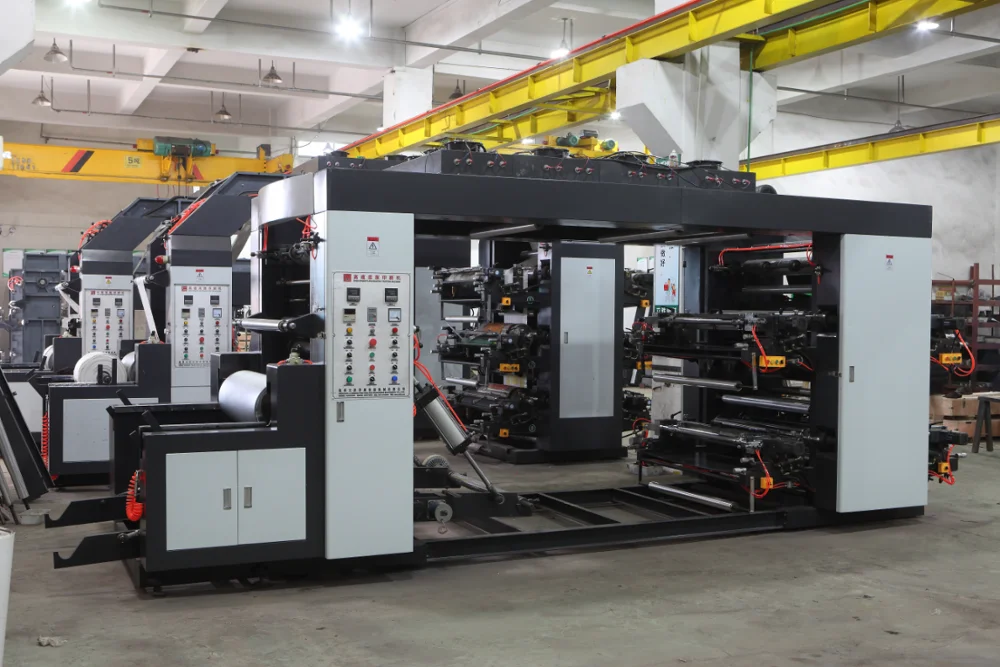

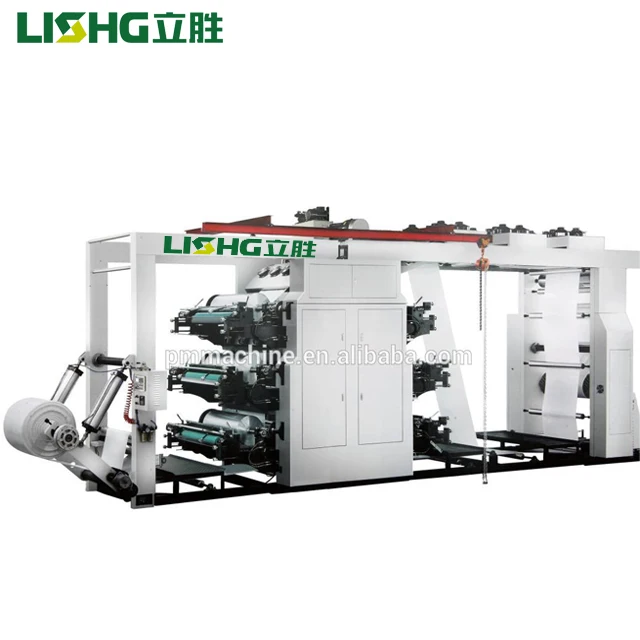

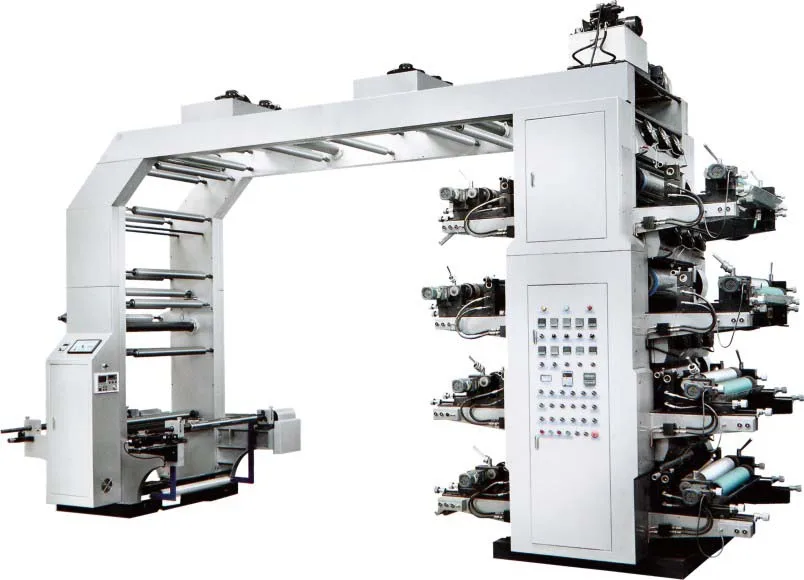

4 colour roll paper polythene food packaging bag pp woven sack flexo machine flexografic press printing machine
- Category: Flexographic Printers >>>
- Supplier: Wenzhou Lisheng Printing & Packaging Machinery Co. Ltd.
Share on (1283094890):
Product Overview
Description
Product Description
This machine is suitable for printing such packing materials as PE, PP bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Model | YTB series |
Structure type | Stack |
Material feeding width | 200~1600mm, also can customized for more width material |
Printing width | 160~1560mm, also can customized for more width material |
Printing length | Standard is 400mm， Customized is available from 300-1000mm |
Maximum machine speed | 100m/min |
Printing speed | 10~80m/min |
Register precision | ≤0.3mm |
Thickness of plate | 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available |
Gear module | 1.5mm |
Transmission drive type | Synchronous belt |
Heating method | Electricity heating |
Max. oven temp. | Max. 80℃(room temp. 20℃） |
Web fixing method for un/rewinder | Safety chuck+ Air expanding shaft |
Adhesive tape thickness for stick printing cylinder | 0.38mm |
SUITABLE MATERIAL: | ||||||||
Paper series: Kraft paper:40-350gsm, single-sided coated paper:30-350gsm, copy paper:15-350gsm, firecrackers and paper:40-350gsm, paper money and incense:25-350gsm, silicone paper:50-350gsm, coated paper:30-350gsm, dust-free paper:25-350gsm, release paper:40-350gsm, composite paper:30-350gsm, thermal sensitive paper:30-350gsb... | ||||||||
Plastic film series: PVC:10-120g/㎡, OPP:10-120g/㎡, PE:10-120g/㎡, PET:10-120g/㎡, CPP:10-120g/㎡... | ||||||||
Woven:15-120g/㎡, Weave fabric:15-500g/㎡, Toilet paper, leather... | ||||||||
Specific details welcome consultation | ||||||||
Characteristics:
1.Easy operation, flexible starting, accurate color register.
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3.Manual printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4.The printing ink is spread by the anilox cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7.The frequency control of motor speed adapts to different printing speeds.
There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3.Manual printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4.The printing ink is spread by the anilox cylinder with even ink color.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7.The frequency control of motor speed adapts to different printing speeds.
There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Product configuration
Feeding material part:
1.Single unwinder system, pneumatic/hydraulic loader or by manual for unwind system for you choose
2.Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
3.Air shaft
4.EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right .
5.Automatic tension control system with magnetic brake(5KG).
6.Roller core diameter: 76mm
7.Discharge maximum diameter: 1000mm
2.Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
3.Air shaft
4.EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right .
5.Automatic tension control system with magnetic brake(5KG).
6.Roller core diameter: 76mm
7.Discharge maximum diameter: 1000mm
Air shaft
Tight to material ,flat material , better printing
Import Auto tension control & magnetic power (2 set )
Control un&rewind parts balance material both side.
Web guide （1set）(For optional)
Ultrasonic type swift tracking print photo
Web guide （1set）
Swift tracking print photo
Auto penumatic loading&unloading for unwinding
It is easy to transport and loading material. Material weight from 100kg ~500kg
Auto hydraulic loading&unloading for unwinding
It is easy to transport and loading material.Material weight from 500kg ~1000kg
Printing sections:
1.Plate roller circumference: 300-1000mm, standard less than 400mm
2.Print material: resin plate or rubber plate
3.Transmission between printing roller and anilox roller: Helical gears
4.Printing chromatography: 360-degree rotation
5.Adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
6.Printing roller lifting system: Automatic Hydraulic cylinder control roll up and down.
2.Print material: resin plate or rubber plate
3.Transmission between printing roller and anilox roller: Helical gears
4.Printing chromatography: 360-degree rotation
5.Adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
6.Printing roller lifting system: Automatic Hydraulic cylinder control roll up and down.
Plate roller
Printing roller uses static balance and dynamic balance processing, can be customized.( Range 300-800mm for YTC, 300-1000mm for YTB)
Ceramic Anilox Roller
Transfer ink evenly, improve the printing effect.
80 --1000 lines/inch
80 --1000 lines/inch
Hydraulic Lift & down printing roller.
Adopt the hydraulic pressure rising and down the printing plate automatically
Helical gears
Transmission between printing roller and anilox roller, register precisious is higher and lower noise
Single doctor blade
Equip with ink pump, even the ink
Chamber doctor Blade (For optional)
Not spill the ink,Equip with ink pump, even the ink
Special for high speed printing avoid the ink splashing
Special for high speed printing avoid the ink splashing
Drying system:
1.The machine is equipped with blower and heater; and the heater employed central temperature control system
2.Dry apparatus between each color, and one more dry apparatus after printing finished
2.Dry apparatus between each color, and one more dry apparatus after printing finished
Heat dryer 1
Each color with 1 set heater, one long heater chanel on the top
Big heat dryer with blowing wind drying fast.
Big heat dryer with blowing wind drying fast.
Heat dryer 2
Each color with 1 set heater, one long heater chanel on the top Big heat dryer with blowing wind drying fast.
Rewinding Part：
1.Single rewinder system, pneumatic/hydraulic loader or by manual for rewind system
2.Film central rewind system
3.Air shaft
4.Roller core diameter: 76mm
5.Discharge maximum diameter: 1000mm
2.Film central rewind system
3.Air shaft
4.Roller core diameter: 76mm
5.Discharge maximum diameter: 1000mm
Auto penumatic loading&unloading for rewinding (For optional)
It is easy to transport and loading material. Material weight from 100kg ~500kg
Auto hydraulic loading&unloading for rewinding (For optional)
It is easy to transport and loading material.Material weight from 500kg ~1000kg
Big roller friction rewinding type (For optional)
Rewinding the material more tight and keep in line. Special for leather
Double rollers rewinding system
Rewinding more neatly, special for PP woven

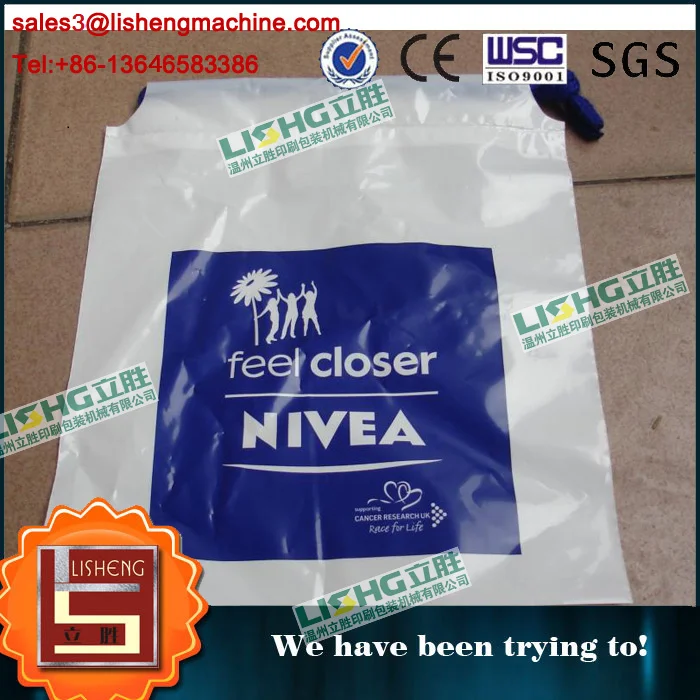

Sample effect pictures
Related Products
Certifications
After Sales Service
After sale service
Can arrange engineer come to install the machine and training worker, but customer need pay the charges, include flight tickets cost, boarding and lodge cost, salary 100USD/day.
Exhibition
FAQ
1.Are You a Factory or Trading Company?
-We are a factory, with 20 years experience on machines, our products sell very well all over the world.
2.Where is your factory located? How can I visit there?
-Our factory is located in Ruian Zhejing China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from Shanghai (5 hours by train). All our cliens, from home or abroad, are warmly welcomed to visit us.
3.What can the machine print on?
-Our machine is multifunction, can do roll to roll printing, such as paper, plastic, woven,nonwoven and so on . Surely, you can send us your products, and we'll offer you the proper machine.
4.Can I get some samples? How can I get it ?
-Yes, we can send you some free sample, but you are reponsable for delivery charages of TNT or DHL.
5.How about the after service?
-We can arrange engineers to service overseas.
6.Why choose Lisheng Machinery?
-We are one of leaders in this field(in China). Our high-quality products and service enabled us to expand our market from china to more than 60 countries.
7.I need a quotation/how much is your price?
-Please tell us your material,the width of your material,and how many color do you need? Then we will know which machine is suitable for you and suggest the right machie for you.
8.Waht's your delivery time?
-Usually finish the production within 30 days after we confirm to receive the 30% advanced payment.Actually need to check according to our stock & production plan.
-Usually finish the production within 30 days after we confirm to receive the 30% advanced payment.Actually need to check according to our stock & production plan.
9.How long is your machine's warranty period?
-All our machine have one year guarantee, starting from finished installation.
10.How would we do if the parts broken within warranty?
-We would express the free replacement partswithin the warranty date.
