Corrugated cardboard printer slotter die cutter machine carton box automatic 2 3 4 color printing slotting die cutting machine
- Category: Flexographic Printers >>>
- Supplier: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Share on:
Product Overview
Description

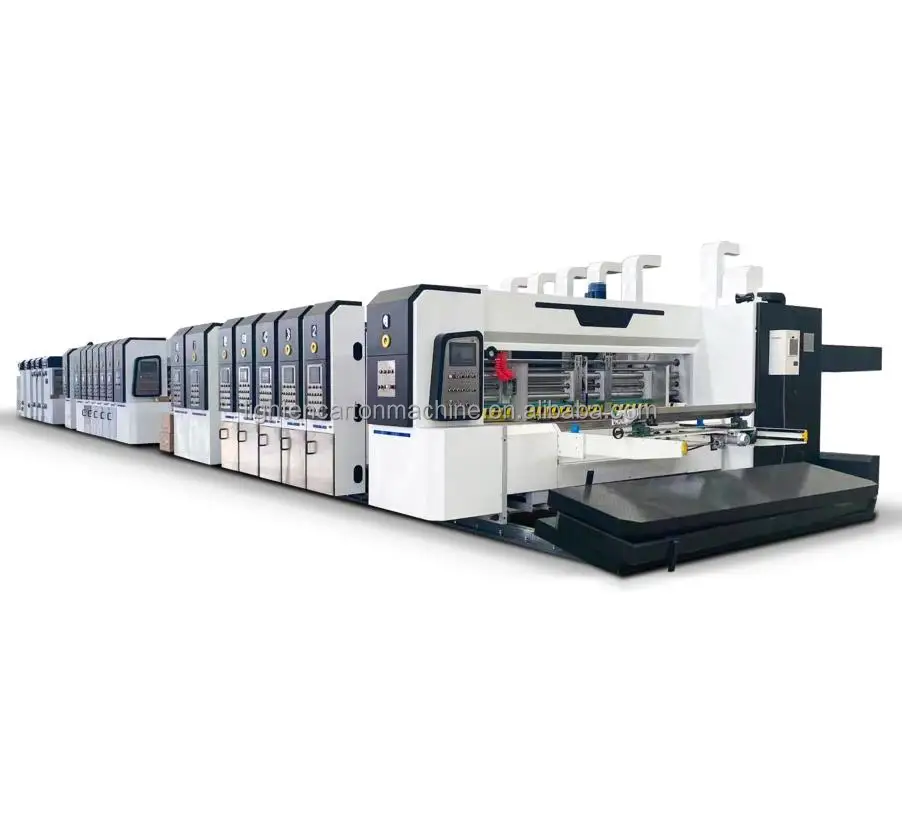

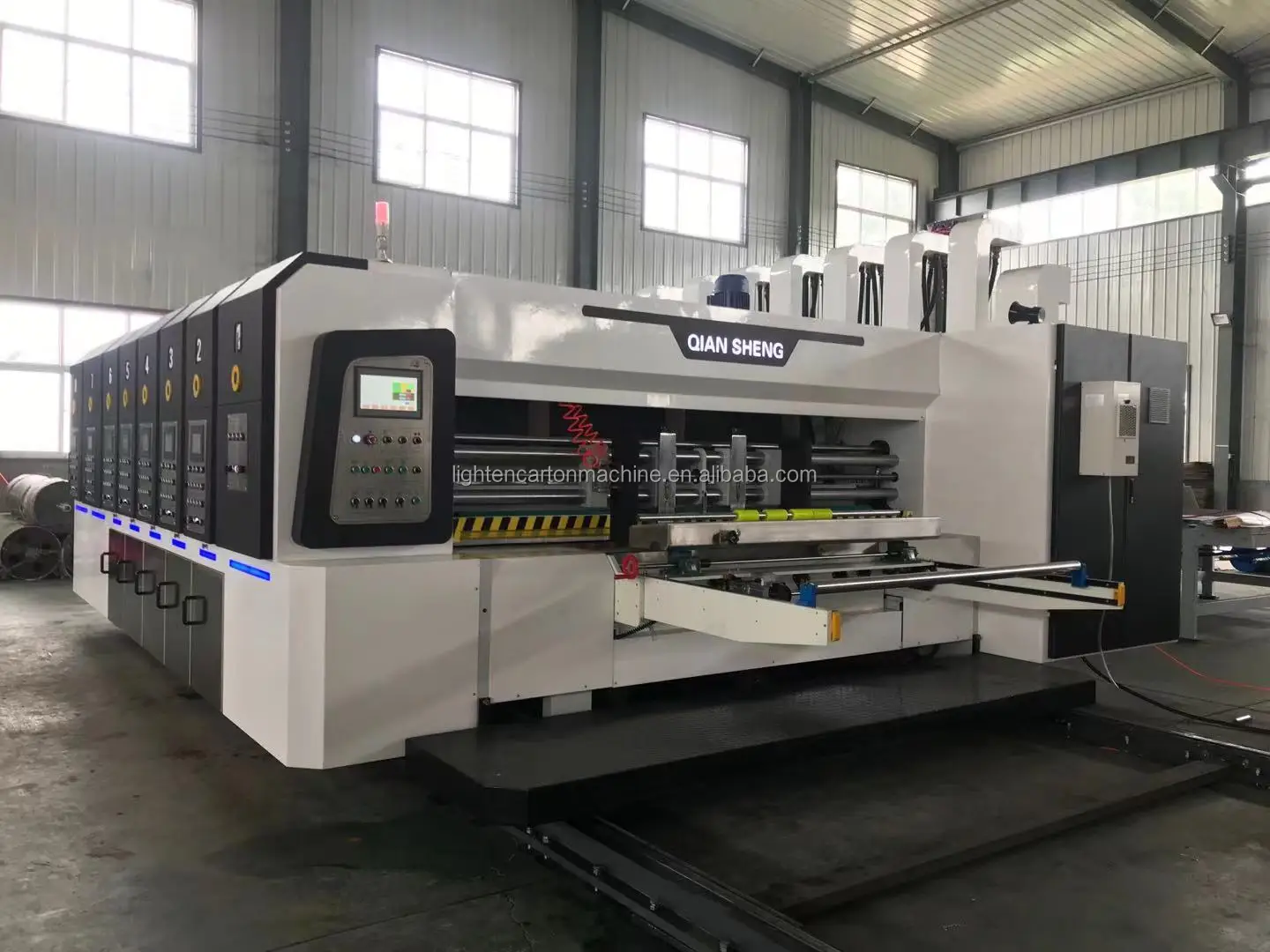

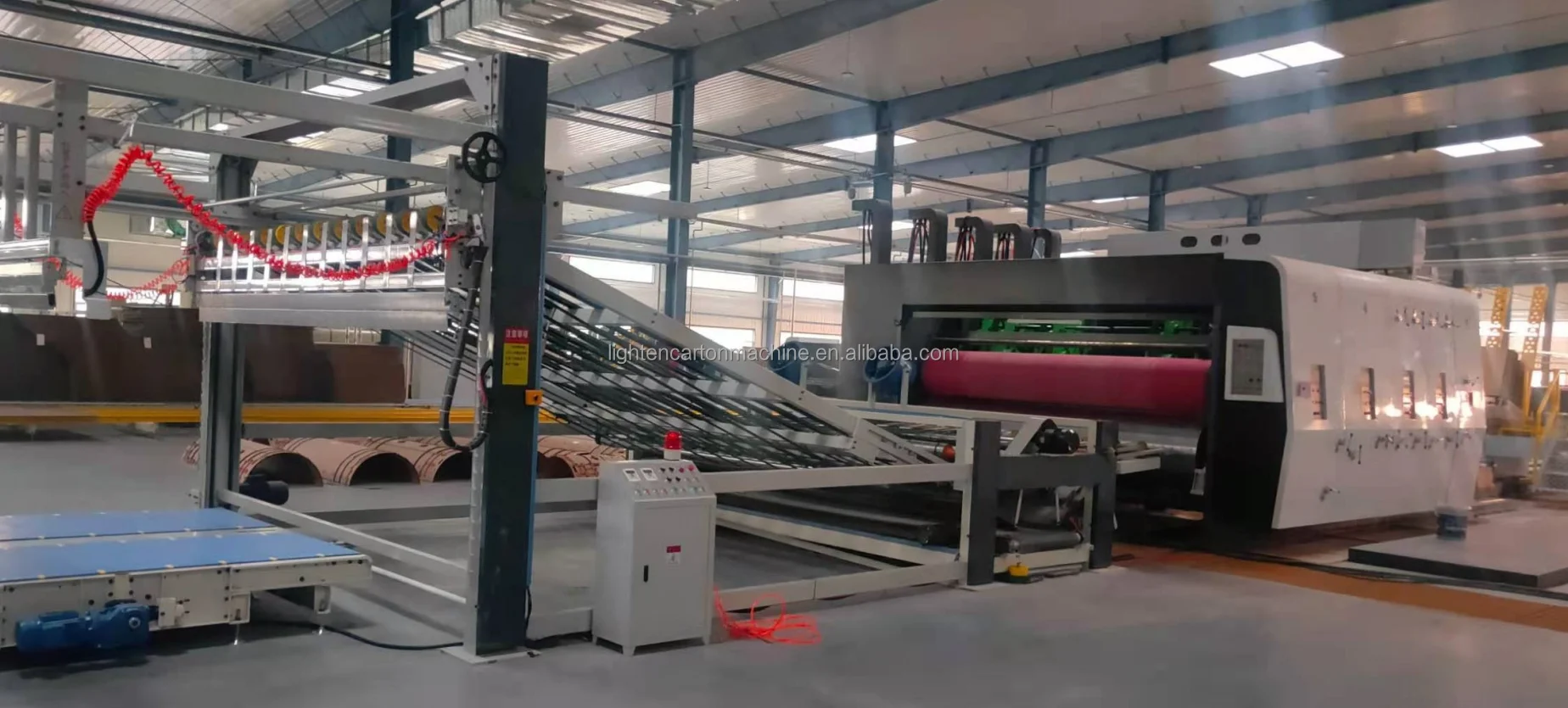

Automatic carton box 4 color printing Slotting die cutting
with stripping stacking machine
with stripping stacking machine
●Adopt PLC touch screen control including the functions of indications of auto counting, speed, production, skip feeding and alarms;
●All transmission rollers are made of top quality steel processed through dynamic/static balance tests, chrome plating and polishing;
●Phase setting is done with Korean original digital meter to set current value to target value once precisely;
●China famous brand of transmission gears are adopted which are hardened and ground＞60o Rockwell hardness;
●Main bearings from HRB;
●Main electric components are purchased from the suppliers such as SCHNEIDER France and OMRON Japan;
●Spline free joint ring are employed to reduce center abrasion and remain precise registration for a long time;
●Auto zeroing and auto reset;
●Main motor start protection, main motor can not start when it is not locked to avoid wrong operation;
●Every unit of overall machine can be released automatically or separately, electric shifting and pneumatic locking with acoustic alarm in traveling to secure operators safety. The auto brake is able to stop machine running;
●Emergent protection: emergency switch is installed inside every unit to stop unit running inside machine for more security;
●The clearances of pull rollers, impression cylinder, rubber cylinder and anilox cylinder are all auto pneumatically locked.
●Specially made 7.5kW high pressure centrifugal fan, suction auxiliary feeding paper, smooth transmission, to ensure the smooth surface of the thin surface and lower quality of the smooth transmission of the board, the effect is obvious.
●All transmission rollers are made of top quality steel processed through dynamic/static balance tests, chrome plating and polishing;
●Phase setting is done with Korean original digital meter to set current value to target value once precisely;
●China famous brand of transmission gears are adopted which are hardened and ground＞60o Rockwell hardness;
●Main bearings from HRB;
●Main electric components are purchased from the suppliers such as SCHNEIDER France and OMRON Japan;
●Spline free joint ring are employed to reduce center abrasion and remain precise registration for a long time;
●Auto zeroing and auto reset;
●Main motor start protection, main motor can not start when it is not locked to avoid wrong operation;
●Every unit of overall machine can be released automatically or separately, electric shifting and pneumatic locking with acoustic alarm in traveling to secure operators safety. The auto brake is able to stop machine running;
●Emergent protection: emergency switch is installed inside every unit to stop unit running inside machine for more security;
●The clearances of pull rollers, impression cylinder, rubber cylinder and anilox cylinder are all auto pneumatically locked.
●Specially made 7.5kW high pressure centrifugal fan, suction auxiliary feeding paper, smooth transmission, to ensure the smooth surface of the thin surface and lower quality of the smooth transmission of the board, the effect is obvious.
Product Description
Specification
No. | Parameter | Unit | Model: GYKM-1224 | Model: GYKM-1428 | Model: GYKM-920 | |
1 | Machine size(inner side) | mm | 2600 | 3000 | 2400 | |
2 | Max. Design speed | pieces/min | 200 | 180 | 250 | |
3 | Economical speed | pieces/min | 0-180 | 0-160 | 0-220 | |
4 | Max. Paper Feeding size | mm | 1200×2400 | 1400×2800 | 920×2200 | |
5 | Min. Paper feeding size | mm | 320×800 | 350×800 | 280×700 | |
6 | Max. Printing size | mm | 1200×2200 | 1400×2600 | 900×2000 | |
7 | Minimum.slotting distance | mm | Negative knife: 300×100×300×100mm Positive knife: 180 ×180×180×180mm | Negative knife: 280×80×280×80 Positive knife: 160×160×160×160mm | ||
8 | Skip paper feeding size | mm | 1400×2400 | 1600×2800 | 1100×2200 | |
9 | Precision of printing | mm | ±0.5 | ±0.5 | ±0.5 | |
10 | Standard print plate thickness | mm | 7.2 | 7.2 | 7.2 | |
11 | Paperboard thickness | mm | 2-10 | 2-10 | 2-10 | |
12 | Max. Die cutting size | mm | 1200×2300 | 1400×2700 | 900×2100 | |
13 | Precision of die cutting | mm | ±1 | ±1 | ±1 | |
14 | Die cutting paperboard thickness | mm | 2-10 | 2-10 | 2-10 | |
15 | Print roller axial direction adjustment | mm | ±10 | ±10 | ±10 | |
Lead edge feeder
1. Adsorption lead edge feeding system.
2. With Dust extraction device.
3. Operation control switch (PLC computer control). The control panel is equipped with a 10-inch touch screen, which can control the Lead edge feeding unit, printing unit,
slotting unit, die cutting unit, and is easy to operate.
4. Automatic zero device.
2. With Dust extraction device.
3. Operation control switch (PLC computer control). The control panel is equipped with a 10-inch touch screen, which can control the Lead edge feeding unit, printing unit,
slotting unit, die cutting unit, and is easy to operate.
4. Automatic zero device.
Printing unit
1. Metal anilox roller with rubber roller. Dpi: 220~280
2. Ceramic anolix roller with doctor blade. Dpi: 300~450
3. The printing plate roller adopts the frequency converter to adjust the phase, and the zero return and the plate adjustment speed are fast, and the adjustment precision is high.
2. Ceramic anolix roller with doctor blade. Dpi: 300~450
3. The printing plate roller adopts the frequency converter to adjust the phase, and the zero return and the plate adjustment speed are fast, and the adjustment precision is high.
Slotting unit
1. It is equipped with PLC programmable control to synchronize the axial movement of the left and right synchronous transport, so
that the upper and lower creasing wheel, upper and lower slotter knife, synchronous adjustment, adjust the box height by
electrical, and with memory storage function.
2. Adjust the knife by computer automatically and correction automatically.
3. Groove interval, box height, PLC and rotary encoder control, automatic adjustment.
4. With touch screen, automatically detect and adjust through the PLC and rotary encoder, and call up the storage menu.
5. Two sets pre-creasing wheel,and one set main creasing wheel, for avoid the paperboard damage when slotting.
that the upper and lower creasing wheel, upper and lower slotter knife, synchronous adjustment, adjust the box height by
electrical, and with memory storage function.
2. Adjust the knife by computer automatically and correction automatically.
3. Groove interval, box height, PLC and rotary encoder control, automatic adjustment.
4. With touch screen, automatically detect and adjust through the PLC and rotary encoder, and call up the storage menu.
5. Two sets pre-creasing wheel,and one set main creasing wheel, for avoid the paperboard damage when slotting.
Rotary die cutting unit
1. When the paper is stopped, the soft roll automatically rises to reduce the wear of the soft roller.
2. The gap between the knife mould roller and the rubber padding roller is adjusted by electric power, and the parameters can be set,and the adjustment data can be displayed.
die cutting roller adopts three planetary structure, high precision, large bearing capacity, stop, can be 360 ° electric digital
operation adjustment.
2. The gap between the knife mould roller and the rubber padding roller is adjusted by electric power, and the parameters can be set,and the adjustment data can be displayed.
die cutting roller adopts three planetary structure, high precision, large bearing capacity, stop, can be 360 ° electric digital
operation adjustment.
Stakering unit
1. The paper separating section, the transmission section, the delivery section, and the connecting friction belt drive the cardboard.
2. the paper delivery department cardboard automatically slides down to the delivery table and automatically rises by photoelectric control.
3.the cylinder flap Automatic clamping, the hydraulic trailer stretches into the silo board to unload the board. At the same time, the cardboard continuously slides into the delivery section, and then the stacking section descends (electrically), to the lowest point, automatically stops lifting, and the cylinder is turned on automatically at the same time ,
Machine Details
Transmission gear:
High precision grinding teeth.
Printing/Anilox/Rubber/Bottom printing roller:
Computer dynamic balance correction, grinding and hard chromium plating
Electrical parts.
Siemens(Germany)
Schneider(Germany)
Delta (Taiwan).
Schneider(Germany)
Delta (Taiwan).
Final samples
Packing & Delivery
Standard package with 40ft container
