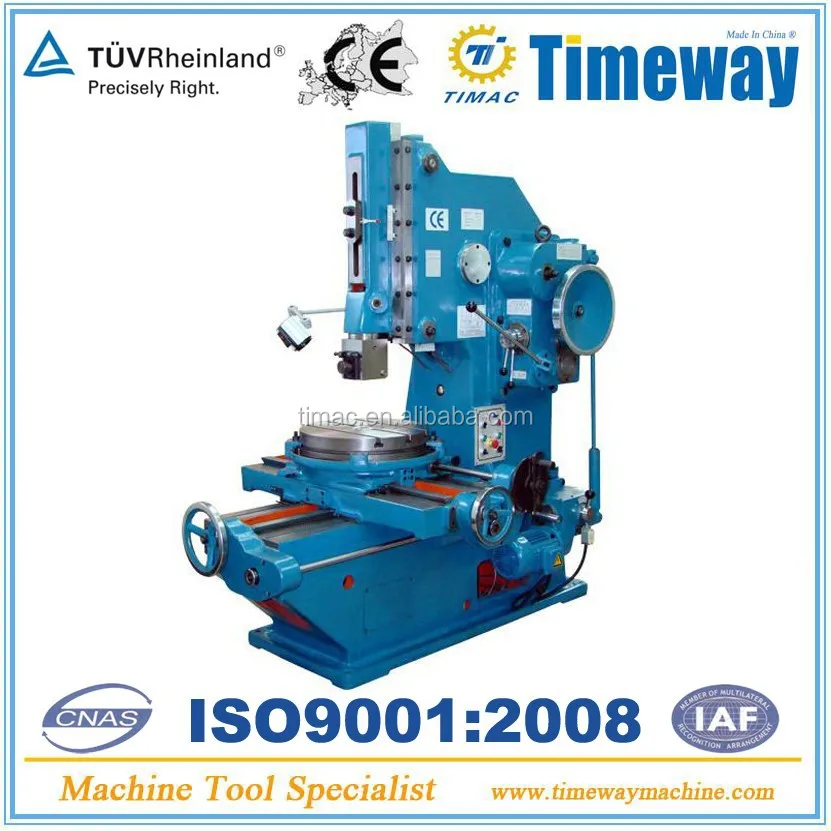

Rapid Feed Metal Slotting Planer Machine

Product Overview

Description

Vertical Slotting Machine / Planer



Features:

 1. This machine tool is used process planes, surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production workshop.
2. The main transmission mechanism is to transmit the throw-over motion of the rocker arm into the to-and-fro motion of the ram the operating plant form can move vertically and horizontally and revolve it is able to achieve automatic feed and hand operating feed Also it can move fast in case of breakdown, the platform will automatically stop feeding and achieve limit safety.
3. When the machine tool is started, stop using electromagnetic clutch so as to achieve concentration operation of the machine tool.
4. This machine is carefully designed and it is characteristic of standardization, generalization, serialization, high degree automation, also it is of reasonable distribution, compact structure, well-balanced proportion, good outer looks and convenient maintenance.
5. The lubrication of the machine tool is brought by the oil pump, and lubrication oil is transmitted to various points by the oil-transmitting rubes with convenient adjustment.
6. The electric equipment of the machine tool is fixed in the bed at the back part of the lower bed it is safe and reliable because there are concentrated push buttons in the upper bed.
7. As for other power source conditions raised by the customer. Special orders of goods supply can be affected through negotiation.

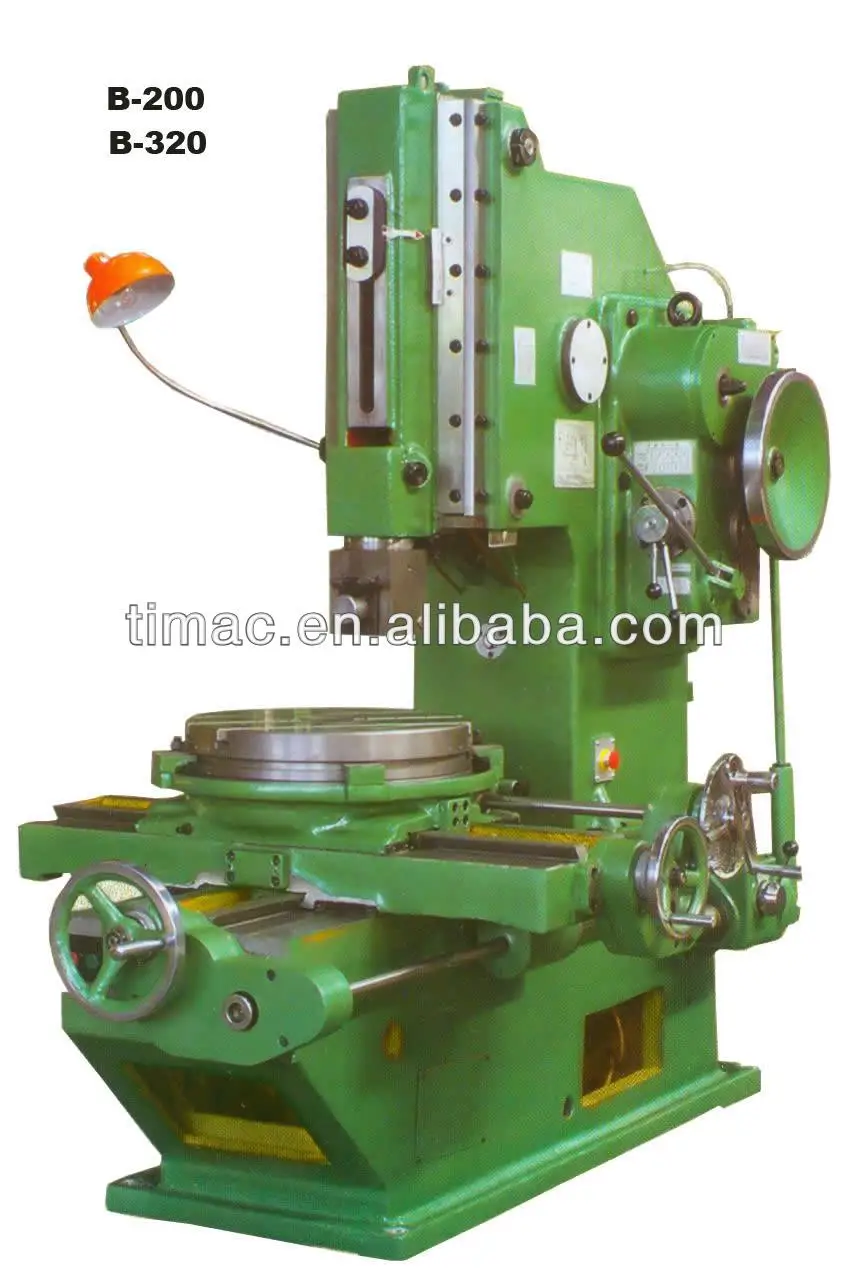

Specification	Unit	B-200D	B-320D
Max. slotting length	mm	200	320
Max. dimensions of workpiece(L×H)	mm	485×200	600×320
Max. weight of workpiece	kg	400	500
Max. cutting force	N	5500	7500
No. of strokes per minutem	mm	32,50,80,125	20.32.50.80
Vertical ajustment of ram	mm	230	315
Inclination of ram		0-8deg	0-8deg
Distance between tool holdingsurface and column front	mm	485	600
Max.tool shank size (W×H)	mm	25×40	25×40
Table diameter	mm	500	630
Distance between table surface and low end of ram	mm	320	490
Max.longitudinal travel of table	mm	400/450	480/620
Max. cross travel of table	mm	450/500	480/560
Max. rotary angle of table		360deg	360deg
Range of table longitudinal and cross power feeds	mm	0.08-1.21	0.08-1.21
Range of table power feeds		0.052-0.783deg	0.052-0.783deg
Power of main drive motor	kw	3	4
Rotating speed of rapid main drive motor	rpm	1430	960
Power of rapid feed drive motor	kw	0.75	0.75
Rotating speed of rapid feed drive motor	r.p.m	910	910
Overall dimensions (L*W*H)	mm	18355x1305x1980	2180x1505x2285
Weight(approx)	kg	2400	3500
