PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000
Sanyuan Brand plastic Mini PE Mini Film Blown extrusion Machine Price
- Category: Blown Film Production Line >>>
- Supplier: Ruian City Sanyuan Plastic Packing Machinery Co. Ltd.
Share on (1338814337):
Product Overview
Description

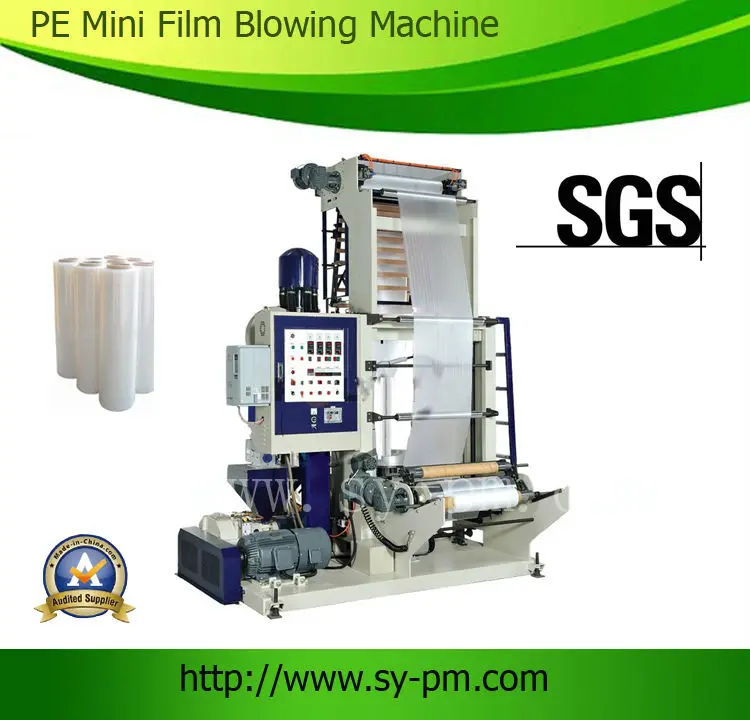

Sanyuan Brand plastic Mini PE Mini Film Blown extrusion Machine Price
Banner
|
MODEL |
SJ-45 |
|
FILM WIDTH(mm) |
200-500 |
|
FILM THICKNESS (mm) |
0.009-0.15 |
|
MAX.EXTRUSION OUTPUT |
LDPE50kg/hr, HDPE 40KG/HR |
|
SCREW DIAMETER(mm) |
Φ45 |
|
DRIVING MOTOR(Kw) |
15KW |
|
TEMPERATURE CONTROL |
3 |
|
AVERAGE POWER-CONSUME(Kw) |
15 |
|
DIE SIZE(mm) |
60/80 |
|
AIR BLOWER(Kw) |
3kw |
|
TAKE-UP SPEED(m/min) |
10-90 |
|
TAKE-UP MOTOR(Kw) |
0.75 |
|
WINDING MOTOR(N.m) |
10nm |
|
WINDING SPEED(m/min) |
10-100 |
|
COVER DIMENSION(m) |
3×1.8×3.7 |
|
SUITABLE MATERIAL |
HDPE LDPE LLDPE |
|
SCREW L/D LENGTH |
28:1 |
|
SCREW MATERIAL |
SACM-645/38 CRMOALA |
|
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
|
TEMPERATURE CONTROL |
3 |
|
AIR RING |
1 |
|
CENTER STEADY STICK |
2 |
|
HEIGHT ADJUSTABLE TYPE |
600mm |
|
TYPE |
SURFACE FRICTION TYPE |
-----------------------------------------------------------------------------------------------------------------------------
Die head unit
1. Die head diameter: 50mm or 70mm
2. Die head gap: 1.8-2.0mm
3. Screw and motor heating power: 12kw
4. Motor heater: Stainless steel heater
5. Motor material: 45# Hard chrome plating inside of the motor
------------------------------------------------------------------------------------------------------------------------------
Cooling device
1. Material: Cast aluminium air ring (Air cooling)
2. Blower, Air compressure
-----------------------------------------------------------------------------------------------------------------------------
Traction System
1. Steel structure: Has security platform and security fence.
2. Guide roller length: 500-700mm
3. Guide roller material: rubber
4. Traction motor: 0.75kw 3 phase induction motor
5. Frequency control: EURA Brand
6. Rewind type: Single rolling friction
7. Rolling motor: 10N.M torque motor
8. Rolling speed: 3-60m/min
9. Finished roll diameter: 100-600mm
------------------------------------------------------------------------------------------------------------------------------
Film specification
1. Film width: 50-600mm (Folded width)
2. Film thickness: 0.008-0.10mm
3. Material: LDPE, HDPE, LLDPE
4. Output: 25-35 kg/h
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
