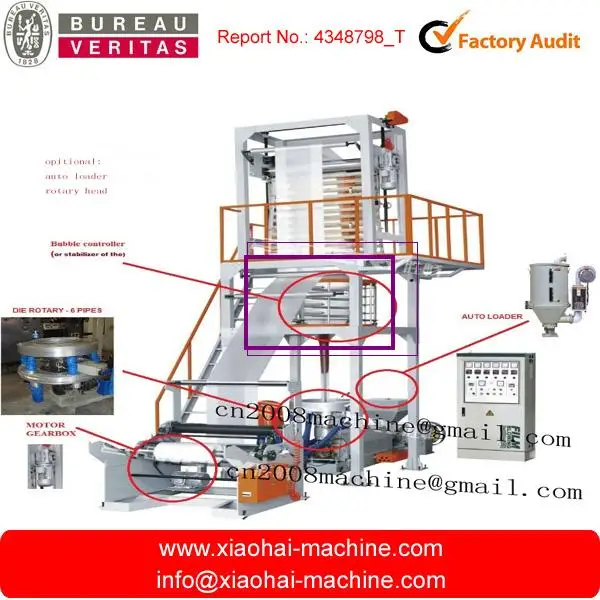

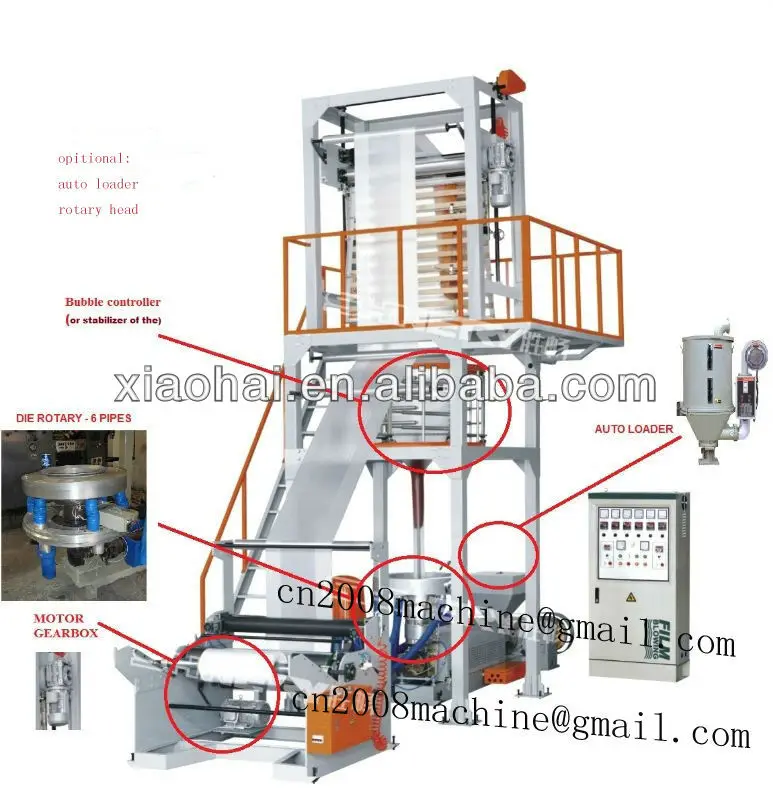

HAS VIDEO new type blown film extrusion machine

 .jpg

Product Description

  film blowing machine, film blown machine, film machine,plastic film blowing machine, pe film blowing machine, blow film machine



Machine Name:                    film blowing machine set





Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.

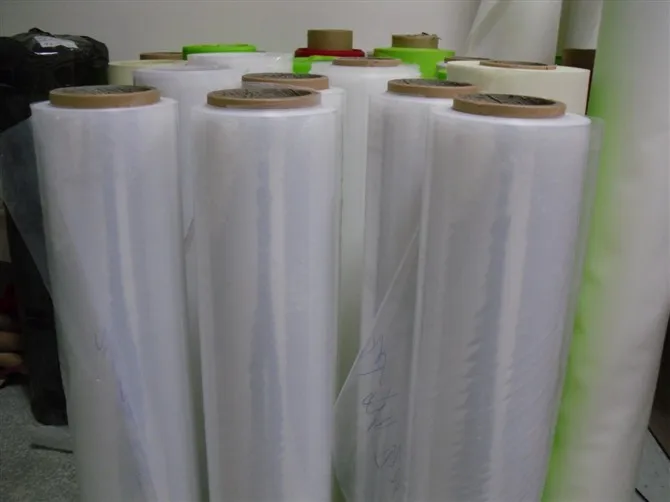

2.The film is widely used for packing bag,such as T-shirt bag, shopping bag, clothing bag, garbage bag and agriculture covering film etc.

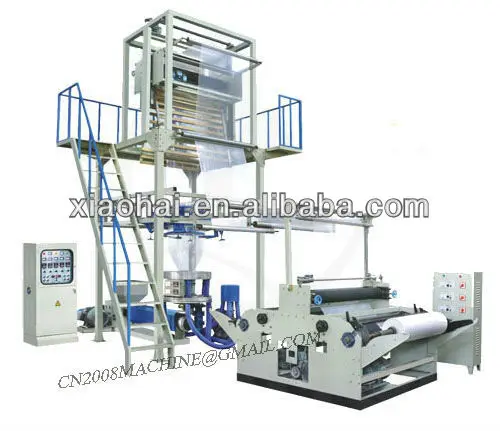

SJ-B Series is the machines with double rewinder and rotary head.

SJ-A Series is the machines with single rewinder and without rotary head

also you can indicate the device you want



Specification:





Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.



2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc







Specification:



Model No.

SJ-A50

SJ-A55

SJ-A60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single Side Thickness of Film

0.008-0.08mm

0.008-0.08mm

0.008-0.08mm

Power of Main Motor

11KW

15KW

18.5KW

Output

30kg/h

40kg/h

50kg/h

Total Power

18Kw

22Kw

26Kw

Weight of Machine

1500kg

1800kg

2100kg

Dimension(mm)

4800x1800x3600

5000x2000x4000

5200x2200x4400







Model No.

SJ-B50

SJ-B55

SJ-B60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single side thickness of Film

0.008-0.08mm

0.008-0.08mm

0.008-0.08mm

Power of Main Motor

11KW

15KW

18.5KW

Output

40kg/h

50kg/h

60kg/h

Total Power

22Kw

26Kw

30Kw

Weight of Machine

2000kg

2300kg

3000kg

Dimension(mm)

5700x1800x3600

6000x2000x4000

6500x2200x4500



see the process:

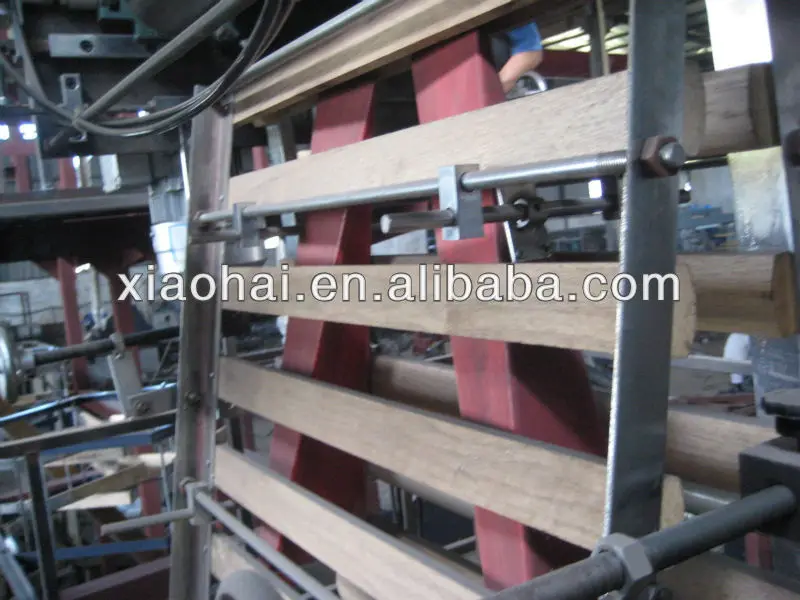

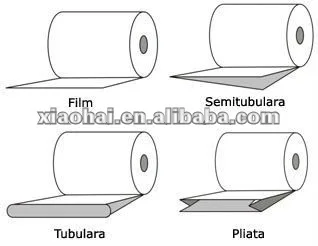

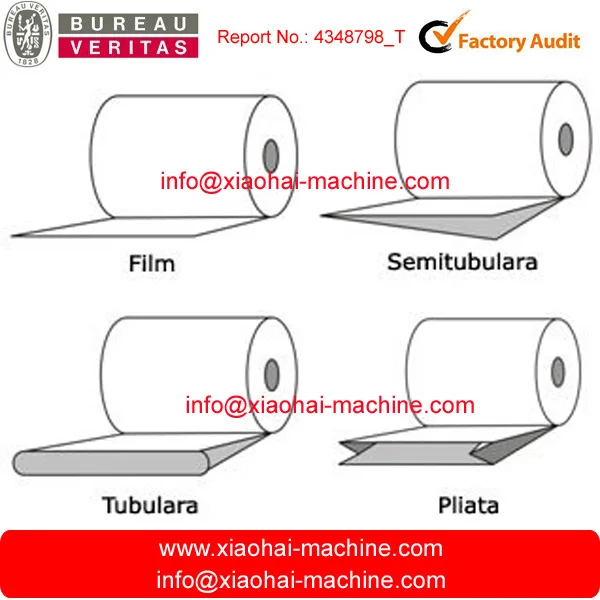

This is the gusset to make the edge fold

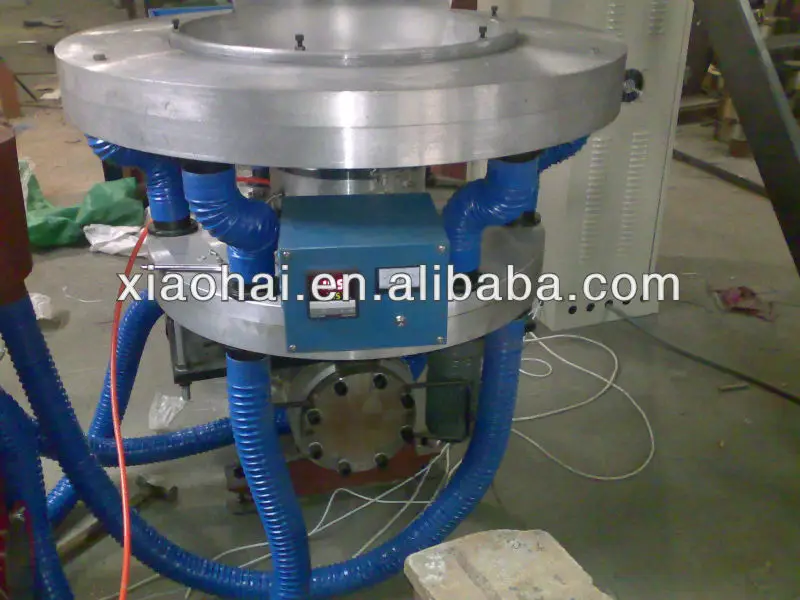

the rotary head:
