Plastar 1500 мм пластик АБС-пластик 3-слой пленки дуя машина

Share on:


Price:110 000,00 $ - 120 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description





Products Description




Product Application

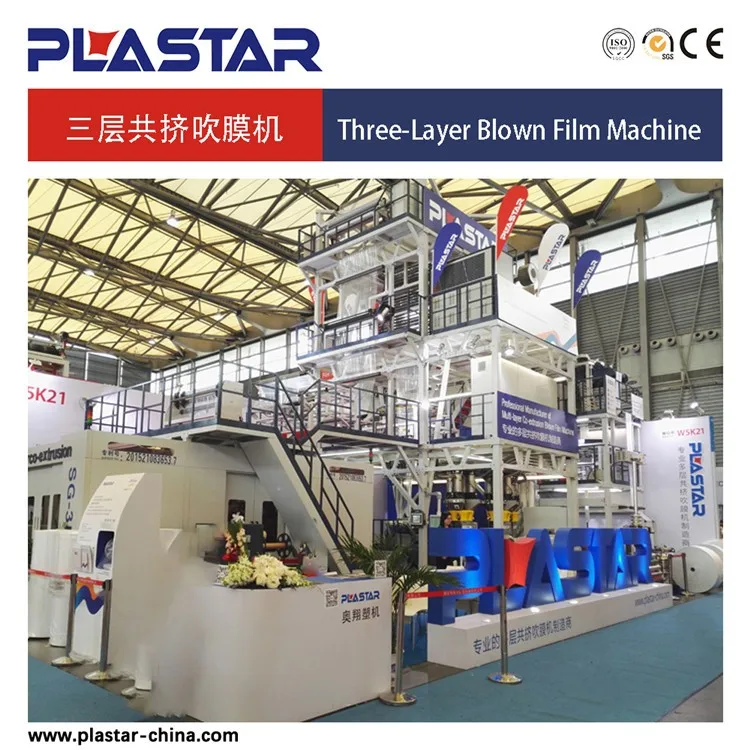

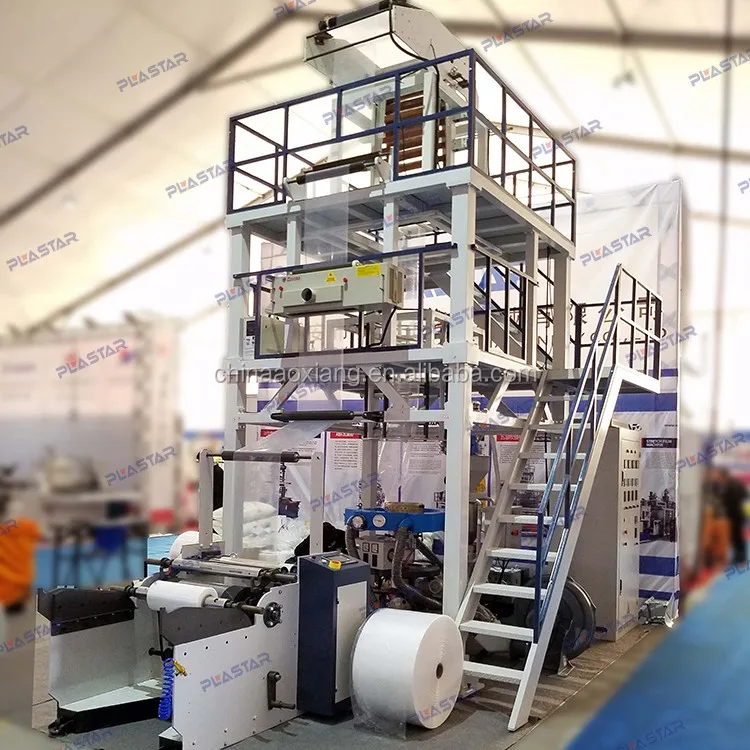

The production line of ABA three-layer co-extrusion blown film machines produced by our company can realize more energy-saving and flexible production applications at lower costs. For the production line of ABA three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion. One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.




Model
SD-2LABA800
SD-2LABA1000
SD-2LABA1200
SD-2LABA1500
Suitable Material
HDPE/LDPE
Film Width
800 mm
1000 mm
1200 mm
1500 mm
Film Thickness
0.008 - 0.1mm
0.08 - 0.15 mm
0.08 - 0.15 mm
0.02 - 0.2 mm
Max. Output
100kg / h
120kg / h
120kg / h
200kg / h


Extruder
Screw Diameter
55mm; 55mm
55mm; 55mm
55mm; 65mm
55mm; 75mm
Screw L/D
30:1
Barrel Cooling
Water Cooling
Main Motor Power
22kw; 22kw
30kw; 30kw
22kw; 37kw
22kw; 45kw
Total Power
70kw
100kw
100kw
105kw
Die Head
Die Head Type
Three layers ABA die head
Air Ring
Double lips air ring
Traction Roller Width
1000 mm
1200 mm
1400 mm
1700 mm
Effective Width
800 mm
1000 mm
1200 mm
1500 mm
Traction Speed
120m / min
100 m/min
100 m/min
80 m/min


Winding Unit
Wingding Type
Friction type automatic single / double winder
SD-60
SD-65
SD-80
Wingding Speed
120m / min
100 m/min
80 m/min
60 m/min
Voltage
380V, 50Hz
0.08 - 0.15 mm
0.08 - 0.15 mm
0.02 - 0.2 mm
Dimension
5000 * 3000 * 6500 mm
6000 * 4000 * 7000 mm
6000 * 4000 * 6500 mm
6000 * 4000 * 8500 mm
Weight
4.5 T
5 T
5 T
5.5 T







MAIN EXTRUDER
Name:main motor/gear box/screw/screen changer/die head
Original: china

plastify PE materials by main extruder,control maerials important parts.die head technology decide the film quality.

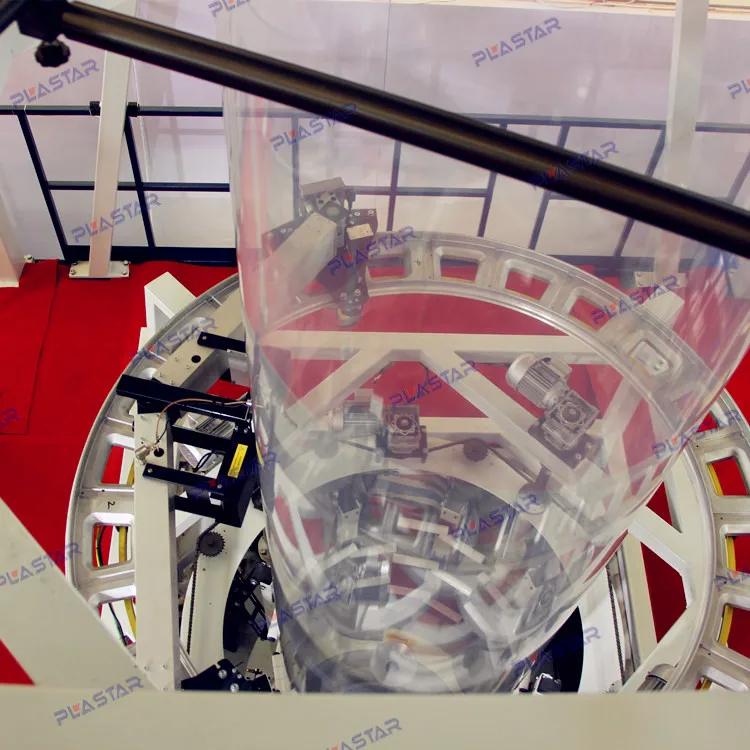

BUBBLE STABILIZING FRAME
structure:circle type.
adjust type:by manual.

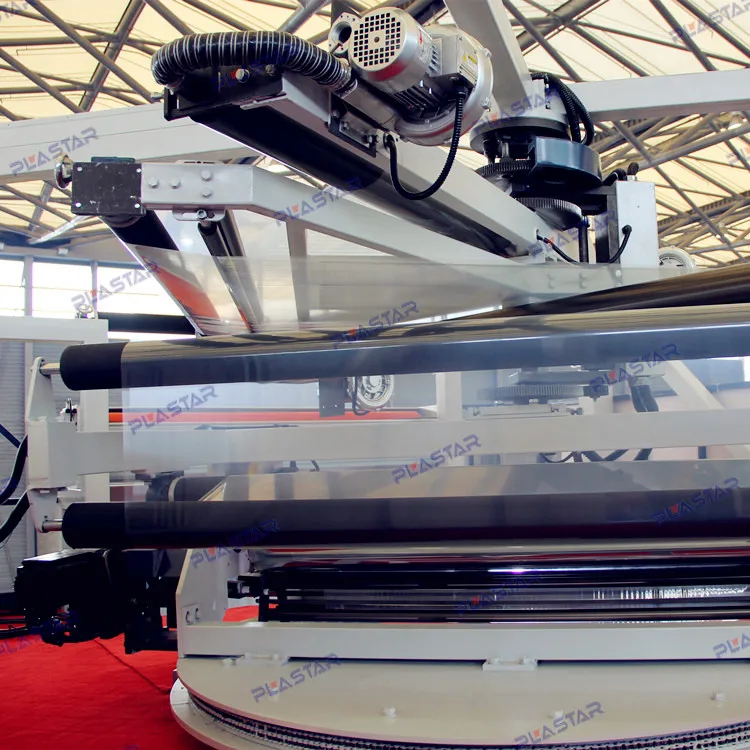

MANUAL SINGLE WINDER
main winder motor:1.1kw
main winder motor inverter:1.1kw
main winder steel roller:1pcs




Specifications are subject to change without notice for improvement mini 600mm HDPE plastic bag film extruder are standard typeblown film machine, normally we have 2-3pcs machine in-stock, if you need a ready machine, please confirm with us at first.
Main Features

1) Simple structure with automatic device, easy installation, and maintenance.
2) High output and stable running machine, maxoutput: 50kg/h.
3) use virgin material, the machine can make a thin film, the thickness: 0.006mm.
4) loss-in-weight gravimetricsystem, control extruding output, and thickness. gram/meter.
5) winding roller can handle a heavy film roller. the max film roller can be 1100mm in diameter.
6) easy change film roller design, when the film roller full, just move the arm to change the airshaft. and easy to cut.




Company Profile






Factory pictures




Certifications




Exhibition




Packing & Delivery




FAQ


Question 1. Why should buy from us not from other suppliers?
We are famous and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable. we also have our own CNC center for making die head for machine.

Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.

Question 3. What are the main markets of your blown film machines?

As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.

Question 4. What is the general delivery time of blown film machines?

The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.

Question 5. How long is the warranty period of blown film machines?

All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.

Question 6. Can I visit the blown film machine production plant and watch the commissioning process?

Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.

Question 7. Where is the blown film machine factory?

Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.

Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?

We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.

Question 9. What is the payment method for blown film machine orders?

We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
