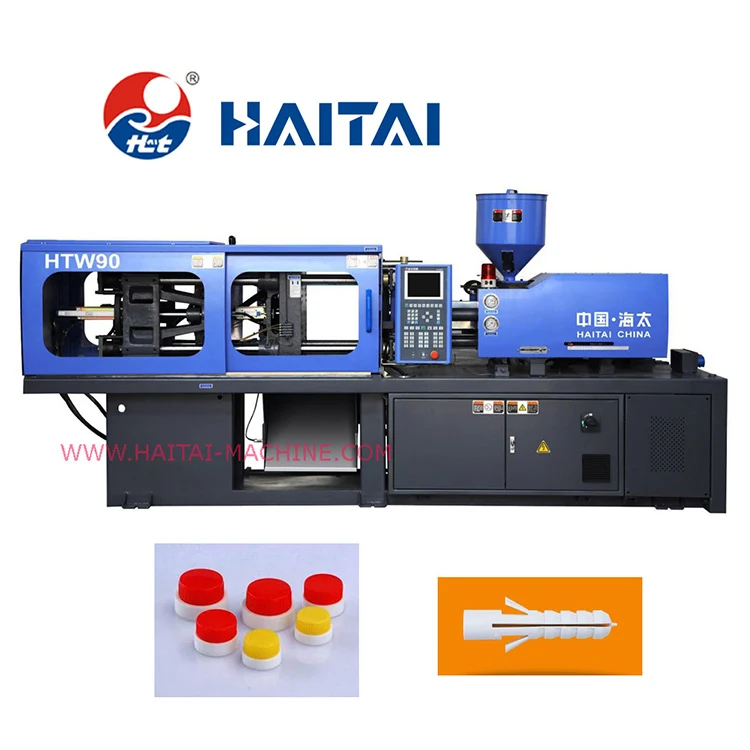

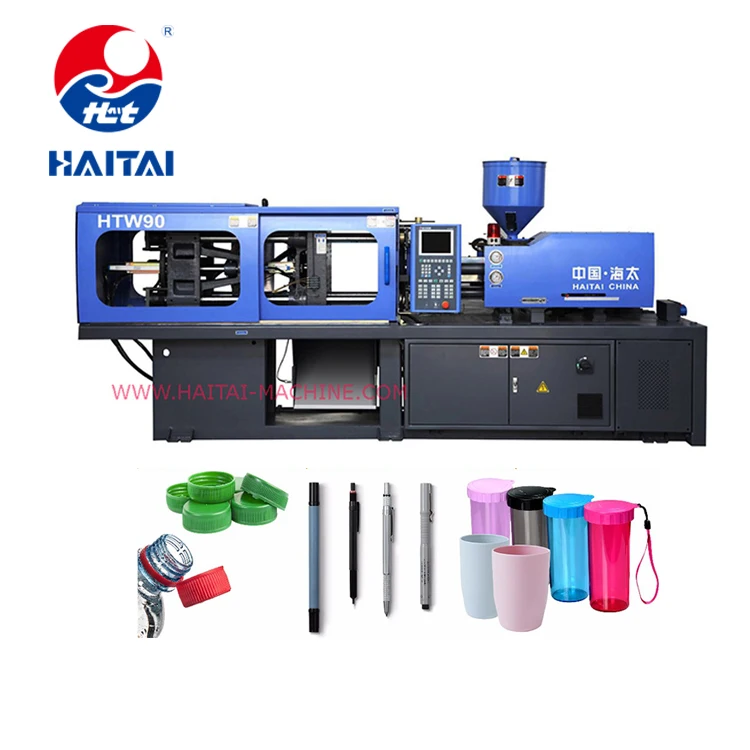

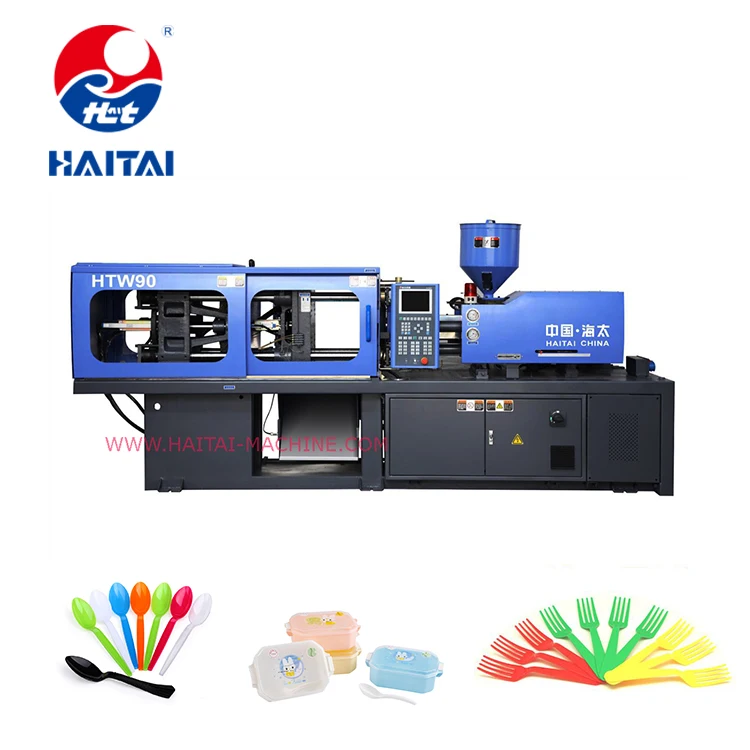

HTW90 pet preform plastic injection machine price,latest price injection molding machine
- Category: Injection Molding Machines >>>
- Supplier: Ningbo Haitai Industry And Trade Co. Ltd.
Share on (1339495995):
Product Overview
Description
HAITAI
1. SPECIFICATIONS
Advantage: Strong Technical design ability, Stable quality, and large production capability, Famous brand.
HTW/JD servo energy saving Injection Molding Machine, equipped with high performance servo motor controlling system, the machine's output power can vary in accordance with the loading changes,which
reduce energy consumption and noise. The motor rotates at lower speed in holding pressure stage, and doesn't work in cooling time.
The Performance of servo energy-saving molding machine:
- Servo motor can optimize the match of energy demand and realize automatic adjustments.
- It can improve injection precision
- It can greatly save power and water, resulting in environment-protection and energy-saving
- Quick response and low noise.
2. TECHNICAL PARAMETERS
SPECIFICATION | HTW90 | ||||
| A | B | C | D | |
INJECTION UNIT |
| ||||
Screw diameter | mm | 30 | 32 | 35 | 38 |
Screw L/D ratio | L/D | 23.5 | 22 | 20.1 | 18.5 |
Shot volume(theoretical) | cm3 | 117 | 133 | 158 | 187 |
Injection weight(ps) | g | 106 | 121 | 144 | 170 |
Injection rate | g/s | 71 | 81 | 97 | 115 |
Injection pressure | Mpa | 230 | 203 | 170 | 144 |
Screw pressure | rpm | 225 | |||
CLAMPING UNIT | |||||
Clamping force | kN | 900 | |||
Open stroke | mm | 320 | |||
Space between tie bars(W×H) | mm | 355×330 | |||
Max.Mold height | mm | 350 | |||
Min.Mold height | mm | 150 | |||
Ejector stroke | mm | 90 | |||
Ejector force | kN | 30 | |||
OTHERS | |||||
Max.Pump pressure | MPa | 16 | |||
Pump motor power | kW | 11 | |||
Heating power | kW | 7.55 | |||
Machine dimension(L×W×H) | m | 3.81×1.19×1.77 | |||
Oiltank cubage | L | 180 | |||
Machine weight | t | 2.8 | |||
| PLATEN DIMENSIONS |
|

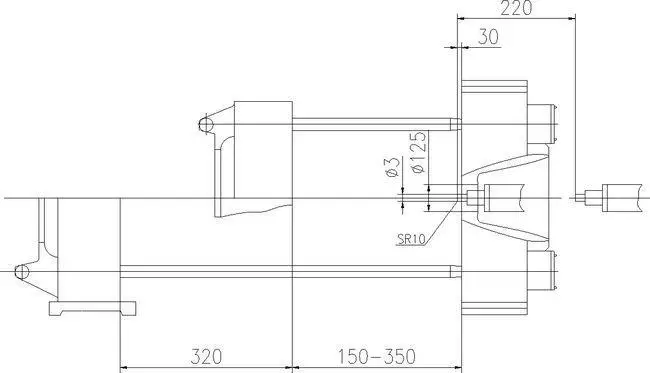

| MOULD SPACE DIMENSOINS |  |
